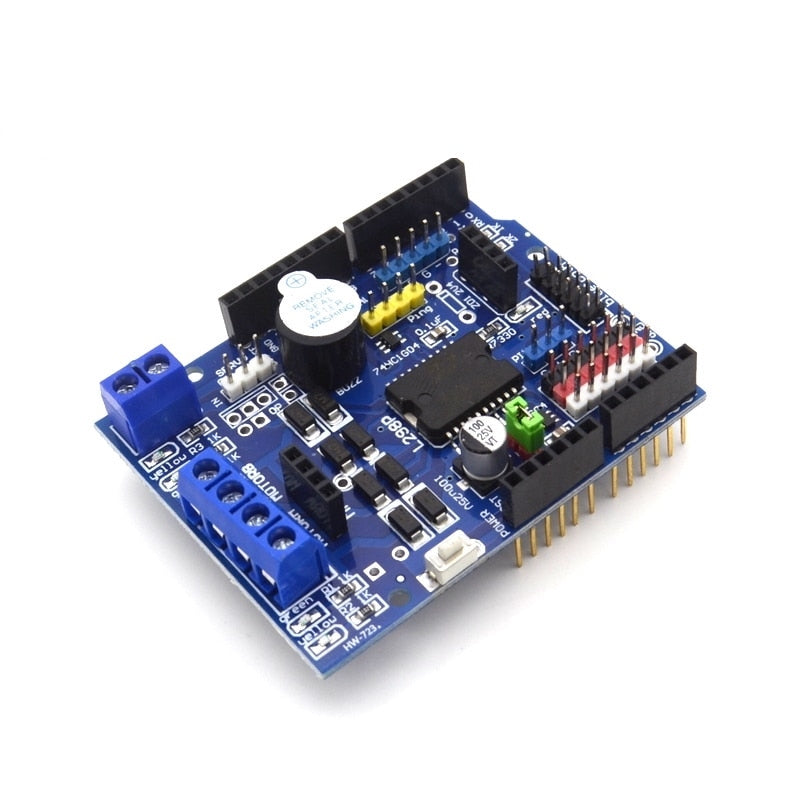

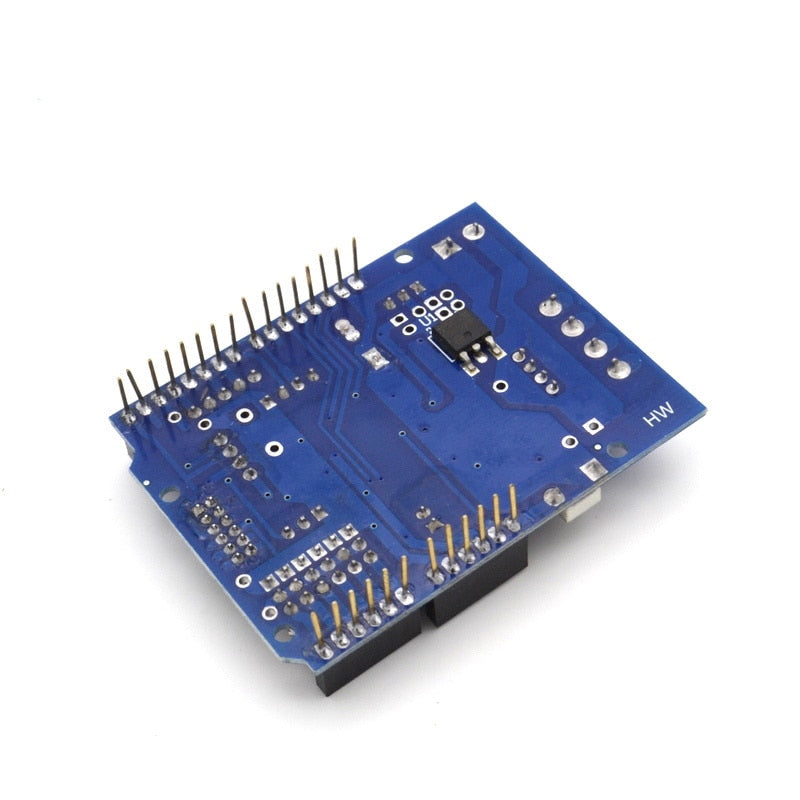

L298P 4-channel Motor Driver Shield

SKU: ARD2005

₹ 359.99 ~~₹ 855.00~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

L298P 4-channel Motor Driver Shield₹ 359.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.

The Shield Motor is based on the L298, a full bridge double designed to drive inductive loads such as DC solenoid relays and stepper motors. It allows you to drive two DC motors with your board, controlling the speed and direction of each one independently.

Features:

Operating voltage from 5 V to 12 V
Motor controller, L298P drives 2 DC motors or stepper motor
Maximum current 2A per channel or 4A Max (with external power supply)
Current detection 1.65 V / A
Connections for Bluetooth module, 8x Servos, and multiple sensors
On-board Buzzer
Function braking and coasting

Specifications

Resources

Datasheet

Sample Code

Tutorial

How many motors can the shield drive and what types are supported?

It can drive two DC motors or a stepper motor with independent speed and direction control for each motor.

What is the operating voltage range and current capability per channel?

Operating voltage is 5 to 12 V and the maximum current is 2 A per channel or 4 A with an external power supply.

Is this shield compatible with Arduino boards and what external connections are available?

Yes, it is compatible with the Arduino line of products as a shield and provides connections for Bluetooth modules, servos and multiple sensors.

Does the shield support braking and current sensing?

Yes, it supports braking and coasting and provides current detection at 1.65 V per Amp.

Are there resources to help with setup and programming?

Resources such as the datasheet, sample code and tutorials are available.
