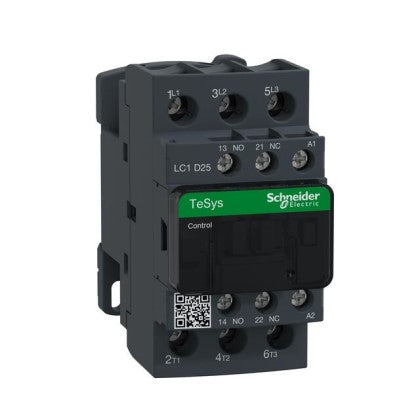

The Schneider Electric TESYS CTR 25A AC3 11KW 1NO1NC230 (Part Number: LC1D25P7) is a high-performance TeSys D contactor designed for motor control applications. Manufactured in France, this device offers reliable switching capabilities for resistive loads within industrial environments.
Key Features
Range: TeSys D
Device Type: Contactor
Poles: 3P (3 NO contacts)
Utilisation Category: AC-3
Rated Operational Voltage: <= 690 V AC
Rated Operational Current: 25 A at <= 440 V AC
Motor Power Capacity: Up to 15 kW at 660-690 V AC, 50/60 Hz
Control Circuit Voltage: 230 V AC, 50/60 Hz
Auxiliary Contacts: 1 NO + 1 NC rated at 6 kV
Electrical Durability: 1.4 to 1.65 million cycles depending on load
Mechanical Durability: 15 million cycles
Operating Time: 4-19 ms (opening), 12-22 ms (closing)
Standards Compliance: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
