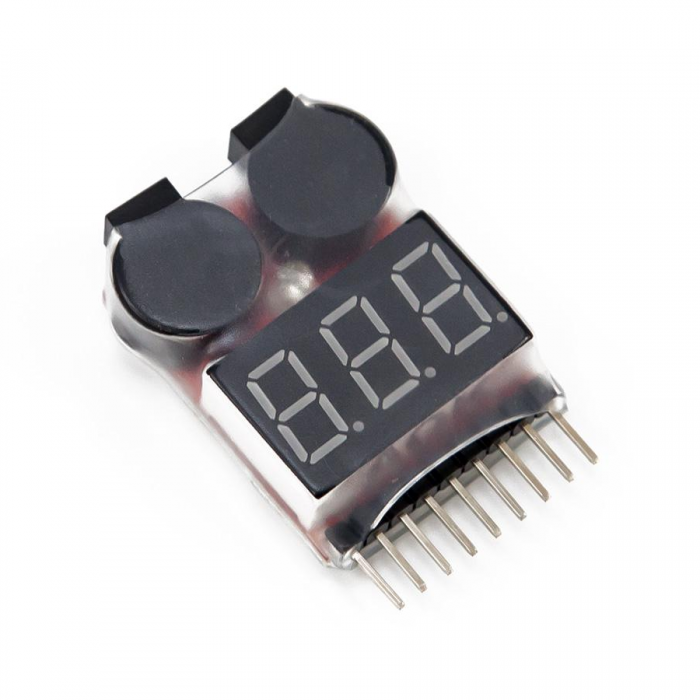

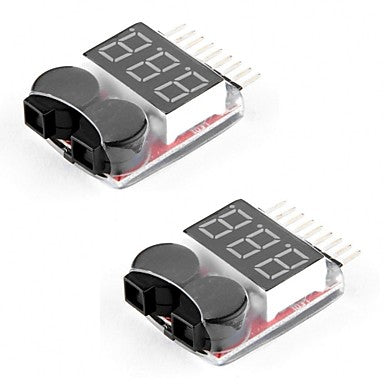

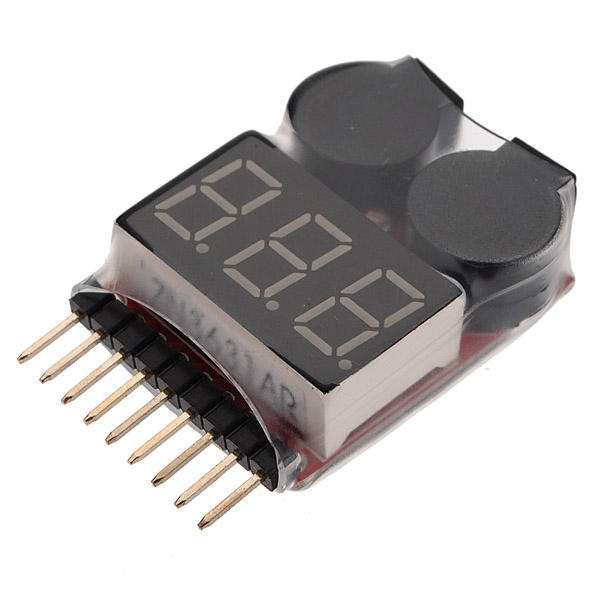

LiPo/Li-ion Battery checker

SKU: ELC1047

₹ 149.99 ~~₹ 190.00~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

LiPo/Li-ion Battery checker₹ 149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

This Lipo Low Voltage Alarm can be used to get the voltage from a lipo battery. It connects to the lipo battery's balance plug and outputs the voltage of the induvidual cells and the total voltage of the battery pack. It also has an onboard alarm that beeps when the battery voltage gets low. Use this alarm to stop draining the lipo battery completely and this increases battery life and preserves the battery performance.

The alarm is small and light specifically designed for use in quadcopters and mulitrotors. A loud alarm will sound with flashing LED if the voltage on any of the individual cell drops below the adjustable threshold.

We highly recommend using a LiPo Low Voltage Alarm all the time while using a Lithium Polymer Battery. Since if the voltage of any of the cells of a Lithium Polymer Battery drops below 3 volts, then that particular cell can be permanently damaged.

New and high quality.
Use for Lipo / Li-ion / LiMn / li-fe 1-8 s
Precision voltage detection: + _ v.
Display voltage range of the unit: 0.5-V
Total voltage display range: 0.5 36 V
1 s voltage range s test mode: 4-15 V
Low voltage alarm mode for 2-8 s
Value range of the alarm set: off 2.7 V

Specifications

Alarm set range (V)	2.7-3.8
Battery Input	1S-8S Battery
Battery Type	LiPO/LiFe/Li-Ion/LiMn
Cell voltage display range(V)	0.5-4.5
Height (mm)	12
Length (mm)	40
Pack voltage display range(V)	3.7-36
Weight (gm)	10
Width (mm)	25
Shipment Weight	0.085 kg
Shipment Dimensions	5 × 4 × 3 cm

Tutorial

How does the battery checker work and what does it display?

It connects to the battery balance plug and reads the voltage of each cell as well as the total pack voltage. The unit includes an onboard alarm that beeps and flashes an LED when the cell voltages fall below the adjustable threshold.

What battery configurations are supported?

It supports LiPo, LiFe, Li-Ion and LiMn chemistry for 1S to 8S configurations.

How do I set the alarm threshold and what are the display ranges?

The alarm threshold is adjustable from 2.7 to 3.8 volts per cell. It shows per cell voltages from 0.5 to 4.5 V and pack voltage from 3.7 to 36 V.

Is this item suitable for drones and multirotors?

Yes, it is designed for use in quadcopters and multirotors and it is small and lightweight for on board use.

Why should I use this alarm and what safety benefits does it provide?

Using the alarm helps prevent over discharge and protects cell life, since any cell below 3.0 volts can be permanently damaged.
