Compatible with the Arduinoline of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.

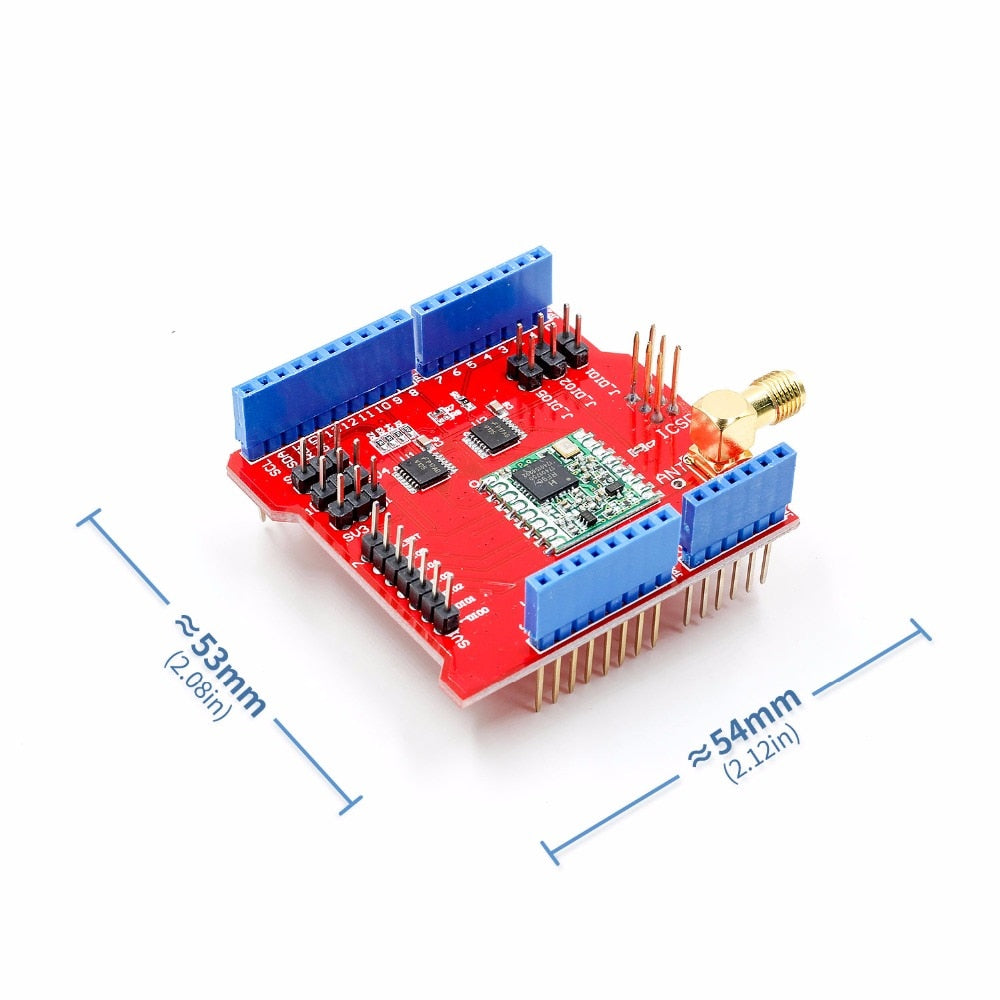

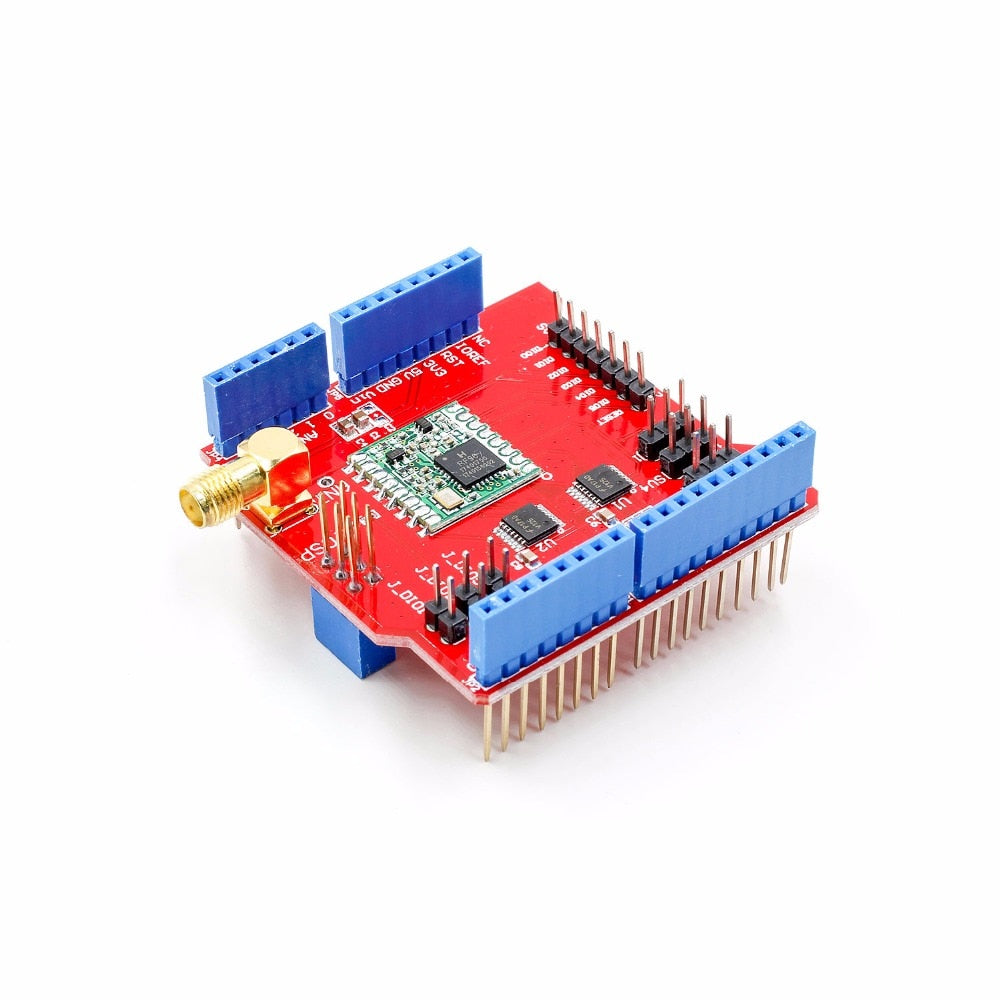

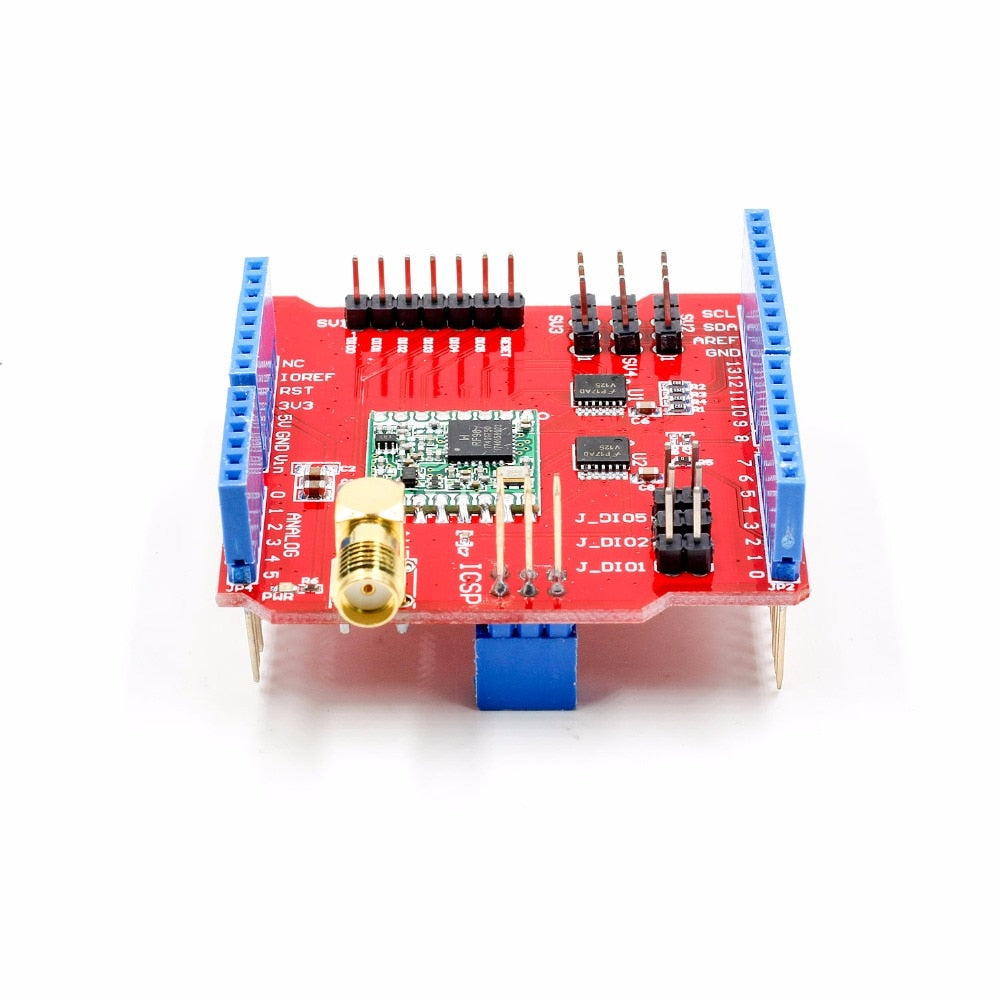

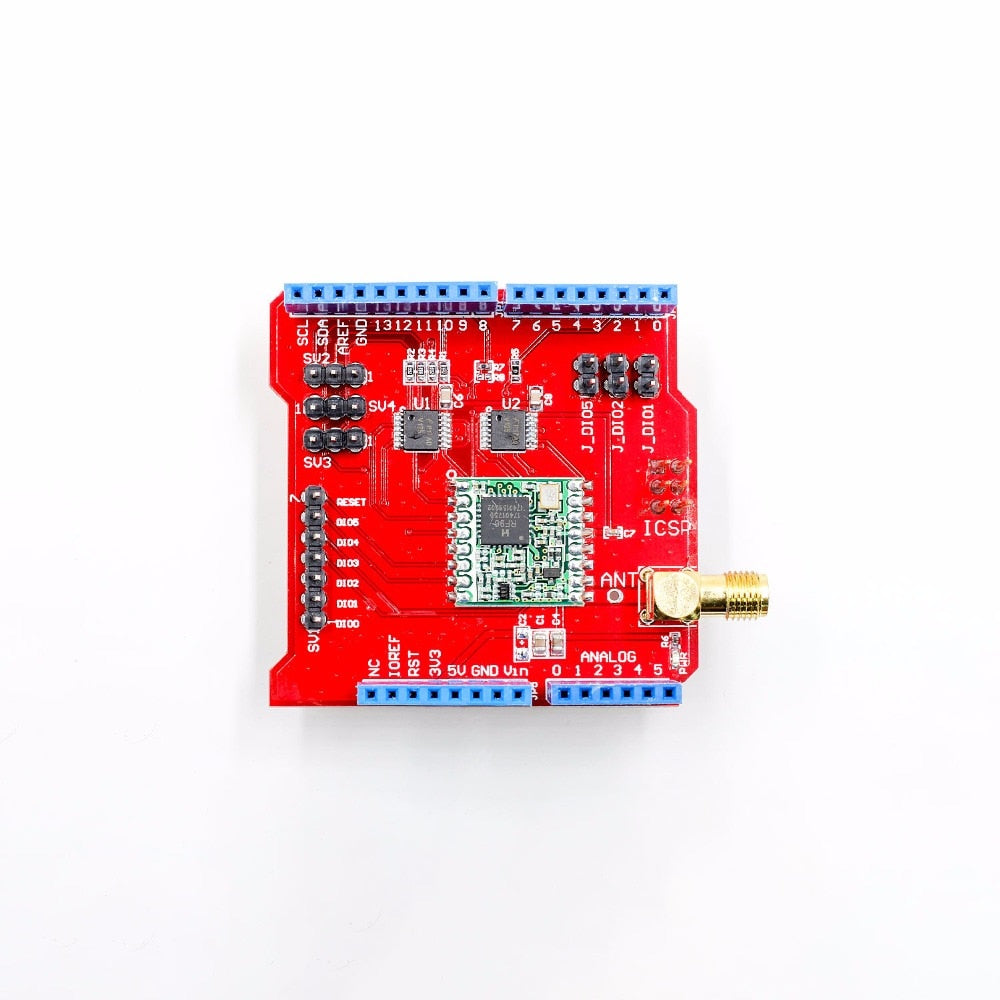

The Arduino LoRa Transceiver Shield is a long range Arduino LoRa shield, based on an open-source library. LoRa Shielding allows the user to send data and reach very long distances at very low data rates. It offers ultra-long range spectrum communication with high interference immunity while minimizing current consumption.
RFM95W-based LoRa Shield targets professional wireless sensor network applications such as irrigation systems, smart meters, smart cities, smartphone detection, building automation, and so on.
Features:
Compatible with 3.3v or 5v I/O Arduino Board.
Frequency Band: 433MHz / 868 MHZ or 915 MHZ (Pre-configure in factory)
Low power consumption
Compatible with Arduino Leonardo, Uno, Mega, DUE
External Antenna via SMA Jack
SX1276 LoRa Chip
Specifications for RFM96:
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
Preamble detection.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.
