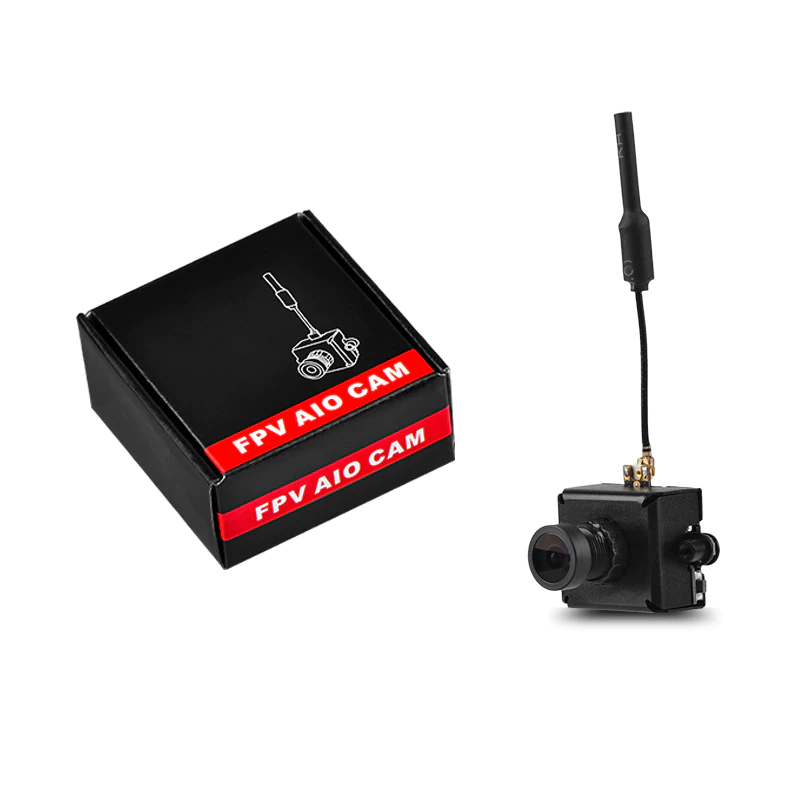

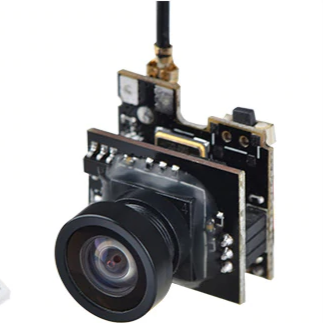

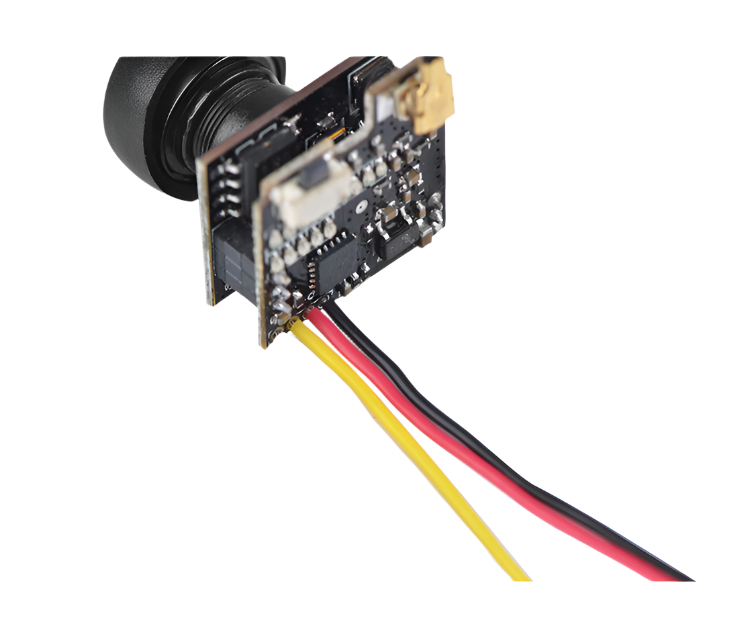

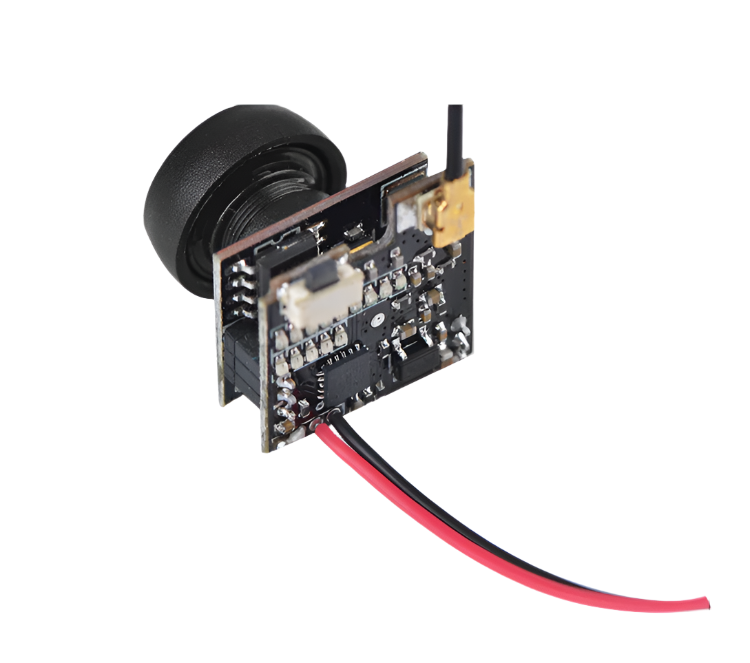

LST-S2 FPV AIO Camera with Transmitter & osd

SKU: DRO8001

₹ 2,499.99 ₹ 3,299.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
LST-S2 FPV AIO Camera with Transmitter & osd₹ 2,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

All-in-one FPV video transmitter, super small volume and light weight
Horizontal viewing angle: 150 degree FOV, squint angle: 170 degree DFOV
40 channels with Race band

Specifications

FPV Camera
Sensor: 1/4 inch CMOS
Lens: M8 800TVL
Format: NTSC / PAL ( switchable )
Power consumption: 380mA 3.7V
Power: 3.6 - 5.5V
Lens mirror diameter: 2.1mm IR coated FOV 150 degree ( horizontal)

Video Transmitter
Support video format: NTSC / PAL
Output impedance: 75 ohm
Output signal strength: 23 - 24dBm
Output power: 25mW
Wireless channel: 40CH

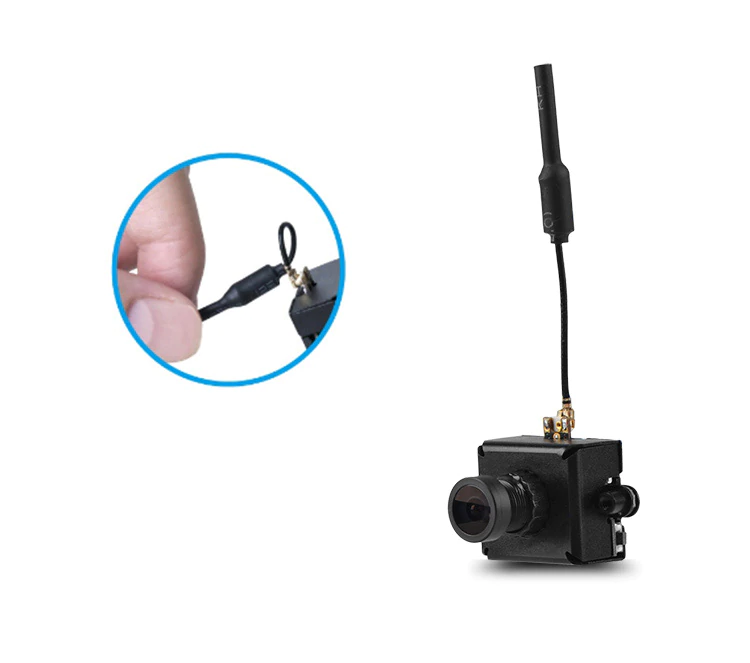

Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V - 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button Function
Short press ( 1 sec or less ): change channels 1 - 8
Long press ( 1.5 sec ): change bands A - B - E - F - R
Long press ( 3 sec ): change NTSC/PAL system
Blue LED on = NTSC, blue LED off = PAL

Tutorial



What video formats and channels does the unit support?
The device supports NTSC or PAL switchable video format, 40 channels with Race band, 75 ohm output impedance, and 25 mW output power with a signal strength of 23-24 dBm.
How do I change channels and bands on this transmitter?
Short press (1 second or less) changes channels 1 to 8. Long press (1.5 seconds) cycles through bands A, B, E, F and R. A longer press (3 seconds) switches between NTSC and PAL.
What are the electrical specifications for voltage and current?
Operating voltage range is 3.6 to 5.5 volts. Current draw is about 100 mA, with a listed power consumption of 380 mA at 3.7 V.
What are the antenna and video output characteristics?
The unit uses a RHCP clover leaf antenna with 75 ohm output impedance and about 25 mW output power. Video format is NTSC or PAL.
Is warranty or return information available for this item?
Warranty and returns information are not specified here. Please consult ThinkRobotics or the seller for the exact policy.
