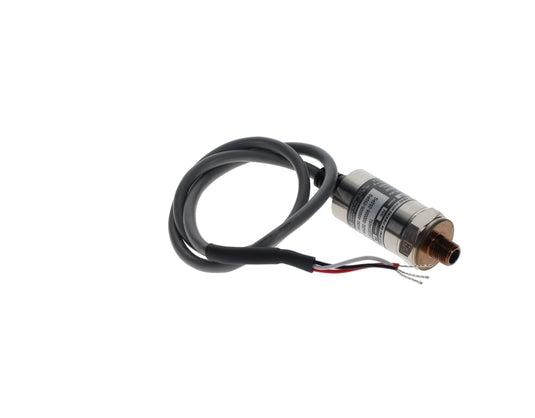

TE Connectivity PRESS XDCR M5231-000006-050PG
Part Number: M5231-000006-050PG
Manufacturer: TE CONNECTIVITY SENSORS
Country of Origin: CN
Unit of Measure: EA
ECCN: Not specified
Package Type: Not specified
Datasheet: Download Datasheet
Product Features
Heavy Industrial CE Approval
10 V/m EMI Protection
Reverse Polarity Protection on Input
Short Circuit Protection on Output
High Accuracy of ±0.25%
Total Error Band of ±1.0%
Compact Outline Design
Operating Temperature Range: -40°C to +125°C
Weatherproof Construction
Applications
Industrial Process Control and Monitoring
Advanced HVAC Systems
Refrigeration Systems
Automotive Test Stands
Off-Road Vehicles
Pumps and Compressors
Hydraulic and Pneumatic Systems
Agriculture Equipment
Energy Generation and Management
Technical Specifications
Feature
Details
Pressure Range
0 to 50 psi (0 to 3.5 Bar), 0 to 100 psi (0 to 7 Bar), 0 to 200 psi, 0 to 300 psi (20 Bar), 0 to 500 psi (35 Bar), 0 to 1k psi (70 Bar), 0 to 3k psi (200 Bar), 0 to 5k psi (350 Bar), 0 to 7k psi (500 Bar), 0 to 10k psi (700 Bar), 0 to 15k psi (1k Bar). Intermediate ranges available upon request.
Performance
Long-term stability within ±0.25% F.S., Total Error Band of ±1.0% (17-4PH), ±1.5% (316L ≤3k psi), ±2.0% (>3k psi). Overpressure proof: 2X rated, Burst pressure: 5X rated.
Operating Temperature
-40°C to +125°C (except cable: max 105°C)
Supply Voltage
Voltage or Current Output options available; typical current consumption: 5mA
Wetted Materials
17-4PH or 316L Stainless Steel, optional stainless-steel snubber
Electrical Protection
Reverse wiring and short circuit protection included
CE Compliance
EN 55022 Emissions, IEC 61000-4 series immunity standards
Shock & Vibration
Shock: 50g, 11ms half sine; Vibration: ±20g (MIL-STD-810C)
Dimensions & Connection Options
Connection Type
Dimension (A)
Cable 2 ft
2.19 in [55.6 mm]
Packard Connector A
2.25 in [57.2 mm]
Bayonet Connector
1.94 in [49.5 mm]
Form C
1.95 in [49.5 mm]
Form A1
2.10 in [53.3 mm]
M12 Connector
1.95 in [49.5 mm]
Cable 1 M
2.19 in [55.6 mm]
Cable 2 M
2.19 in [55.6 mm]
Cable 5 M
2.19 in [55.6 mm]
Cable 10 M
2.19 in [55.6 mm]
Pressure Port Types
Code
Port
Dimension B
Dimension C (ref.)
2
1/4-19 BSPP
0.547 in [13.9 mm]
0.366 in [9.3 mm]
3
G3/8 JIS B2351
0.615 in [15.6 mm]
0.366 in [9.3 mm]
4
7/16-20UNF MALE SAE J1926-2
0.508 in [12.9 mm]
0.366 in [9.3 mm]
5
1/4-18 NPT
0.600 in [15.2 mm]
0.366 in [9.3 mm]
6
1/8-27 NPT
0.390 in [9.91 mm]
0.366 in [9.3 mm]
Wiring & Connection Details
Wiring Type
Connection
Color/Pin
Voltage Output
+SUPPLY
Red / Pin 1
+OUTPUT
White / Pin 2
COMMON
Black / Pin 3
For custom configurations and further technical details, please refer to the datasheet .
Note: This product is RoHS compliant. Please review the datasheet for detailed specifications and application guidelines. The datasheet was not processed; please search the internet for the part number for more details.
