Meskernel LDL-20 Infrared Laser Precision Range Sensor (20m)
Meskernel LDL-20 20m Laser Distance Sensor 1mm Accuracy LDL is a high-precision Laser Ranging Sensor
Your browser does not support our video.
Specifications:
Accuracy
±1mm
Units of measurement
mm
Measure distance
0.03-20 meters
measure time
0.35~4 seconds
Laser standards
Class II
operating temperature
0-40 ℃ （32-104 ℉ ）
Storage temperature
25~60 ℃ (-13~140 ℉)
Voltage
DC 2.5~3.3V

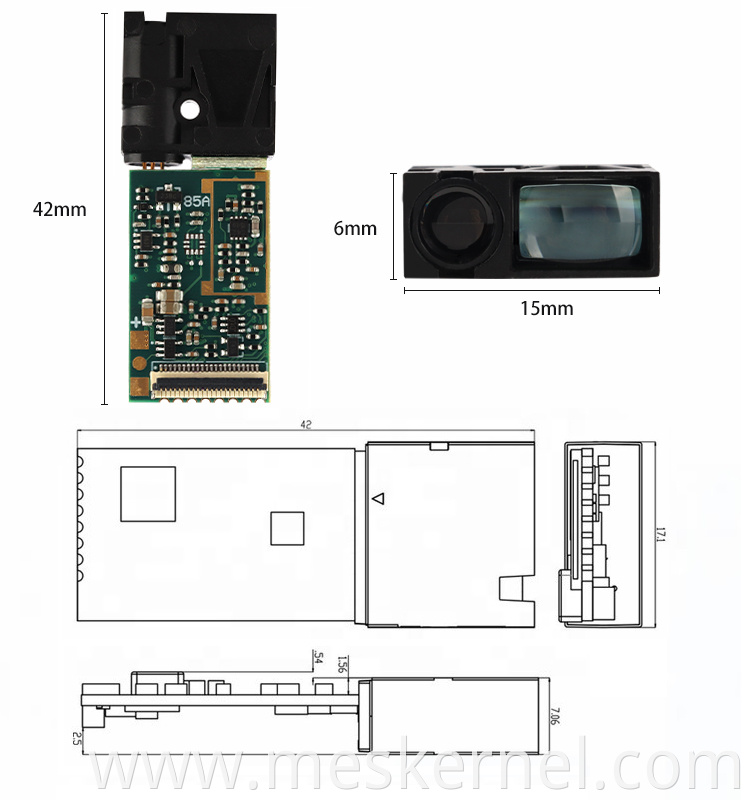

size
42*15*6mm
weight
4g
LDL Laser Measuring Sensor
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
