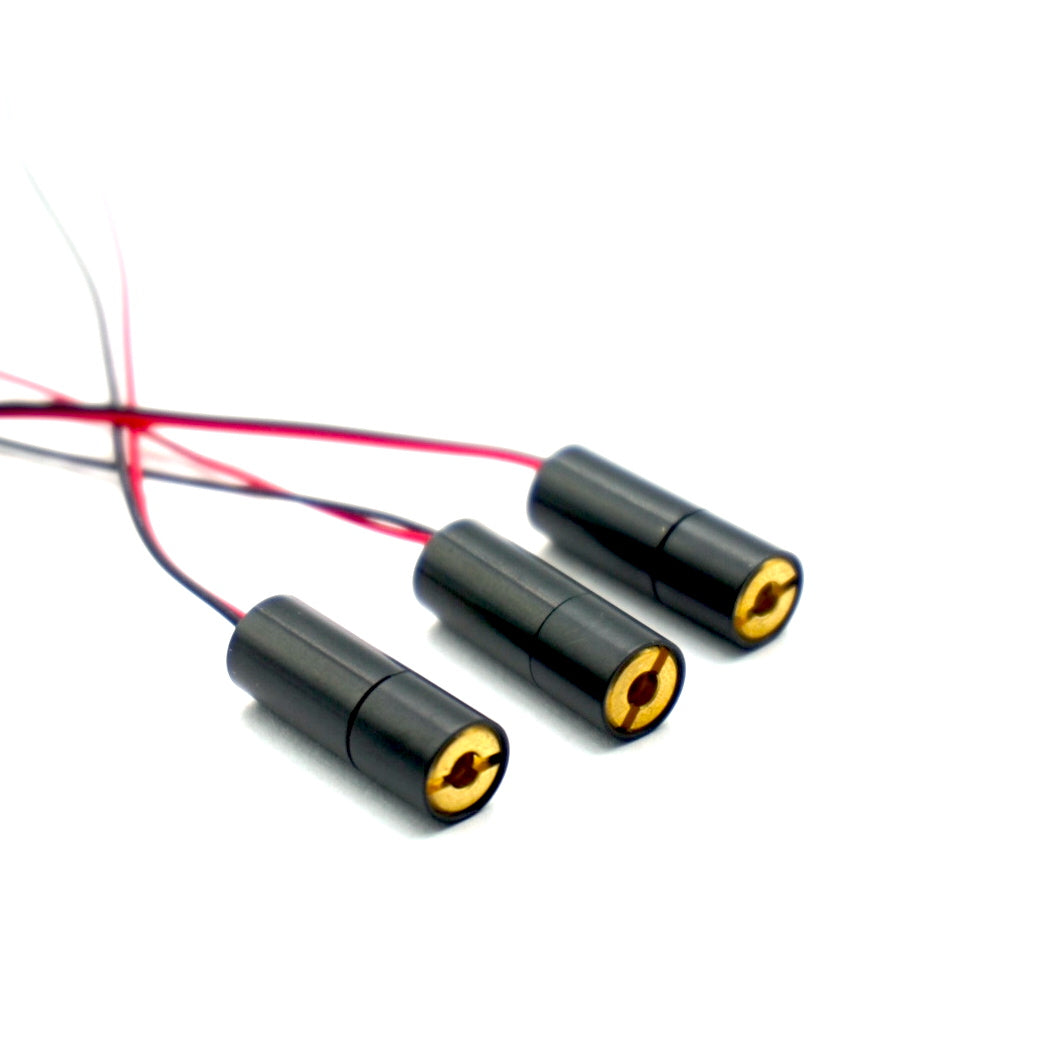

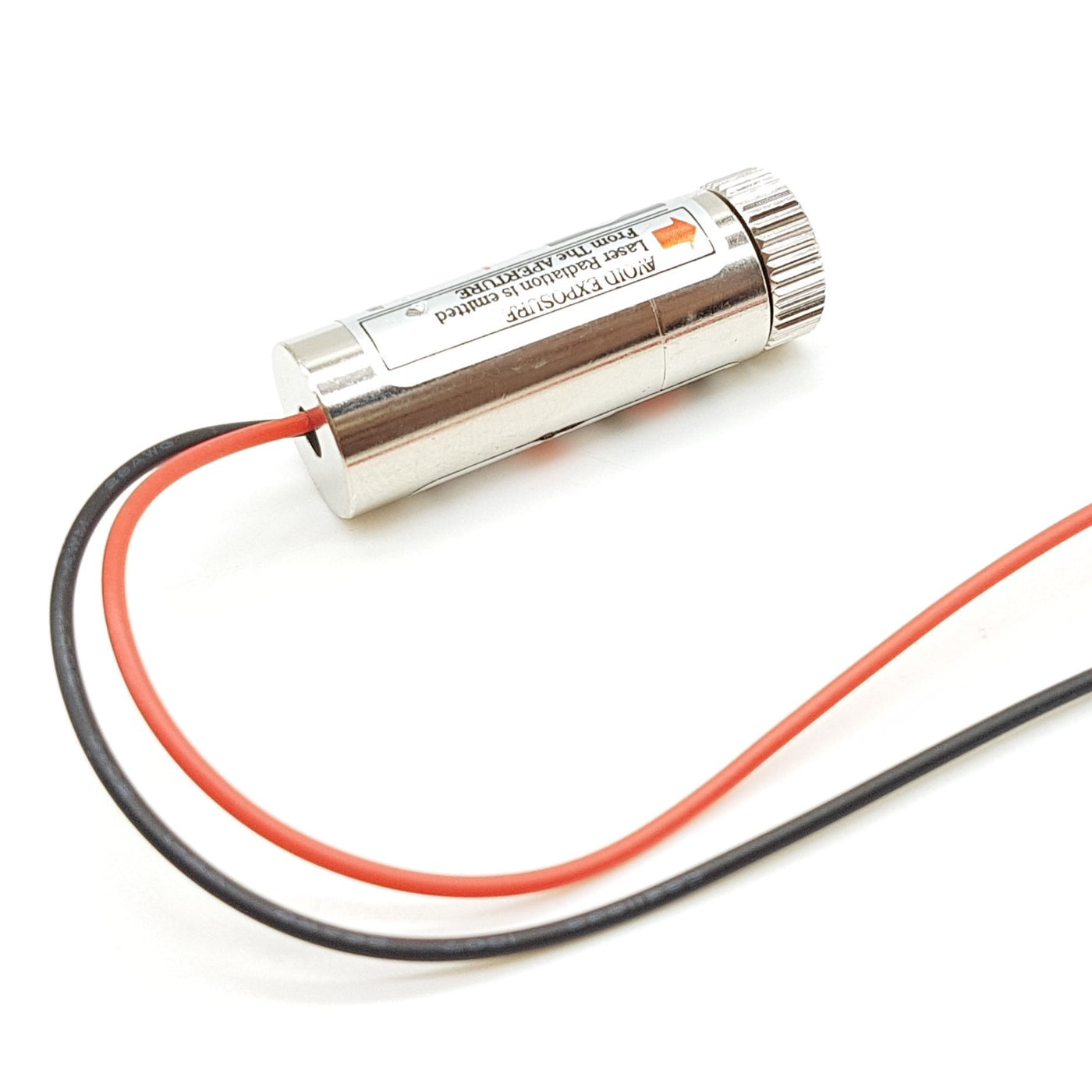

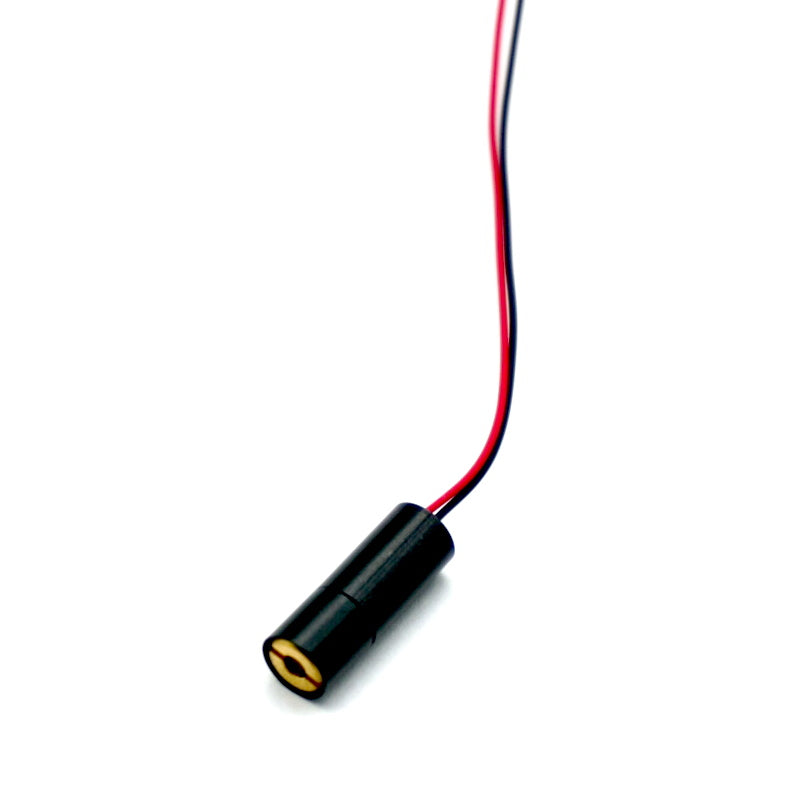

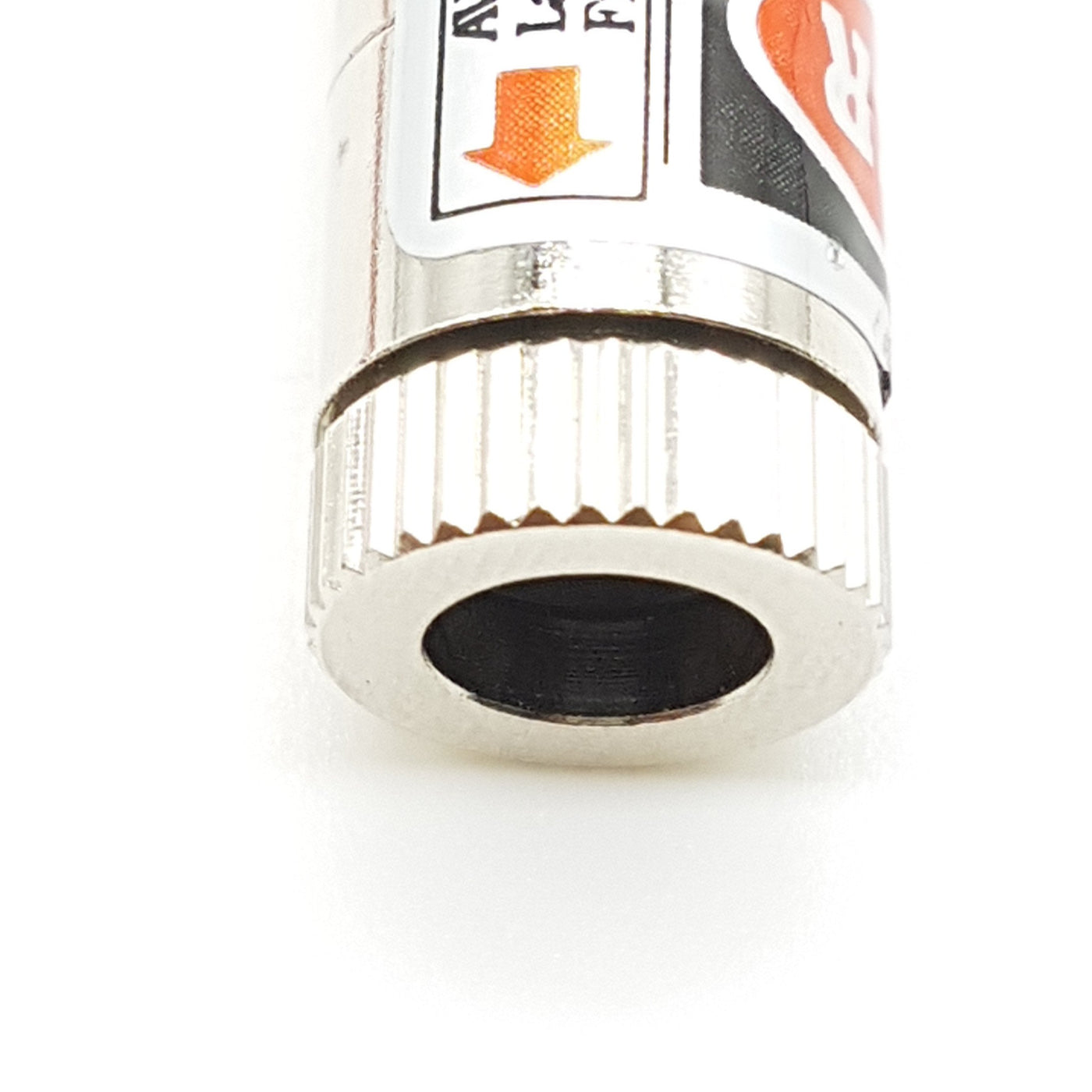

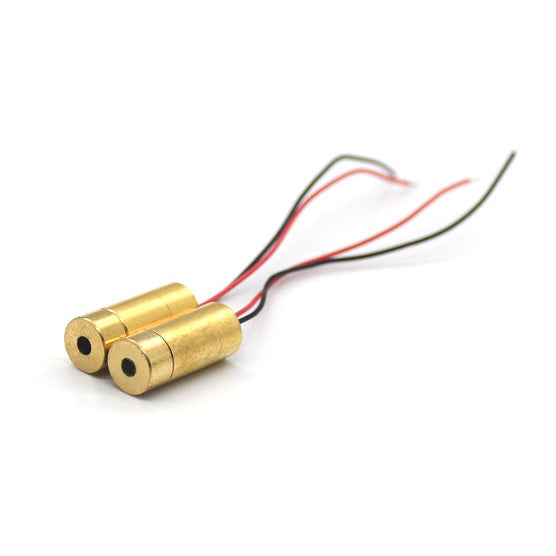

We offer a variety of Dot Laser modules to cover all aspects of your next LASER DIY project.
Specifications:

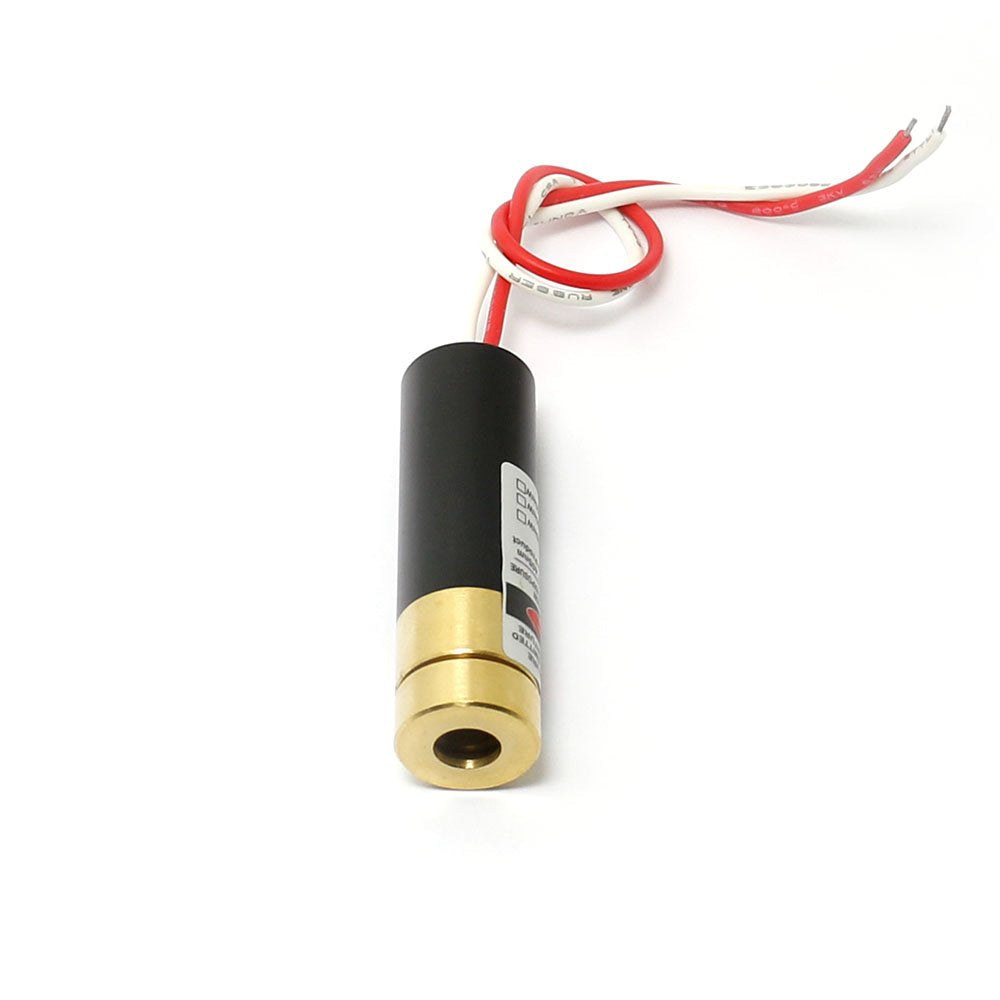

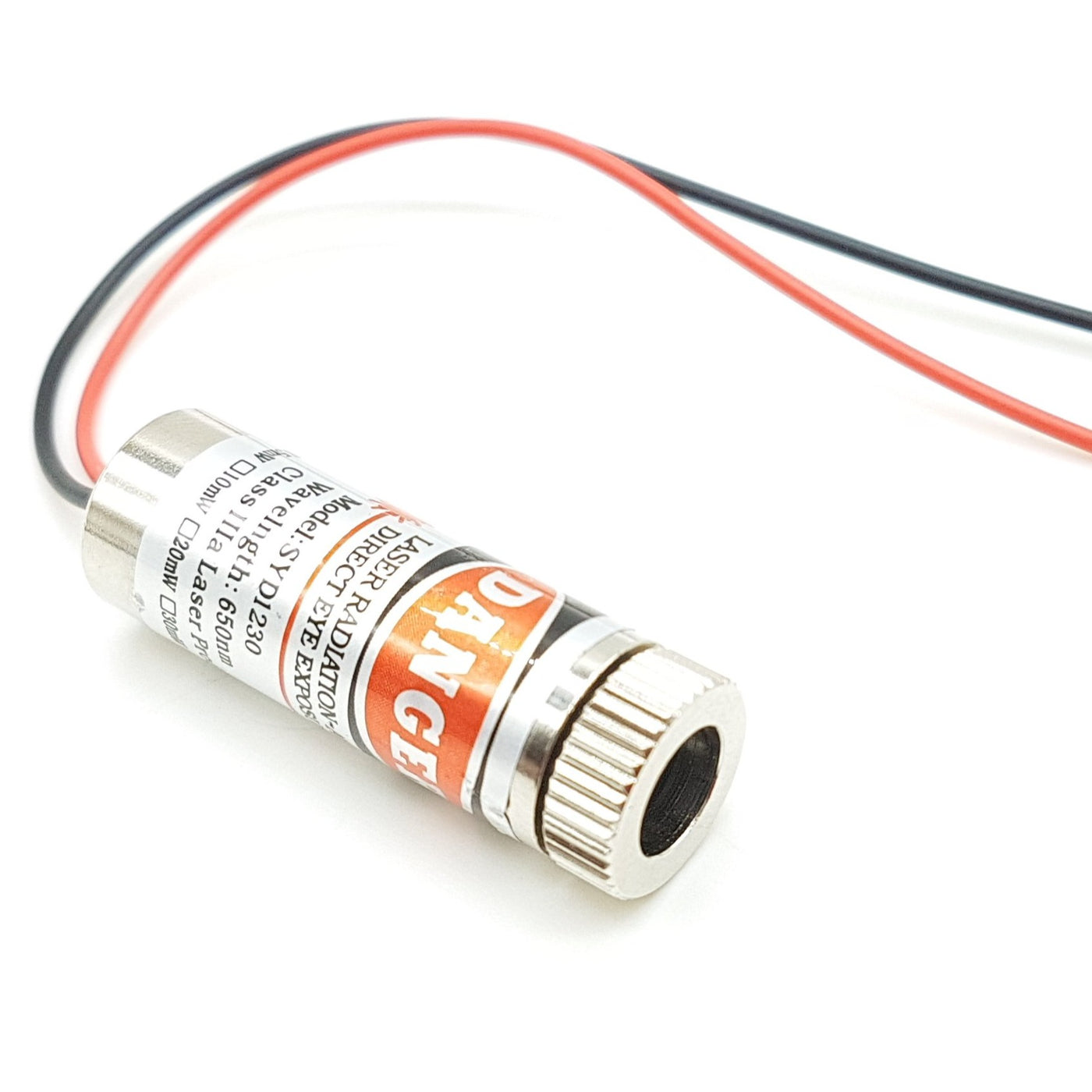

650nm 5mW Red Laser Module
- Size: 40mm X 12mm
- Wavelength: 650 nanometer
- Output Power: 5mW
- Irradiation Distance: >500m
- Line Width (at 5m): <5mm
- Operating Voltage: 3 - 5V
- Max. Current Draw: <150mA
- Operating Temperature: -10℃ to 70℃
- Storage Temperature: -40℃ to 100℃

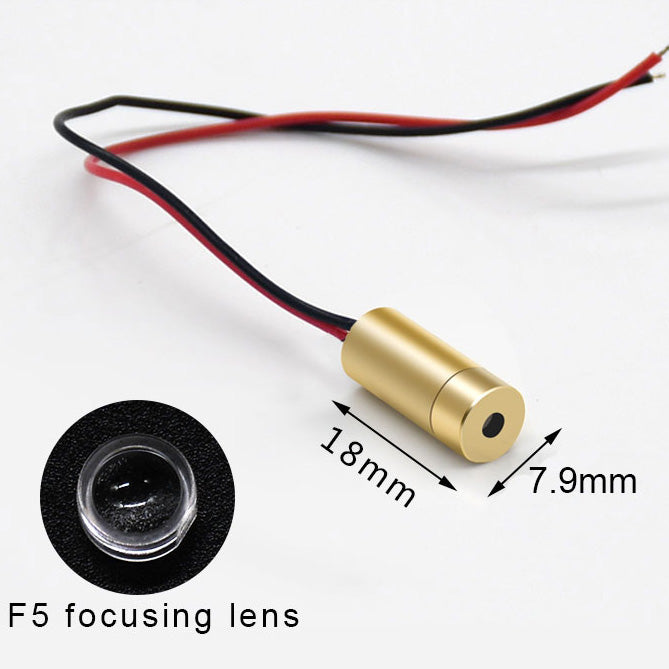

650nm 10mW Red Laser Module

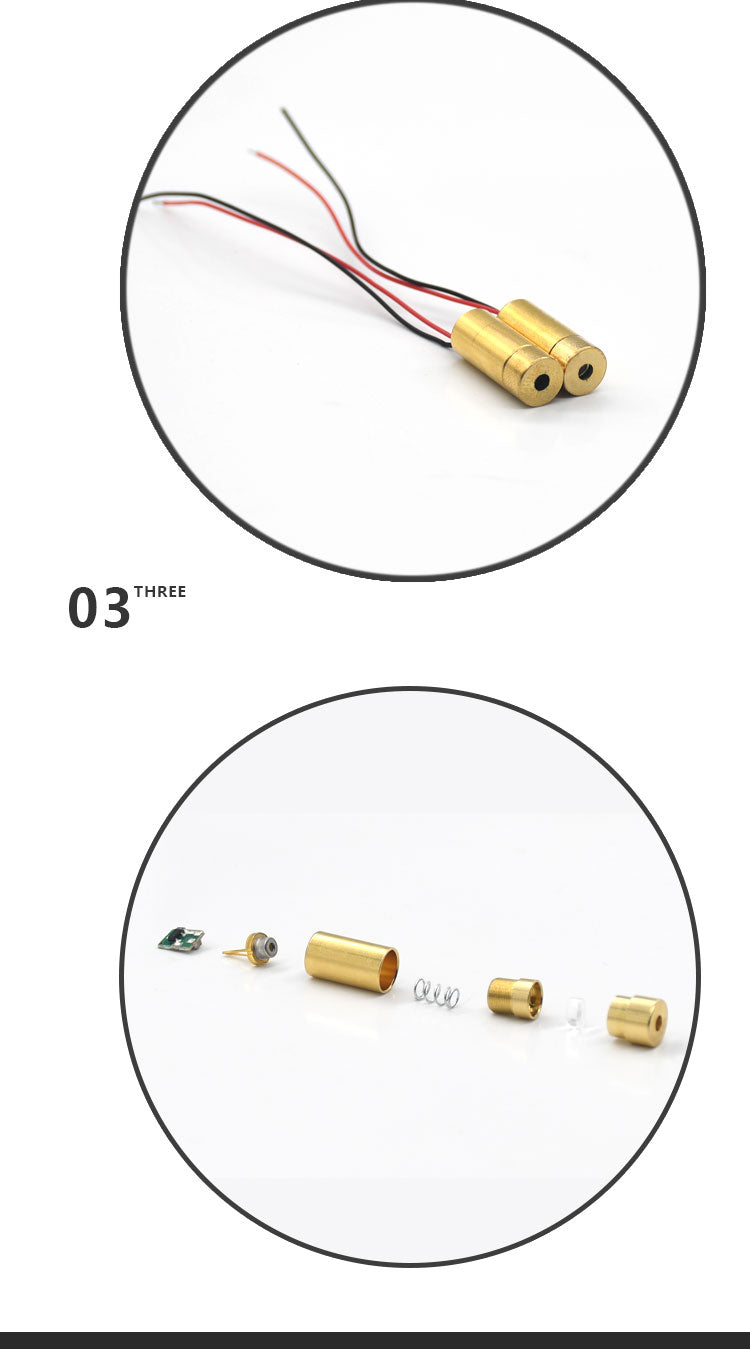

- Size: 18mm X 7.9mm
- Material: Copper
- Wavelength: 650 nanometer
- Output Power: 10mW
- Irradiation Distance: >500m
- Line Width (at 5m): <5mm
- Operating Voltage: 3 - 5V
- Max. Current Draw: <280mA
- Operating Temperature: -10℃ to 70℃
- Storage Temperature: -40℃ to 100℃

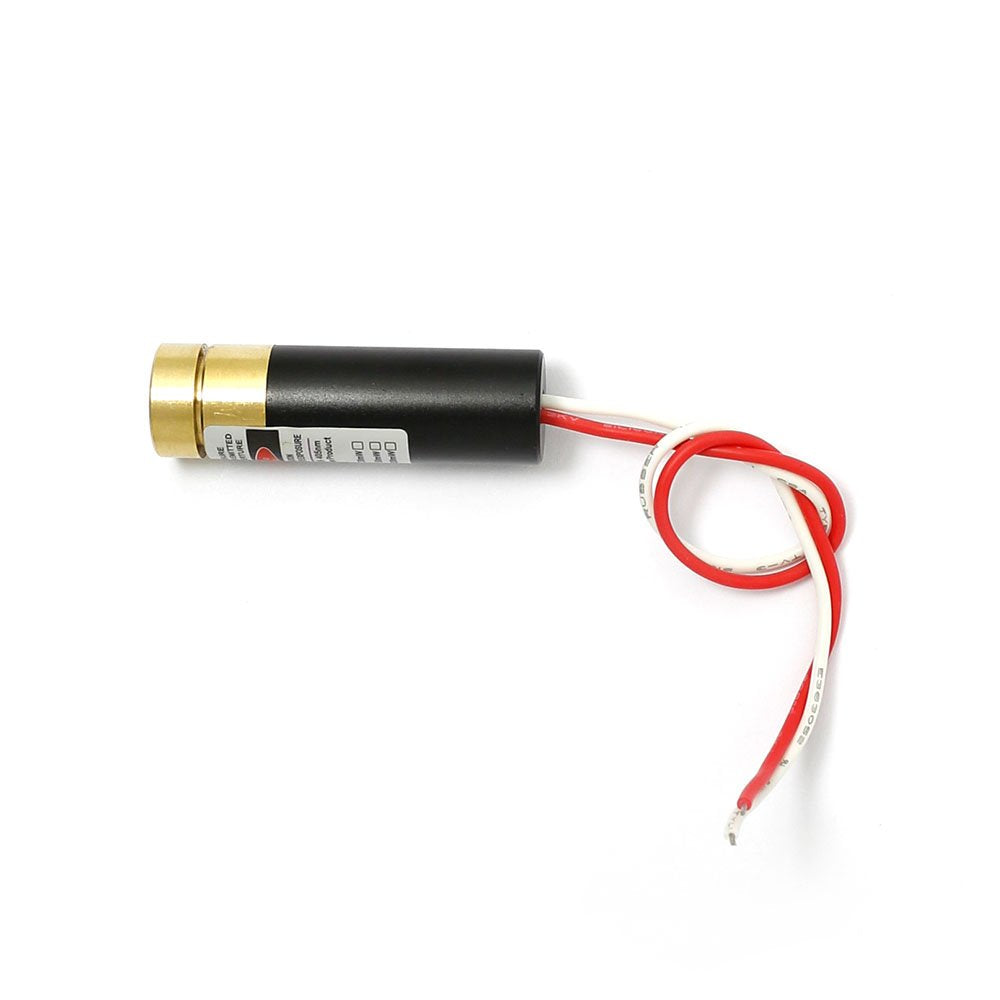

405nm 10mW Blue Laser Module
- Size: 42mm X 13mm
- Wavelength: 405 nanometer
- Output Power: 10mW
- Irradiation Distance: >500m
- Line Width (at 5m): <5mm
- Operating Voltage: 3 - 5V (Red wire is +)
- Max. Current Draw: <100mA
- Operating Temperature: -10℃ to 70℃
- Storage Temperature: -40℃ to 100℃
532nm 45mW Green Laser Module
- Size: 32mm X 15mm
- Wavelength: 532 nanometer
- Output Power: 45mW
- Irradiation Distance: >500m
- Line Width (at 5m): <5mm
- Operating Voltage: 3 - 5V
- Max. Current Draw: <280mA
- Operating Temperature: -10℃ to 70℃
- Storage Temperature: -40℃ to 100℃
What wavelength and power options are available for the dot laser modules?
The lineup includes 650 nm red modules at 5 mW and 10 mW, a 405 nm blue module at 10 mW, and a 532 nm green module at 45 mW. Variant sizes are 40 x 12 mm for the 5 mW unit, 18 x 7.9 mm for the 10 mW red, 42 x 13 mm for the blue, and 32 x 15 mm for the green.
What is the operating voltage and current draw for these modules?
All modules operate at 3 to 5 volts. Maximum current draw is 150 mA for the 5 mW red, 280 mA for the 10 mW red and the 45 mW green, and 100 mA for the blue 405 nm.
What are the physical dimensions of each variant?
The 5 mW red is 40 mm by 12 mm, the 10 mW red is 18 mm by 7.9 mm, the blue 405 nm is 42 mm by 13 mm, and the green 532 nm is 32 mm by 15 mm.
What are the operating and storage temperature ranges?
Operating temperature is from minus 10 C to 70 C for all listed modules, and storage temperature is minus 40 C to 100 C.
Do you offer warranty or returns for these modules?
Warranty and returns information is not provided in the listing. Please contact the seller for details.
