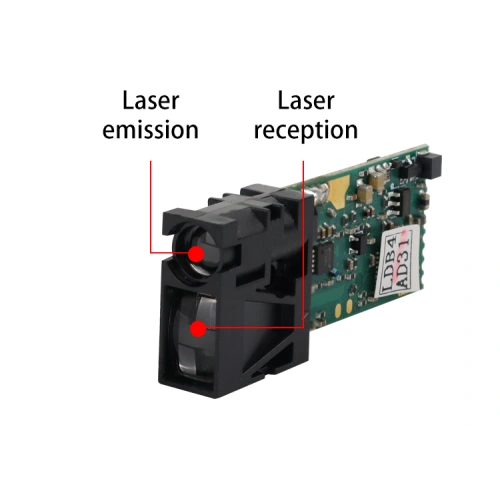

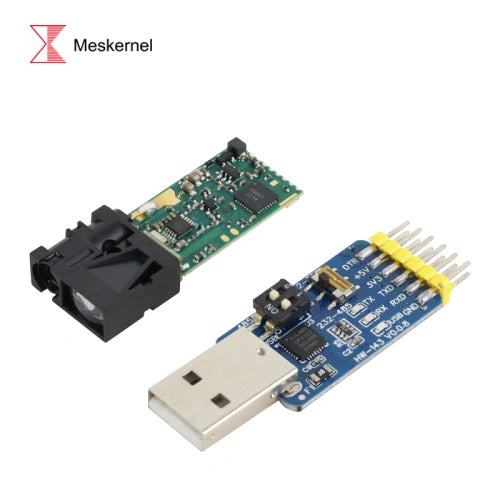

LDL is a high-precision Laser Ranging Sensor, independently developed by Chengdu Meskernel Integrated Technology Corporation ,with small-size(41*17*7mm) and light weight, around 4g , the compact design is convenient for OEM users to integrate into systems and equipment, andĀ the UART communication interface provides users to develop and program their own application.
Ā
It is the smallest laser distance module in the world.
LDLĀ Laser Distance Sensor, the measure range up to 40m, as a classical model, with low power consumption,stable performance ,high measurement accuracy, fast measurement speed, and simple installation,it has been widely used in home improvement measurement, industrial automation fields,etc.
Ā
| Accuracy |
Ā±1mm |
|
Units of measurement |
mm |
|
Measure distance |
0.03-20 meters |
|
measure time |
0.35~4 seconds |
|
Laser standards |
Class II |
|
operating temperature |
0-40 ā ļ¼32-104 ā ļ¼ |
|
Storage temperature |
25~60 ā (-13~140 ā) |
|
Voltage |
DC 2.5~3.3V |
|

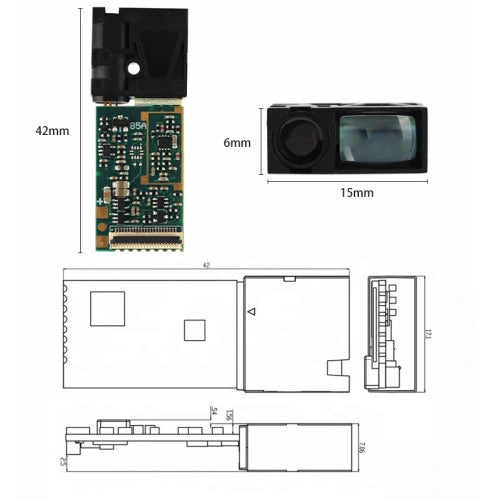

size |
42*15*6mm |
|
weight |
4g |
With a measurement range of up to 40m, LDL phase laser distance sensor offers low power consumption, stable performance, high measurement accuracy, fast measurement speed, and simple installation. It has found extensive applications in home improvement measurement and industrial automation fields.
