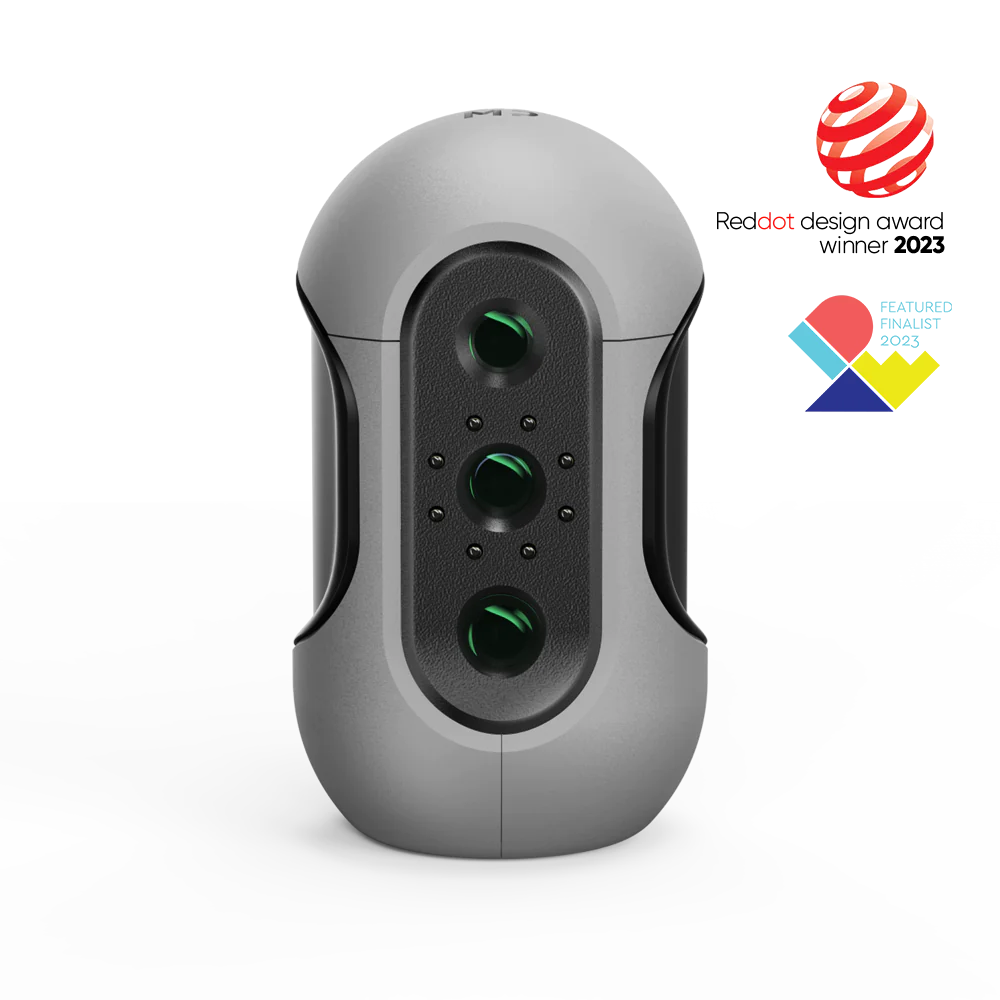

Mole 3D Scanner
Ergonomic 3D scanner for medium-sized objects
Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.
- 0.05MM accuracy
- 0.1MM resolution
- Multispectral technology
- Dedicated mobile scanning app (requires optional CONNECT)
 |
0.05mm Accuracy, 0.1mm ResolutionWith high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details. |
|
Ultra-Clear Texture ModeAccurately reproduce the color and texture of your sneakers with high-fidelity texture mapping.
|
 |
|
Black objects? No problem
Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colours.
Incredible scan success rate
Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan.
Visual trackingUsing visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time. |
|
Optical anti-shake modulesEquipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion. |

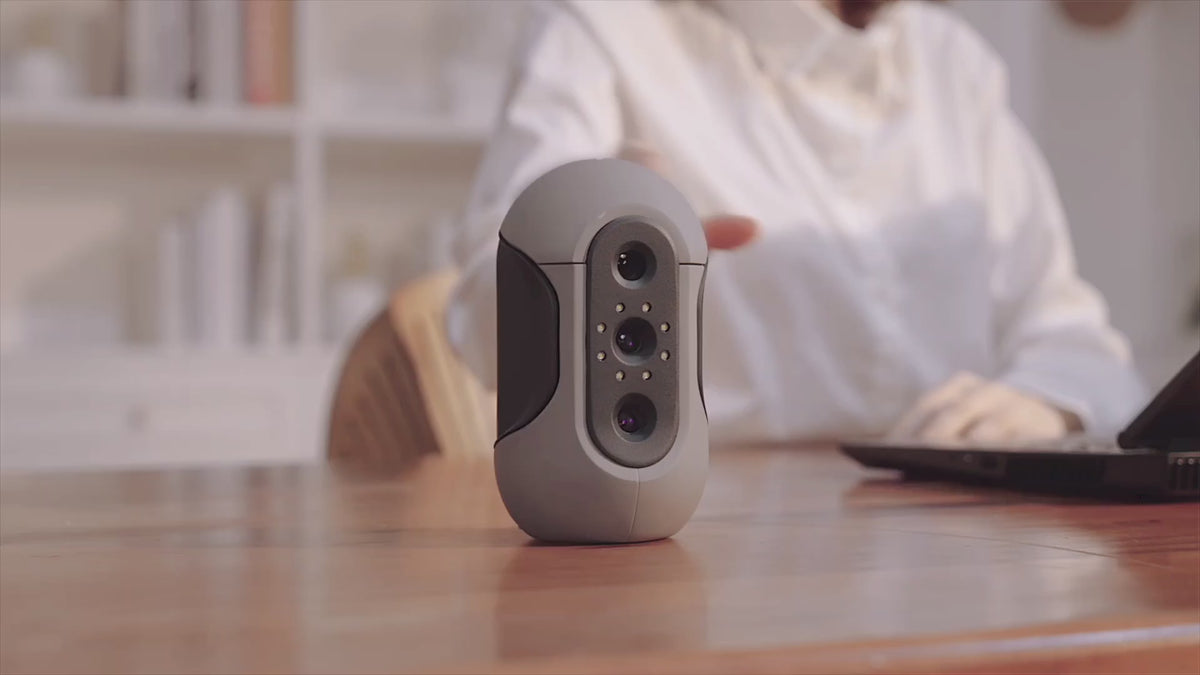

Comfortable to use

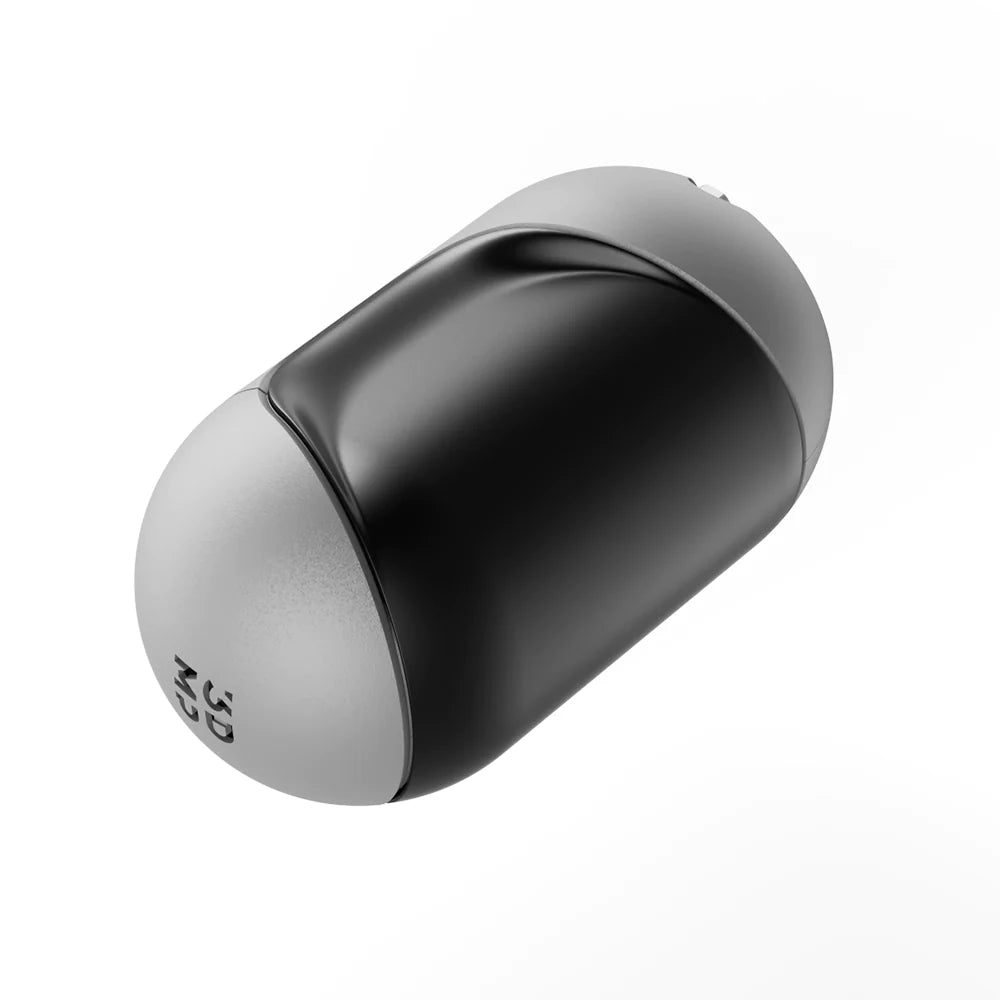

Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods of time.

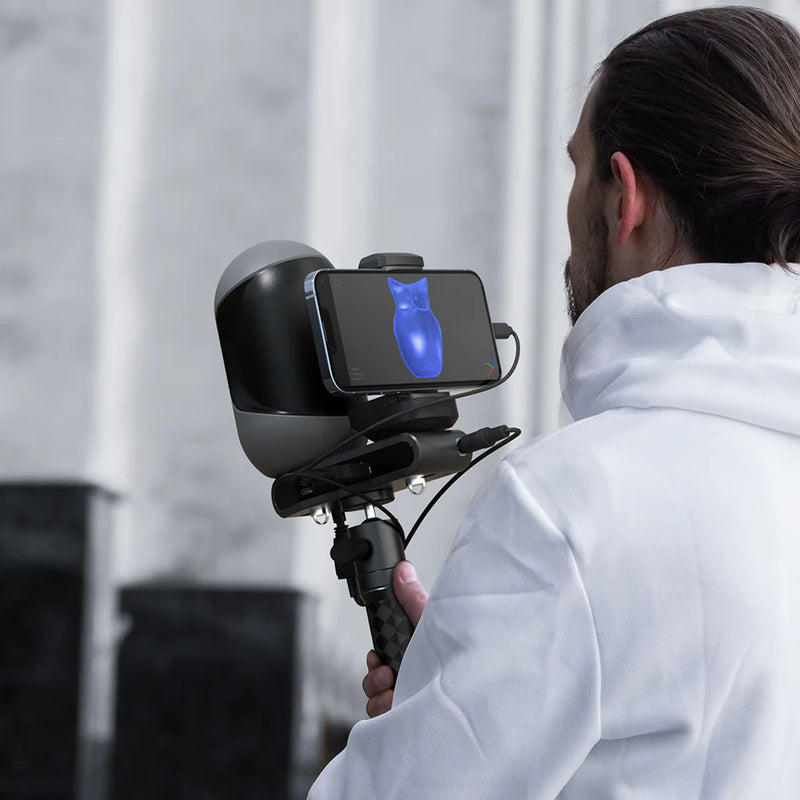

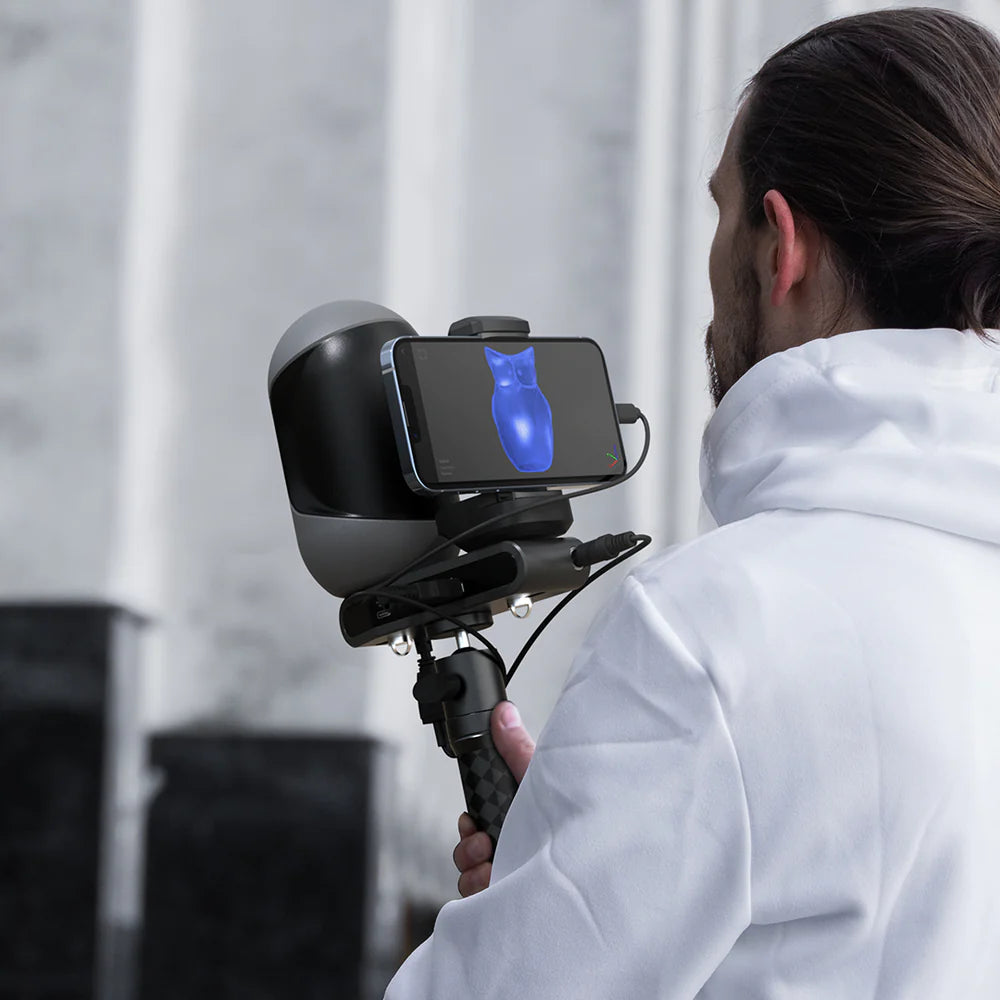

Adding CONNECT transforms MOLE into a portable scanner
Introducing 3DMakerpro Connect, which is designed for portable and stable scanning actions. Enjoy the freedom of scanning with zero limit, wherever and whenever you want.
Tips: Connect requires a power bank with a 12V PD 22.5W type C interface.
Powerful graphics chipThe 3DMakerpro Connect image processing chip connects the Mole to your mobile phone, ensuring high quality scans even when scanning outdoors. |
Simple and reliable3DMakerpro Connet quickly connects Mole, tripod, phone, and power supply, ready to go anytime. |
Made for Scanning
Android | iOS
JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.

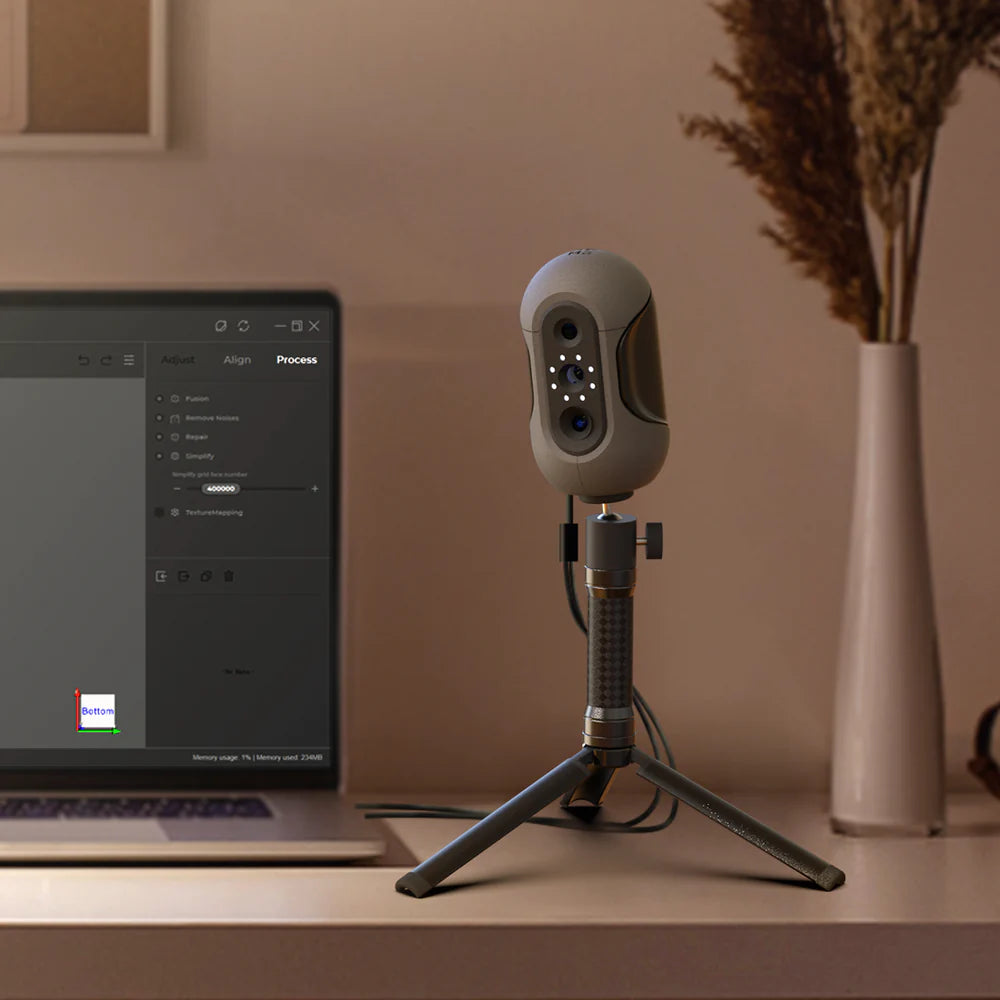

Windows | MacOS
JMStudio is 3Dmakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.
Compatible Software

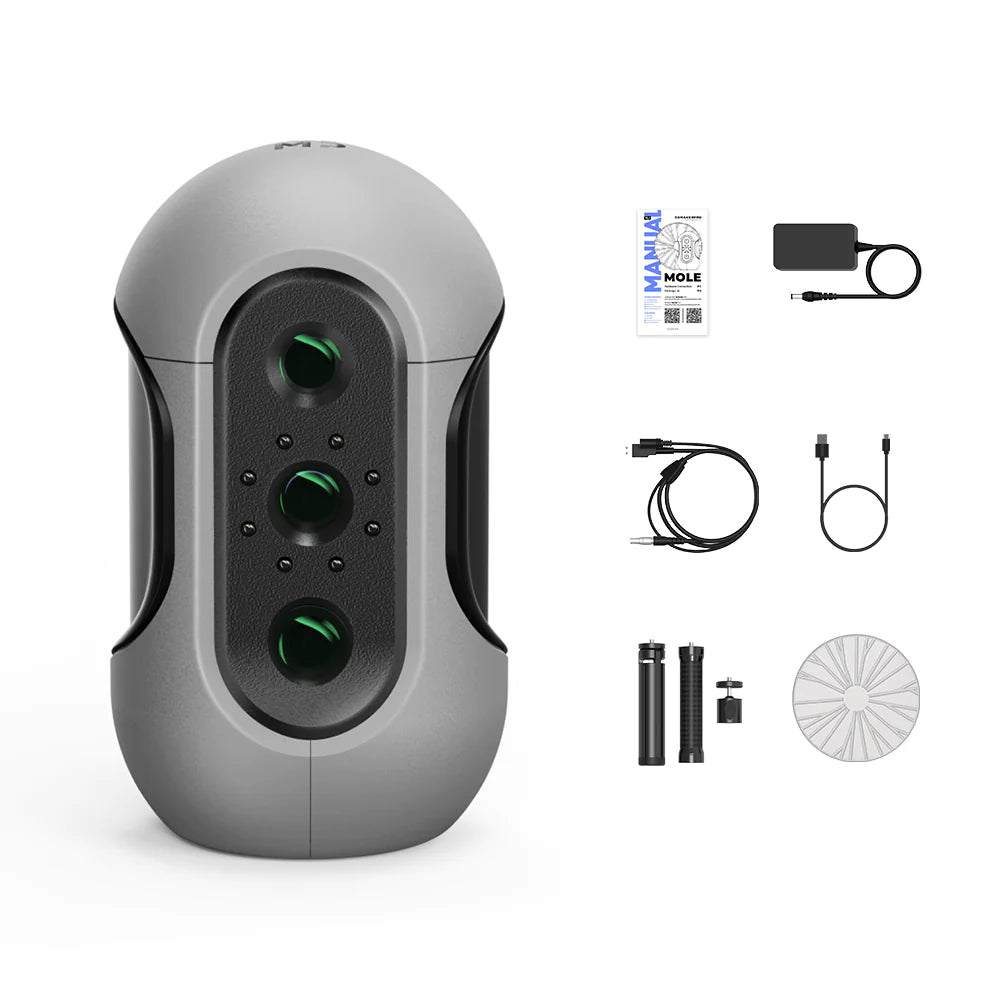

There are three different Mole variants to choose from: Mole Standard, Mole Premium and Mole Luxury. Each of the included equipment – in addition to the mole scanner itself – is adapted to different requirements.

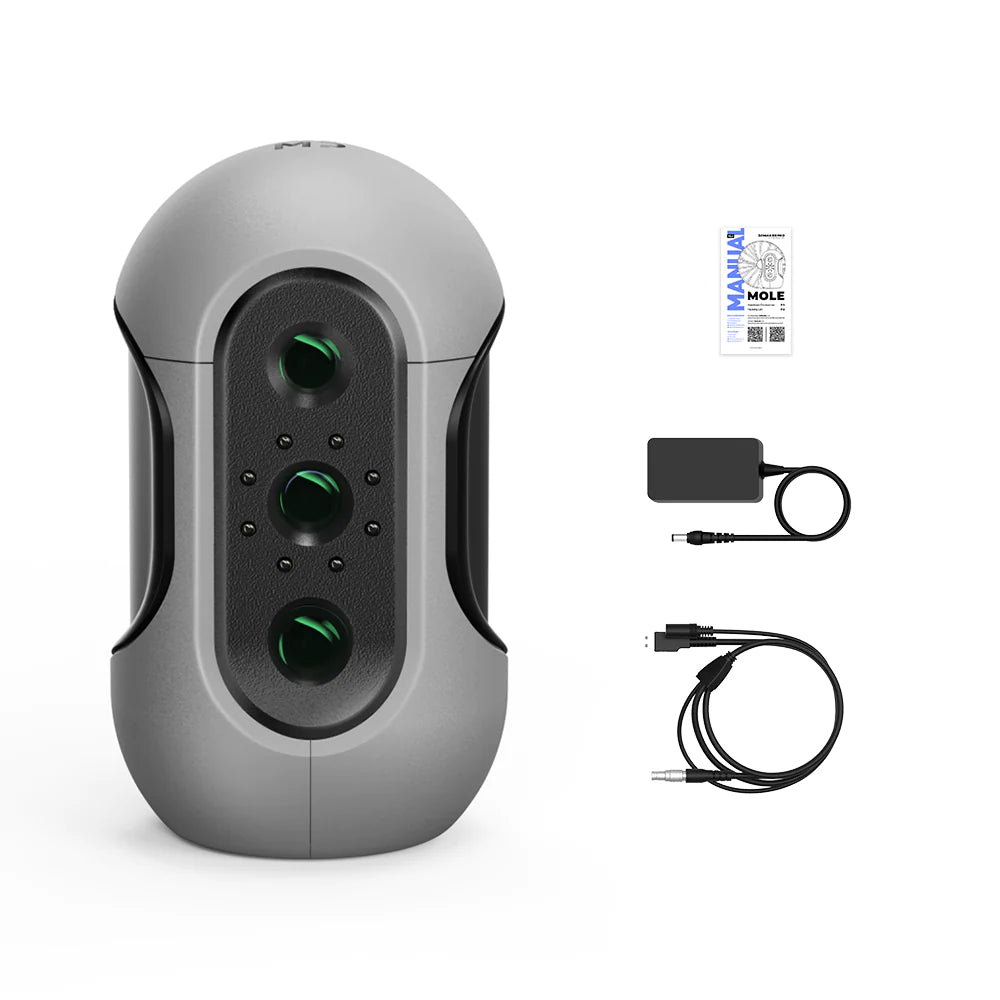

Included in delivery of the Mole standard:
- 1 x Mole 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
Included in delivery of the Mole Premium:
- 1 x Mole 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
- 1 x tripod
- 1 x Turntable Kit

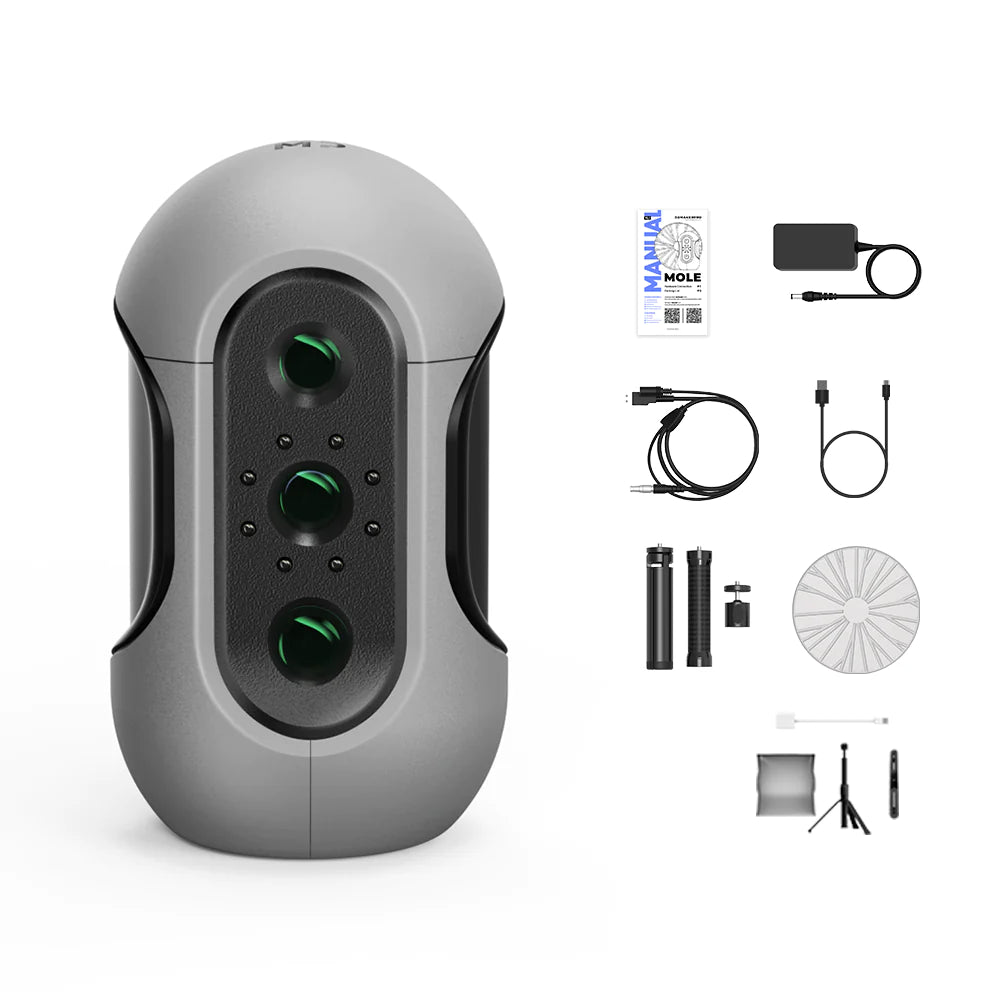

Included in delivery of the Mole-Luxury:
- 1 x Mole 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
- 1 x tripod
- 1 x Turntable Kit
- 1 x Colour Kit
Technical data:
| Dimensions | 141x80x80mm |
| Weight | 390g |
| Accuracy | 0.05mm |
| Resolution | 0.1mm |
| Frame rate | 10 frames/sec. |
| Tracking mode | visual tracking |
| Working distance | 150-400mm |
| Individual detection area | 200x100mm |
| Typical object size | 15-1500mm |
| Light source | NIR |
| Colour texture | extended support |
| USB interface | USB2.0 |
| Output format | OBJ, STL, PLY |
| Compatible system | Windows 10/11 64bit MacOS12/13 |
| Minimum computer requirements | Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM |
| Recommended computer requirements | Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM |
