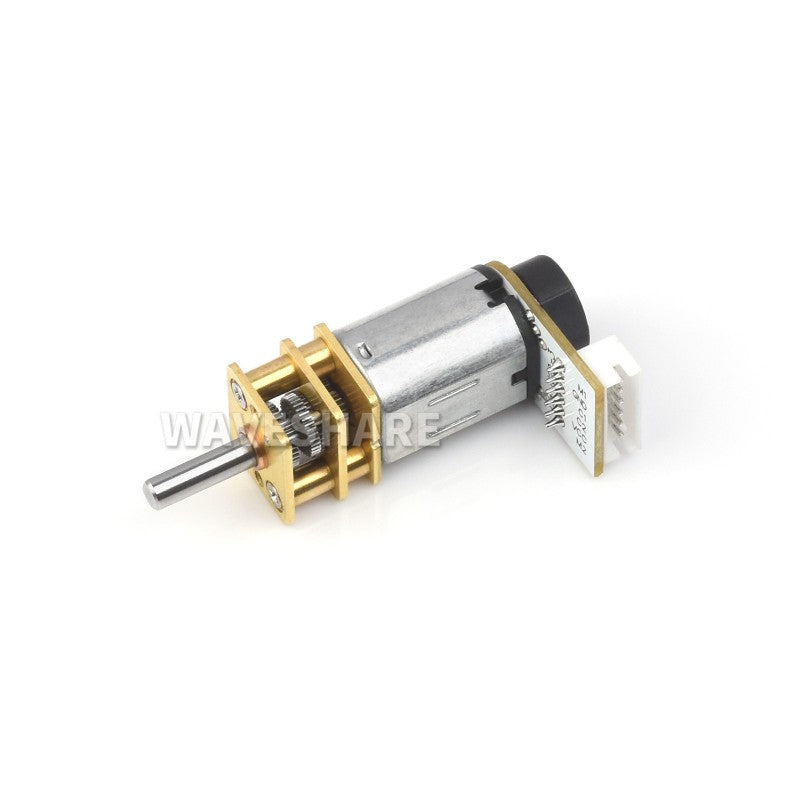

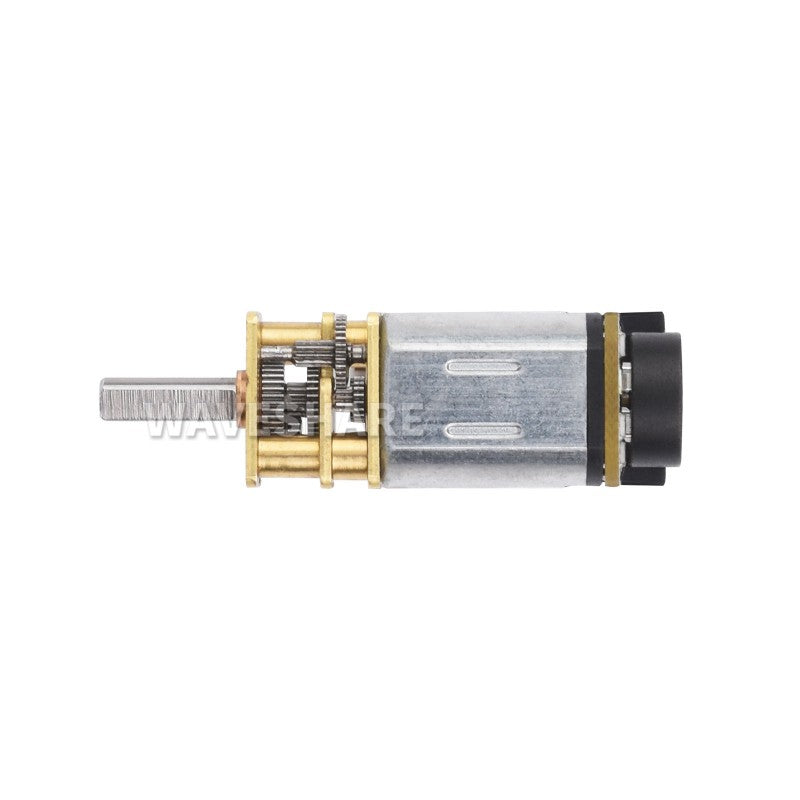

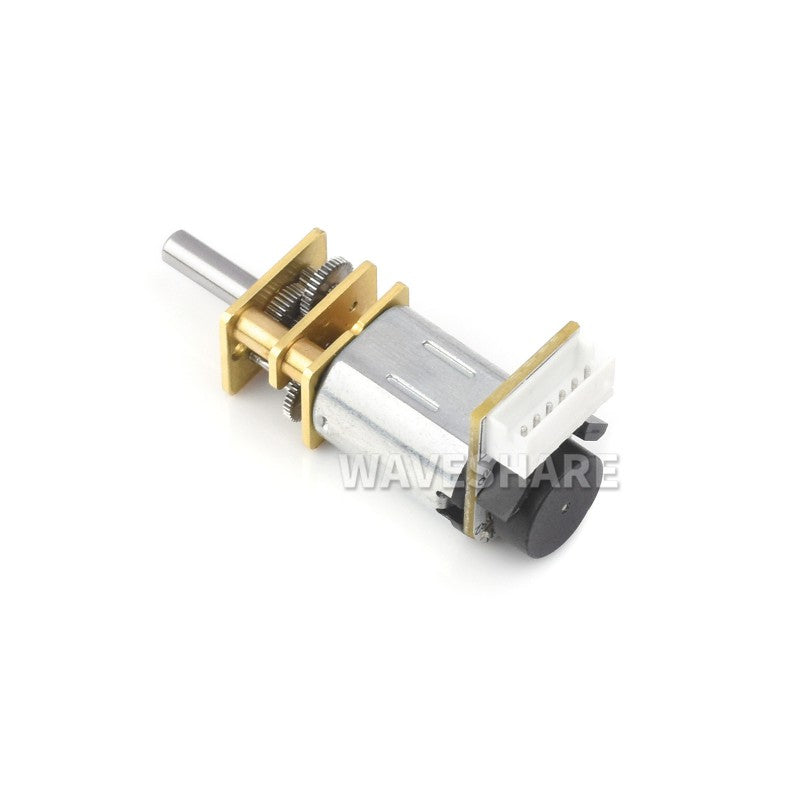

N20 DC Gear Motor
All-metal Gear | Magnetic Hall Encoder | High precision Reduction Motor
Ā
Specifications
| Key Parameters | |
| Rated Voltage | Ā DC 12 VĀ |
| No-load Speed | Ā 200 rpmĀ |
| No-load Startup Voltage | 3.0V MAX |
| Locked-rotor Torque | ā„1.2 kg.cm |
| No-load Current | 0.1 A MAX |
| Locked-rotor Current | ā¤1.1 A |
| Hall Resolution | Basic 7 PPR Ć 150 = 1050 PPR |
| Gear Reduction Ratio | 1:150 |
| Encoder Specifications | |
| Type | AB Dual-Phase Incremental Magnetic Hall Encoder |
| Line Rate | Basic pulse 7 PPR x Gear reduction ratio |
| Power Supply | DC 3.3V / DC 5.0V |
| Basic Function | With pull-up resistor, directly connect to MCU |
| Output Signal Type | Square wave AB phase |
| Response Frequency | Ā 100 KHzĀ |
| Basic Pulses | Ā 7 PPRĀ |
| Magnetic Ring Trigger Poles Number | 14 poles (7 pairs of poles) |
Ā

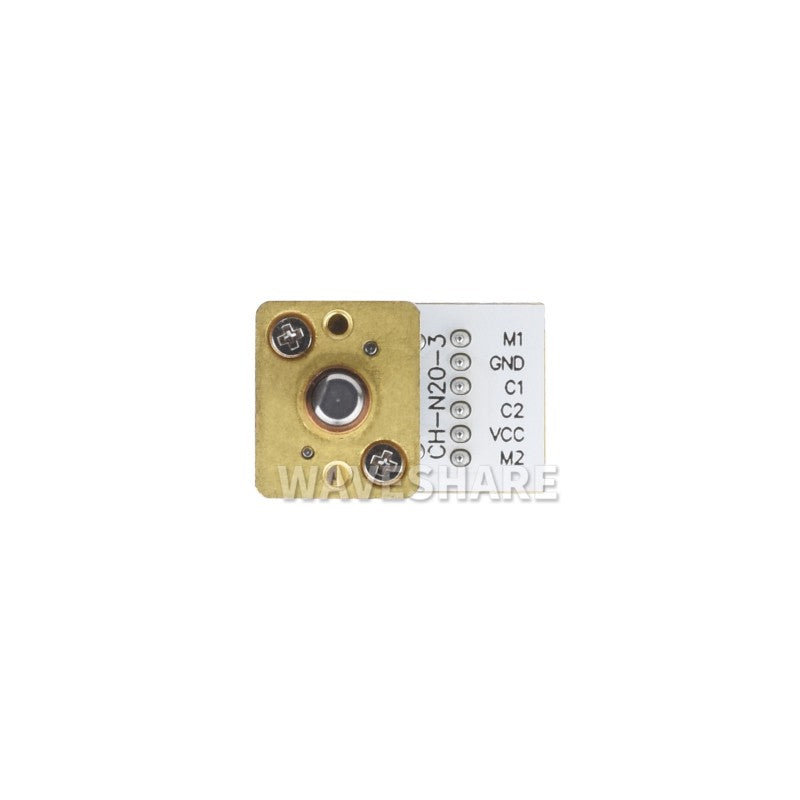

Encoder Pin Definition
Onboard 6PIN connector, easy to integrate into various robots and other devices
Ā
Provides Better Motor Performance
Adopts metal material, Rigid, Durable, And More Stable
Ā
Application Scenarios
Suitable for application scenarios such as intelligent robots, smart homes, etc.
Ā
Outline Dimensions
Ā
Resources & Services
Ā
Package Content
Ā Weight: 0.018 kgĀ
Ā DCGM-N20-12V-EN-200RPM x1Ā
What voltages are supported by the encoder and motor variants?
The encoders operate from 3.3 to 5 V and the motor is available in 6 V and 12 V variants.
How many encoder counts per revolution does this motor provide?
It provides 8 counts per revolution of the motor shaft.
What is the shaft diameter and gear box length?
The shaft diameter is 3 mm and the gear box length is 9 mm.
What is the stall current and no load current at 6 V?
The stall current is 0.55 A at 6 V and the no load current is less than 0.06 A at 6 V.
Are there multiple gear ratios and how does the speed vary?
Yes, a range of gear ratios is available and the load speed varies by variant.
