37mm Metal Gear DC Motor

SKU: MOT1012-110

ā‚¹ 879.99 ā‚¹ 2,780.00

In stock | Ready to ship

Select variant

12V / 110 RPM
  • 12V / 37 RPM
  • 12V / 47 RPM
  • 12V / 70 RPM
  • 12V / 110 RPM
  • 12V / 200 RPM
  • 24V / 37 RPM
  • 24V / 70 RPM
  • 24V / 110 RPM
  • 24V / 200 RPM
  • 24V / 600 RPM
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
37mm Metal Gear DC Motor12V / 110 RPMā‚¹ 879.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

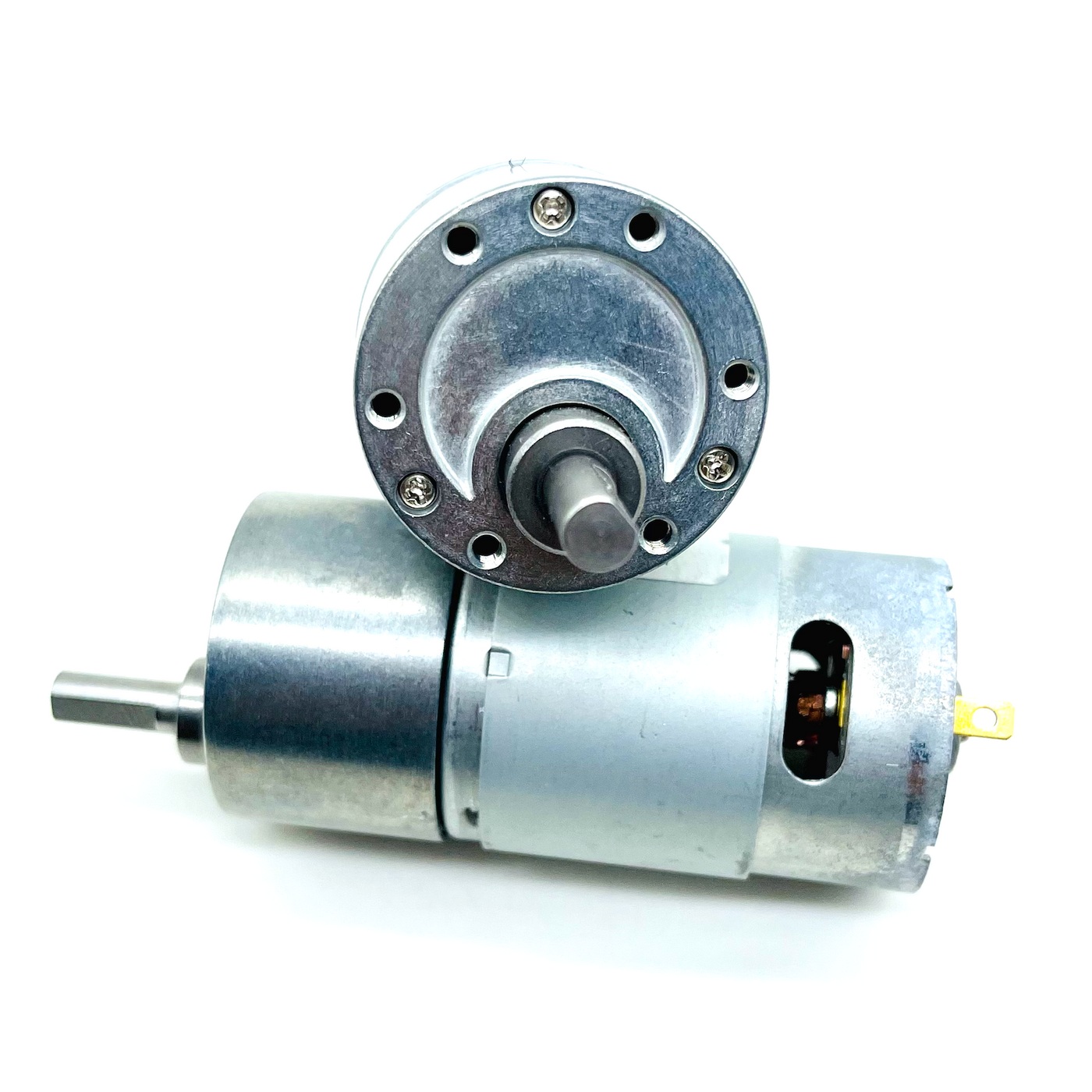

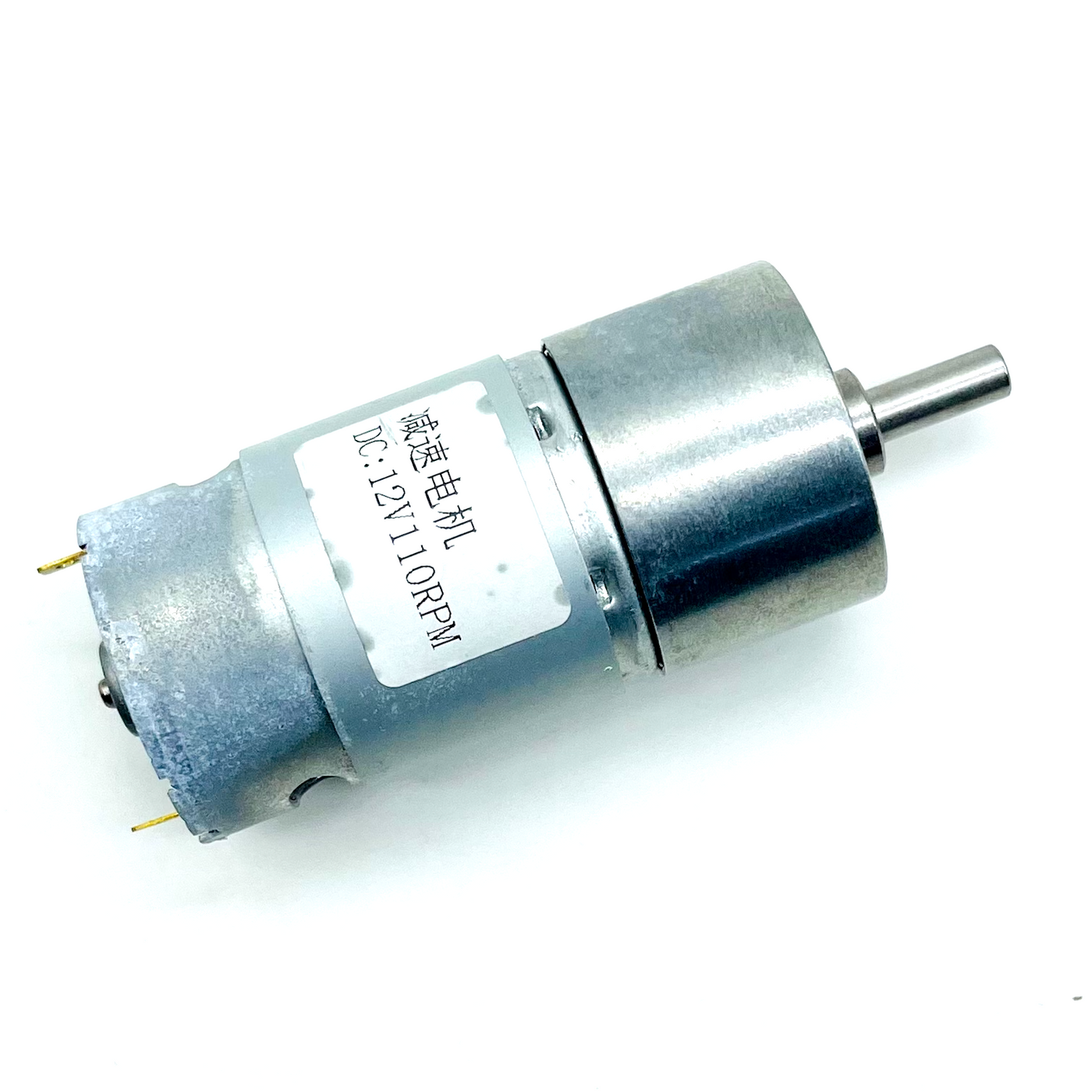

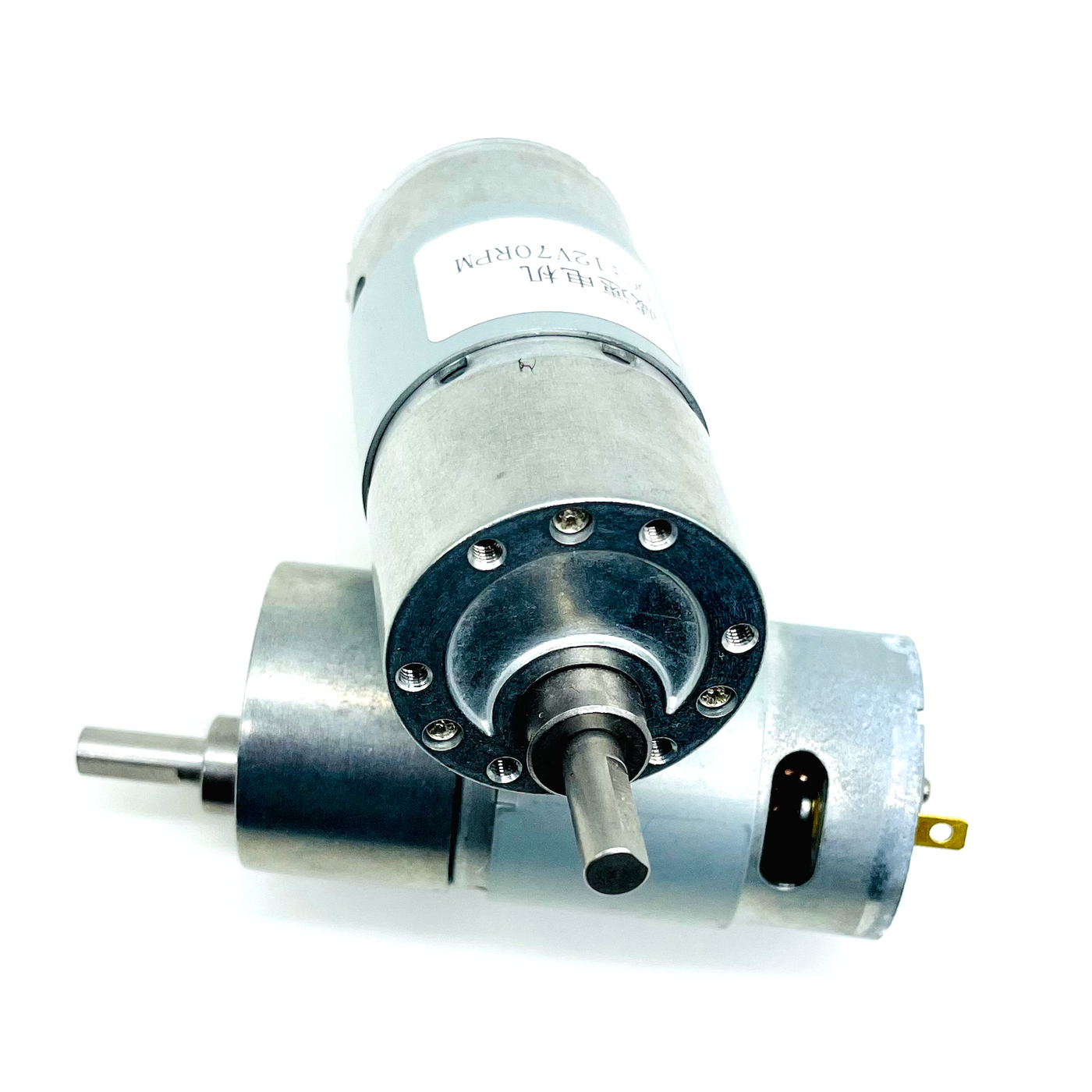

Measuring 37Ā mm (1.46ā€³) in diameter, these brushed DC gearmotors are the largest and most powerful we carry. They are available in a range of gear ratios from 6.3:1 to 150:1 and with 12Ā V or 24Ā V motors, and all versions are available with integrated 64Ā CPR quadrature encoders on the motor shafts.

Specifications

Variant

No-Load Speed

No-Load Current

Load Speed

Load Current

Rated Torque

Gearbox Length

Reduction Ratio

12V / 30 RPM

30 RPM

0.01 A

24 RPM

0.9 A

12 Kg-cm

27 mm

1:148

12V / 40 RPM

40 RPM

0.13 A

31 RPM

0.9 A

10 Kg-cm

27 mm

1:111

12V / 50 RPM

50 RPM

0.1 A

36 RPM

0.9 A

8 Kg-cm

27mm

1:94.85

24V / 120 RPM

120 RPM

0.03 A

84 RPM

0.3 A

3 Kg-cm

25 mm

1:40.6

24V / 200 RPM

200 RPM

0.04 A

148 RPM

0.3 A

1.8 Kg-cm

25 mm

1:22

24V / 30 RPM

30 RPM

0.05 A

22 RPM

0.4 A

8.6 Kg-cm

30 mm

1:172

24V / 60 RPM

60 RPM

0.03 A

44 RPM

0.25 A

4.8 Kg-cm

25 mm

1:58

24V / 600 RPM

600 RPM

0.33 A

450 RPM

0.3 A

0.6 Kg-cm

38 mm

1:148

Ā

Tutorials

Ā

What voltages are available for this motor?
The motor is offered in 12V and 24V variants.
Are encoders available on this motor?
Integrated 64 CPR quadrature encoders on the motor shafts are available on all versions.
What gear ratios are offered and how do they affect performance?
Gearbox ratios range from 1:22 to 1:172. Higher reduction increases torque and lowers speed; exact speeds and torques depend on the chosen variant.
What is the gearbox length for these variants?
Gearbox length varies by variant: 27 mm for most 12V options, 25 mm for several 24V options, 30 mm for 24V 30 RPM, and 38 mm for 24V 600 RPM.
What is the current draw under no load and under load?
No load current ranges from 0.01 A to 0.33 A; load current ranges from 0.3 A to 0.9 A depending on voltage and variant.
