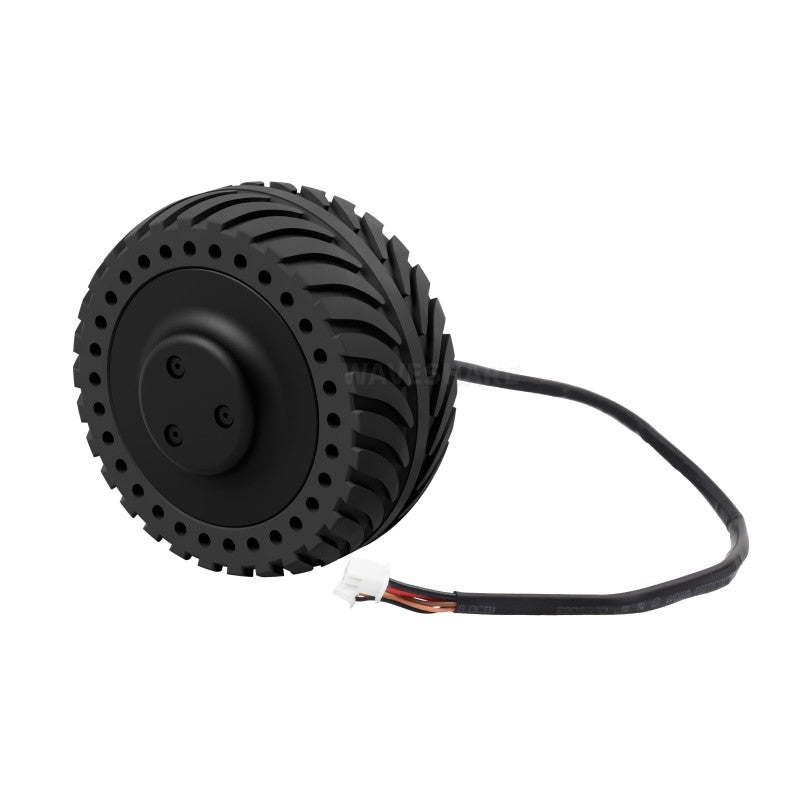

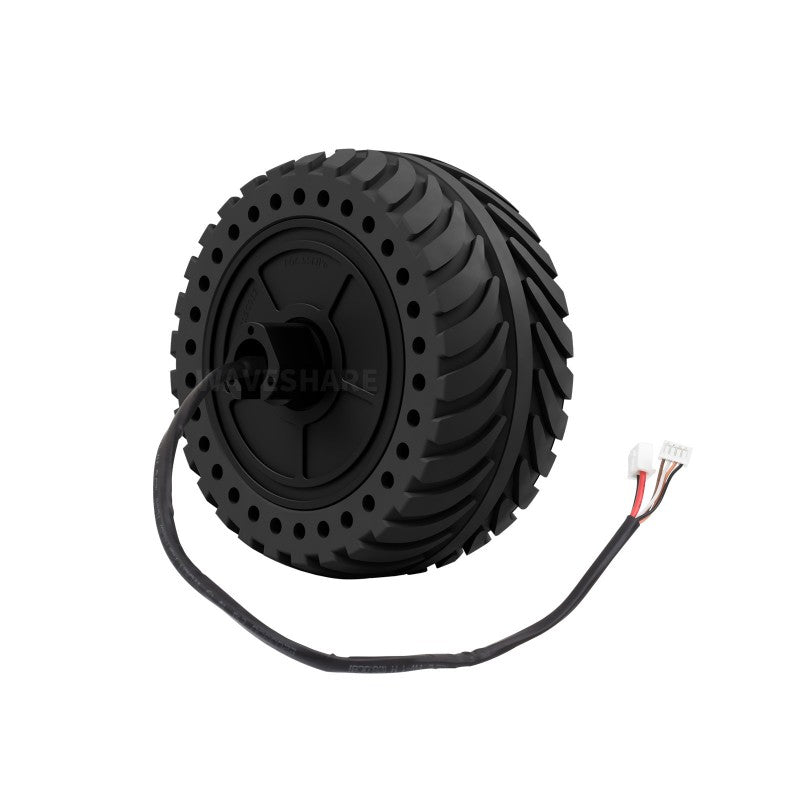

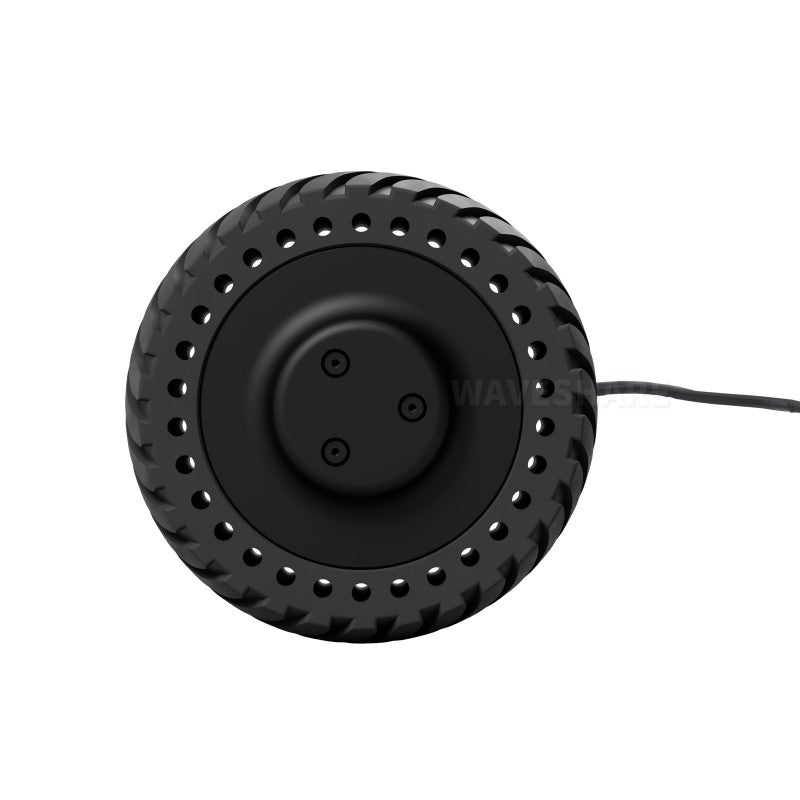

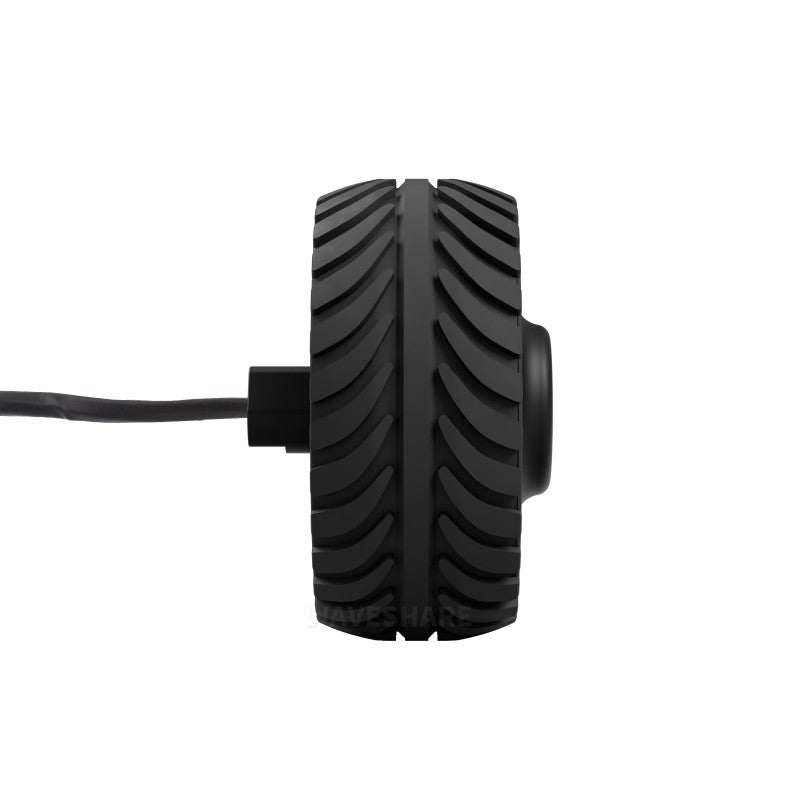

DDSM115 Direct Drive Servo Motor
DDSM115 Direct Drive Servo Motor
Adopts Advanced Direct Drive Technology, Remove The Reducer In The Traditional Drive Solution. Say Goodbye To The Shortcomings Of Expensive, Noisy, Inefficient And Bulky
All-In-One Robot Joint
Based On The Integrated Development Concept, DDSM115 Is A High-Reliability Permanent Magnet Synchronous Motor (PMSM) Integrating Outer Rotor Brushless Motor, Encoder And Servo.
Features:
Ultra low noise
High precision and zero-backlash
Fast response, direct drive without delay
Integrated motor and driver, compact structure and high integration
Support RS485 communication mode
Motor feedback information such as position, speed, current, error code, etc. can be obtained through communication.
With Hall position detection, over-current protection, etc.
Support electric brake
No drive mechanical friction, drive efficiency close to 100%
*Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Specifications
No-load speed
200±10rpm
Operating temperature
-20~45℃
No-load current
≦0.25A
Motor weight
485±5g
Rated speed
115rpm
Encoder resolution
4096
Rated torque
0.96Nm
Rated current
1.25±0.05A
Degree of protection
IP54
Noise level
≦50dB
Locked-rotor torque
2.0Nm
Mechanical time constant
30ms
Locked-rotor current
≦2.7A
Rotor inertia
1.67kg-m²
Rated voltage
18V DC (5S LiPo)
Phase resistance
2.15Ω
Torque constant
0.75Nm/A
Phase inductance
3.6mH
Speed constant
11.1rpm/V
Number of pole pairs
10
Multiple Operating Modes
Current Loop Mode, Position Loop Mode, Velocity Loop Mode
Support RS485 Communication
Only 1-Ch RS485 Bus Is Required To Control Multiple Direct Drive Servo Motors At The Same Time
Closed-Loop Control, Multiple Feedback
You Can Get The Motor Feedback Information Such As Temperature, Position, Velocity, Current, Etc. By Communication
Temperature Feedback
Position Feedback
Speed Feedback
Current Feedback
Integrated Direct Drive Design, No Reducer
The integrated direct drive motor design allows the motor to provide smooth torque, steady speed and accurate position without an external reducer, also with the advantages of compact structure and high integration
Excellent Low Speed Performance Compact, Yet Powerful
The DDSM115 Speed Is As Low As 1 RPM And Its Torque Up To 2.0Nm
Waterproof & Dustproof, Longer Service Life
IP54 Protection Rating, The Ingress Protection Design Against Dust And Water Jets Can Make The Motor Better Protected, Provides A Longer Lifetime And Better Performance

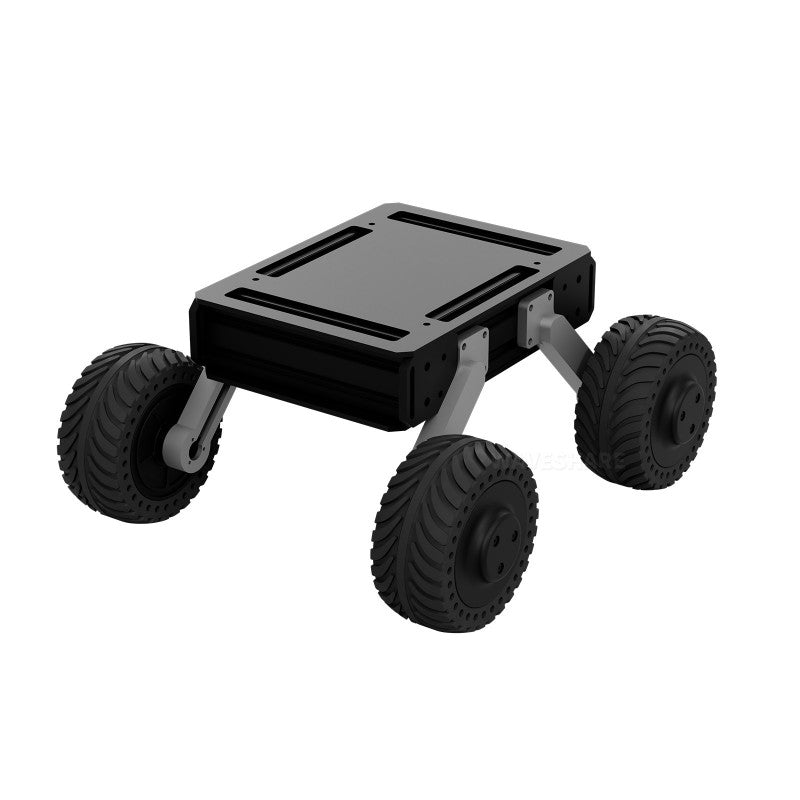

Application Scenarios
Home Robots, Industrial/Commercial Robots, Fitness Equipment, Etc.
Home Robots
Industrial Robots
Fitness Equipment
Food Delivery Robots
Dimensions
Package Contains:
DDSM115 x1
Weight: 0.759 kg
