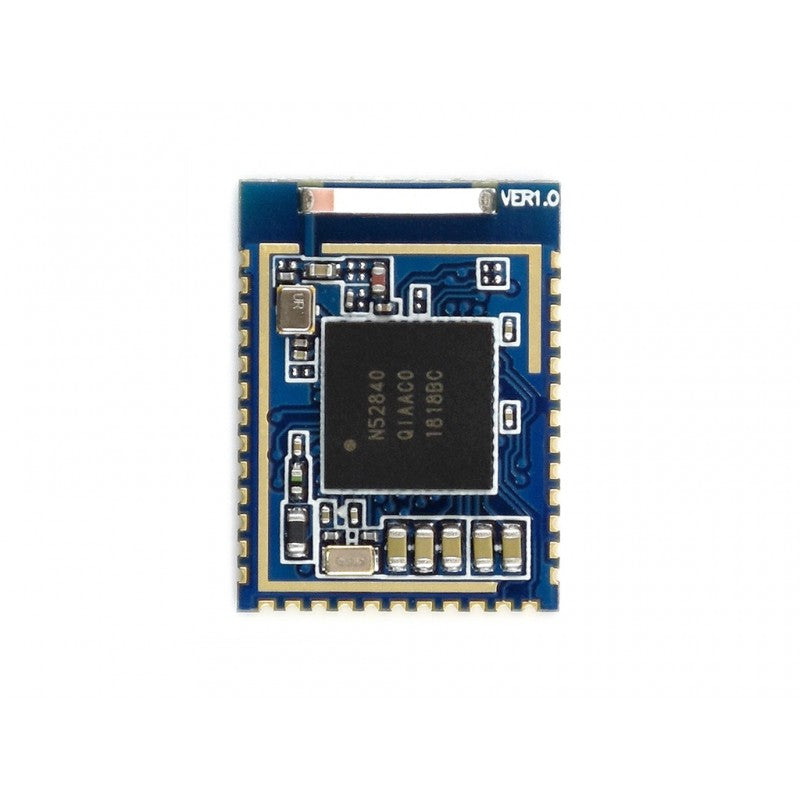

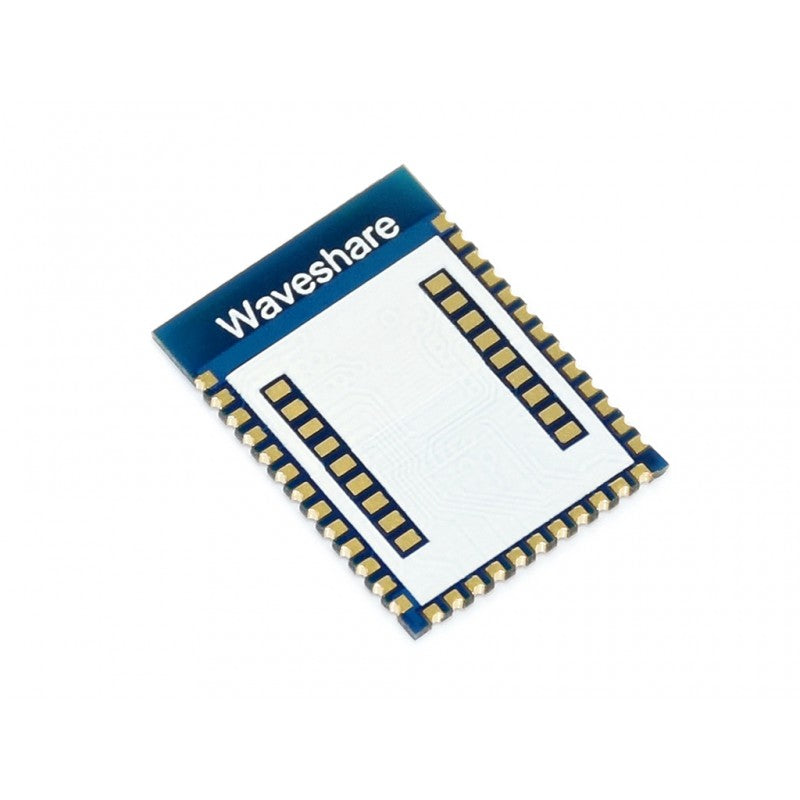

NRF52840 Bluetooth 5.0 Module, Small Size, Stable Performance

Core52840 is a Bluetooth 5.0 module based on nRF52840, it is pretty small in size, yet still provides stable and reliable performance, can be directly integrated into kinds of products.

Core52840 Specifications

  • Onboard chip: nRF52840
  • Communication distance: 150m (open outdoor), 40m (indoor)
  • Data rate: 2Mbps, 1Mbps, 500kbps, 125kbps
  • Frequency range: 2.4GHz
  • Operating voltage: 2.0V ~ 3.6V (3.0V recommended)
  • Operating temperature: -40℃ ~ 85℃
  • Storage temperature: -55℃ ~ 125℃
  • Dimension: 18mm × 13.5mm
  • Antenna: onboard antenna



nRF52840 Features

nRF52840 is an ultra-low power, flexible wireless system on chip (SoC), it is the ideal choice for short range wireless applications such as wearable devices, interactive entertainment devices, etc.

  • Bluetooth 5.0, IEEE 802.15.4-2006, multiprotocol 2.4 GHz transceiver
  • Compatible with nRF52, nRF51, nRF24L, and nRF24AP series
  • ARM Cortex-M4F 32-bit processor (with FPU, 64MHz)
  • 1MB flash and 256kB RAM
  • 48x GPIOs
  • 2x two wire interface (I2C compatible)
  • 1x I2S digital audio interface
  • 12-bit / 200KSPS ADC
  • 1x USB2.0
  • 1x QSPI serial (32Mbps)
  • 4x SPI main interfaces, 3x SPI slave interfaces
  • 2x UART
  • 4-ch PWM
  • 1x SWD
  • Operating voltage: 1.7V~5.5V



Core52840 Applications

  • Wearable devices
  • Bluetooth intelligent application
  • Smart home appliances
  • Industrial IoT control
  • Interactive entertainment devices



Pinouts

Core52840 pinouts





Dimensions

Core52840 dimension



Development Resources

Wiki : www.waveshare.com/wiki/NRF52840_Eval_Kit

Recommendation

You may also want an ST-LINK/V2 (mini) for easy programming / debugging, OR the evaluating / testing tool NRF52840 Eval Kit which integrates Core52840.
