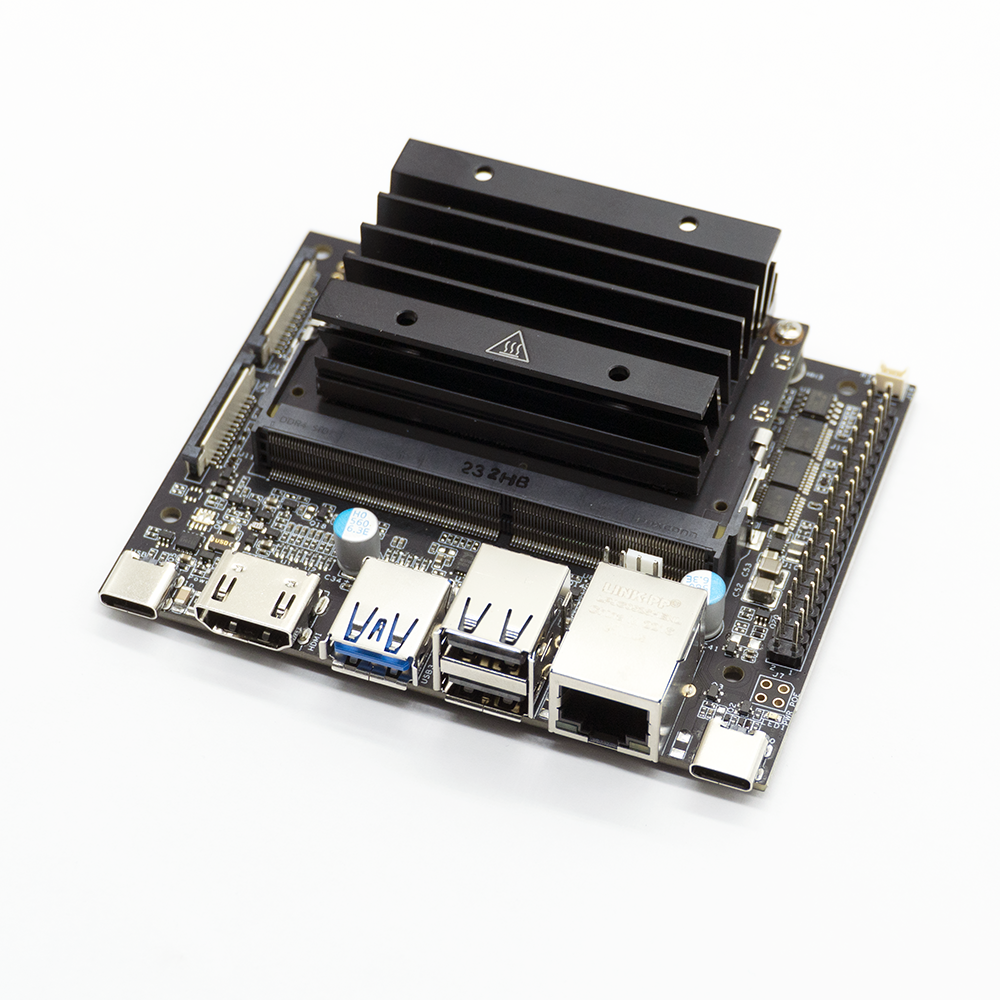

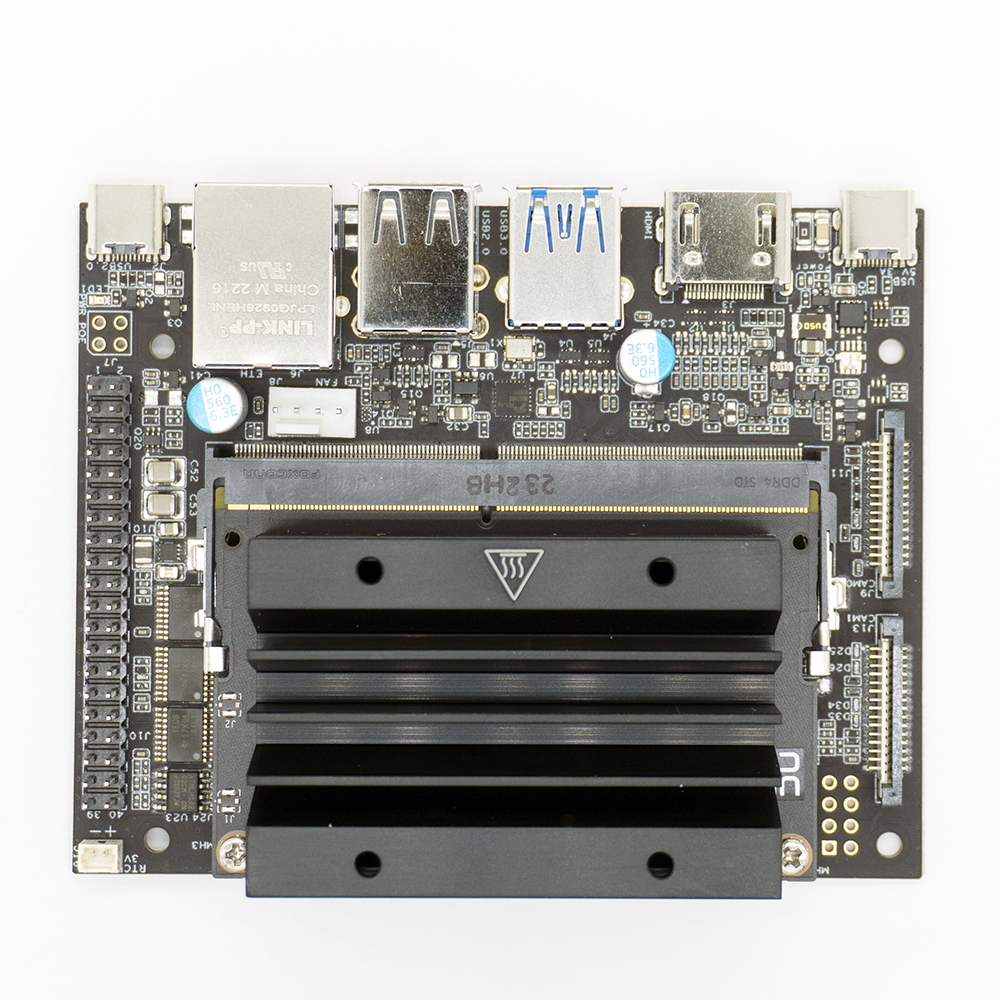

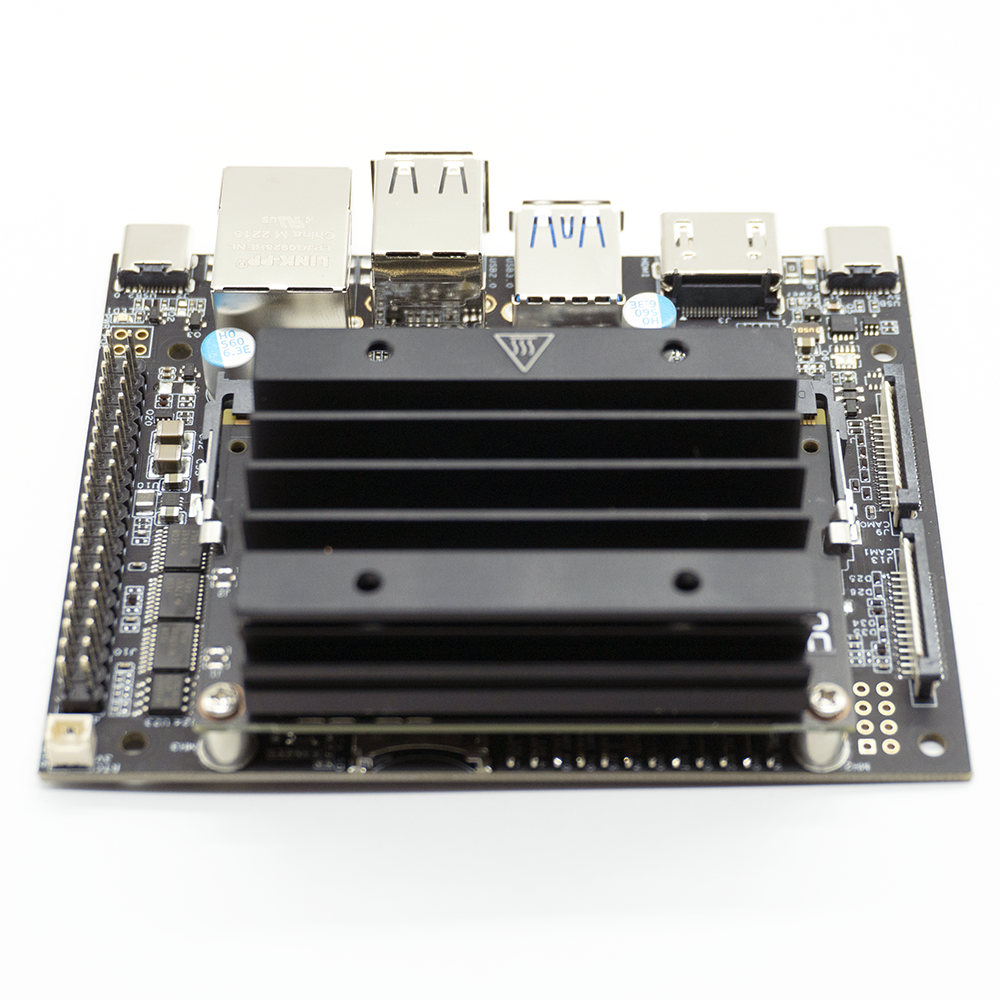

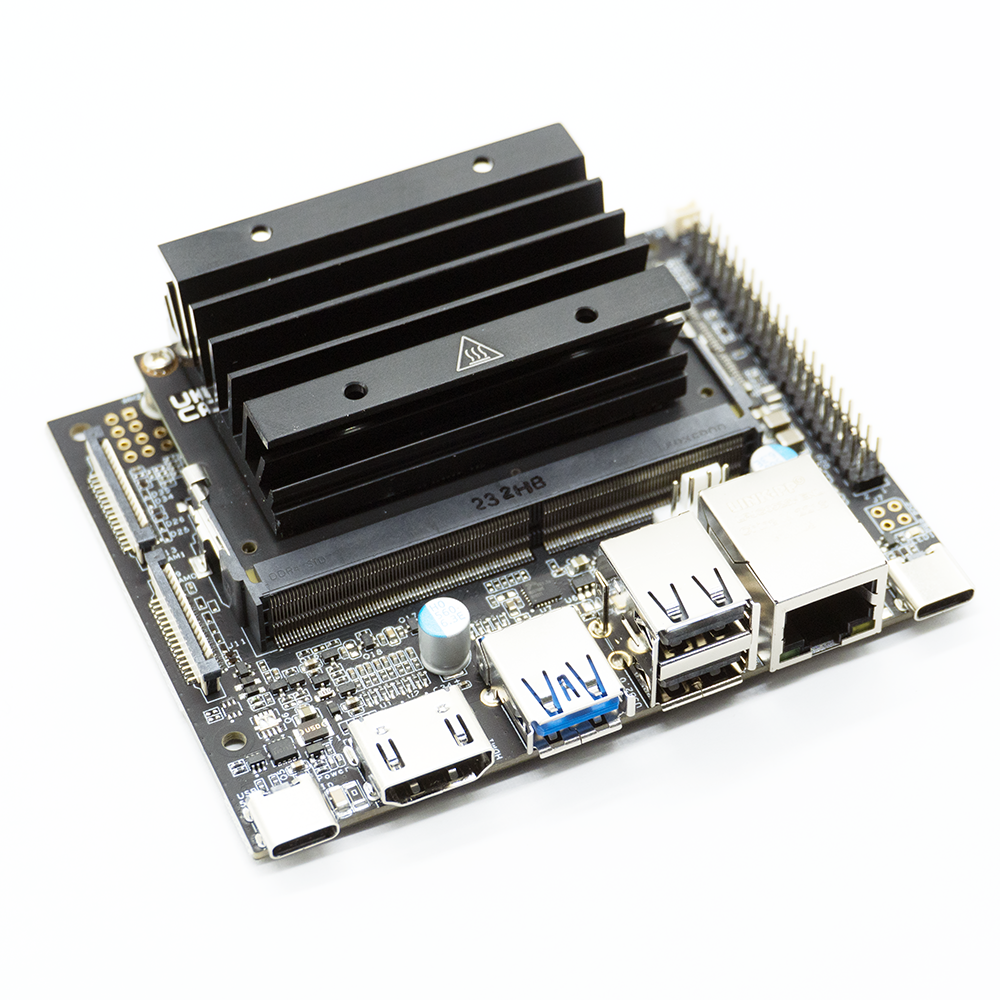

The ThinkRobotics NVIDIA Jetson Nano Development Kit (4GB) comes withĀ an interface rich carrier board from SEEED studio,Ā with Jetpack preinstalled.

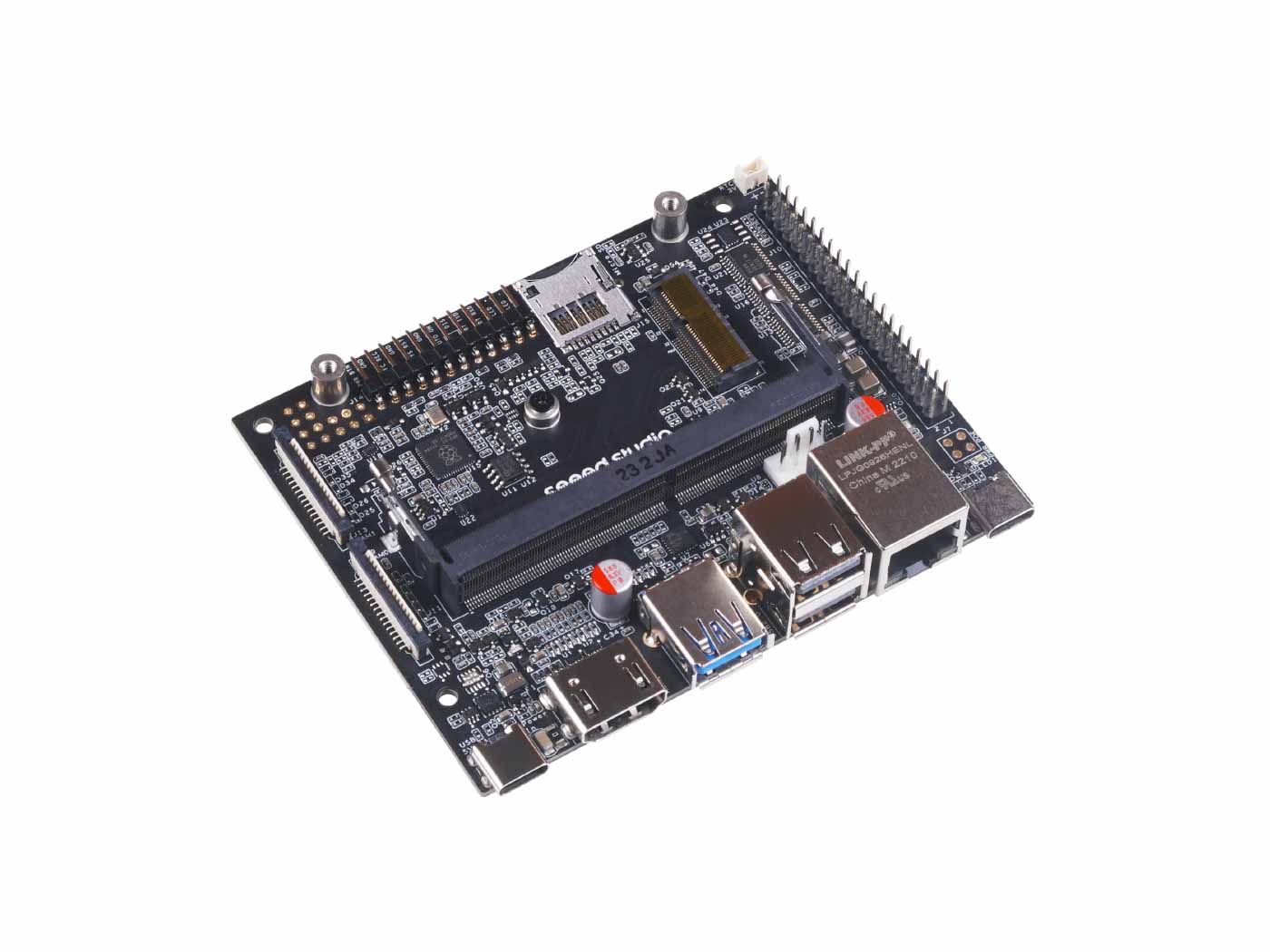

The J101 carrier board is a cost-effective and interface-rich NVIDIA Jetson Nano compatible carrier board. It included HDMI2.0, 2x USB 2.0, 1x USB 3.0, micro SD card slot, 2 xCSI, M.2 key E WIFI / BT, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has nearly the same functional design and exactly the same size as the carrier board of NVIDIAĀ® Jetson Nanoā¢ B01.

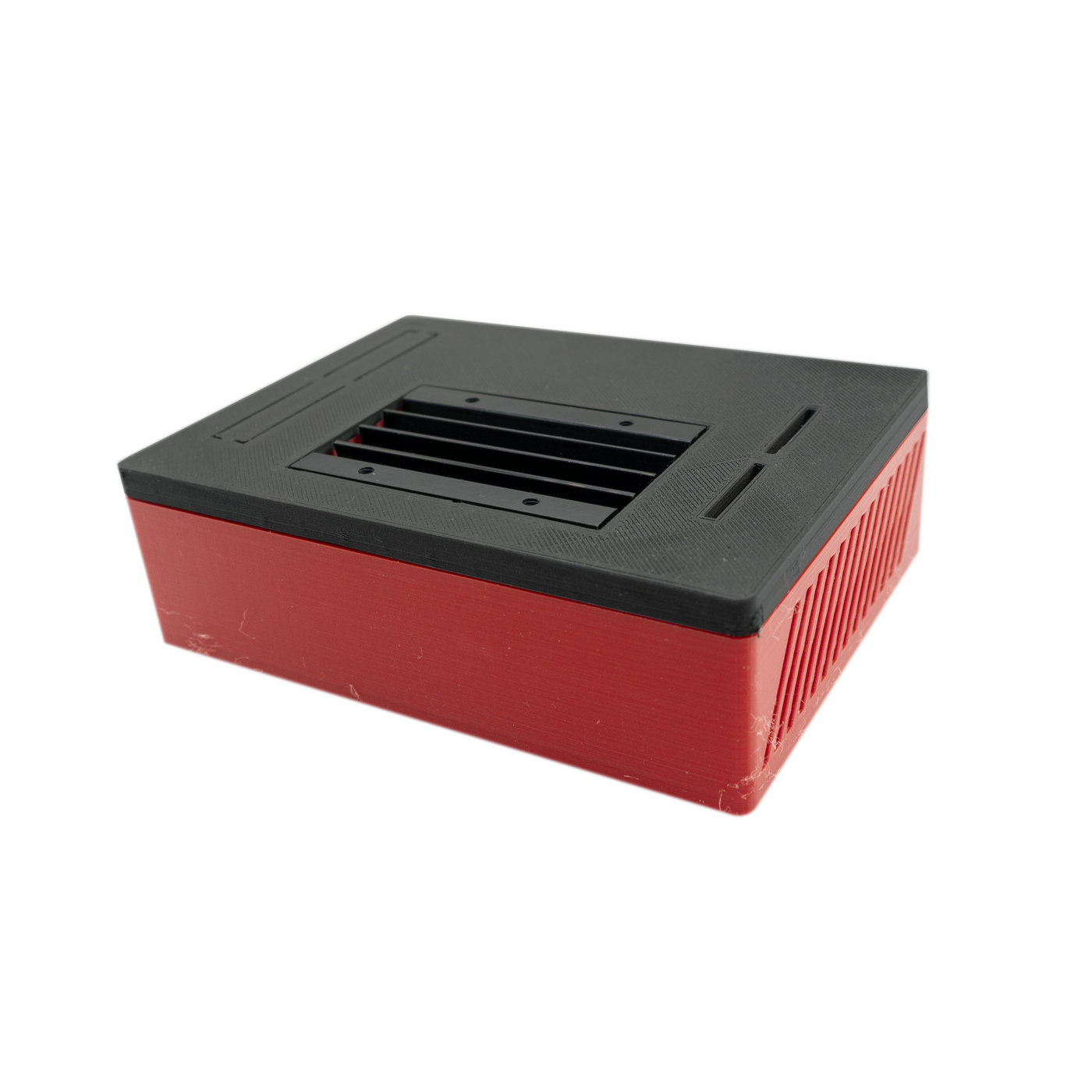

Color of the case may vary. For customization of 3D Printed case, and programming - please contact us.Ā The carrier board and modules come with a 1 year manufacturer's limited warranty supported by ThinkRobotics.
Note: Power supply is not included in the kit and needs to be bought separately.
100+ units available. Usually ships in 3 working days.
Documentation & Wiki:Ā Please also check out SeeedĀ wikiĀ guide including getting started with Jetson Nano and also building different projects.Ā
Features
- Perfectly suited: Design for Jetson Nano Module (260-pin SODIMM).
- Dev Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidiaās official Nano Developer kit.Ā
- Expandable storage: SD card slot for storage expansion of Nano module (16GB eMMC).
- RichĀ peripherals: Higher performance stability consists of USBĀ 3.0, USB 2.0 ports, M.2 key E for WIFI, RTC,Ā Raspberry Pi GPIO 40-pin, and so on.
- Super cost-effective: Suitable for the good start and quick evaluation of AI applications.

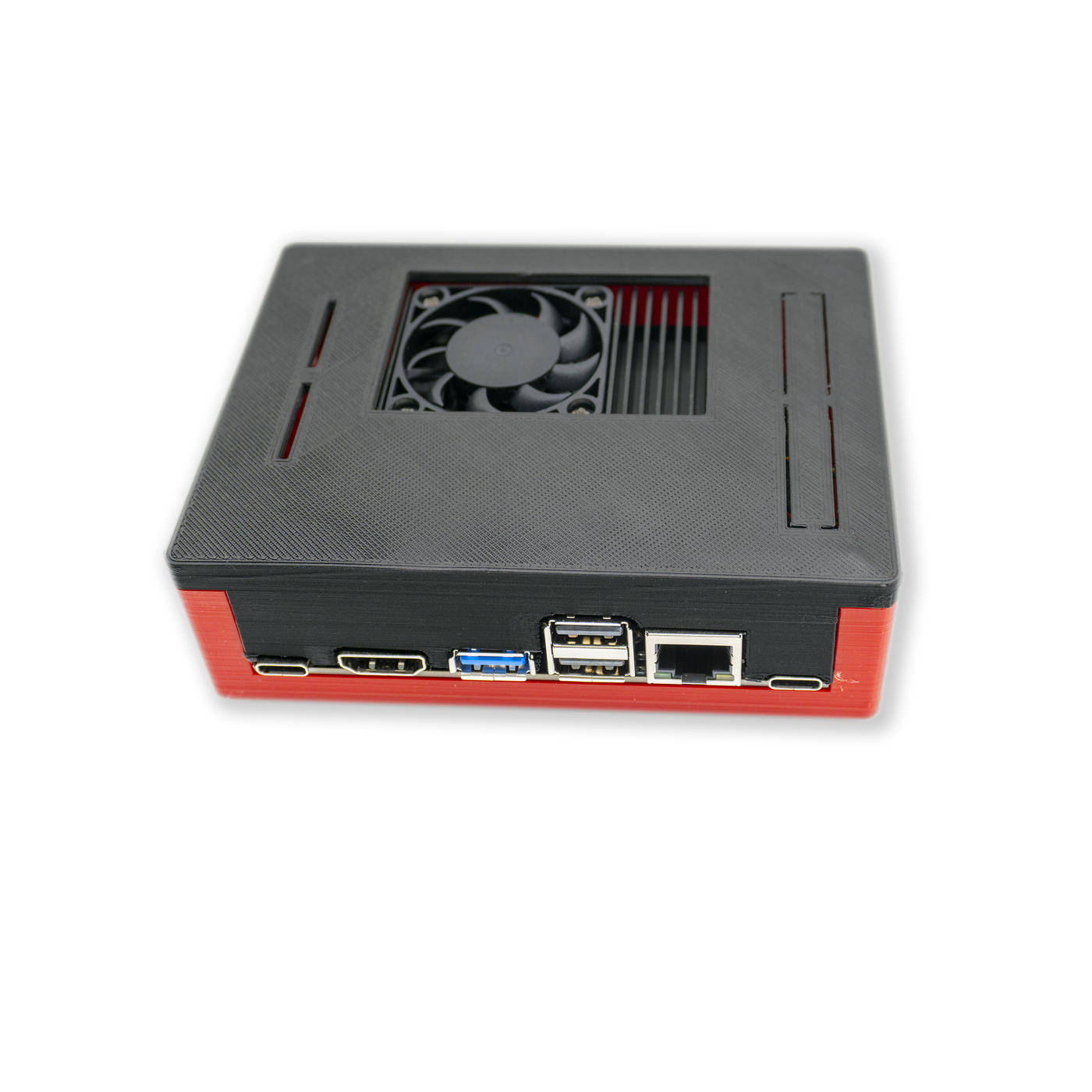

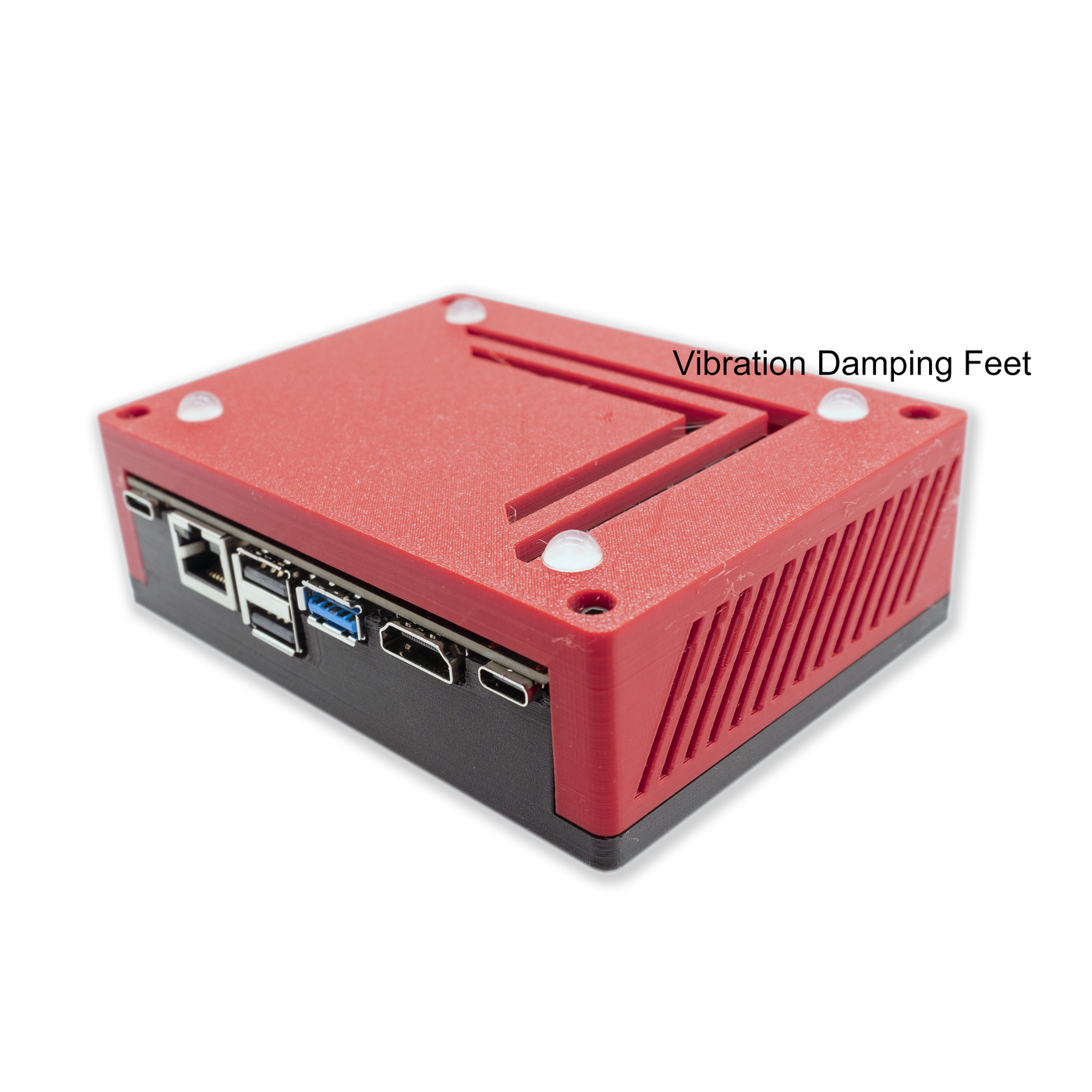

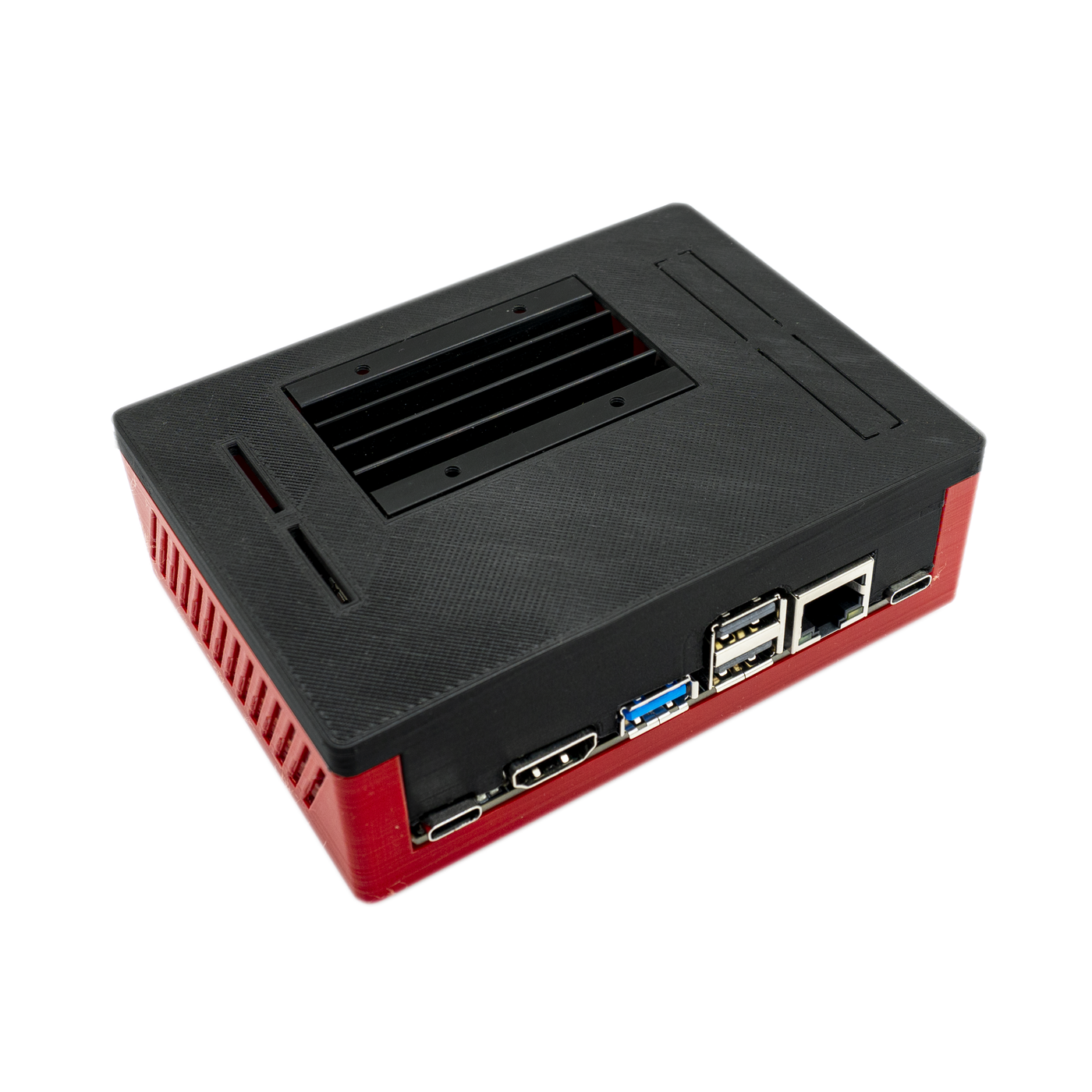

- Comes in 3D Printed Case as an option.
- Comprehensive certificates: FCC, CE, RoHS, KC.
Functionality
Working with NVIDIA Jetson Nano module, powered by NVIDIA Maxwell with 128 NVIDIA CUDAĀ® cores, it's ready to bring the power of modern AI to everyone: makers, learners, and embedded developers.Ā
With the NVIDIA Jetson Nano module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDAĀ®, cuDNN, and TensorRTā¢ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.
Edge AI Applications
Working with Jetson Nano module, reComputer J101 is ready to bring modern AI power to real-world applications such as image recognition, object detection, pose estimation, video processing, and many more. Check out the following application example with tutorials!Ā
-
Hard hat detectionĀ and build custom PPE detection
Find in theĀ Jetson Community ResourcesĀ page tools and tutorials the community has created to power your development experience, and check out theĀ Community Projects page to inspire your next project!Ā
Ā
Specifications:
- Module Compatibility:Ā Jetson Nano series
- PCB Size / Overall Size:Ā 100mmĀ X 80mm
- Display:Ā 1x HDMIĀ and 1x DP
- CSI Camera: 2
- Ethernet:Ā 1x Gigabit Ethernet (10/100/1000M)
- USB: 1xĀ USB Type-C (Power In);Ā 1x USB 3.0 Type-A (5 Gbps);Ā 2x USB 2.0 Type-A;Ā 1x USB Type-C (Device mode)
- Micro SD card:Ā 1x Micro SD card slot (48MHz CLK Frequency)
- M.2 Key E
- FAN: 1x fan connector
- Multifunctional Port:Ā 1x 40-Pin,Ā 1xĀ 12-Pin
- RTC:Ā RTC 2-pin,Ā RTC socket(reserved)
- Power supply:Ā 5V/4A(USB Type C)
Comparison with NVIDIA Nano series Dev kits carrier board:
What is included in the kit and what is not included?
The package includes the J101 carrier board designed for Jetson Nano with JetPack preinstalled and documentation. The power supply is not included and must be purchased separately.
Is the carrier board compatible with the Nvidia official Nano carrier board?
The board is designed to match the size and offers a similar functional design to Nvidia's official Nano developer kit while supporting the Jetson Nano module.
What interfaces and expansion options does the board provide?
It exposes HDMI 2.0, USB 3.0 and USB 2.0 ports, a micro SD card slot, two CSI camera connectors, M.2 Key E for WIFI or Bluetooth, GPIO, I2C, I2S, a fan connector, and a 40 pin GPIO header.
What is the warranty and where can I find support and documentation?
The kit is covered by a 1 year manufacturer's limited warranty. Documentation and getting started guides are available on the Seeed wiki and there is an optional 3D printed case.
When will the product ship and how many units are available?
There are 100 plus units available and orders usually ship in 3 working days.
