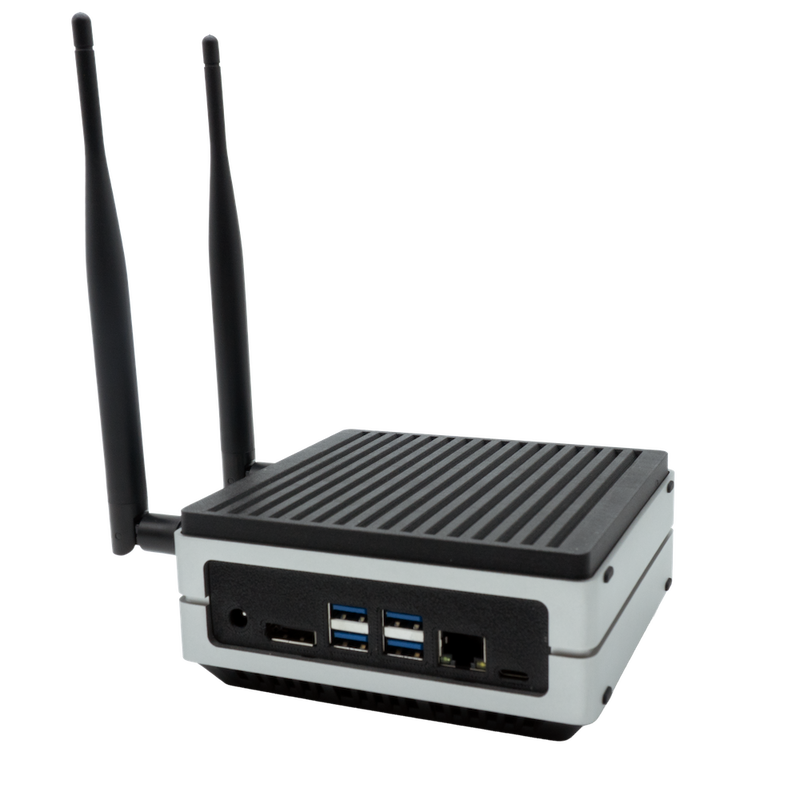

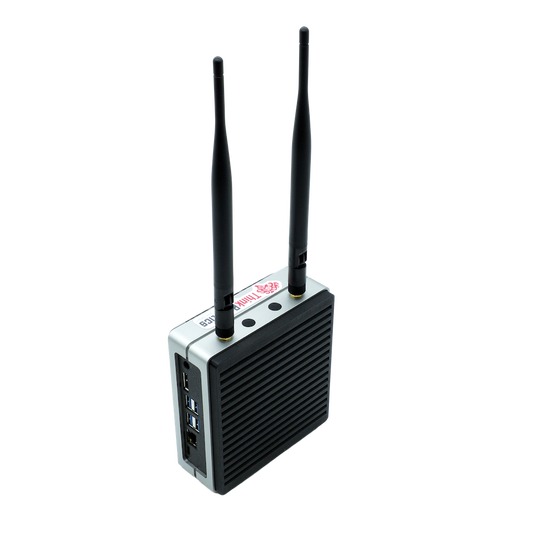

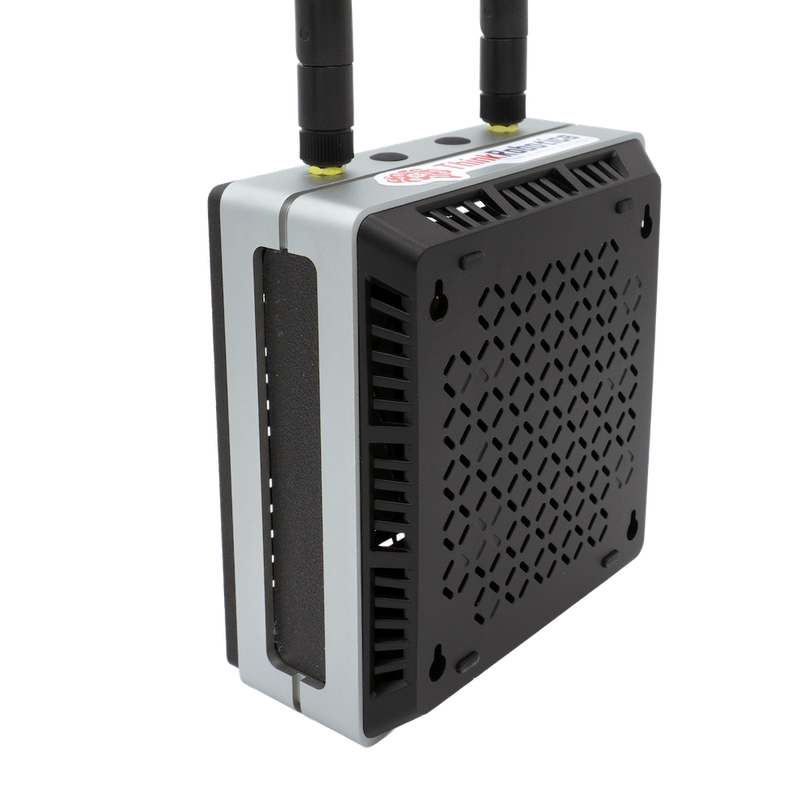

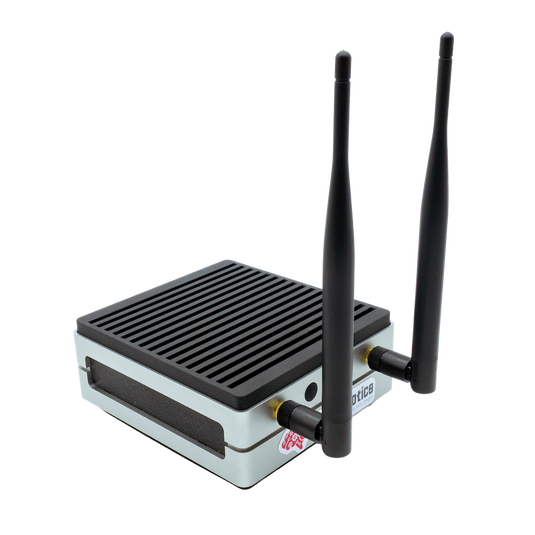

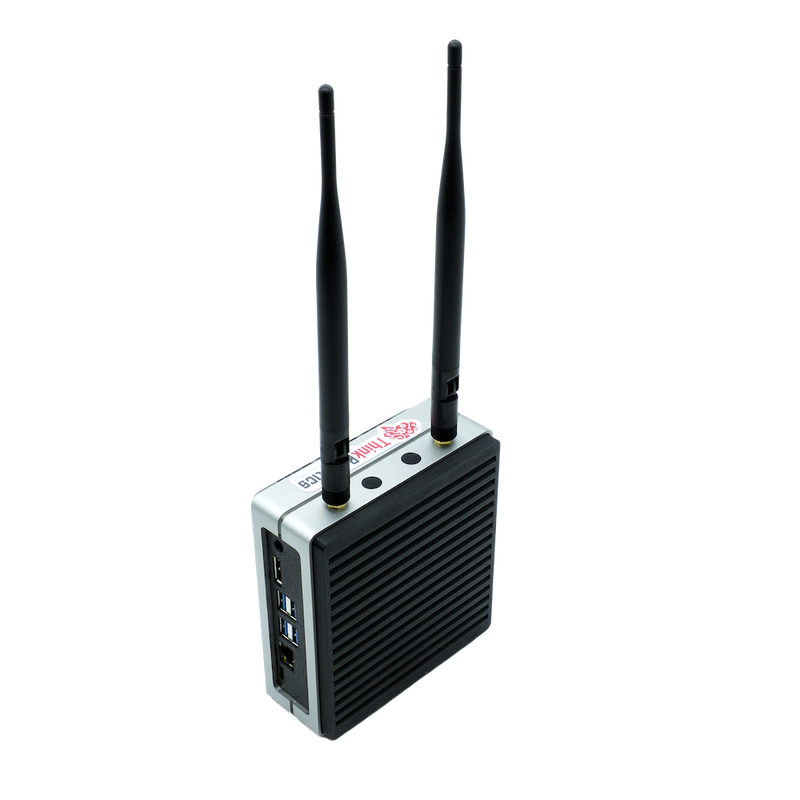

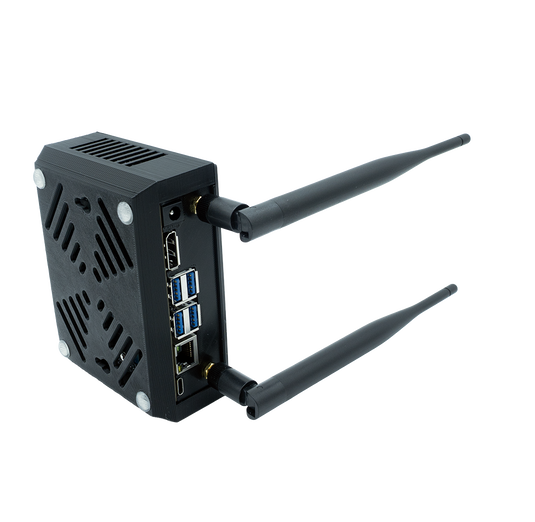

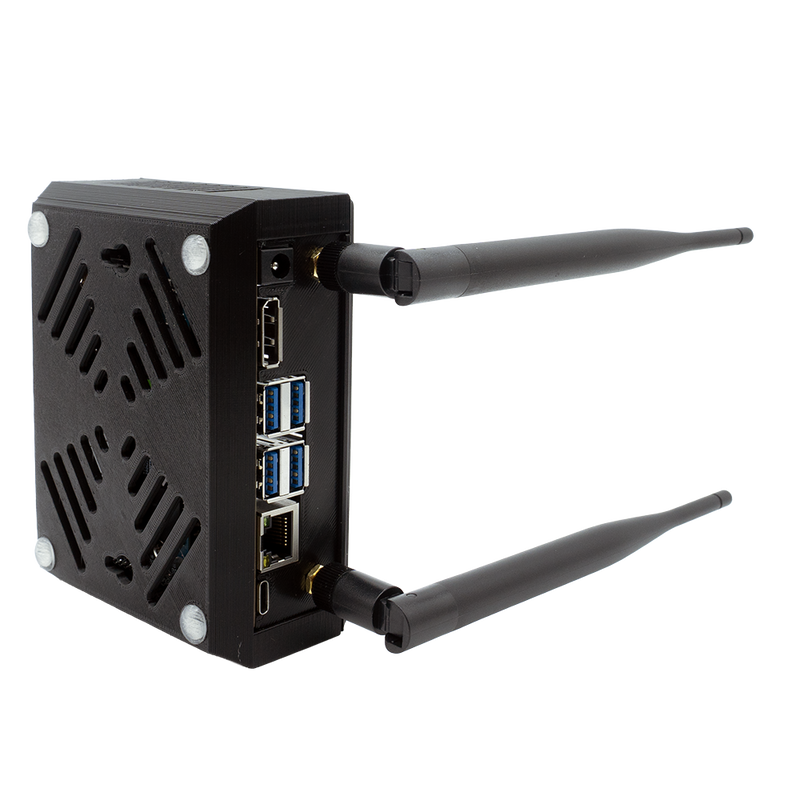

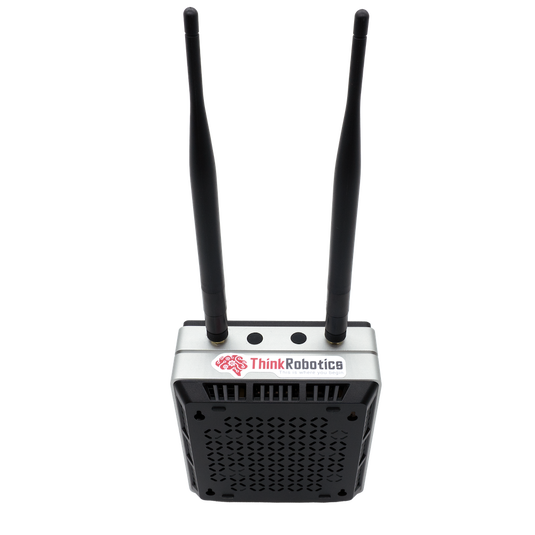

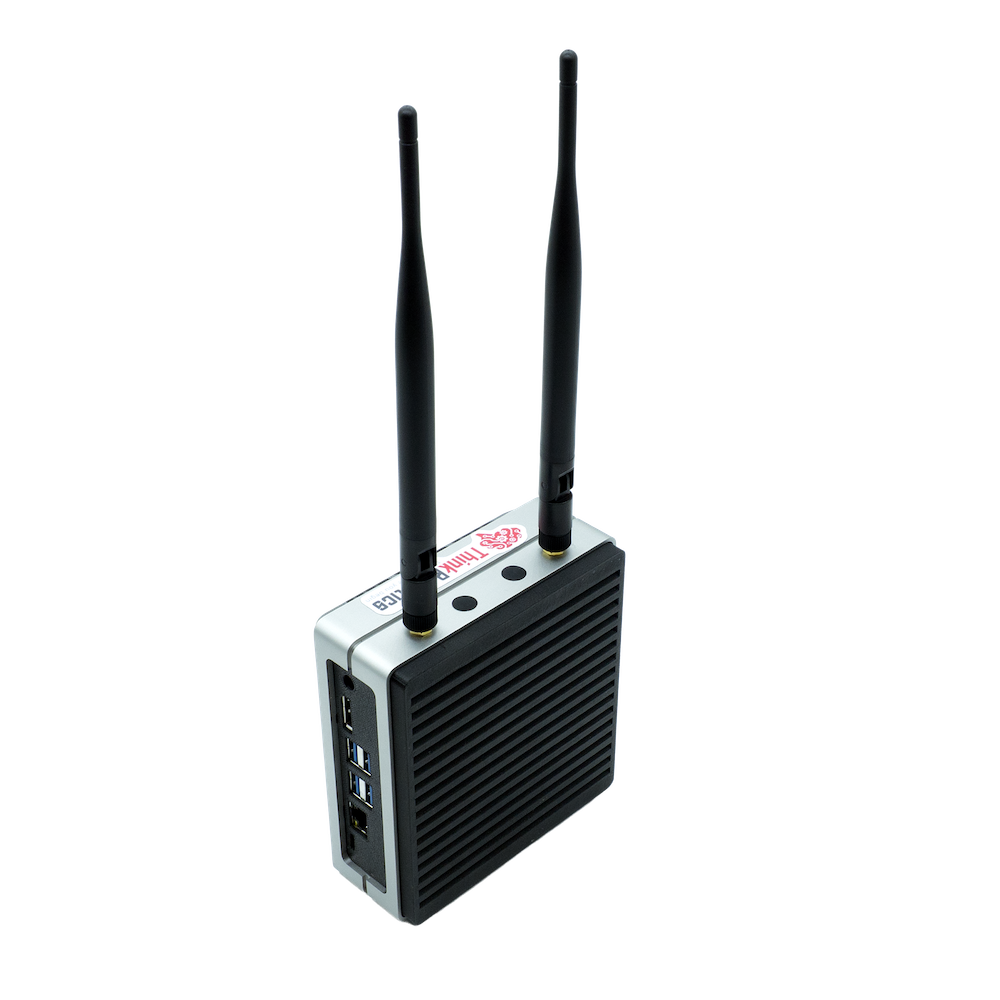

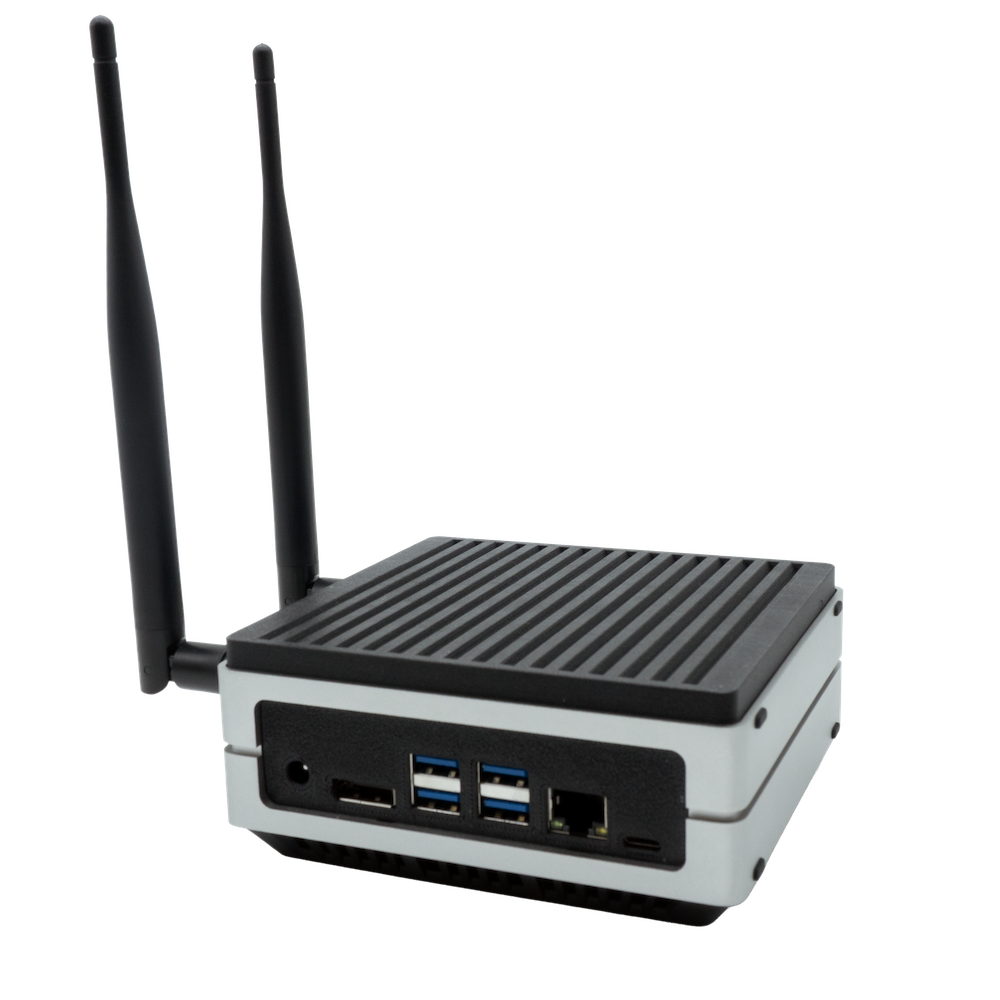

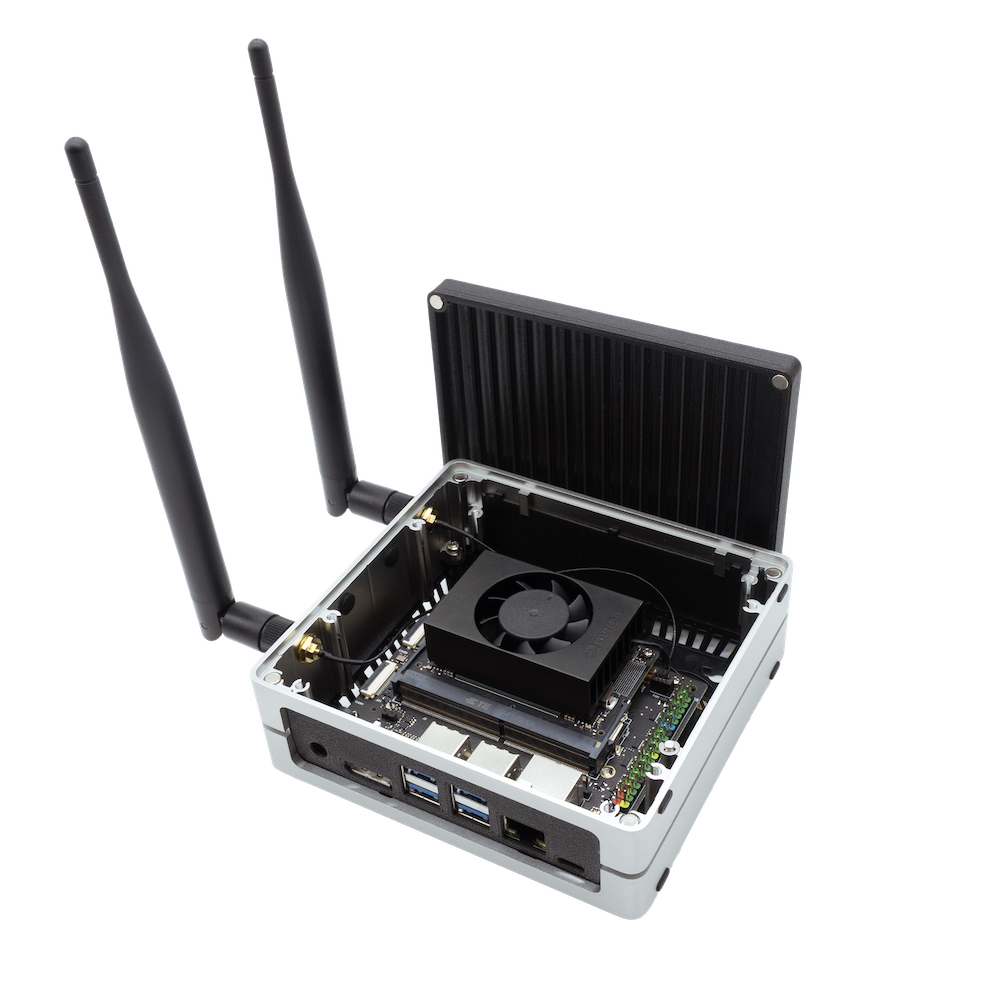

NVIDIA Jetson Orin Super Nano Deployment Kit - Made in India

SKU: SBC1116-4

₹ 51,549.99 ₹ 59,999.99

Out of stock

Select variant

4GB

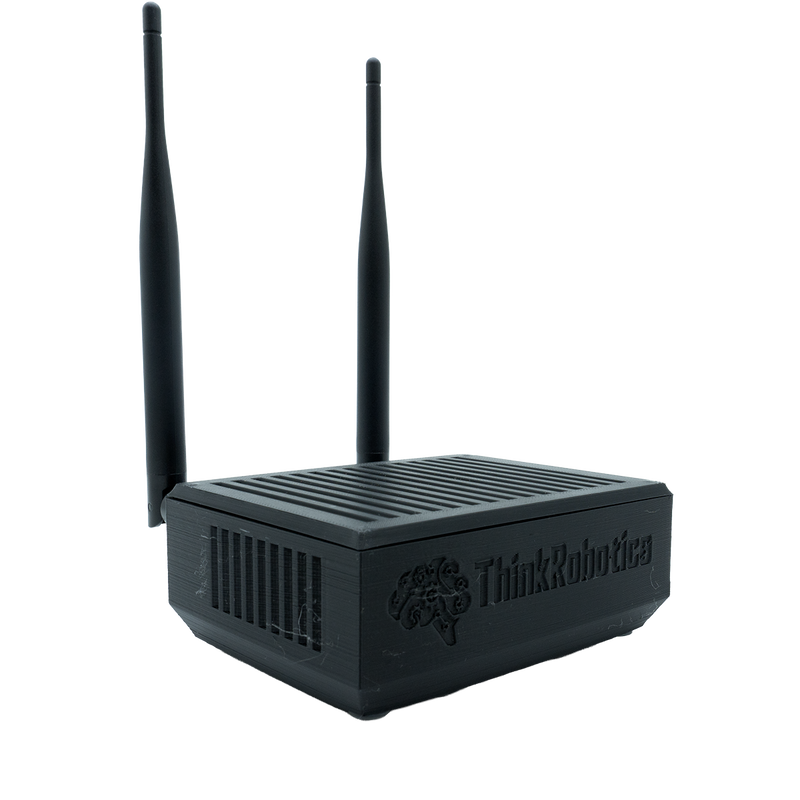

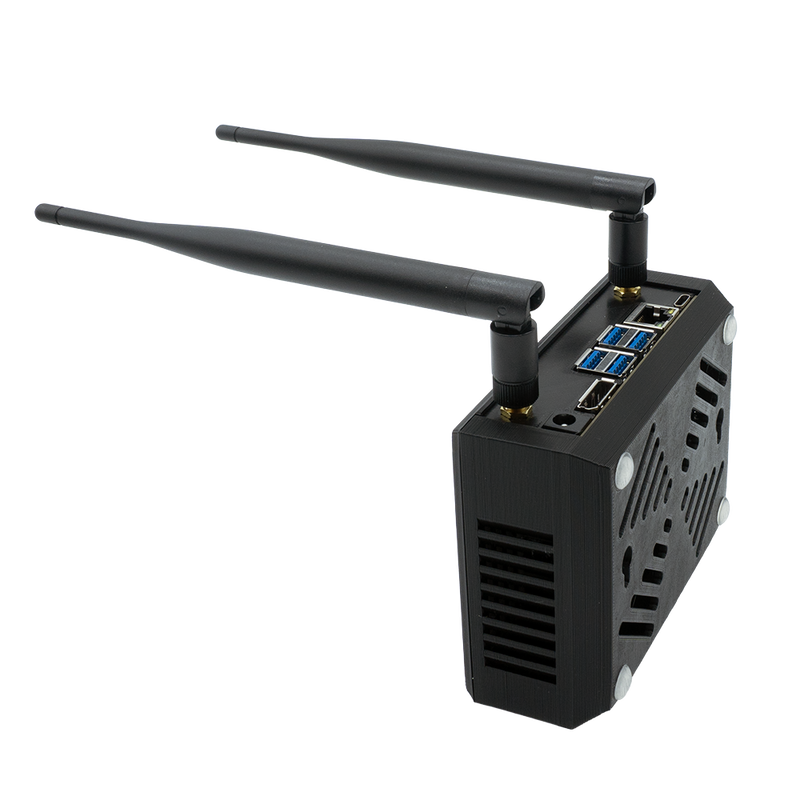

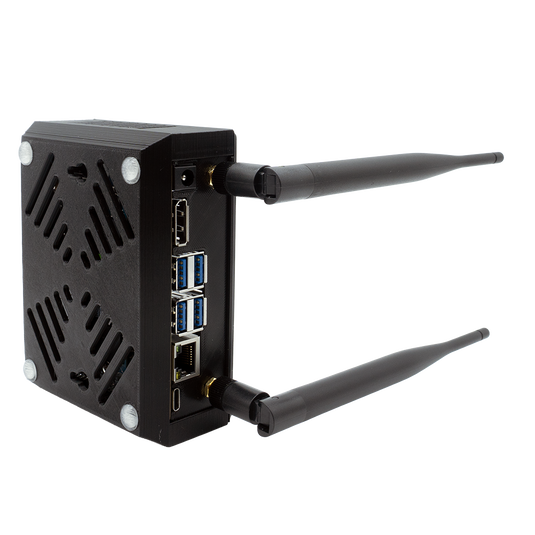

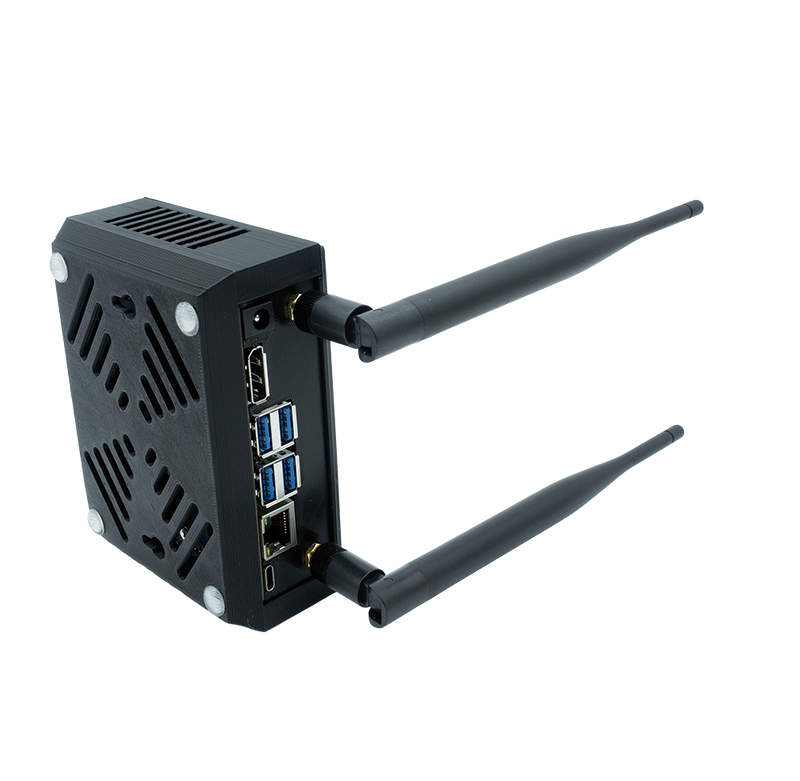

3D Printed Plastic
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
NVIDIA Jetson Orin Super Nano Deployment Kit - Made in India4GB / 3D Printed Plastic₹ 51,549.99

NVIDIA Jetson Orin™ Super Nano Deployment Kit - Made in India

with Waveshare Carrier Board


Based On Jetson Orin Nano Module
AI Edge Computing Development Kit

This Is Not The N-VIDIA Official Developer Kit

This kit includes the Orin Nano Module with options for 4GB/8GB memory, no built-in storage module, provides up to 20 TOPS/67 TOPS AI Performance. Comes with preinstalled 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.

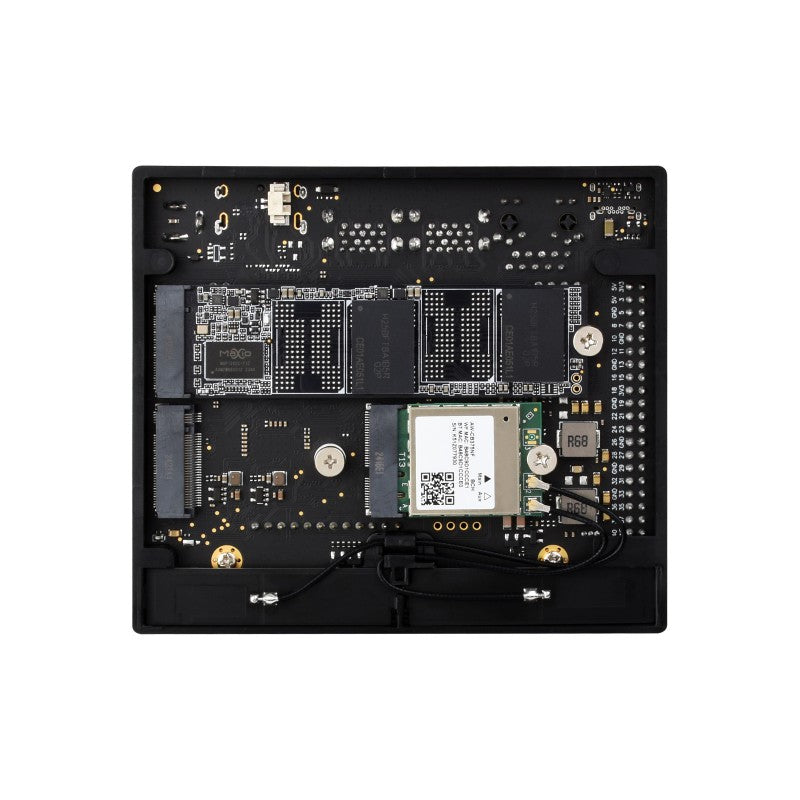

This kit also comes with a pre-installed AW-CB375NF wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.

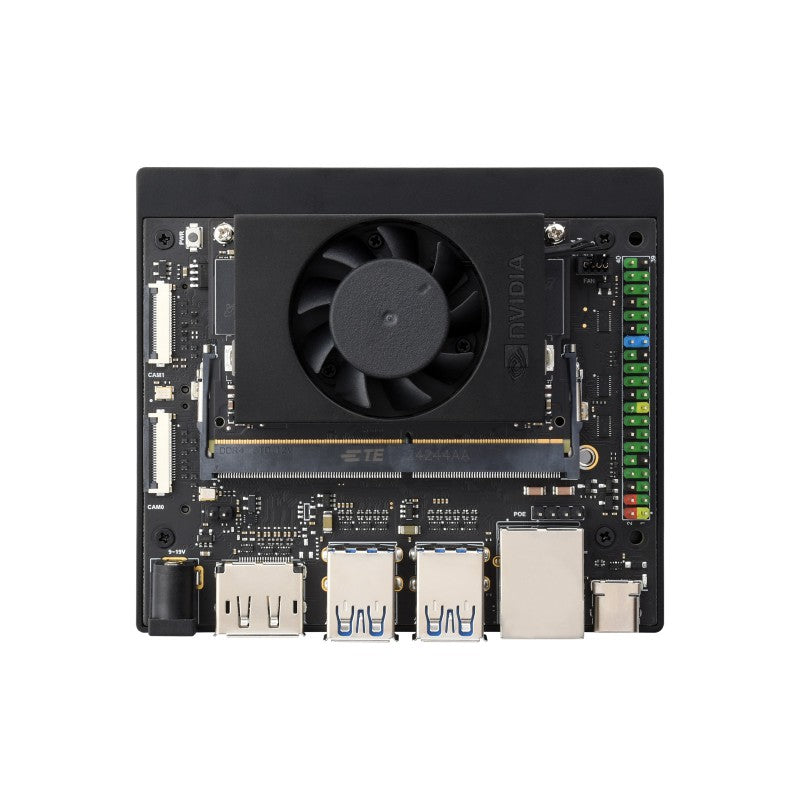

JETSON-ORIN-NANO-DEV-KIT

Includes Jetson Orin Nano Module (options for 4GB/8GB), JETSON-ORIN-IO-BASE base board, Cooling Fan, 256GB/128GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, USB cable, Ethernet cable, Power supply, etc.




Jetson Orin Nano Specification

MODULE 4GB 8GB
VERSION 4GB Jetson Orin Nano Module Waveshare Kit 8GB Jetson Orin Nano Module Waveshare Kit Official Kit
AI PERFORMANCE 20TOPS 40TOPS
GPU 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
GPU FREQUENCY 625MHz (Max)
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
CPU FREQUENCY 1.5GHz (Max)
MEMORY 4GB 64-bit LPDDR5, 32GB/s 8GB 128-bit LPDDR5, 68GB/s
STORAGE Supports external NVMe 128GB NVMe Solid State Drive Supports external NVMe 128GB NVMe Solid State Drive TF card slot & external NVMe via M.2 Key M
POWER 7W ~ 10W 7W ~ 15W
PCIE* 1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) M.2 Key M slot with x4 PCIe Gen3/
M.2 Key M slot with x2 PCIe Gen3/
M.2 Key E slot		 1 x4 + 3 x1 (PCIe 4.0, Root Port & Endpoint) M.2 Key M slot with x4 PCIe Gen3/
M.2 Key M slot with x2 PCIe Gen3/
M.2 Key E slot
USB* 3x USB 3.2 2.0 (10 Gbps)
3x USB 2.0		 USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) 3x USB 3.2 2.0 (10 Gbps)
3x USB 2.0		 USB Type-A: 4x USB 3.2 Gen2/
USB Type-C (UFP)
CSI CAMERA Up to 4 cameras (8 via virtual channels**)/
8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)		 2x MIPI CSI-2 Camera Connector Up to 4 cameras (8 via virtual channels**)/
8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)		 2x MIPI CSI-2 Camera Connector
VIDEO ENCODE 1080p30 supported by 1-2 CPU cores
VIDEO DECODE 1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
DISPLAY 1x 8K30 multi-mode DP 1.4a (+MST)/
eDP 1.4a/HDMI 2.1		 1x DisplayPort 1.2 (+MST) connector 1x 8K30 multi-mode DP 1.4a (+MST)/
eDP 1.4a/HDMI 2.1		 1x DisplayPort 1.2 (+MST) connector
OTHER 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, TF card slot, DC power jack
NETWORKING 1x GbE 1x GbE Connector 1x GbE 1x GbE Connector
DIMENSIONS 69.6 mm x 45 mm
260-pin SO-DIMM connector		 103 × 90.5 × 34mm 69.6 mm x 45 mm
260-pin SO-DIMM connector		 103 × 90.5 × 34mm 100 mm x 79 mmx 21 mm
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations.
** Virtual Channels for Jetson Orin Nano are subject to change
Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.



Onboard Resources



Professional Application Software And Models

N-VIDIA Software
All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.

Pretrained Models
Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.





N-VIDIA Platforms For Robotics, AI Speech, And Smart Cities

N-VIDIA Software Platforms Including Isaac For Robotics, Riva For AI Speech, And Metropolis For Video Analytics, Are Available To Speed Vertical-Specific Applications

N-VIDIA Isaac
Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.

N-VIDIA Riva
N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.

N-VIDIA Metropolis
N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.



Product Show



Outline Dimensions





Resources

Wiki: www.waveshare.com/wiki/Jetson_Orin_Nano





Package Contents:

Weight: 0.572 kg

  1. Waveshare Orin Nano development kit:
    1. Jetson Orin Nano Module x1
    2. JETSON-ORIN-IO-BASE x1
    3. Cooling Fan x1
    4. 240GB NVMe Solid State Drive (assembled) x1
    5. Wireless network card (assembled) x1
  2. Power adapter x1
What is included in the kit?
It includes the Jetson Orin Nano Module (4GB or 8GB), the IO base board, a cooling fan, a 256GB NVMe SSD, the AW-CB375NF wireless card with Bluetooth 5.0 and dual band wifi, and essential cables and a power supply. It is not the official NVIDIA developer kit.
Is this kit compatible with the NVIDIA Jetson software stack?
Yes, all NVIDIA Jetson modules and developer kits are supported by the NVIDIA Jetson software stack, enabling a common development and deployment experience.
What memory options are available for the Orin Nano module?
The module variants come with 4GB or 8GB of memory depending on the option chosen.
What networking features are included?
The kit includes an AW-CB375NF wireless network card with Bluetooth 5.0 and dual band wifi, plus two antennas for reliable wireless connectivity.
What comes in the package and where is it made?
The package contains the Waveshare Orin Nano development kit with the Jetson Orin Nano Module, IO base, cooling, wireless card, and power and data cables. It is Made in India and is not the official NVIDIA developer kit.
