ThinkRobotics NVIDIA Jetson Orin NX / Nano Edge AI Deployment Kit
A ready-to-deploy Jetson-based AI computing platform combining NVIDIA Jetson modules, Waveshare carrier board, NVMe storage, wireless connectivity, industrial-grade metal enclosure and 12V power supply.
Jetson Orin Nano Jetson Orin NX Industrial Metal Case NVMe SSD Wi-Fi + Bluetooth 12V 5A Power Supply
Choose Your Jetson Configuration
Select the Jetson module based on your required AI performance, memory capacity and deployment requirements.
4GB
Jetson Orin Nano
Entry-level AI edge computing
8GB
Jetson Orin Nano
Higher-performance AI workloads
8GB
Jetson Orin NX
Advanced AI and robotics
16GB
Jetson Orin NX
High-performance edge AI
Key Features
NVIDIA Jetson Platform
Available with Jetson Orin Nano 4GB/8GB and Jetson Orin NX 8GB/16GB module configurations.
Waveshare Carrier Board
Reliable carrier platform providing interfaces for storage, networking, USB, GPIO and other peripheral connectivity.
Industrial Metal Enclosure
Rugged industrial-grade metal case designed to provide mechanical protection for the Jetson computing platform during deployment.
NVMe SSD Storage
Pre-installed NVMe solid-state storage provides fast read/write performance for operating systems, applications and AI workloads.
Wi-Fi + Bluetooth
Integrated wireless connectivity with Wi-Fi and Bluetooth support for networked edge applications and peripheral communication.
12V 5A Power Supply
Includes a 12V 5A power supply suitable for powering the assembled Jetson platform.
Built for Industrial Deployment
Unlike an open development-board setup, this configuration is assembled inside an industrial-grade metal enclosure, making it more suitable for integration into robotics, automation and edge-computing systems.
Rigid metal construction | Protection for the Jetson module and carrier board
Improved mechanical durability | Suitable for embedded and industrial installations
Designed for long-term deployment environments

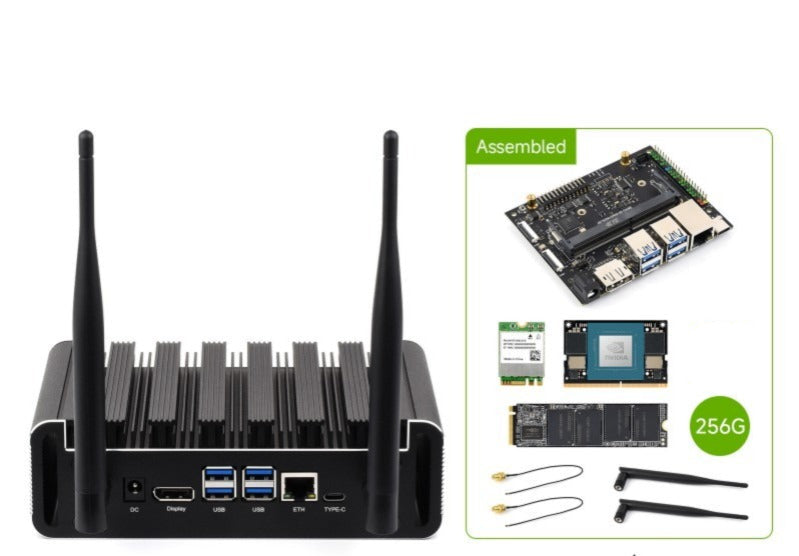

Common Components Across All Variants
Included Hardware
Selected NVIDIA Jetson Orin Nano / Orin NX module
Waveshare carrier board
Industrial-grade metal enclosure
NVMe SSD
Wi-Fi + Bluetooth wireless module
Antennas
Cooling solution

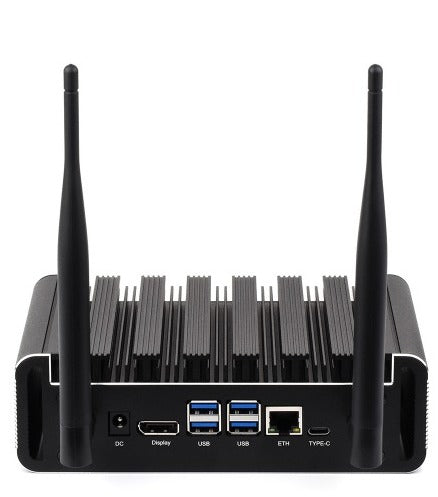

Power & Connectivity
12V 5A power supply
Gigabit Ethernet connectivity
USB connectivity
GPIO / expansion interfaces
CSI camera interfaces supported by carrier board
Wireless network connectivity
Jetson Module Comparison
| Specification | Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | Jetson Orin NX 8GB | Jetson Orin NX 16GB |
|---|---|---|---|---|
| AI Performance | ||||
| Sparse INT8 Performance — Standard | Up to 20 TOPS | Up to 40 TOPS | Up to 70 TOPS | Up to 100 TOPS |
| Sparse INT8 Performance — MAXN_SUPER | Up to 34 TOPS | Up to 67 TOPS | Up to 117 TOPS | Up to 157 TOPS |
| Dense INT8 Performance — Standard | Up to 10 TOPS | Up to 20 TOPS | Up to 35 TOPS | Up to 50 TOPS |
| Dense INT8 Performance — MAXN_SUPER | Up to 17 TOPS | Up to 33 TOPS | Up to 58 TOPS | Up to 78 TOPS |
| GPU & CUDA | ||||
| GPU Architecture | NVIDIA Ampere GPU | |||
| CUDA Cores | 512 | 1024 | 1024 | 1024 |
| Tensor Cores | 16 | 32 | 32 | 32 |
| GPU Frequency — Standard | Up to 625 MHz | Up to 765 MHz | Up to 918 MHz | |
| GPU Frequency — MAXN_SUPER | Up to 1020 MHz | Up to 1173 MHz | ||
| FP32 Performance — Standard | 0.64 TFLOPs | 1.28 TFLOPs | 1.56 TFLOPs | 1.88 TFLOPs |
| FP32 Performance — MAXN_SUPER | 1.04 TFLOPs | 2.08 TFLOPs | 2.40 TFLOPs | 2.40 TFLOPs |
| FP16 Performance — Standard | 1.28 TFLOPs | 2.56 TFLOPs | 3.12 TFLOPs | 3.76 TFLOPs |
| FP16 Performance — MAXN_SUPER | 2.08 TFLOPs | 4.16 TFLOPs | 4.80 TFLOPs | 4.80 TFLOPs |
| CPU | ||||
| CPU | 6-core Arm Cortex-A78AE | 6-core Arm Cortex-A78AE | 8-core Arm Cortex-A78AE | |
| CPU Frequency — Standard | Up to 1.5 GHz | Up to 2.0 GHz | ||
| CPU Frequency — MAXN_SUPER | Up to 1.7 GHz | Up to 2.0 GHz | ||
| Memory | ||||
| LPDDR5 Memory | 4GB | 8GB | 8GB | 16GB |
| Memory Bus | 64-bit | 128-bit | 128-bit | |
| Memory Bandwidth — Standard | 34 GB/s | 68 GB/s | 102 GB/s | |
| Memory Bandwidth — MAXN_SUPER | 51 GB/s | 102 GB/s | 102 GB/s | |
| Video & Display | ||||
| Video Decode | H.265 / H.264 / VP9 / AV1 | H.265 / H.264 / VP9 / AV1 | ||
| Video Encode | 1080p30 via CPU software | H.265 / H.264 / AV1 | ||
| Maximum Display Resolution | 3840 × 2160 @ 30 Hz | 7680 × 4320 @ 30 Hz | ||
| High-Speed Interfaces | ||||
| PCIe | Up to PCIe Gen3 | Up to PCIe Gen4 | ||
| USB | Up to 3 × USB 3.2 + 3 × USB 2.0 | |||
| MIPI CSI-2 | 8 lanes | |||
| Gigabit Ethernet | 10/100/1000 Mbps | |||
| Power Modes | ||||
| Standard Power Modes | 7W / 10W | 7W / 15W | 10W / 15W / 20W | 10W / 15W / 25W |
| MAXN_SUPER Power Mode | 25W | 25W | 40W | 40W |
| Operating Temperature (TJ) | -25°C to 105°C | |||
| 24×7 Operating Lifetime | 5 Years | |||
NVIDIA Software Ecosystem
Jetson platforms provide an extensive software ecosystem for developing and deploying accelerated AI applications at the edge.
NVIDIA JetPack
Software stack for Jetson development, including system software, libraries and tools for accelerated AI applications.
NVIDIA Isaac
Robotics development platform supporting simulation, perception, navigation and accelerated robotics workloads.
NVIDIA Metropolis
AI-powered video analytics platform for smart spaces, industrial monitoring and computer vision applications.
Applications
Robotics
Computer Vision
Industrial Automation
Edge AI
Autonomous Systems
Smart Surveillance
AI Inspection
Embedded AI
Passive Cooling
Designed for Jetson Orin NX / Nano with passive cooling
Precise Opening Design
Exquisite manufacturing process, Fitting & Nice Looking
Onboard Power Button With Indicator

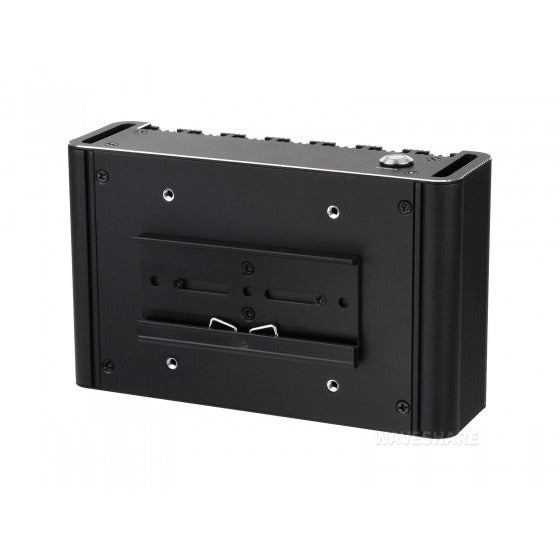

Reserved Rail-Mount Buckle Mounting Holes
Easy to install to specific scenarios
Outline Dimensions
Documentation & Resources
| Document | Link |
|---|---|
| Jetson Orin Nano Datasheet | View Datasheet |
| Jetson Orin NX Datasheet | View Datasheet |
| Jetson Orin Nano / NX Flashing Guide | View Guide |
Package Contents
| Item | Quantity |
|---|---|
| Selected Jetson Orin Nano / Orin NX Module | 1 |
| Waveshare Carrier Board | 1 |
| Industrial-Grade Metal Enclosure | 1 |
| 240GB NVMe SSD | 1 |
| Wi-Fi + Bluetooth Module | 1 |
| Wireless Antennas | 2 |
| 12V 5A Power Supply | 1 |
What is included in the kit?
It includes the Jetson Orin Nano Module (4GB or 8GB), the IO base board, a cooling fan, a 256GB NVMe SSD, the AW-CB375NF wireless card with Bluetooth 5.0 and dual band wifi, and essential cables and a power supply. It is not the official NVIDIA developer kit.
Is this kit compatible with the NVIDIA Jetson software stack?
Yes, all NVIDIA Jetson modules and developer kits are supported by the NVIDIA Jetson software stack, enabling a common development and deployment experience.
What memory options are available for the Orin Nano module?
The module variants come with 4GB or 8GB of memory depending on the option chosen.
What networking features are included?
The kit includes an AW-CB375NF wireless network card with Bluetooth 5.0 and dual band wifi, plus two antennas for reliable wireless connectivity.
What comes in the package and where is it made?
The package contains the Waveshare Orin Nano development kit with the Jetson Orin Nano Module, IO base, cooling, wireless card, and power and data cables. It is Made in India and is not the official NVIDIA developer kit.
