Orbbec Gemini 335 & 335L

SKU: SBC4019

₹ 36,799.99

Out of stock

Select variant

335
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Orbbec Gemini 335 & 335L335₹ 36,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

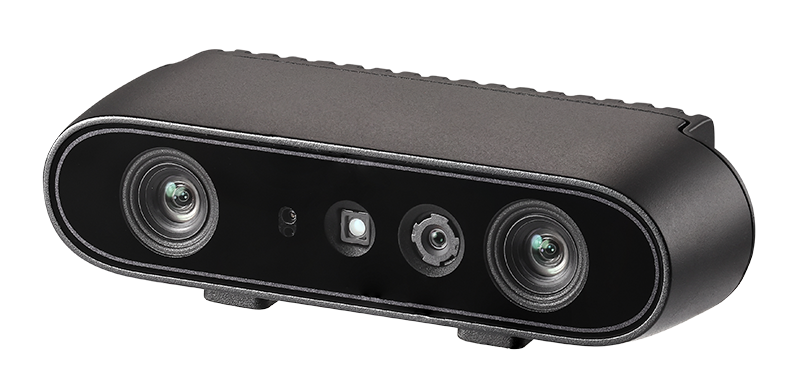

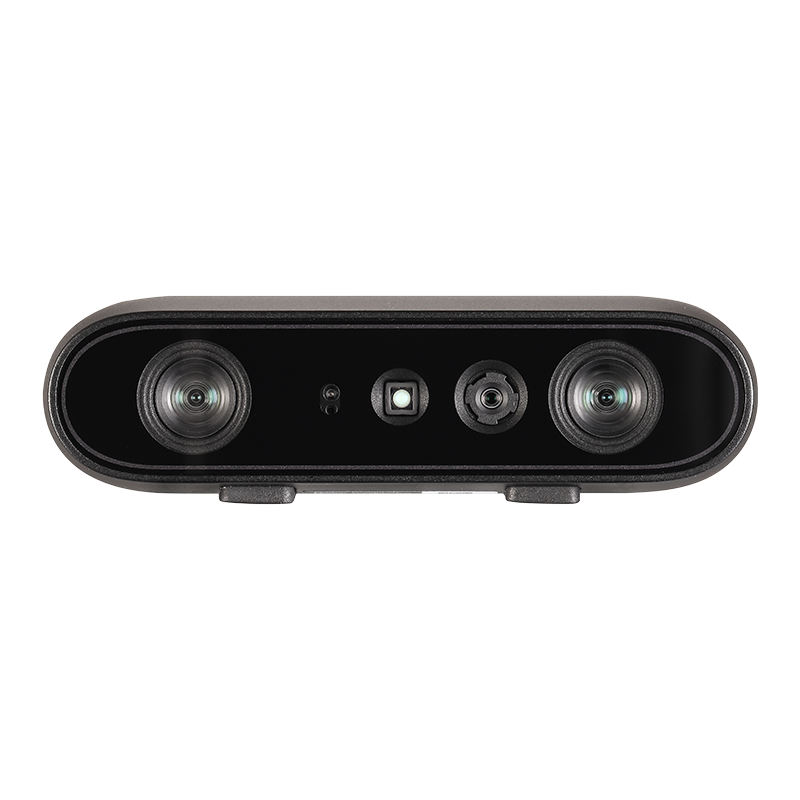

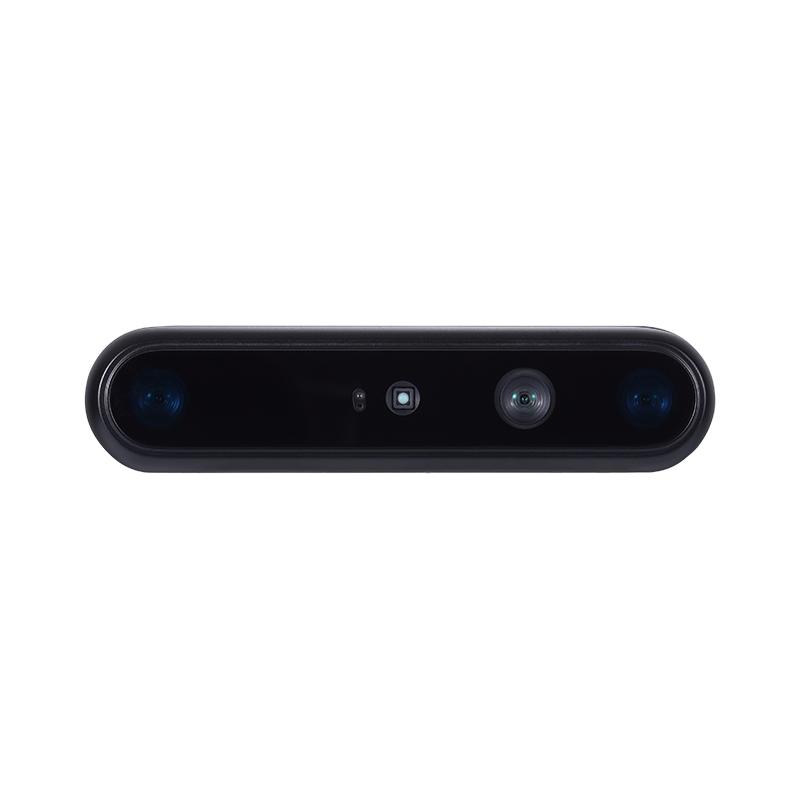

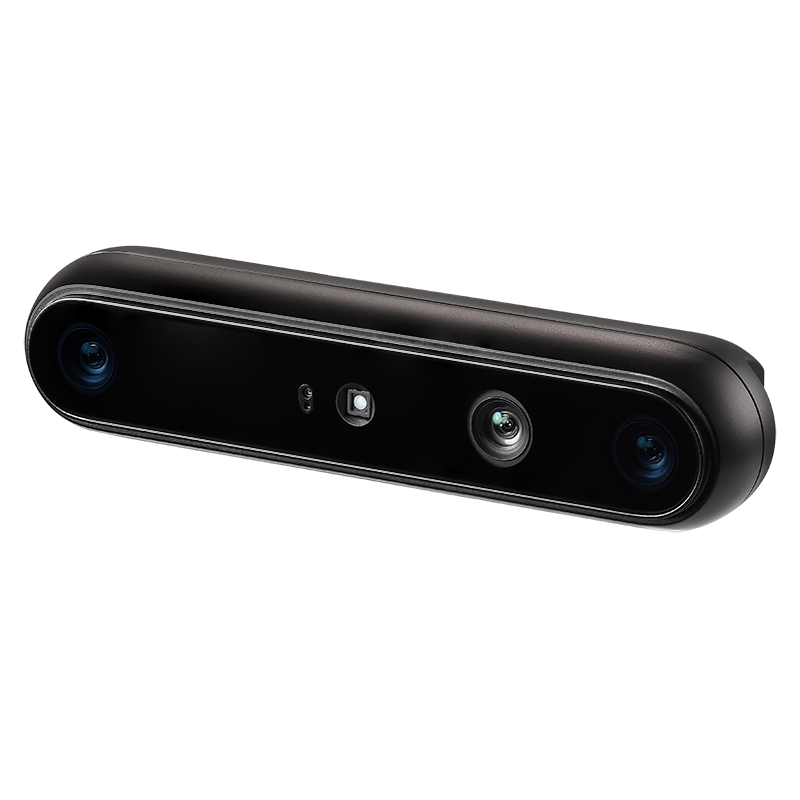

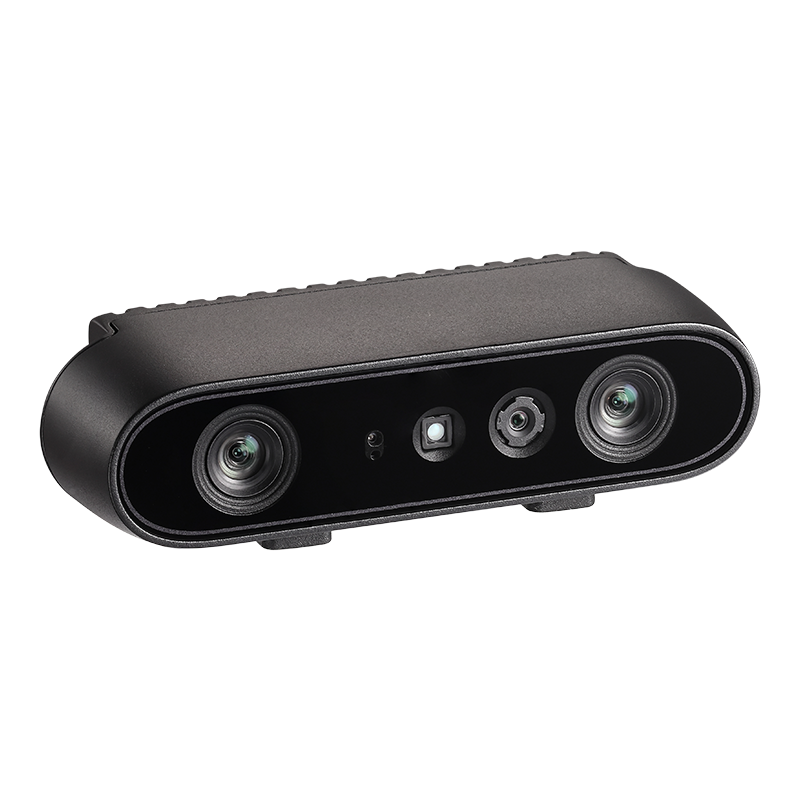

Orbbec Gemini 335 is a Depth + RGB camera that combines active and passive stereo vision technologies for seamless operation in indoor and outdoor conditions. Built on Orbbec's latest custom ASIC MX6800 and high-performance optical system, Gemini 330 series continuously expands its product portfolio through modular extensions to flexibly meet the needs of diverse application scenarios.

Gemini 335 & 335L are the flagship products of Gemini 330 Series. It has a 50mm baseline and is IP5X rated. It is easy to set up and operate with the Orbbec SDK and the camera delivers extremely accurate and reliable data in various lighting conditions, ranging from pitch black to outdoor environments.

Orbbec Gemini 335 & 335L are easy to set up and operate with the Orbbec SDK.
  • Active/passive stereo ensured reliable performance in dynamic environments.
  • Built-in depth and RGB image processing.
  • Depth Measurement Accuracy: a spatial precision (Root Mean Squared ERROR: RMSE) of less than 1.5% for depth measurements at 2m.
  • Precise synchronization of depth and color frames; supports multiple-device synchronization.
  • High quality depth data output suitable for both indoor and outdoor
  • Up to 30 fps at 1280 X 800 depth resolution

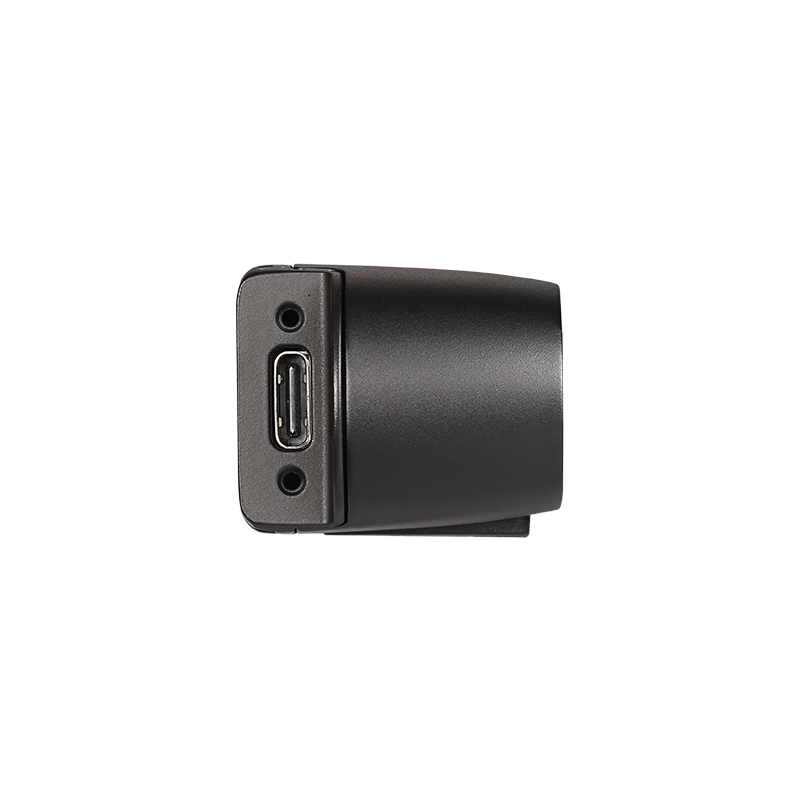

  • USB Type-C for power and data connectivity
  • Multi-camera synchronization and IMU supported


Gemini 335 & Gemini 335L Specifications:

Parameters

Gemini 335

Gemini 335L
Model G40155-170 G40055-170
Depth Technology Stereo Stereo
Wavelength 850nm 850nm
Depth Range *0.10 - 20m+ (Optimal Range: 0.26 - 3m) *0.17 - 20m+ (Optimal Range: 0.5 - 6m)
Depth Resolution/FPS Up to 1280X800@30fps Up to 1280X800@30fps
Depth FOV H90° V65° H90° V65°
RGB Resolution/FPS Up to 1920X1080@30fps Up to 1280X800@60fps
RGB FOV H86° V55° H94° V68°
Processing Orbbec ASIC Orbbec ASIC
Depth Filter All-Pass Visible+NIR-Pass
IMU Supported Supported
Data Connection USB 3.0 Type-C USB 3.0 Type-C
Power Input USB 3.0 Type-C USB 3.0 Type-C
Trigger Supported Supported
Power Consumption Average < 3.0W Average < 3.0W
Operating Environment -10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing) -10℃ - 50℃; Indoor/Outdoor; 5%-90%RH(non-condensing)
SDK Support Orbbec SDK Orbbec SDK
Data Output Point Cloud, Depth Map, IR & RGB Point Cloud, Depth Map, IR & RGB
Dimensions (W*H*D) 90mm x 25mm x 30mm 124mm x 29mm x 27mm
Weight 97g 133g

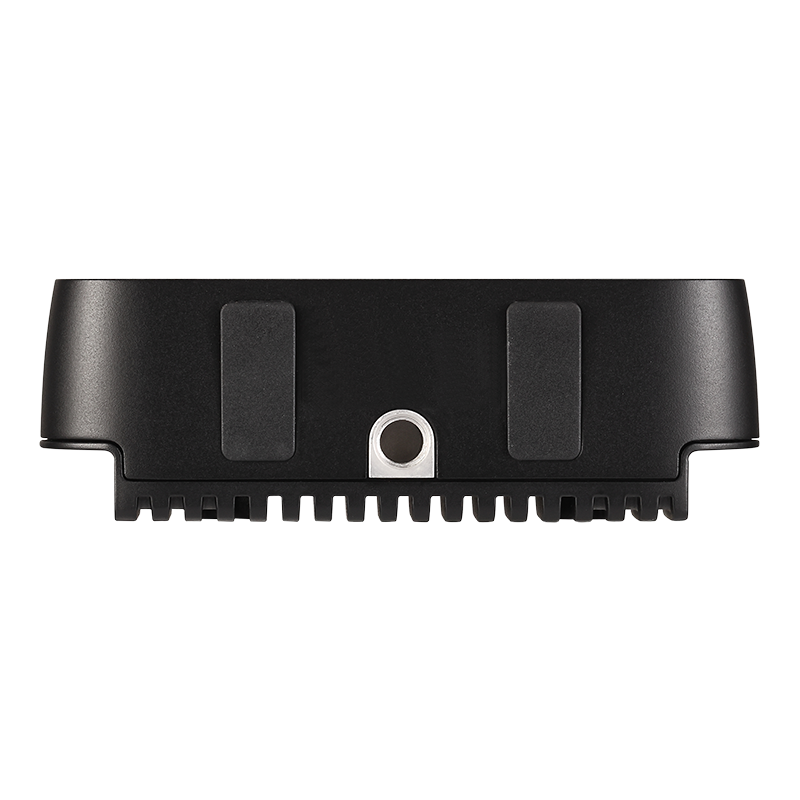

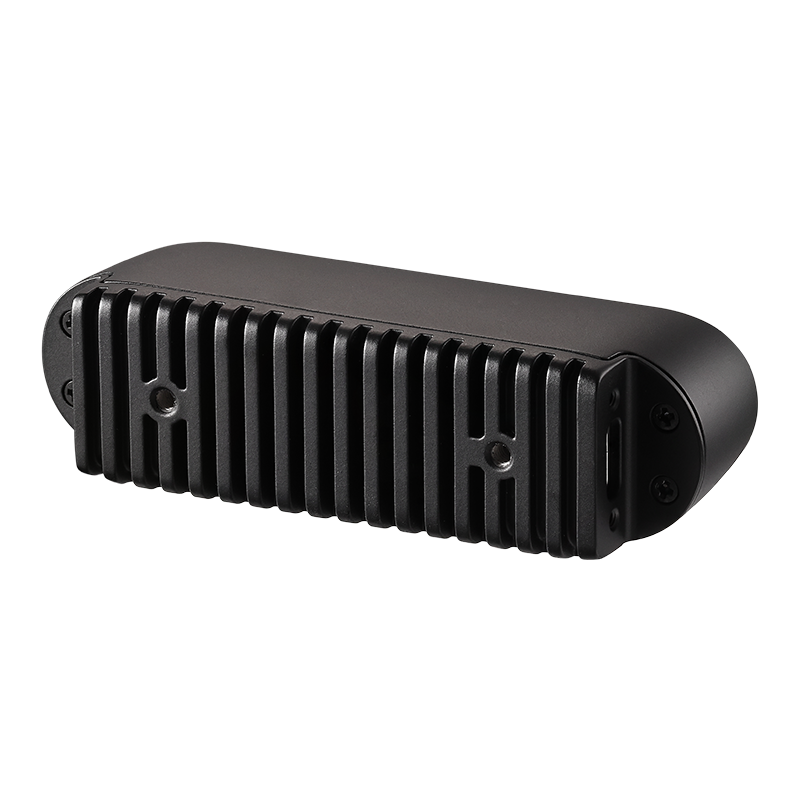

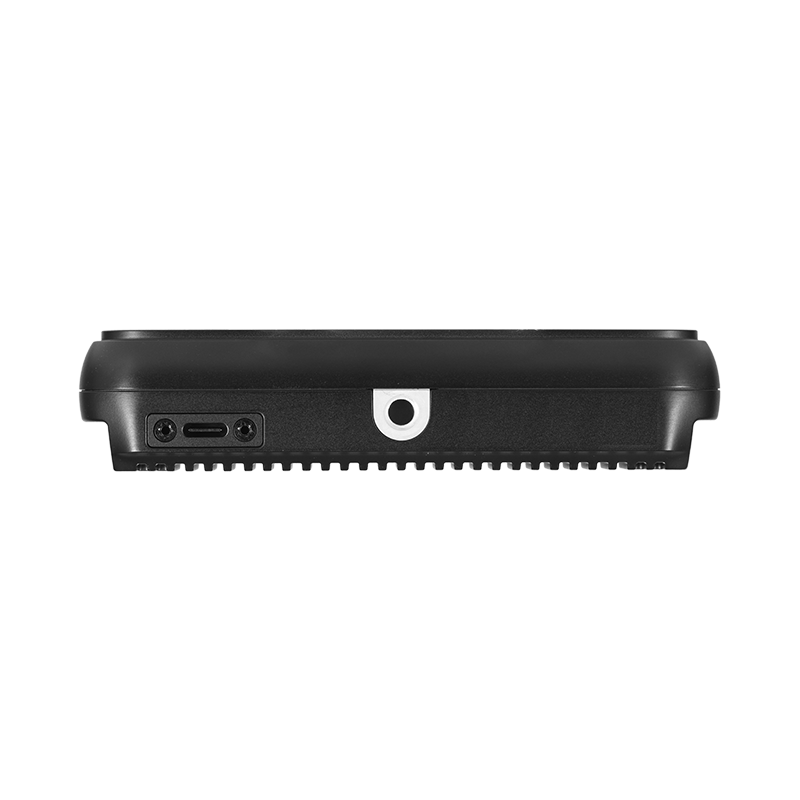

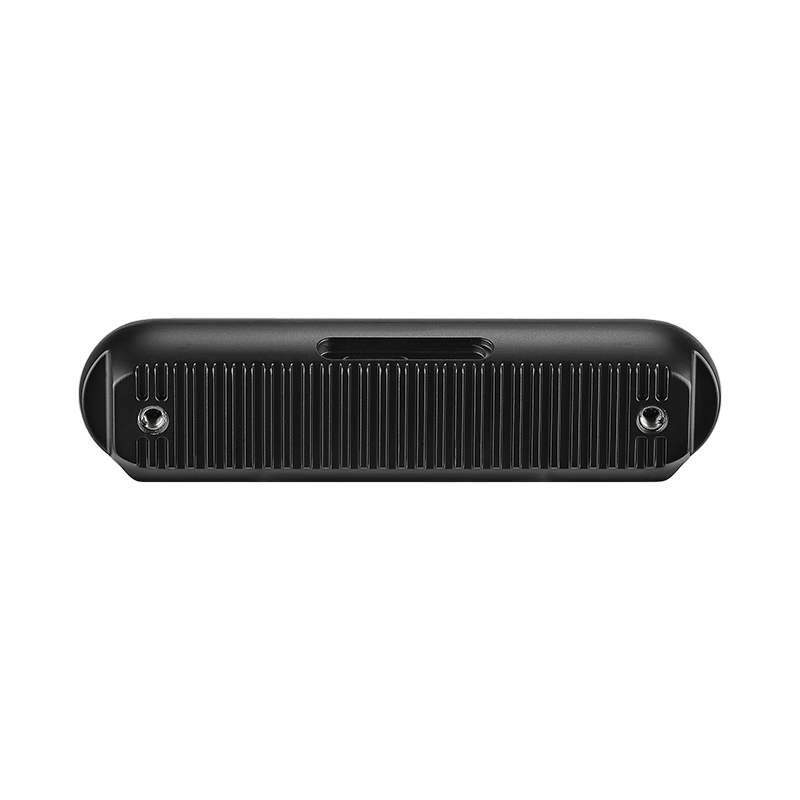

Installation Bottom: ¼-20UNC ; Back: 2x M3 Bottom: ¼-20UNC; Back: 2x M4
What are the key features of these depth plus RGB cameras?
These cameras combine active and passive stereo, are built on the Orbbec ASIC MX6800, and are IP5X rated. They support multi device synchronization and IMU, and can output Point Cloud, Depth Map, IR and RGB data. The 335 model provides RGB up to 1920x1080 at 30 fps, while the 335L offers up to 1280x800 at 60 fps.
Are these cameras suitable for indoor and outdoor use?
Yes, they are designed for indoor and outdoor use with IP5X rating and a wide operating range. The Gemini 335 operates from minus 10 to 45 degrees Celsius, while the 335L operates from minus 10 to 50 degrees Celsius, and both support 5 to 90 percent relative humidity non condensing.
How is power supplied and how can I mount the camera?
Power and data are provided over USB Type C for both models. Mounting options include bottom 1/4-20 UNC and back 2x M3 for the 335, and back 2x M4 for the 335L.
What are the depth and RGB resolution and field of view?
Depth resolution is up to 1280x800 at 30 fps for both cameras, with depth FOV about 90 degrees horizontal and 65 degrees vertical. RGB resolution is up to 1920x1080 at 30 fps for the 335 and up to 1280x800 at 60 fps for the 335L, with RGB FOV of 86 degrees horizontal and 55 degrees vertical for the 335 and 94 degrees horizontal and 68 degrees vertical for the 335L.
What data formats and software support are included?
Data outputs include Point Cloud, Depth Map, IR and RGB. Orbbec SDK is supported for integration and multi device synchronization is available. Depth RMSE is less than 1.5 percent at 2 meters and IMU is supported.
