OV5640 5MP USB Camera with Fixed Focus / Auto Focus

SKU: WVSH0382

ā‚¹ 3,249.99 ā‚¹ 3,999.99

In stock | Ready to ship

Select variant

Auto Focus
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
OV5640 5MP USB Camera with Fixed Focus / Auto FocusAuto Focusā‚¹ 3,249.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

OV5640 5MP USB Camera with FF/AF & 1080P Video Recording

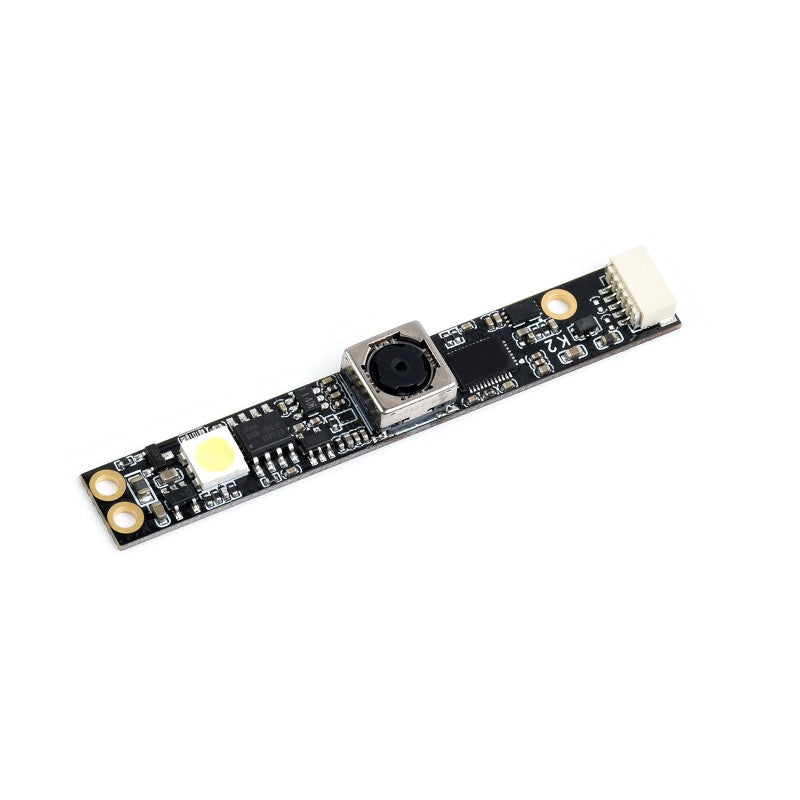

The OV5640 (color) image sensor is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592Ɨ1944) camera using OmniBSIā„¢ technology in a small footprint package. It provides full-frame, sub-sampled, windowed or arbitrarily scaled 8-bit/10-bit images in various formats via the control of the Serial Camera Control Bus (SCCB) interface.

Ā

Specifications

PIXELS 5MP
SENSOR OV5640
INTERFACE USB 2.0
CAMERA Sensor size 1/4 inch
Aperture (F) 2.8
Focal length (EFL) 3.29 mm
Field of view (FOV) 68Ā°
Distortion < 1%
Focusing (B): AF Auto-Focus
(C): FF Fixed-Focus
IMAGE Format support MJPG, YUV422
Static image resolution 2592 Ɨ 1944
Video recording 15 FPS 2592 Ɨ 1944
30 FPS 1920 Ɨ 1080
30 FPS 1280 Ɨ 720
OPERATING VOLTAGE 5V Ā± 5%
CAMERA SIZE 8.5 Ɨ 8.5 mm
MODULE SIZE 9 Ɨ 62 mm
NOTE SelectĀ OV5640 5MP USB Camera (AF)Ā forĀ Auto-focus,
SelectĀ OV5640 5MP USB Camera (FF)Ā forĀ Fixed-focus,
Except for the focus mechanism, the two cameras are exactly the same.

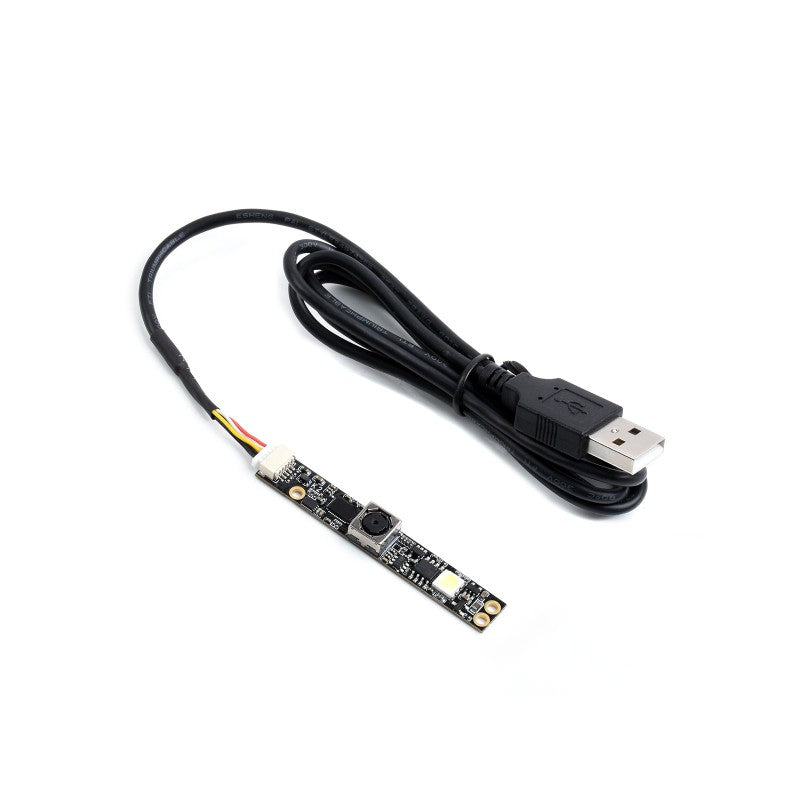

ConnectionĀ With USB Cable

Dimensions

ResourcesĀ

Wiki:Ā OV5640_5MP_USB_Camera
What interface and power does this camera use?
It uses a USB 2.0 interface for data and operates at 5 V plus or minus 5 percent.
Are there AF and FF variants and how do I choose between them?
Yes, there are two variants: AF for auto focus and FF for fixed focus. The two options share the same core hardware.
What video resolutions and frame rates are supported?
The camera can record 2592 by 1944 at 15 frames per second, 1920 by 1080 at 30 frames per second, and 1280 by 720 at 30 frames per second.
What image formats and sensor specifications are included?
The OV5640 5 MP CMOS sensor is used and supports MJPG and YUV422 image formats; field of view is 68 degrees and distortion is less than one percent.
What are the physical dimensions and how is the device connected?
The camera size is 8.5 by 8.5 millimeters and the module size is 9 by 62 millimeters; it connects via a USB cable.
