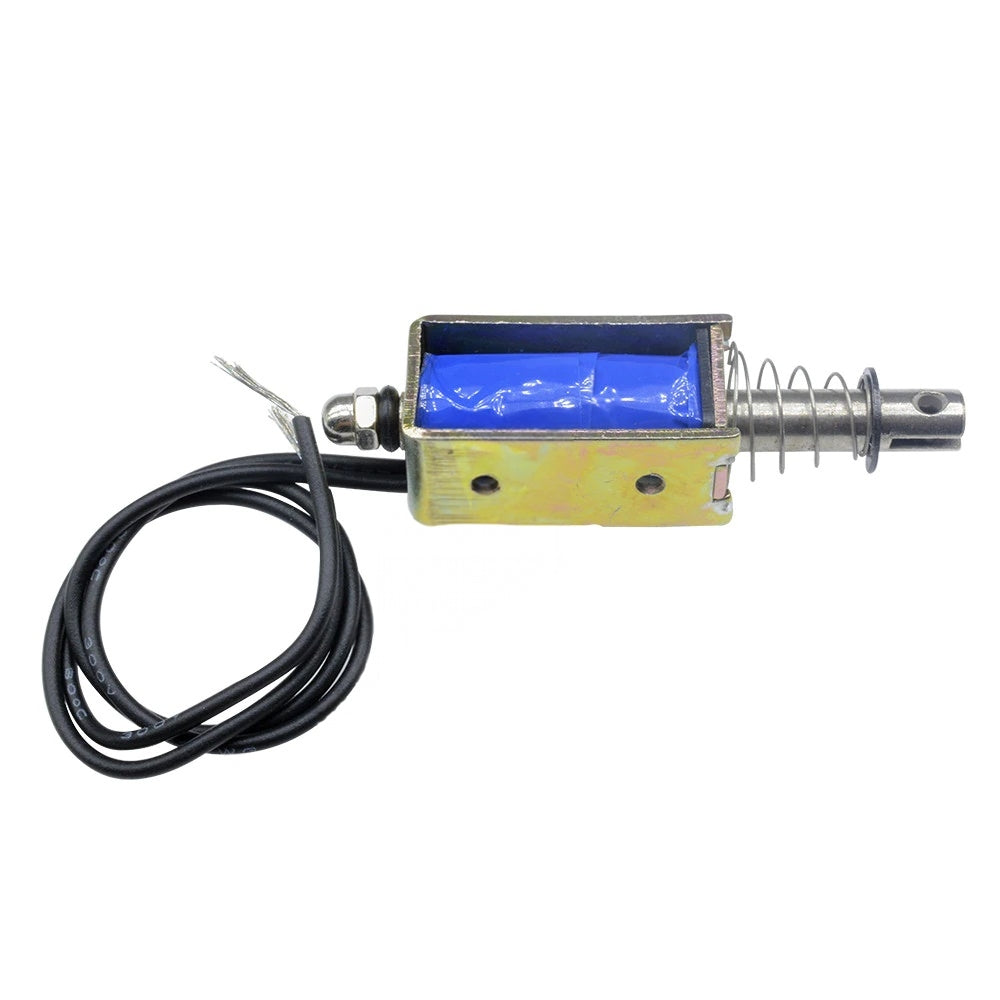

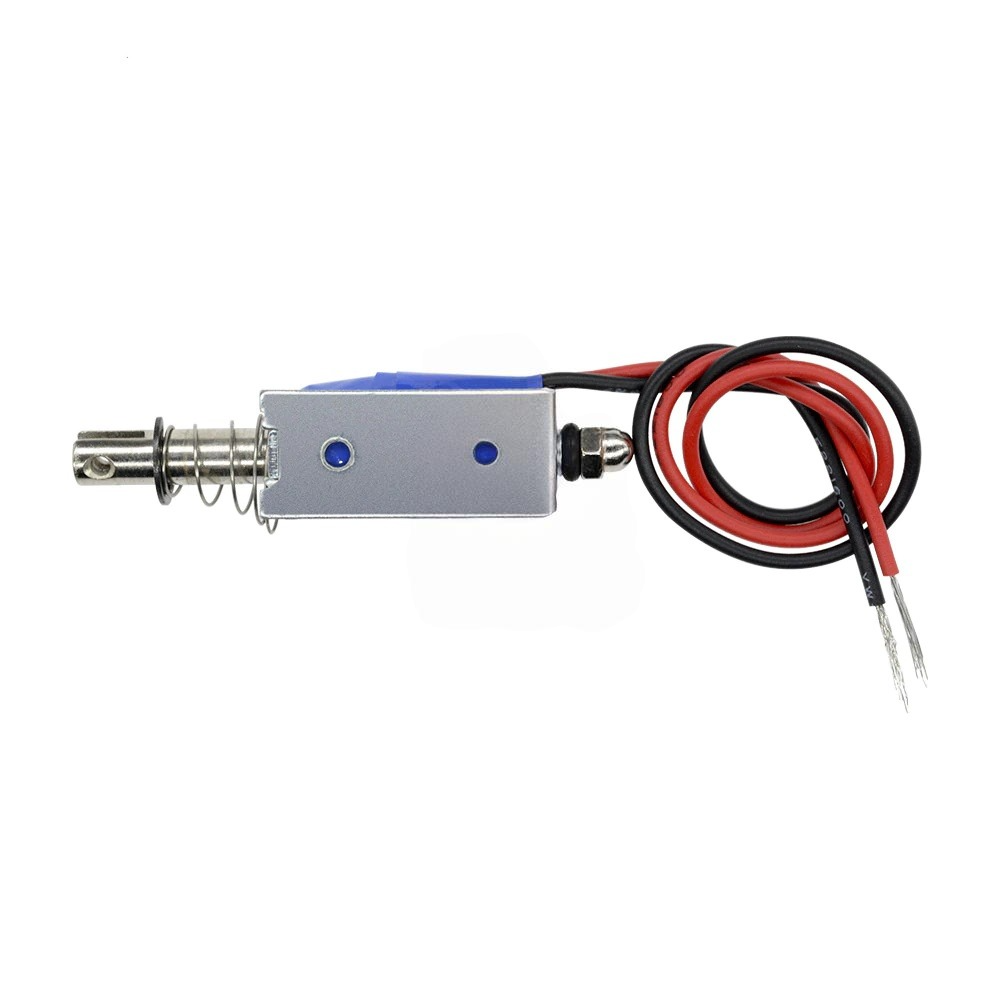

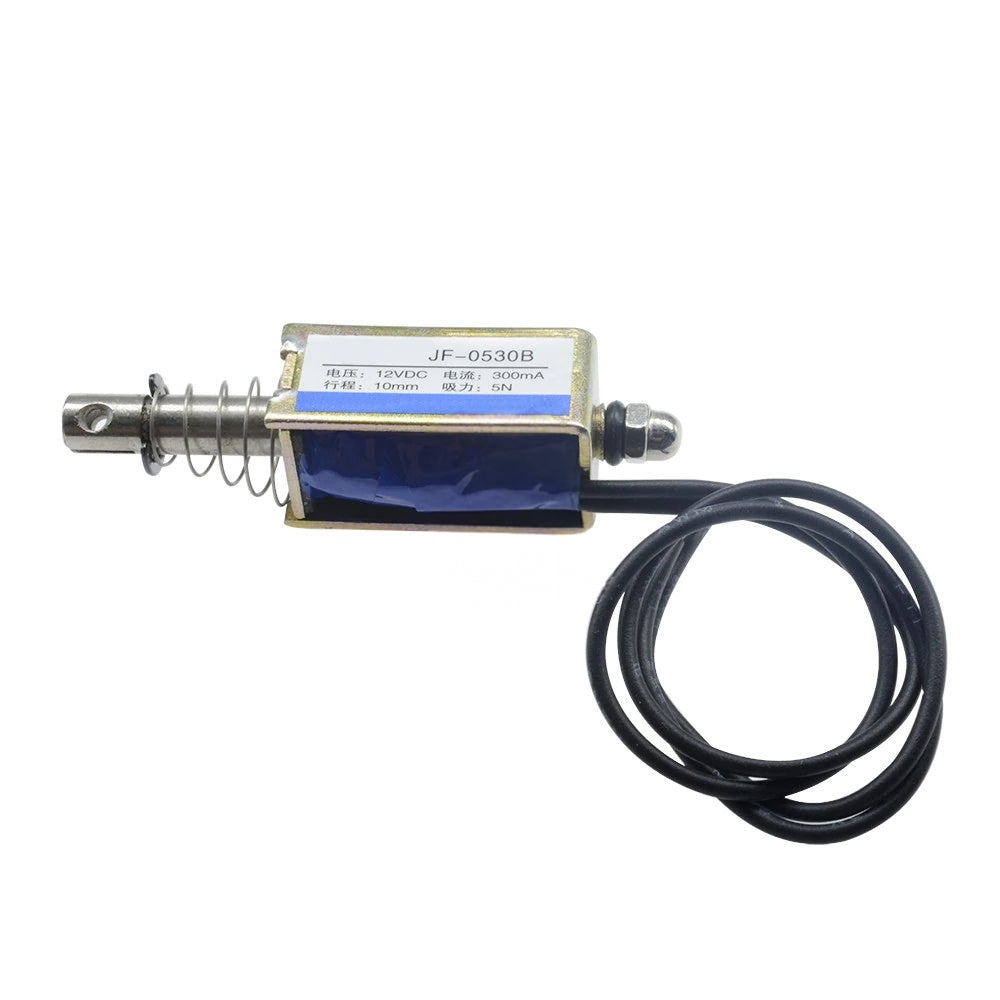

Push-Pull Solenoid

SKU: SOL1004

ā‚¹ 399.99 ā‚¹ 599.00

In stock | Ready to ship

Select variant

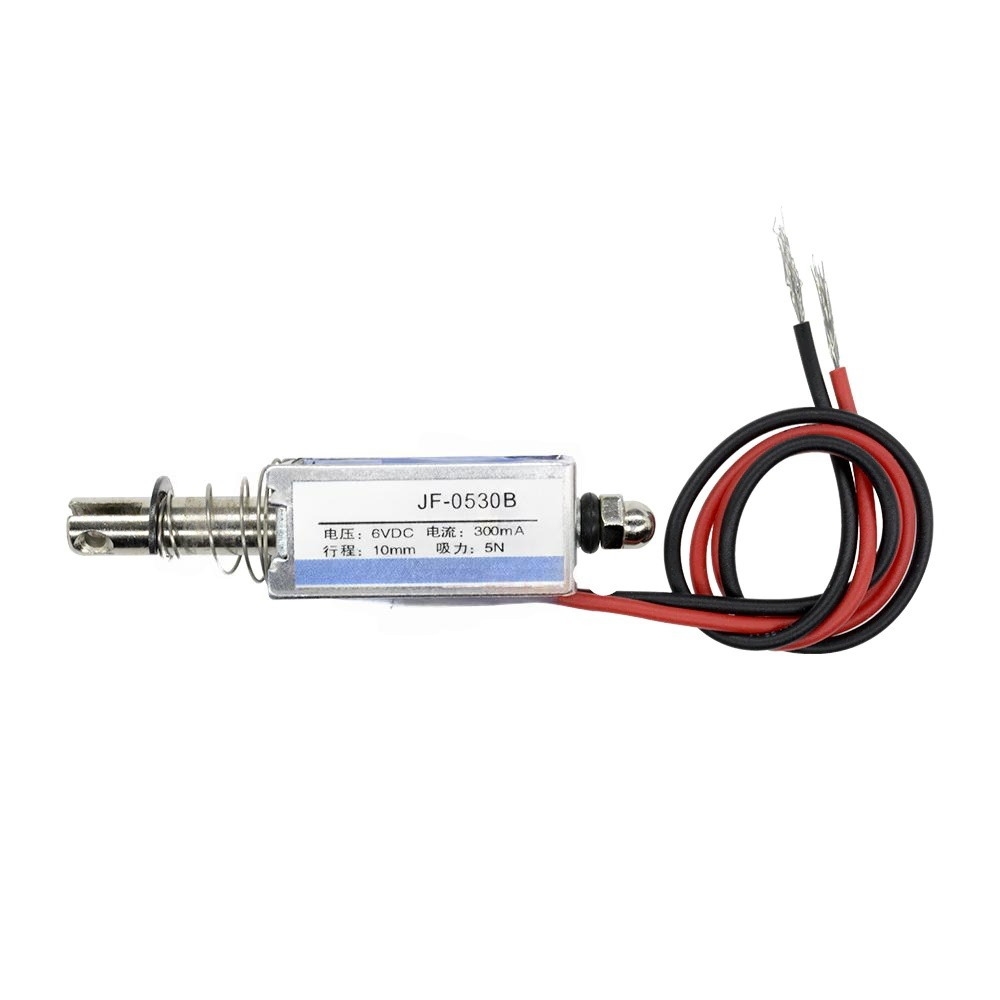

6V 300mA 10mm Push-Pull Solenoid
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Push-Pull Solenoid6V 300mA 10mm Push-Pull Solenoidā‚¹ 399.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

1. Pull push type, linear motion, plunger return, DC solenoid electronmagnet.
2. DC Solenoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.
3. Solenoids of this category work externally through pulling pushing in plunger.
4. When energized, doing work through pulling pushing in plunger joined object.

Note: Please don't power for a long time. Just about seconds!

Specifications

Product Name: DC Solenoid Electromagnet
Model: JF-0530B

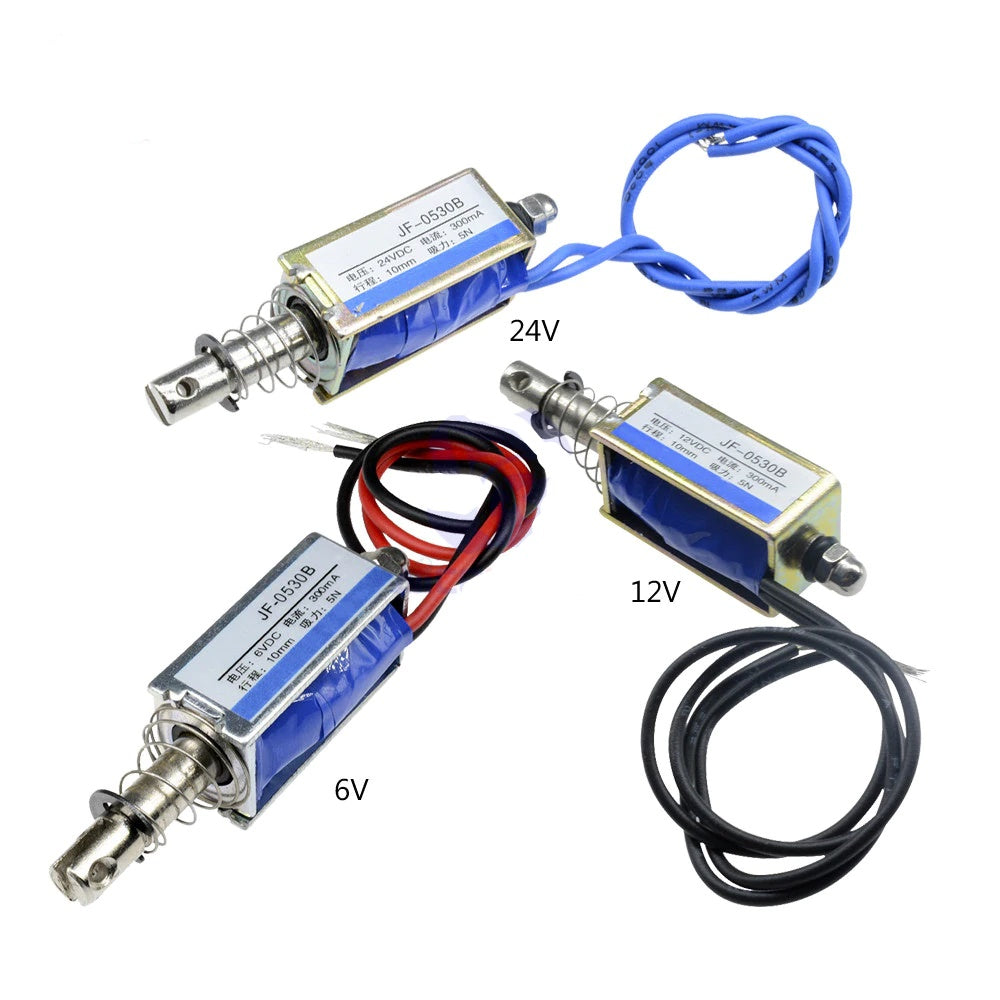

Rated Voltage: DC 6V/12V24V (Option)
Type: Pull Push
Rated Current: 300mA
Force& Stroke: 5N/10mm
Body Size: 30x16x15mm
Plunger Bar Size: 6x58mm
Mounting Hole Dia.: 2.5mm
Cable Length: 20cm
Material: Metal, Electronic Parts!

How does the push pull solenoid operate and what happens when it is energized?
It provides linear motion by pulling or pushing the plunger, and the plunger returns to the rest position when the coil is de-energized.
What voltage options are available and how do I select the right one?
The device is available in DC 6V, 12V, and 24V variants. Choose the variant that matches your drive supply and system requirements.
What are the physical dimensions and mounting details?
Body size is 30 x 16 x 15 mm, plunger bar size 6 x 58 mm, mounting hole diameter 2.5 mm, and cable length 20 cm.
What are common use cases for this solenoid?
It is used in vending machines, transport equipment, office facility appliances, and other mechanical applications.
What are the safety and duty cycle guidelines for operation?
Do not power for a long time; operate for only seconds to avoid overheating.
