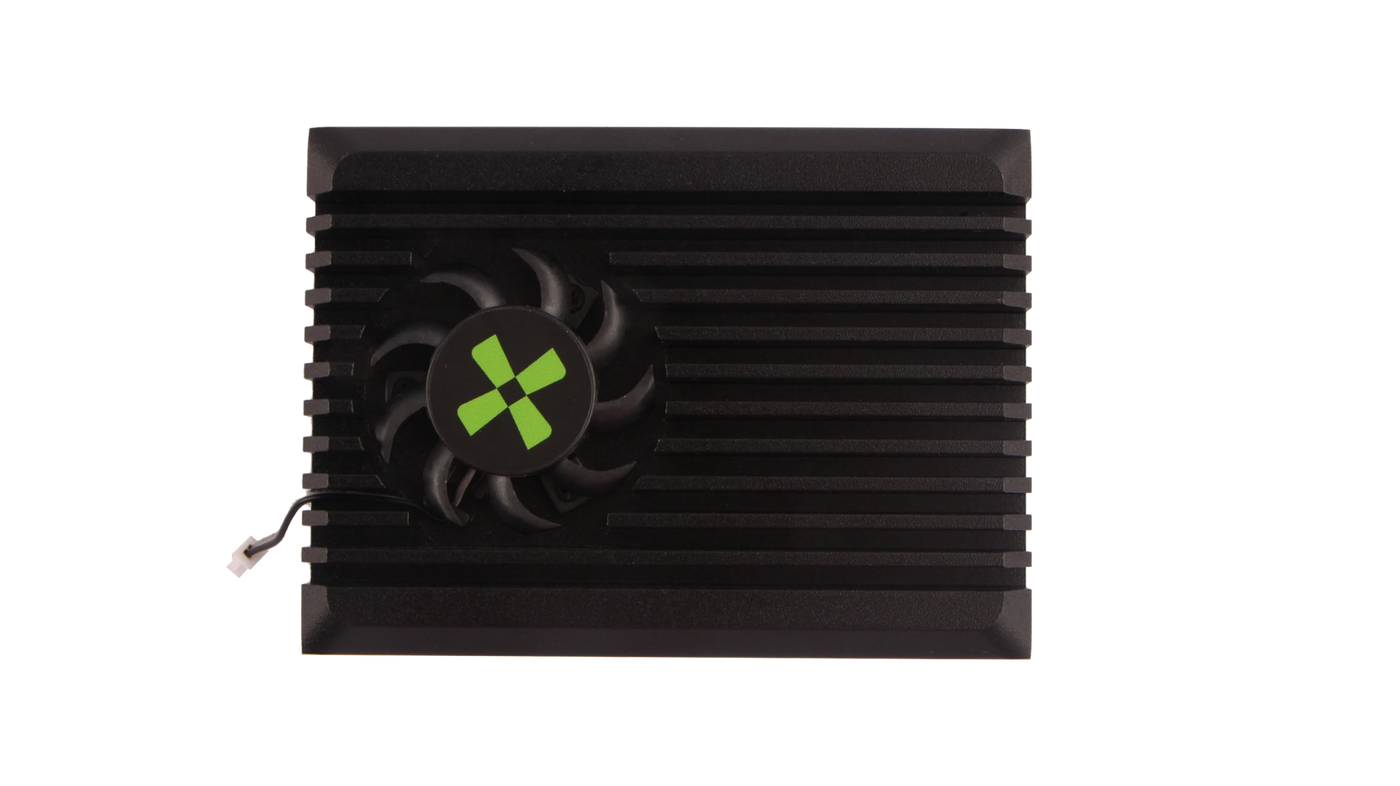

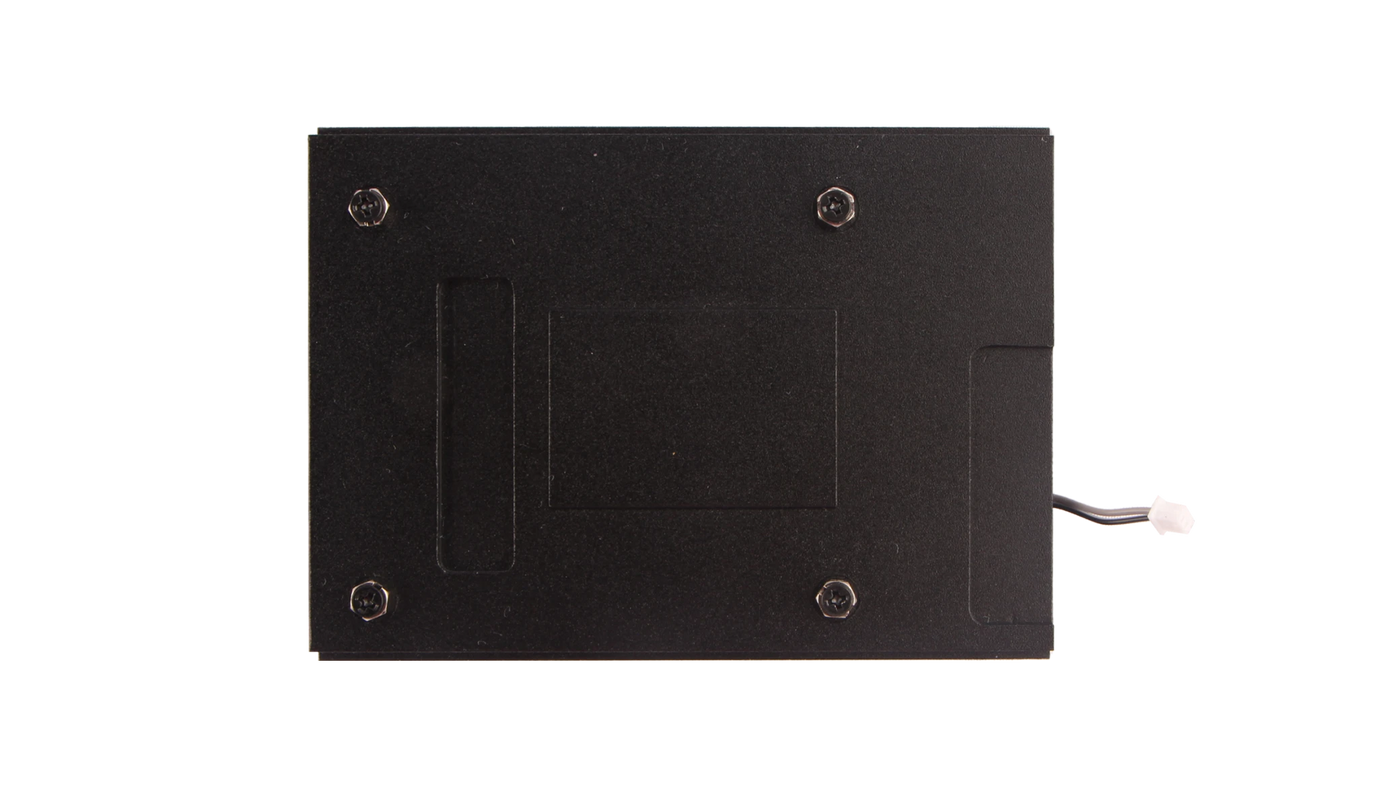

The Radxa Heatsink for X4 is a custom-designed cooling solution tailored specifically for the Radxa X4 single-board computer. Engineered with a high-quality aluminum alloy case, this heatsink provides efficient heat dissipation, ensuring optimal thermal performance under sustained loads.
First, install the M2.5x3+3 copper pillar and thermal silicone sheet in the specified positions.
Please note: When installing the thermal silicone sheet, remove the protective film from one side and gently place it on the SoC of the heatsink. Then, lightly press the sheet to ensure it adheres to the heatsink. Finally, carefully remove the protective film from the other side.
Next, install the Radxa X4 and secure it with 4 CM2.5x3 screws.
Then, connect the fan interfaces.

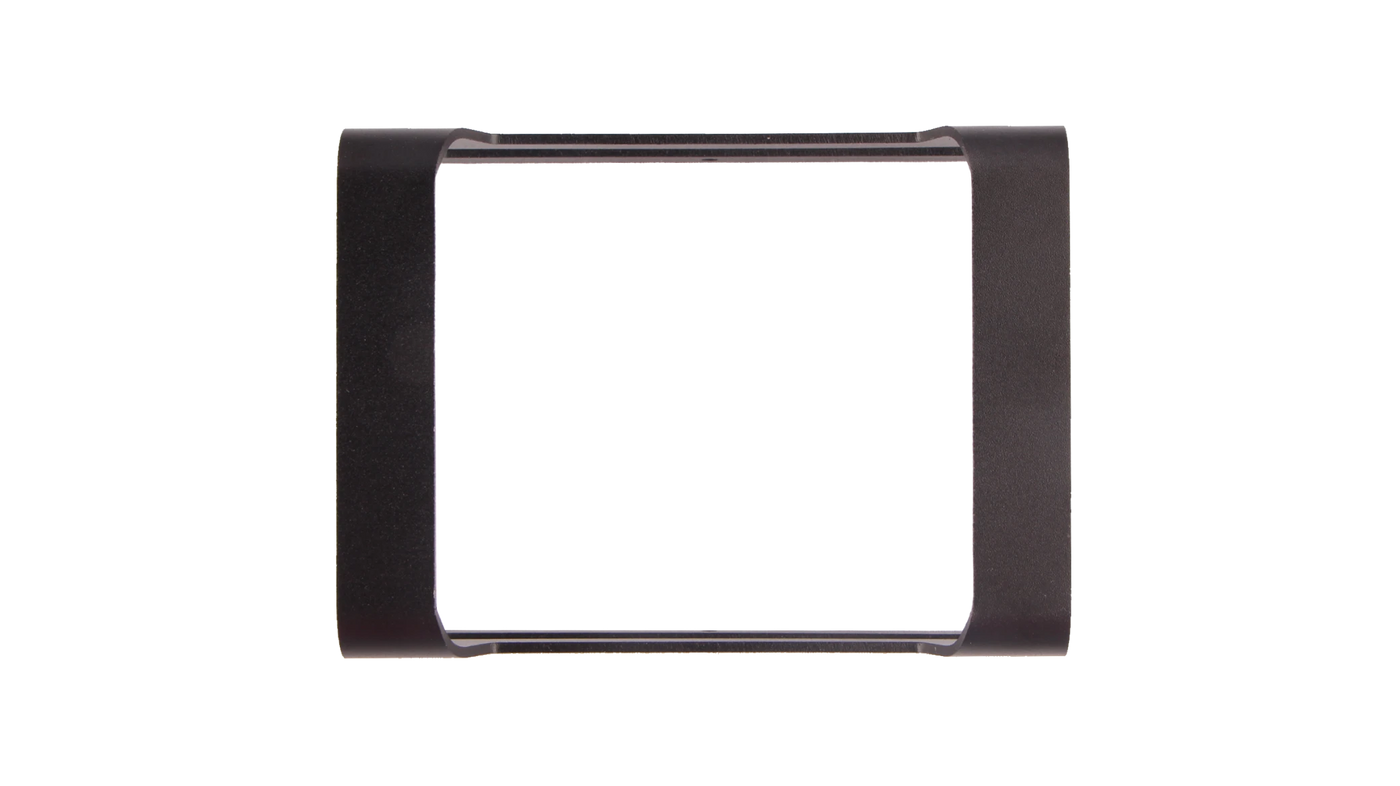

Finally, secure the heatsink bracket with six KM2x4 screws; attach the Anti-Slip Round Silicone Pads to the heatsink bracket.
| Specifications - Radxa X4 Heatsink | |
|---|---|
| Compatibility | Radxa X4 |
| Material | Aluminum Alloy Case |
| Dimension | 97 x 75 x 72 mm |
| Speed | 4000rpm ± 10% |
| Connector | 2-Pin 1.25mm Pitch Connector |
| Input voltage | 5V DC |
| Package List | Radxa Heatsink for X4 Thermally Conductive Silicone Sheet Anti-Slip Round Silicone Pads 4x M2.5x3+3 Copper Piller to prop up Radxa X4 4x CM2.5x3x4 Screws to fix Radxa X4 6x KM2x4x3.5 Screws to fix Heatsink Bracket |
Product Information
| Radxa Heatsink for X4 - 3D Drawings | Download >> |
