Radxa ROCK 2F

SKU: RDXA1046

ā‚¹ 1,749.99

Out of stock

Select variant

1GB DRAM
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa ROCK 2F1GB DRAMā‚¹ 1,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ROCK 2F

Your 4K Card Computer

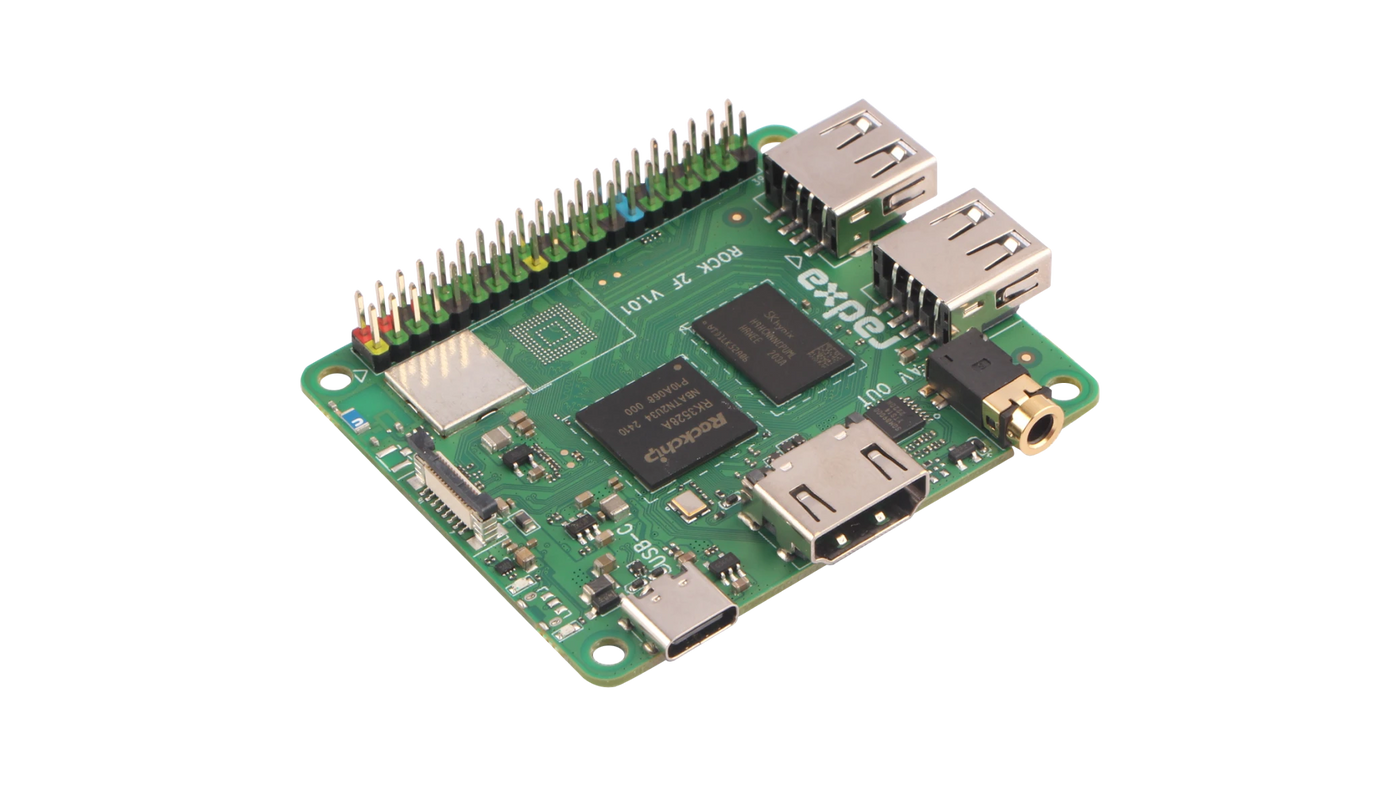

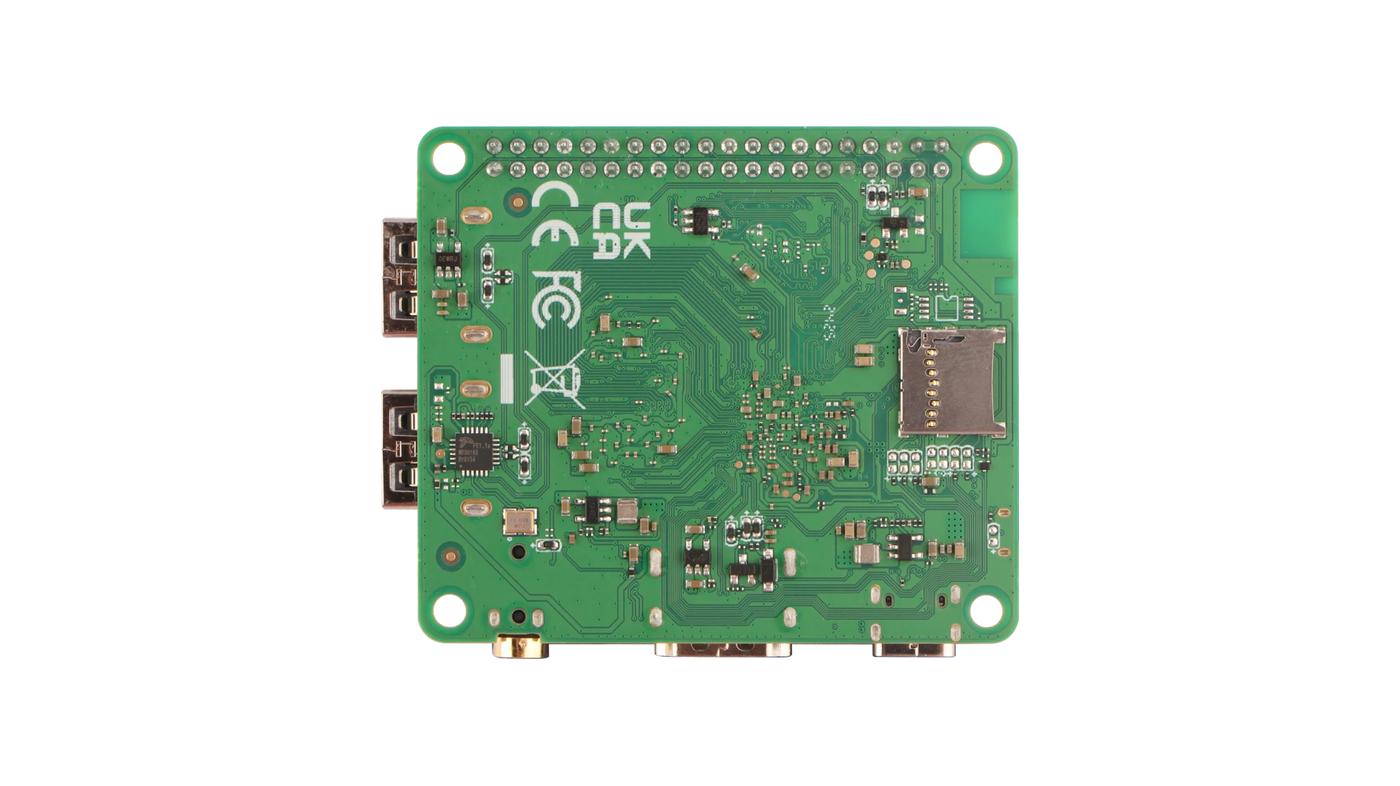

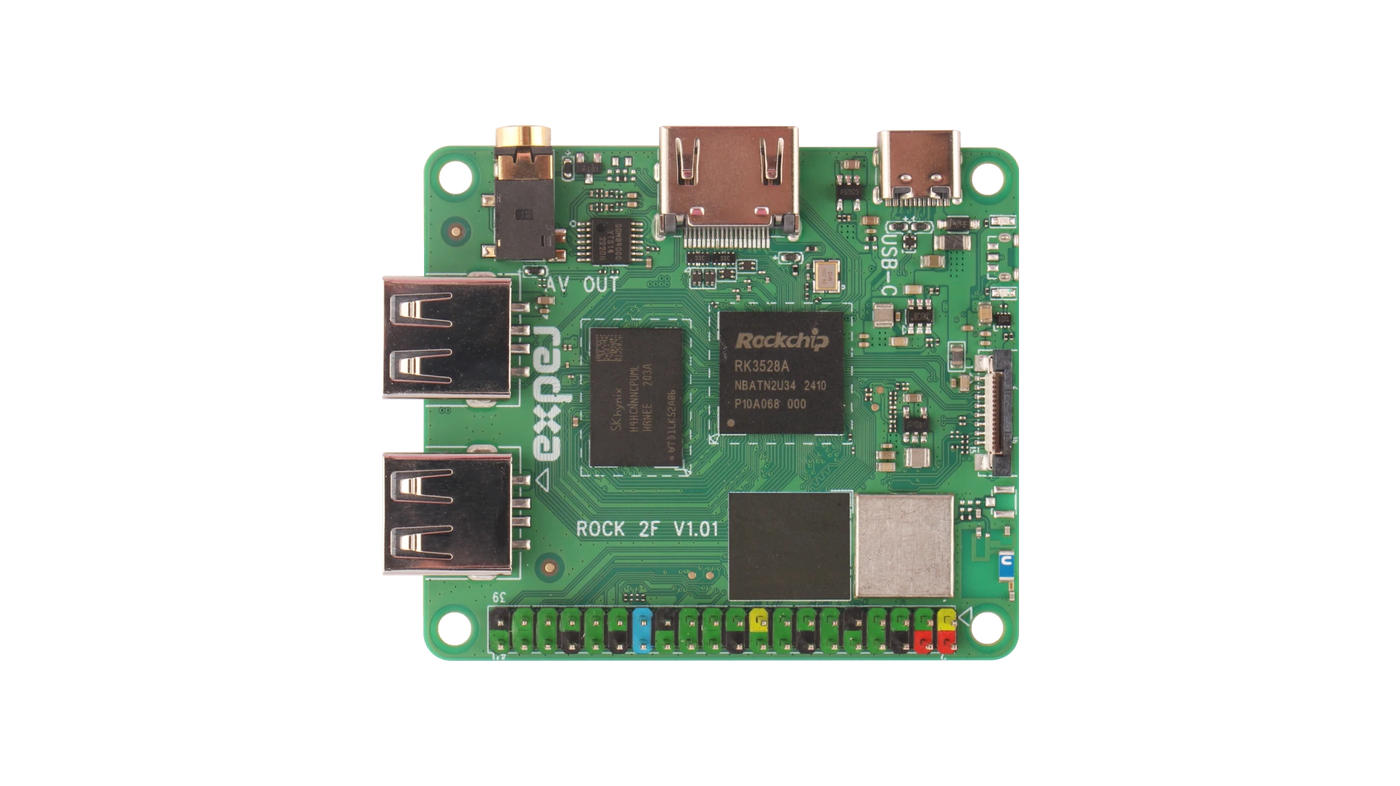

The Radxa ROCK 2F is a compact single-board computer powered by the Rockchip RK3528A quad-core ARM Cortex-A53 processor. Designed for IoT applications, edge computing, and embedded projects, it features built-in Wi-Fi and Bluetooth connectivity, multiple GPIO pins, and support for various operating systems including Android and Linux distributions.

Ā

Ā

Card Computer


Ā

Flexible Storage Options



WiFi 6 & BT 5.4

Onboard Antenna or External Antenna Connector Optional

Ā

Ā

Video Output

Ā

Ā

Broad Compatibility - FPC PCIe Interface

FPC Connector with PCIe 2.0 x1
Compatible with NVMe HAT, SATA HAT, Router HAT and More

Ā

Ā

More Peripheral Connectivity

1x USB 2.0 OTG / HOST Type-C Port, 2x USB 2.0 HOST Type-A Ports

Ā

Ā

Comprehensive Technical Documentation andĀ Active Community



INTERFACES



TECH SPECS

Specifications - ROCK 2F
SoC Rockchip RK3528A
CPU Quad-core Arm Cortex-A53
GPU Arm Mali-450 GPU
Multimedia H.264, H.265 and AVS2 decoder by 4Kx2K@60fps
H.264 and H.265 encoder by 1920x1080@60fps
RAM LPDDR4 RAM
Storage 1x Optional Onboard eMMC
1x microSD Card Slot
Audio 1x AV Out
Display 1x Standard HDMI supporting up to 4Kp60
1x AV Out supporting video output up to 720x576@60Hz
USB 1x USB 2.0 OTG Type-A Port
2x USB 2.0 HOST Type-A Ports
Wireless WiFi 6 & BT 5.4
Antenna Connector or Onboard Antenna
FPC Connector 1x FPC Connector with PCIe 2.0 1-lane
Power 5V Only USB Type-C
Operating System Radxa OS
Android
Operating Conditions

Recommended environmental temperature: 0 ~ 50Ā°C

Radxa ROCK 2F has a temperature limit of 80Ā°C, beyond which it throttles clock speeds for reliability.

For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80Ā°C limit.
Dimensions 65 mm x 56 mm
Compliance Certification FCC / CE



DOWNLOAD

Product Information

Radxa ROCK 2F - Product Brief Download >>
Radxa ROCK 2F - Schematic V1.01 Download >>
Radxa ROCK 2F - Components Placement Map (SMD V1.01) Download >>
Radxa ROCK 2F - 2D Drawings Download >>

Ā

Documentation

Getting Started Guide - Radxa ROCK 2F Download >>
Radxa OS - Official Operating System from Radxa Download >>
Hardware Information - Radxa ROCK 2F Download >>



ROCK 2F Works with

> Radxa Power PD 30W
5A High Current Super-Fast Charge

> Radxa Penta SATA HAT
A Complete NAS Solution

> Radxa Dual 2.5G Router HAT
All-in-One Networking & Storage Expansion for SBCs

Ā

What is this single board computer and what is it designed for?
It is a compact single board computer powered by the Rockchip RK3528A quad core ARM Cortex A53 processor. It is designed for IoT applications, edge computing and embedded projects and includes built in WiFi and Bluetooth.
What storage and expansion options does the module offer?
Storage options include a microSD card slot and an optional onboard eMMC. Expansion is possible via a 1 lane PCIe 2.0 FPC connector that supports NVMe HAT, SATA HAT and other peripherals.
What video and display capabilities are available?
The board provides HDMI output up to 4K and AV output up to 720x576. It supports H.264, H.265 and AVS2 decoding up to 4Kx2K at 60 fps and H.264 and H.265 encoding up to 1080p at 60 fps.
Does it include wireless connectivity?
Yes, it offers WiFi 6 and Bluetooth 5.4 with an onboard antenna or an external antenna connector.
What OS options are supported and are there thermal considerations?
Supported operating systems include Radxa OS and Android, with Linux distributions also mentioned. The recommended operating temperature is 0 to 50 C and the device has a maximum temperature of 80 C, beyond which it throttles clock speeds; external cooling is recommended for sustained high performance.
