Designed By Raspberry Pi
Ā

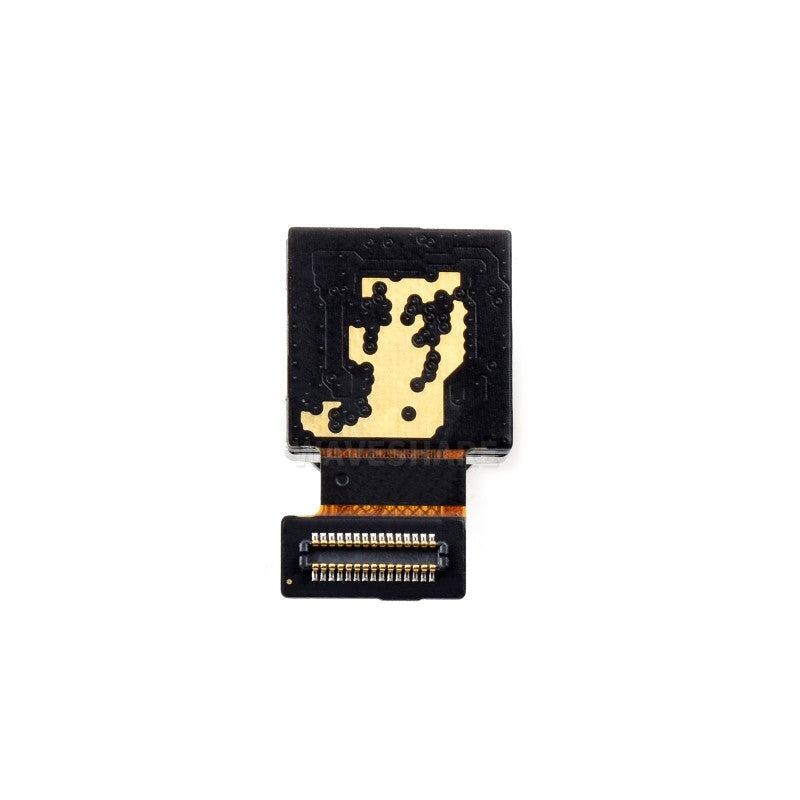

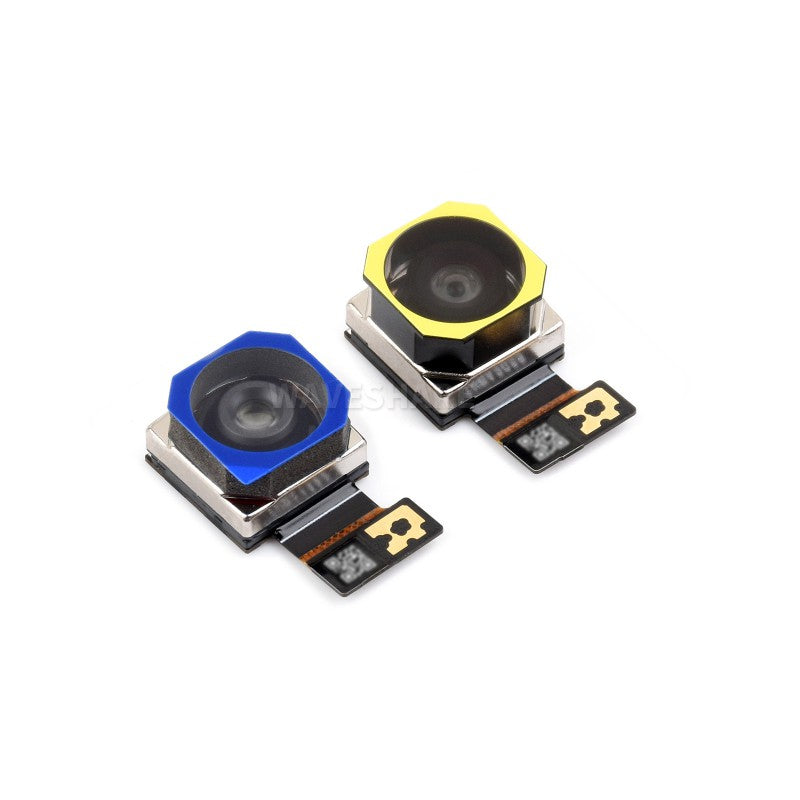

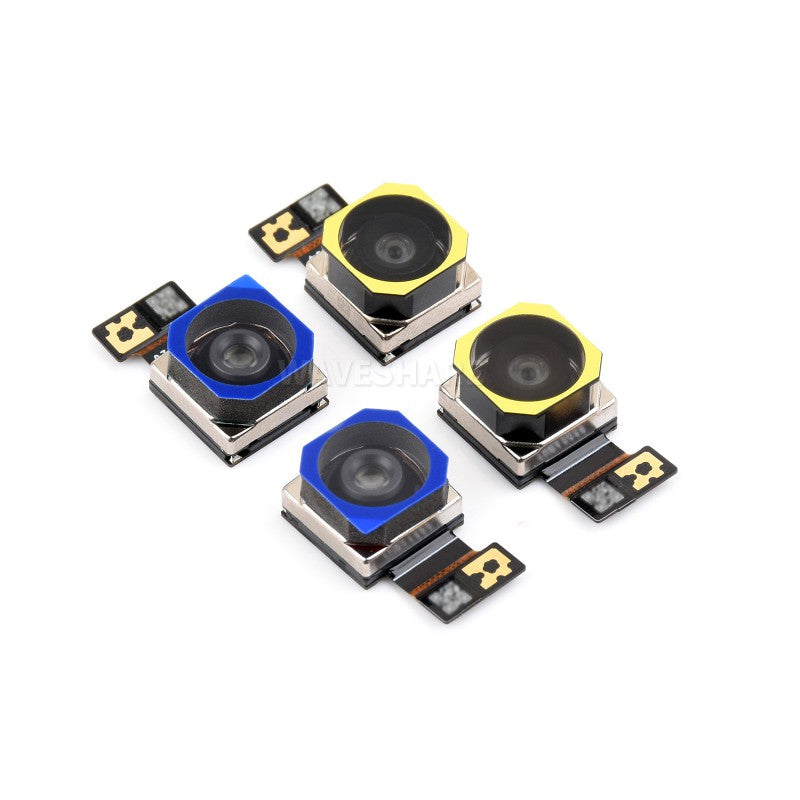

 Camera Module 3 Sensor Assembly |
 Camera Module 3 Sensor Assembly NoIR |
 Camera Module 3 Sensor Assembly Wide |
 Camera Module 3 Sensor Assembly Wide NoIR |
Ā
| Parameters | Basic | Basic NoIR | Wide | Wide NoIR |
|---|---|---|---|---|
| Focus Range | 10cm ~ ā | 10cm ~ ā | 5cm ~ ā | 5cm ~ ā |
| Focal Length | 4.74mm | 4.74mm | 2.75mm | 2.75mm |
| Diagonal FOV | 75Ā° | 75Ā° | 120Ā° | 120Ā° |
| Horizontal FOV | 66Ā° | 66Ā° | 102Ā° | 102Ā° |
| Vertical FOV | 41Ā° | 41Ā° | 67Ā° | 67Ā° |
| Focal Ratio (F-stop) | F1.8 | F1.8 | F2.2 | F2.2 |
| Infrared-Sensitive | No | Yes | No | Yes |
Ā
The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and autofocus functionalities as Raspberry Pi Camera Module 3 AF (autofocus), enabling you to integrate the features of Camera Module 3 into a more diverse range of form factors. This assembly provides a low-cost way to add imaging capability to smaller devices, reducing manufacturing complexity and time to market.
As with Raspberry Pi Camera Module 3, the sensor assemblyās operation is fully supported by the libcamera library and the libcamera-based Picamera2 and rpicam-apps libraries, including its rapid autofocus feature; this provides a robust software environment to support the development of advanced features while making essential functionality simple to provide.
Ā
| Parameter | Details |
|---|---|
| Sensor | IMX708 |
| Sensor Features | Dynamic Defect Pixel Correction (DPC) QBC re-mosaic function High dynamic range (HDR) support |
| Resolution | 11.9MP (4608 Ć 2592) |
| Sensor Size | 7.4 mm sensor diagonal |
| Pixel Size | 1.4 Ī¼m Ć 1.4 Ī¼m |
| IR Cut Filter | Integrated in standard variants; not present in NoIR variants |
| Autofocus System | Phase Detection Autofocus |
| Operating TemperatureĀ | 0Ā°C ~ 50Ā°C |
Ā
Standard version
Ā

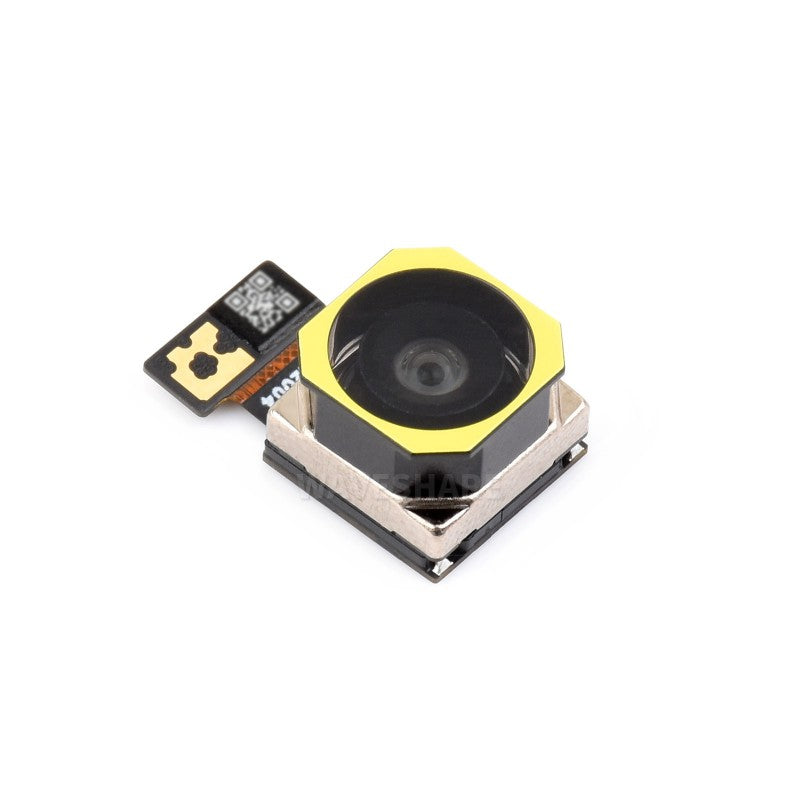

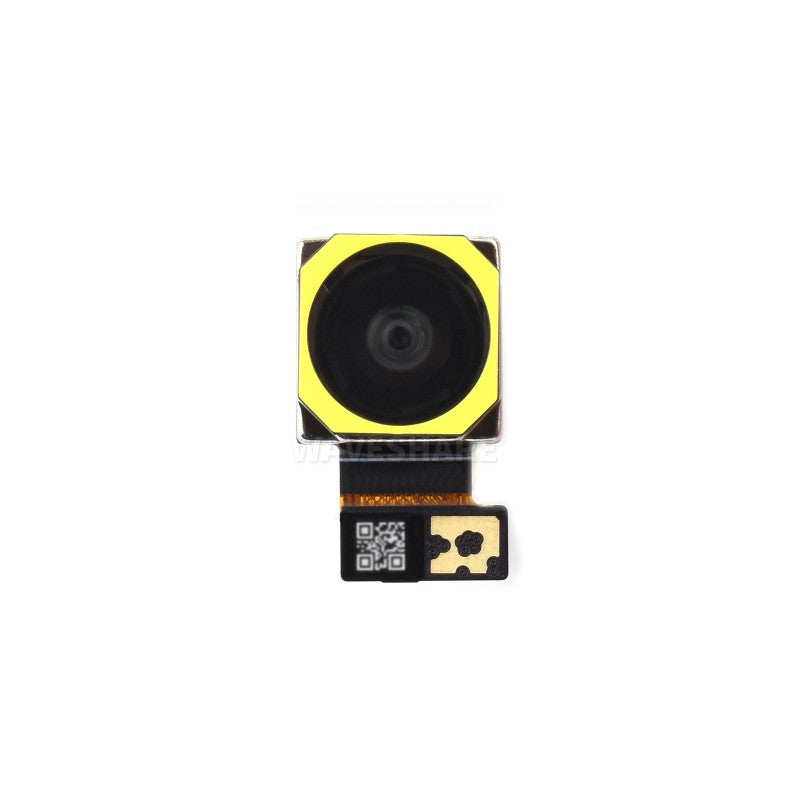

Wide version
Ā
Wiki:Ā www.waveshare.com/wiki/Camera_Module_3_Sensor_Assembly
Ā
Weight: 0.001 kg
Ā
Camera Module 3 Sensor Assembly
OPTIONS Camera Module 3 Sensor Assembly x1
Ā
Camera Module 3 Sensor Assembly Wide
OPTIONS Camera Module 3 Sensor Assembly Wide x1
