RDK X3 AI Module Kit, 5 TOPS Computing Power, Compatible with Raspberry Pi CM4

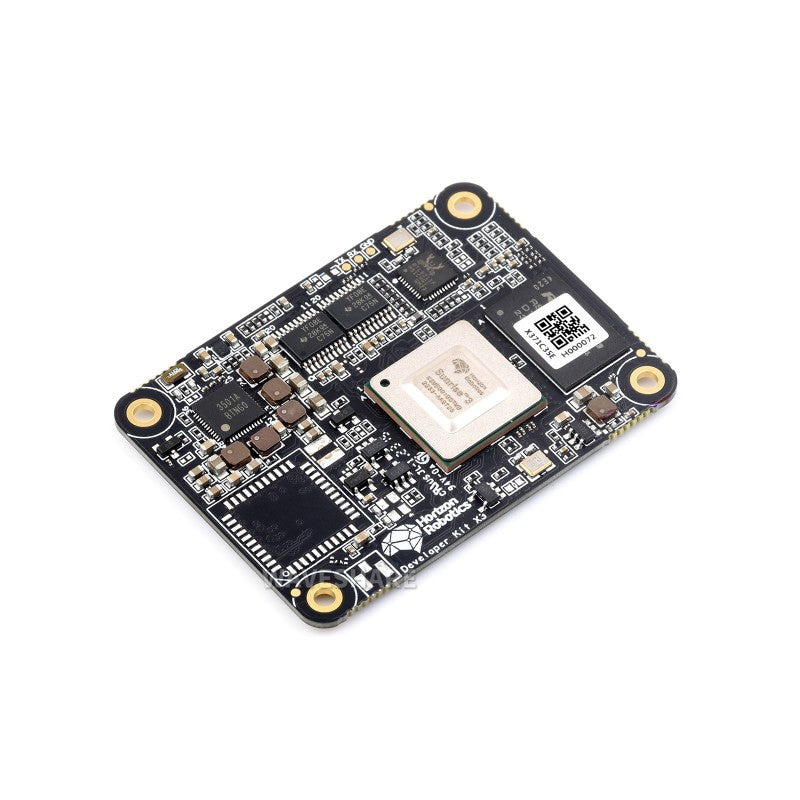

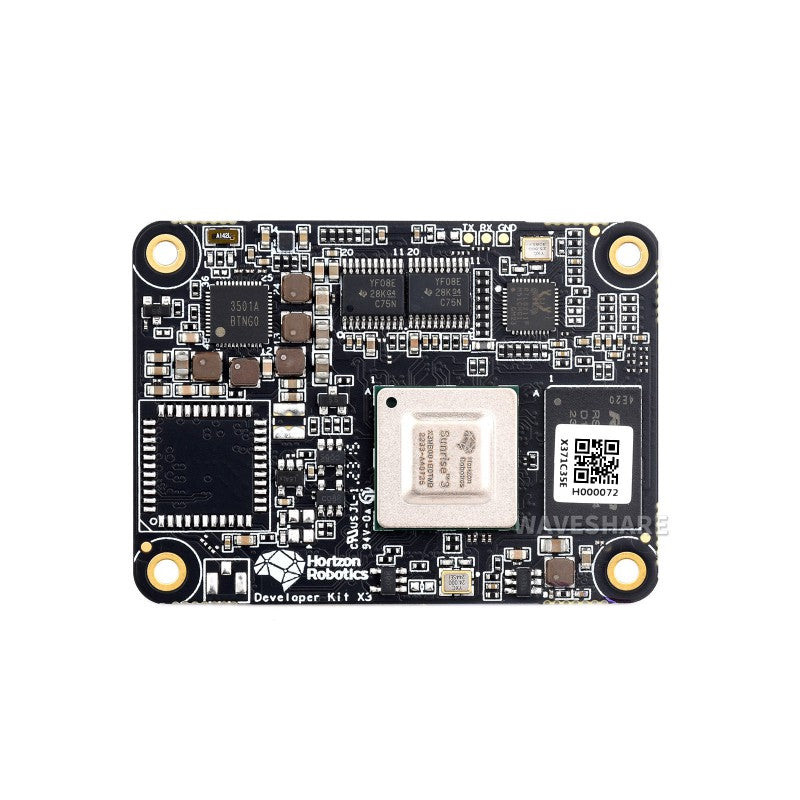

D-Robotics RDK X3 AI Module

5 TOPS AI Computing Power

Introduction

The RDK X3 AI Module is a fully-featured, high-performance intelligent module equipped with the D-Robotics X3 high-performance AI chip, delivering both general-purpose and AI computing power at the edge. Compatible with Raspberry Pi CM4, enabling quick integration and rapid product deployment for users. The module features a quad-core Cortex A53 ARM processor, supports 5TOPS computing power. It also supports 4K@60fps video encoding and decoding, providing a high-quality video experience.

The main interfaces include HDMI, Gigabit Ethernet, USB 3.0, MIPI CSI, and MIPI DSI for diverse peripheral connectivity. Provides options for Wireless / RAM / eMMC. Users can select different specifications based on their specific requirements, enabling more flexible and efficient solutions.

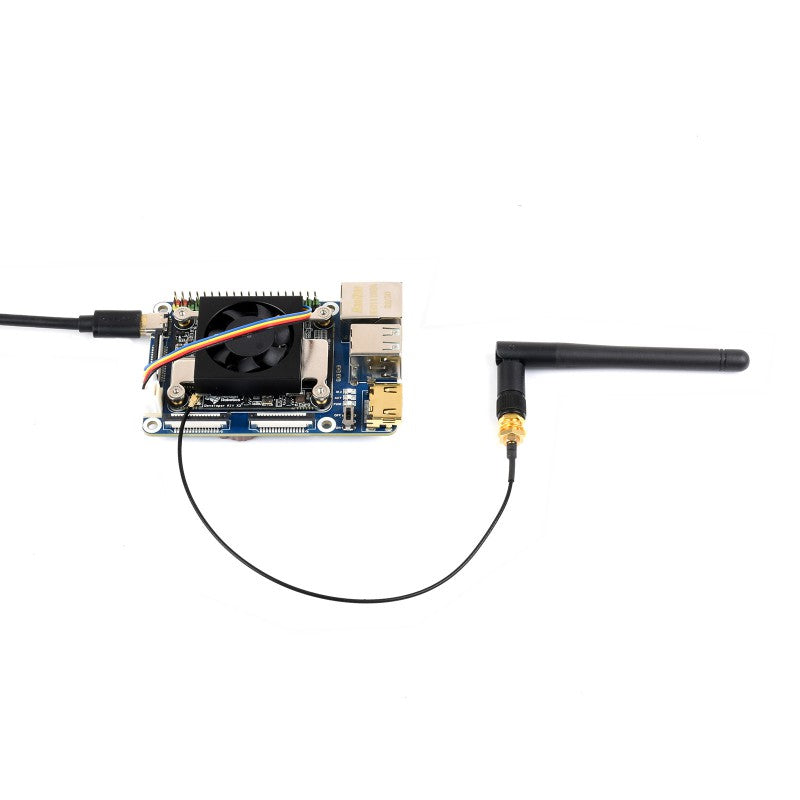

RDK X3 MD Basic Kit

The Basic Kit is available in two options: the RDK X3 MD 104032 version (4GB RAM, 32GB eMMC flash, with WiFi) and the accessories pack version. Comes with a CM4-IO-BASE-B baseboard, while other accessories including cooling fan, antenna, 5V 3A power supply, etc.

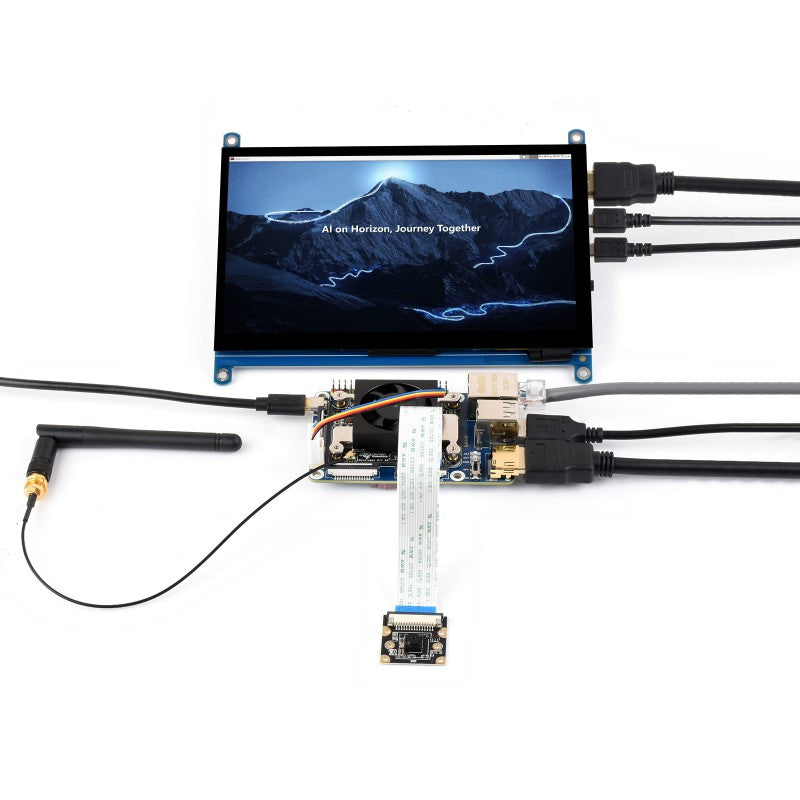

RDK X3 MD Vision Kit

On the basis of the Basic Kit, this kit is equipped with a 7inch HDMI Touch Display (1024x600 resolution) and an 8MP IMX219-77 Camera, enabling real-time display of captured images and support a wider range of human-machine interaction applications.

Specifications

High-Performance AI Core

Quad-core Cortex A53 64-bit processor, BPU 5 TOPS AI computing power

High-Speed Wi-Fi & Bluetooth

Onboard dual-band Wi-Fi and Bluetooth module AP6253, enabling seamless connectivity anytime and anywhere

Supports External Antenna

* for reference only, please refer to the package content for detailed part list.

What's On Board

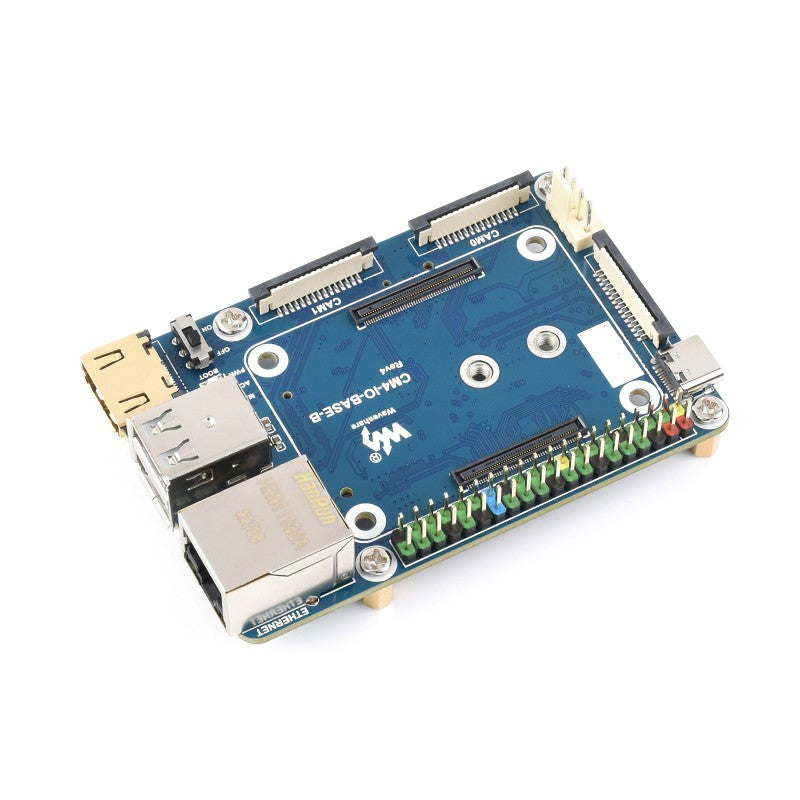

Compatible with CM4-IO-BASE-B

The CM4-IO-BASE-B is a Raspberry Pi CM4 baseboard launched by Waveshare, compatible with RDK X3 Module. It can serve as a development system for the RDK X3 Module, or be integrated as a carrier board into end products, helping users quickly verify and develop products by connecting Raspberry Pi HATs and modules.

Note: Some interface resources on the baseboard are unavailable, please refer to the actual core MODULE resources for details.

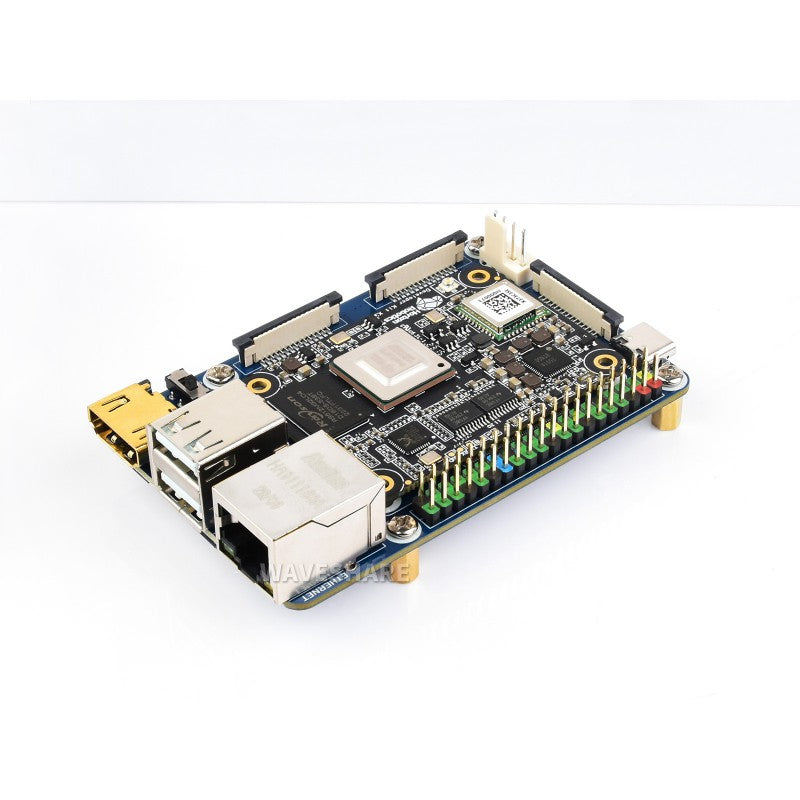

Product Show

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RDK_X3_MD

Package Content

Weight: 0.223 kg

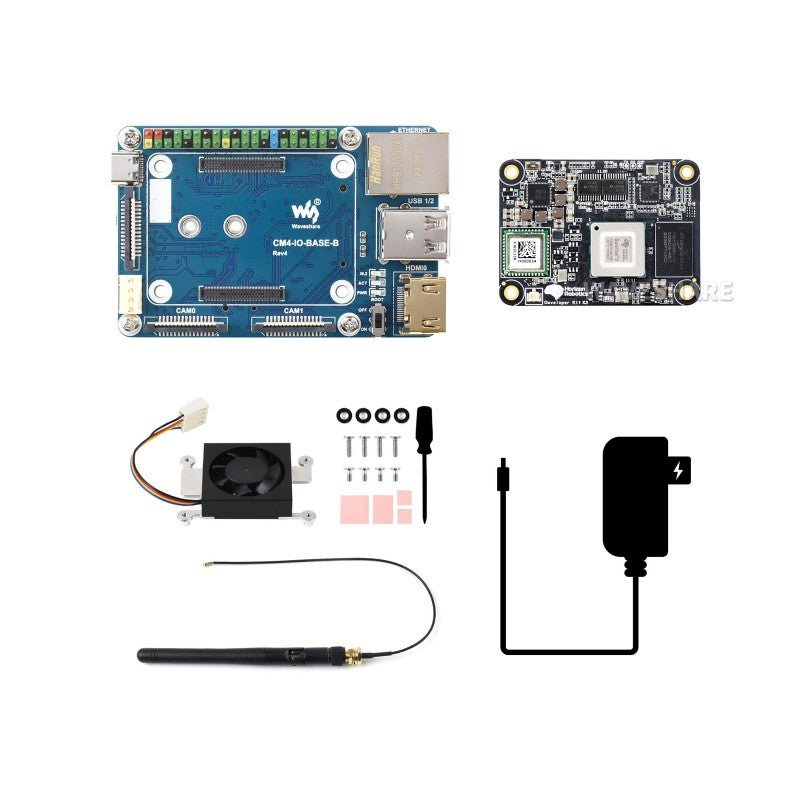

RDK X3 MD 104032 BASE KIT

CM4-IO-BASE-B ×1
RDK X3 MD 104032 ×1
Cooling fan ×1
Antenna ×1
5V 3A Type-C Power Supply x1

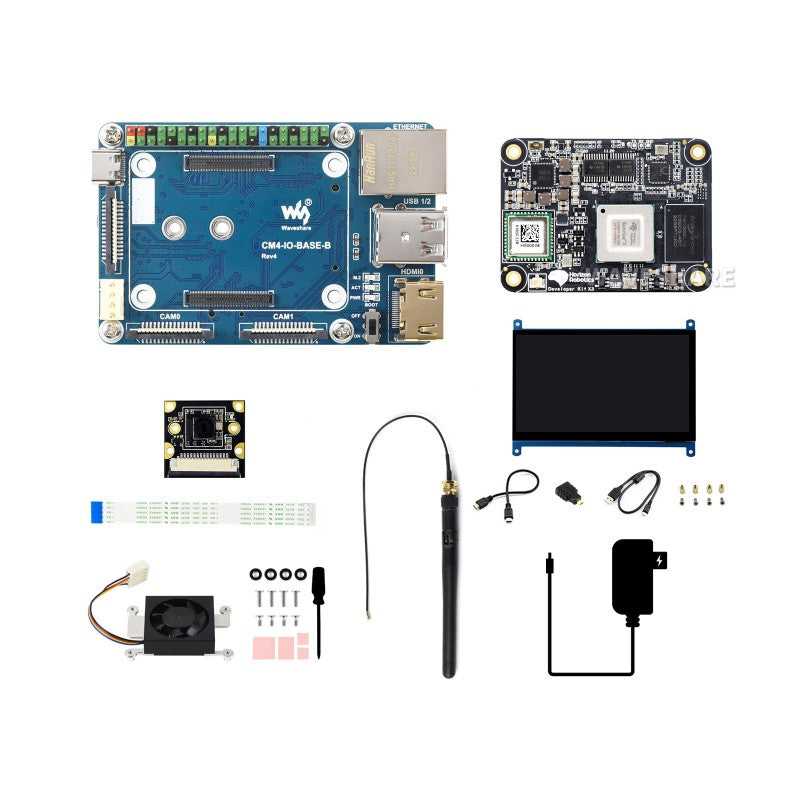

RDK X3 MD 104032 VISION KIT

CM4-IO-BASE-B ×1
RDK X3 MD 104032 ×1
7inch HDMI LCD (H) ×1
IMX219-77 Camera ×1
Cooling fan ×1
Antenna ×1
5V 3A Type-C Power Supply x1
