Raspberry Pi RM520N-GL 5G HAT

Supports 5G/4G/3G communication and GNSS positioning, Global BandĀ

Based On Quectel RM520N-GL 5G Module, Supports 3GPP 16

* for reference only, Raspberry Pi board is NOT included

Ā

Features

  • Comes with the Quectel RM520N-GL 5G Sub-6GHz module, supports various network standards such as 5G/4G/3G and LTE-A, GNSS positioning support
  • Comes with M.2 TO 4G/5G HAT, compatible with the RM500U-CN/RM500Q-GL/RM502Q-AE/RM520N-GL series 5G modulesĀ Ā
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano to enable high speed 5G network
  • Standard M.2 B KEY slot, compatible with SIM7600X/EM06X/SIM82XX/RM5XX series 4G/5G M.2 modules
  • Onboard control pins, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable and flexible power supply
  • Onboard power supply switch, reset button and LED indicator, easy to turn on/off the module and monitor the operating status
  • 2x SIM card slot, dual card single standby, switchable via AT command
  • High efficiency power supply circuit, up to 3A output current
  • Comes with metal case, supports wall and rail mounting, more convenient for installation

Ā

Quectel RM520N-GL 5G Global Band Module

Supports 3GPP 5G Release 16 Specification, M.2 Form Factor


Ā

Supports 5G/4G/3G Networking,
Global Band

Support 5G NSA (4G And 5G Co-Networking)
And SA (5G Standalone Networking)
Support 4G/3G Network

NOTE: the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Ā

Multi-Constellation High-Precision GNSS

Supports GPS, Beidou, Glonass, Galileo, QZSS

Ā

Comes With M.2 TO 4G/5G HAT

Compatible With RM500U-CN / RM500Q-GL / RM502Q-AE / RM520N-GL Series 5G Modules, Supports Direct Access To Raspberry Pi 4B/3B+ And CM4-IO-BASE-A/B Baseboards, Etc


Ā

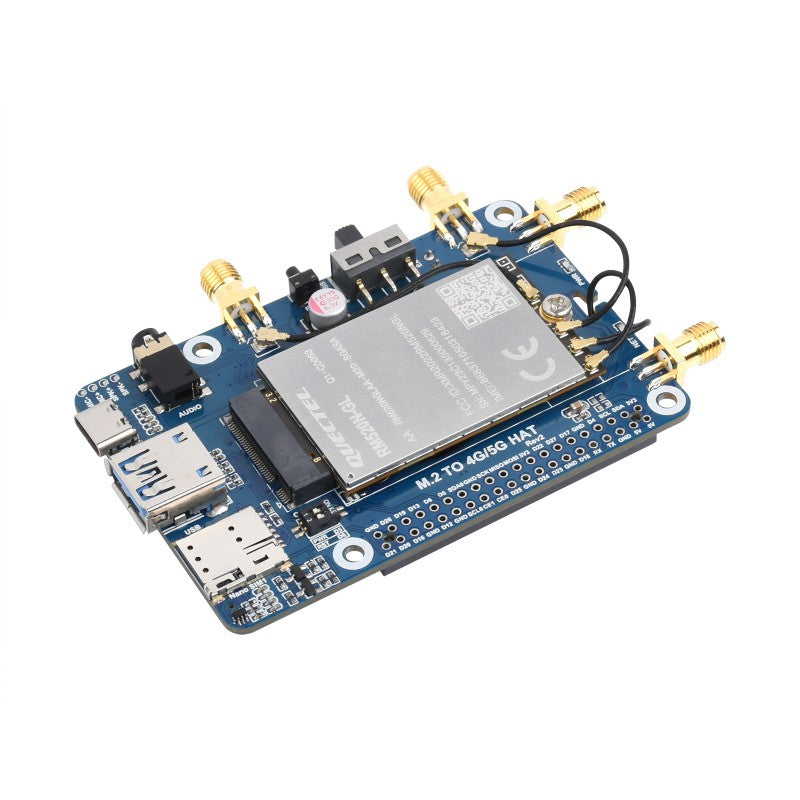

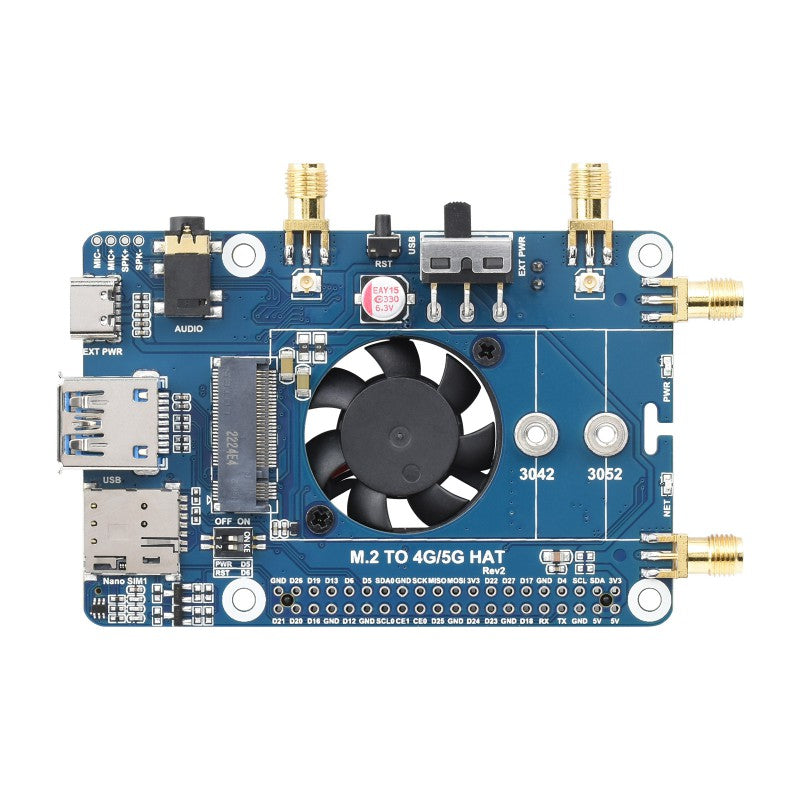

What's On Board

  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. DIP switches
    Enables the power control and reset pins
  3. M.2 slot
    Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor
  4. SIM card slot 1
    one of the 2x SIM card slots, dual card single standby
  5. USB3.1 port
    USB 2.0 compatible, for connecting with different hosts
  6. USB Type-C port
    5V 3A input, stable and flexible power supply
  1. Audio jack
    SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function
  2. Antenna connector
    Supports quad antennas
  3. Reset button
  4. Power supply switch
    Switch the power supply mode:
    When set to USB, the module is powered via the "5. USB3.1 port"
    When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port"
  5. Indicator
    Easy to monitor the operating status of module

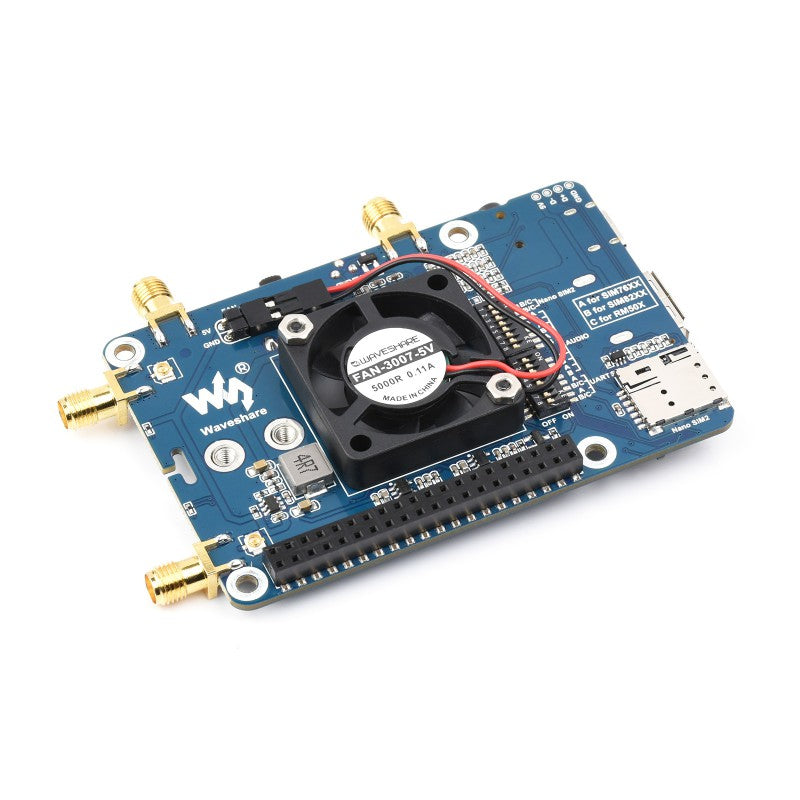

  1. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
  2. SIM card slot 2
    Switchable via AT command
  3. Module settings switch
    Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
    Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
    Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules
  1. USB 2.0 interface pads
  2. NAU8810X Audio Chip
    For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function
  3. Fan Header
    5V cooling fan power supply

Ā

Multi System Support, Easy To Use

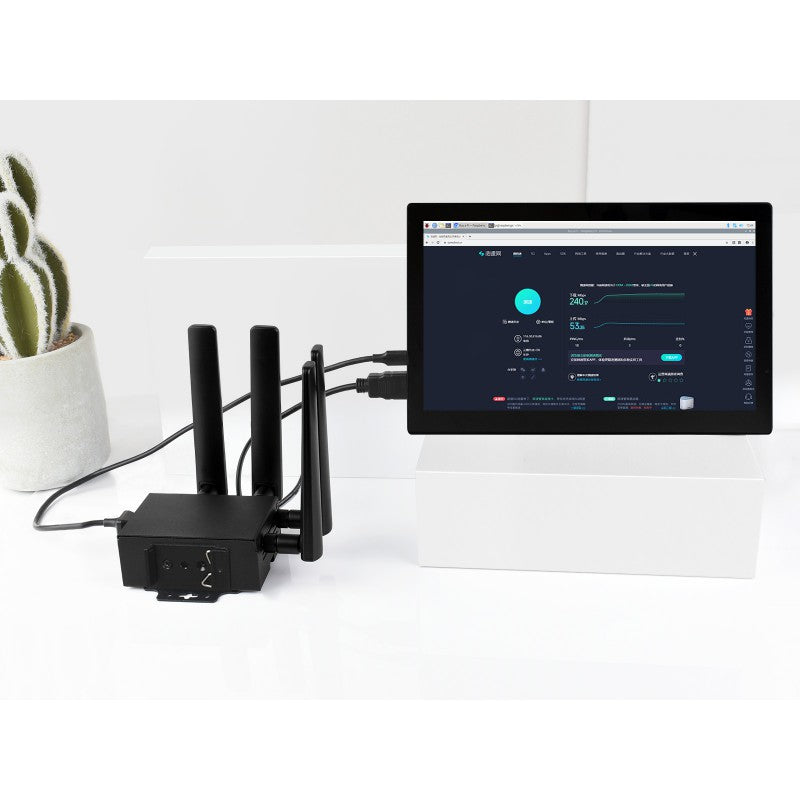

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...Just Plug It Into USB Port, Go Through Some Simple Configuration, The High Speed 5G Network Connection Will Be Ready To Use

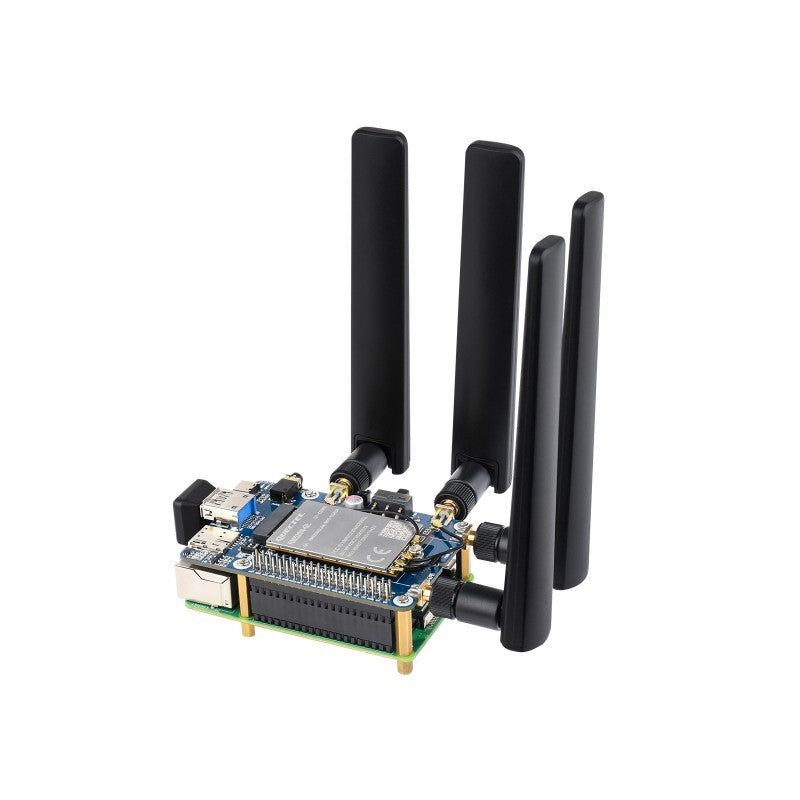

Connecting To Raspberry Pi

Ā

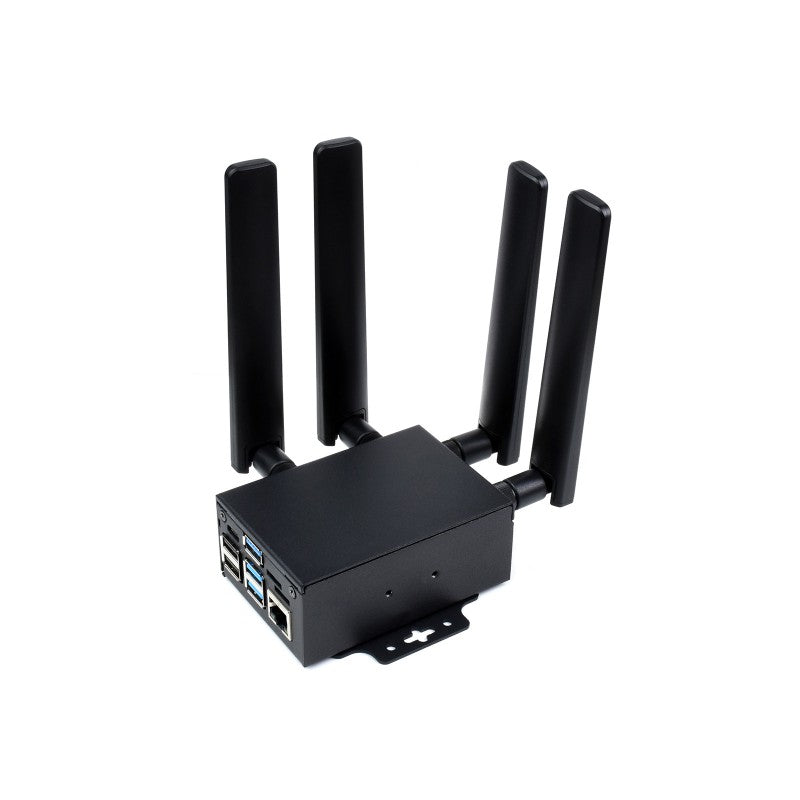

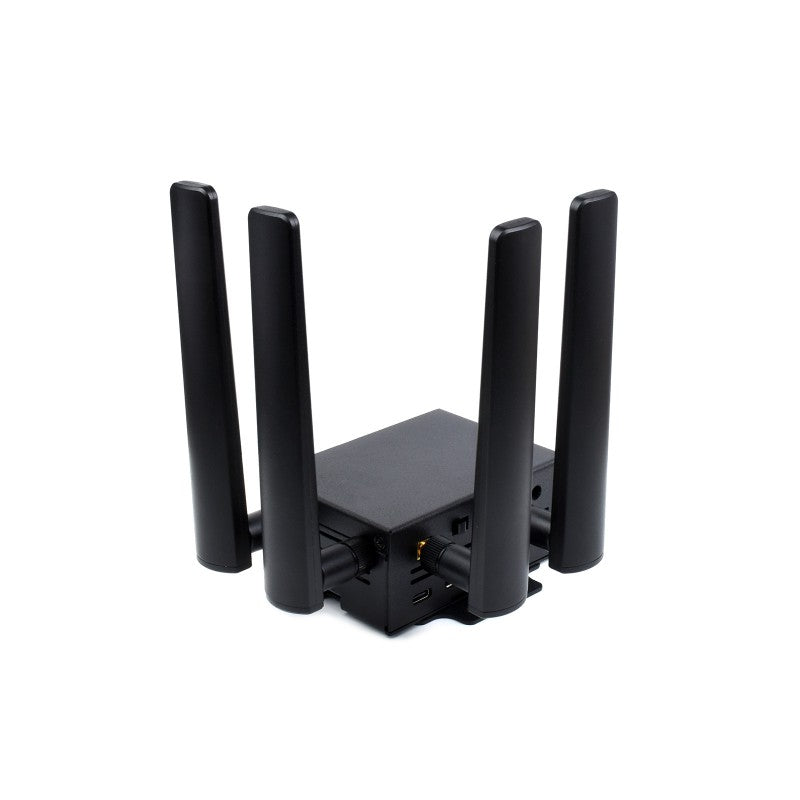

Metal Case, Rugged And Nice-Looking,
Easy To Install

Supports Wall And Rail Mounting, Convenient
For Various Application Scenarios
Such As Industry

Note: The case is only suitable for Raspberry Pi 4B


Ā

Outline Dimensions

Ā

Resources

Wiki:Ā www.waveshare.com/wiki/RM520N-GL_5G_HAT

Ā

Package Contents:

Weight: 0.586 kg

  1. Protection case kit x1
  2. M.2 TO 4G/5G HAT x1
  3. RM520N-GL x1
  4. Antenna 4pcs x1
  5. IPEX adapter cable 4pcs x1
  6. GNSS antenna x1
  7. 2*20PIN pin header x1
  8. OPTIONS 5V 3A Type-C power adapter x1
  9. Dual plug USB3.0 cable x1
  10. USB3.0 adapter x1
  11. USB2.0 adapter x1
  12. SMA protective cap 4pcs x1
  13. Screws pack x1
What platforms and host devices are compatible with this 5G HAT?
It supports direct access to Raspberry Pi 4B 3B+ and CM4-IO-BASE-A/B baseboards. It is also compatible with Windows, Ubuntu, Raspberry Pi OS and OpenWRT, and the M.2 slot supports RM500U-CN RM500Q-GL RM502Q-AE RM520N-GL modules.
What network and GNSS features are supported?
The module supports 5G, 4G and 3G networks and multi constellation GNSS including GPS Beidou Glonass Galileo and QZSS. It supports 5G NSA and SA configurations, subject to provider bands.
How is power supplied and what are the available power options?
Power can be supplied via USB3.1 port or via the USB C port using an external power supply. A power mode switch selects USB or EXT PWR, and the design supports up to 3 A current.
What is included in the package contents?
The package includes the RM520N-GL 5G HAT, a protection case, M.2 to 4G/5G HAT adapter, four antennas with adapters, a GNSS antenna, IPEX cables, and a 2x20 pin header.
How many SIM cards are supported and how can they be managed?
There are two SIM card slots with dual card single standby, and the active SIM can be switched via AT command.
A
Admin
Welcome to the discussion thread for RM520N-GL 5G HAT for Raspberry Pi with Case, Quad Antennas LTE-A
Feel free to ask questions, share tips or report issues.
