SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 High Speed

SKU: WVSH0491

ā‚¹ 10,549.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
SIM7600G-H M.2 4G HAT for Raspberry Pi, LTE CAT4 High Speedā‚¹ 10,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

SIM7600G-H M.2 4G HAT FOR RASPBERRY PI

4G/3G/2G communication and GNSS positioning, global band

This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.

  • Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
  • GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating statusĀ Ā
  • Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • High efficiency power supply circuit, up to 3A output current

Ā

Module Specifications

FREQUENCY BAND
LTE Cat-4 LTE-FDD:Ā B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD:Ā B34, B38, B39, B40, B41
3G UMTS/HSDPA/HSPA+:Ā B1, B2, B4, B5, B6, B8, B19
2G GSM/GPRS/EDGE:Ā 850, 900, 1800, 1900 MHz
GNSS
Satellite systems GPS, Beidou, GLONASS, GALILEO, QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction

Ā

Global Band 4G/3G/2G Support

LTE Cat-4: Up To 150Mbps (Downlink) / 50Mbps (Uplink)
3G (HSPA+): Up To 42Mbps (Downlink) / 5.76Mbps (Uplink)
2G (GPRS/EDGE): Up To 236.8Kbps (Downlink) / 236.8Kbps (Uplink)

Ā

Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use

Ā

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

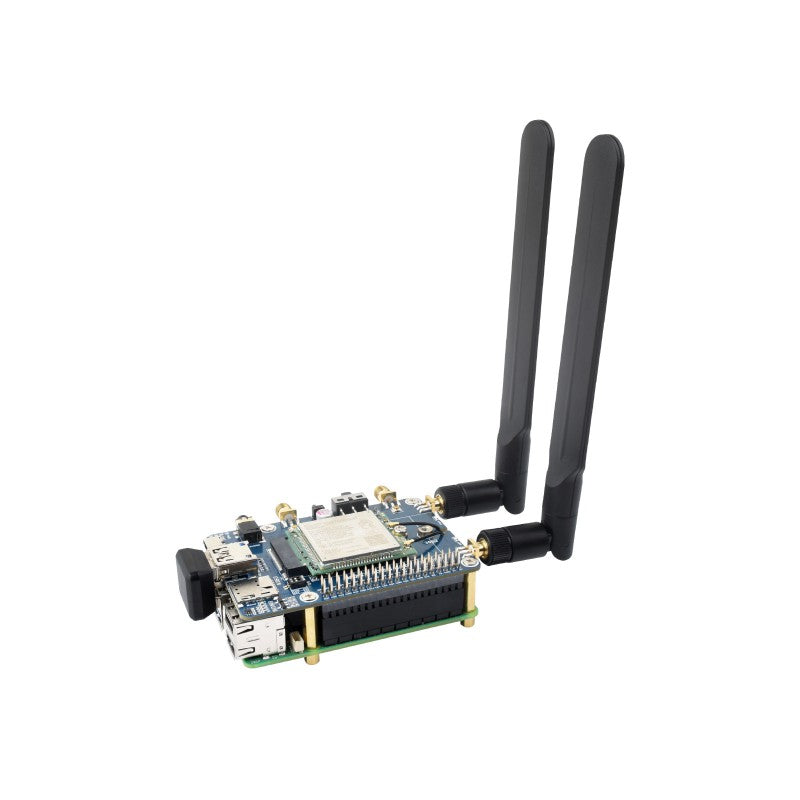

connecting with Raspberry Pi 4B

connecting with Raspberry Pi 3B+

connecting with CM4 IO Base

Ā

Cloud Communication

Supported Communication Protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...

Ā

GNSS Positioning

Supports GPS, Beidou, Glonass, Galileo, QZSS, And LBS Base Station Positioning

Ā

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Ā

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano,
Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

Ā

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 4G Module

Ā

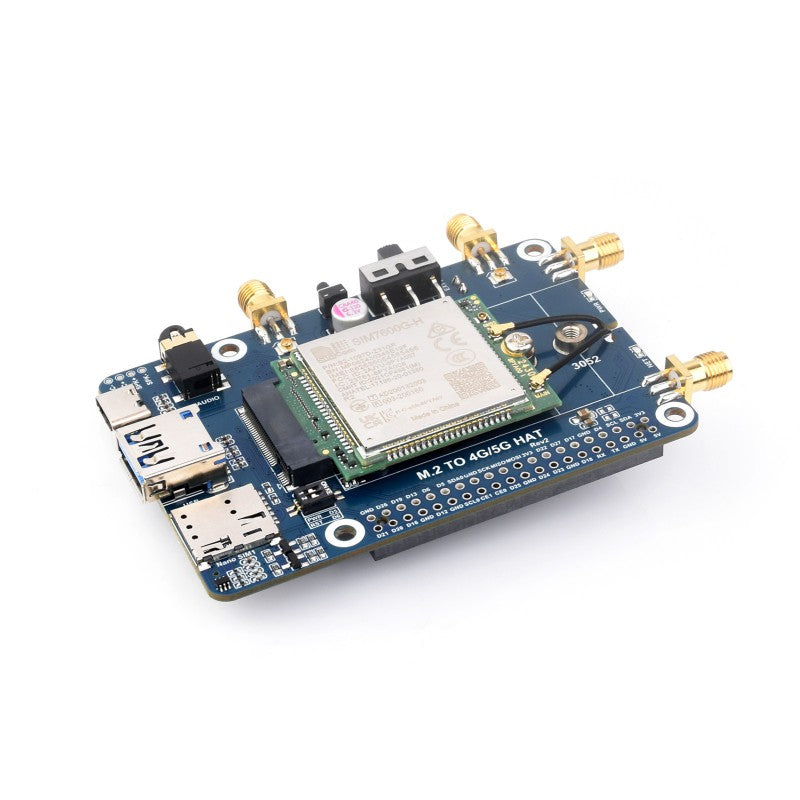

Standard M.2 B KEY Slot

Compatible With SIM7600X-M.2, SIM7906X-M.2, A7906X-M.2 Series Modules

SIM7600X-M.2

SIM7906X-M.2

A7906X-M.2

Ā

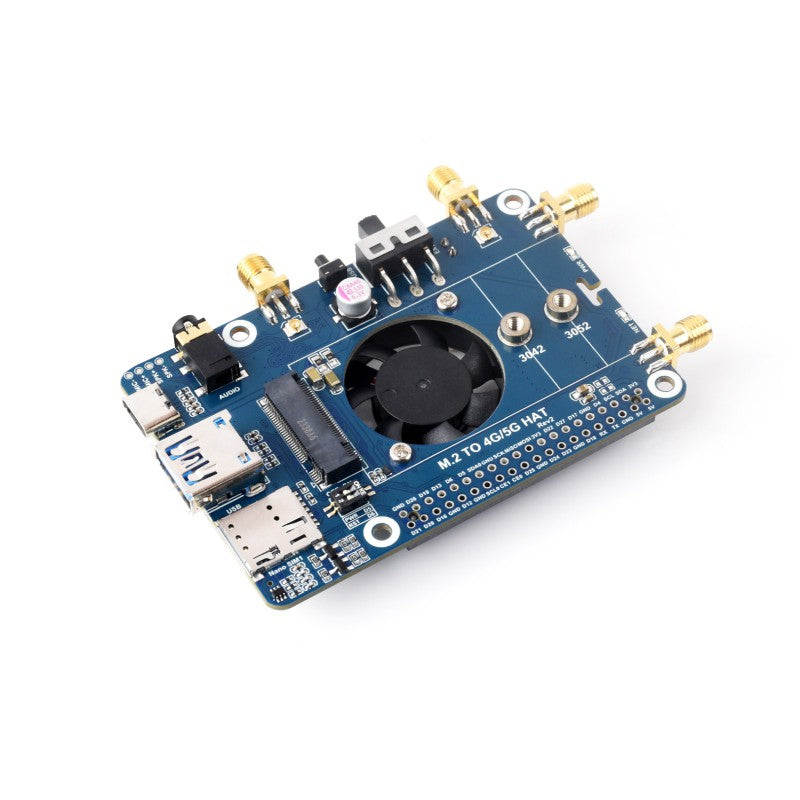

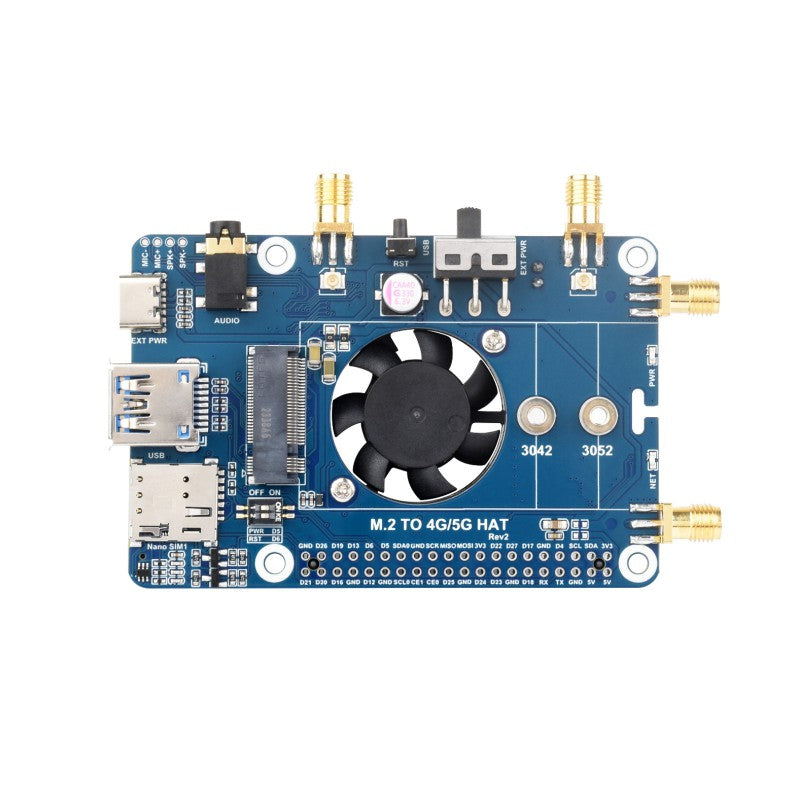

What's On Board

  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. DIP switches
    Enables the power control and reset pins
  3. M.2 slot
    Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor
  4. SIM card slot 1
    one of the 2x SIM card slots, dual card single standby
  5. USB3.1 port
    USB 2.0 compatible, for connecting with different hosts
  6. USB Type-C port
    5V 3A input, stable and flexible power supply
  7. Audio jack
    SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function
  1. Antenna connector
    Supports quad antennas
  2. Reset button
  3. Power supply switch
    Switch the power supply mode:
    When set to USB, the module is powered via the "5. USB3.1 port"
    When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port"
  4. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
  5. Indicator
    Easy to monitor the operating status of module

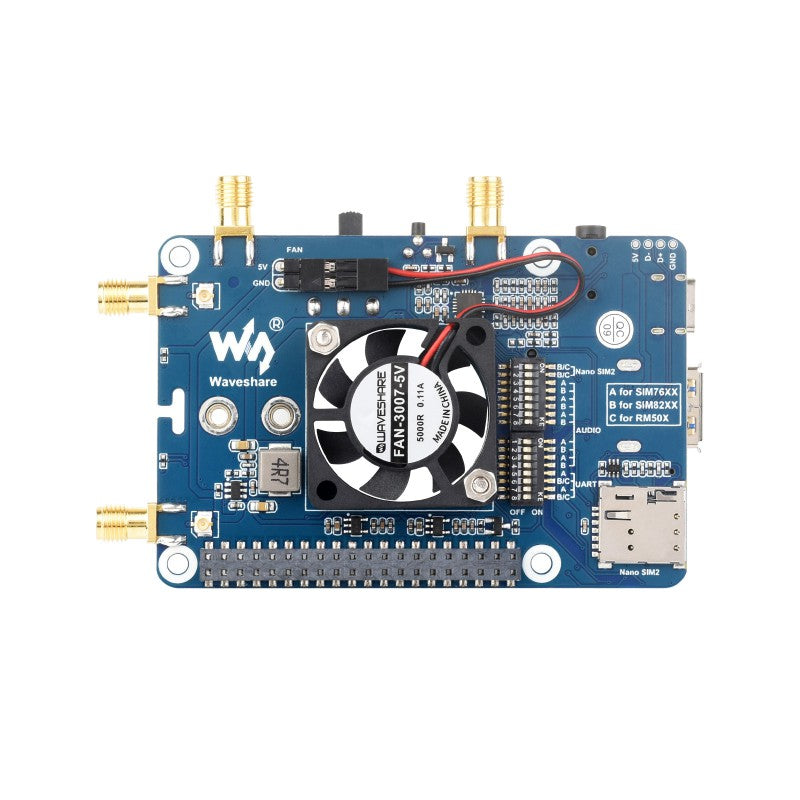

  1. SIM card slot 2
    Switchable via AT command
  2. Module settings switch
    Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
    Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
    Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules
  1. USB 2.0 interface pads
  2. NAU8810X Audio Chip
    For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function
  3. Fan Header
    5V cooling fan power supply

Ā

Outline Dimensions

Ā

Resources

Wiki:Ā SIM7600G-H-M2_4G_HAT

Ā

Package Contains:

Weight: 0.215 kg

  1. M.2 TO 4G/5G HAT x1
  2. SIM7600G-H-M.2 x1
  3. Antenna 2pcs x1
  4. IPEX adapter cable 2pcs x1
  5. 2*20PIN pin header x1
  6. Passive GPS antenna x1
  7. Dual plug USB3.0 cable x1
  8. USB3.0 adapter x1
  9. USB2.0 adapter x1
  10. SMA protective cap 2pcs x1
  11. Screws pack x1
Which host devices can this module be used with?
It connects via USB to PC, Raspberry Pi, or Jetson Nano. It supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS and OpenWRT, with simple USB based setup.
What network and GNSS features are supported?
LTE Cat 4 provides up to 150 Mbps downlink and 50 Mbps uplink. It supports 4G 3G 2G bands and GNSS including GPS, Beidou, GLONASS, GALILEO, QZSS and LBS.
How is power supplied and can I use external power?
The module has a USB C power input and a switch to select USB or external power. It supports up to 5V 3A and provides a power on/off switch and LED indicator.
Can I make phone calls and send SMS, and what about audio?
Yes, phone calls and SMS are supported via AT commands. SMS types include MT, MO, CB, Text and PDU, and there is an audio jack and decoder for voice features.
What is included in the package and how do I start?
The package includes the SIM7600G-H-M.2 module, M.2 to 4G/5G HAT, antennas, adapters, USB cables, and other accessories. Connect via USB and follow the simple configuration to start using high speed 4G networking.
