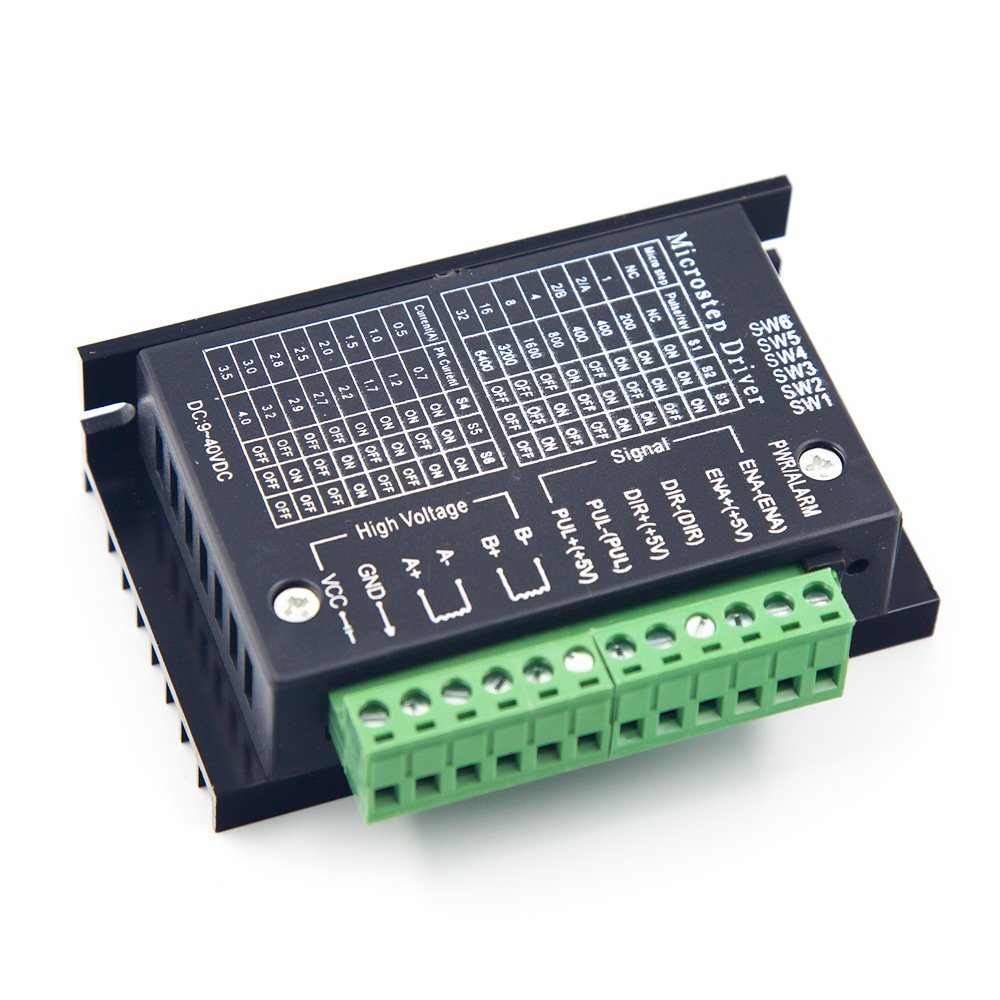

TB6600 Stepper Motor Driver Controller 4A / 9~42V

SKU: ELC4028

ā‚¹ 629.99 ā‚¹ 999.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
TB6600 Stepper Motor Driver Controller 4A / 9~42Vā‚¹ 629.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
TB6600 Arduino Stepper Motor driverĀ is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 arduino stepper motor driver has a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for most of the stepper motors.

The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.

FEATURES

  • Support 8 kinds of current control
  • Support 7 kinds of micro steps adjustable
  • The interface adopts high-speed optocoupler isolation
  • Automatic semi-flow to reduce heat
  • Large area heat sink
  • Anti-high-frequency interference ability
  • Input anti-reverse protection
  • Overheat, over current and short circuit protection

SPECIFICATION

  • Input Current: 0~5A
  • Output Current: 0.5-4.0A
  • Control Signal: 3.3~24V
  • Power (MAX): 160W
  • Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
  • Temperature: -10ļ½ž45ā„ƒ
  • Humidity: No Condensation
  • Dimension: 96*56*33 mm/ 3.78*2.2*1.3 inches
  • Weight: 0.2 kg
  • Drive IC: TB67S109AFTG

DOCUMENTS

SHIPPING LIST

  • TB6600 Stepper Motor Driver x1

Is this driver compatible with Arduino and what signals does it require?
Yes. It is compatible with Arduino and other microcontrollers that can output 5V digital pulse signals. It accepts control signals in the 3.3 to 24V range and uses DIP switches to set microstep and current.
What power supply and current can it handle?
The driver accepts 9 to 42 V DC input and can output 0.5 to 4.0 A, with a maximum power of 160 W and a peak current of 4 A.
How many microsteps and current settings are available and how are they chosen?
It supports 7 micro steps: 1, 2/A, 2/B, 4, 8, 16, 32 and 8 current settings: 0.5 A, 1 A, 1.5 A, 2 A, 2.5 A, 2.8 A, 3.0 A, 3.5 A. Both are adjustable using 6 DIP switches.
What protections and isolation does the module offer?
All signal terminals use high speed optocoupler isolation to reduce interference. It also provides input reverse protection and protections against overheat, over current and short circuits.
What is included in the package and where can I find documentation?
The shipping list shows one TB6600 Stepper Motor Driver x1. Documentation and the TB6600 wiki are available for reference.
