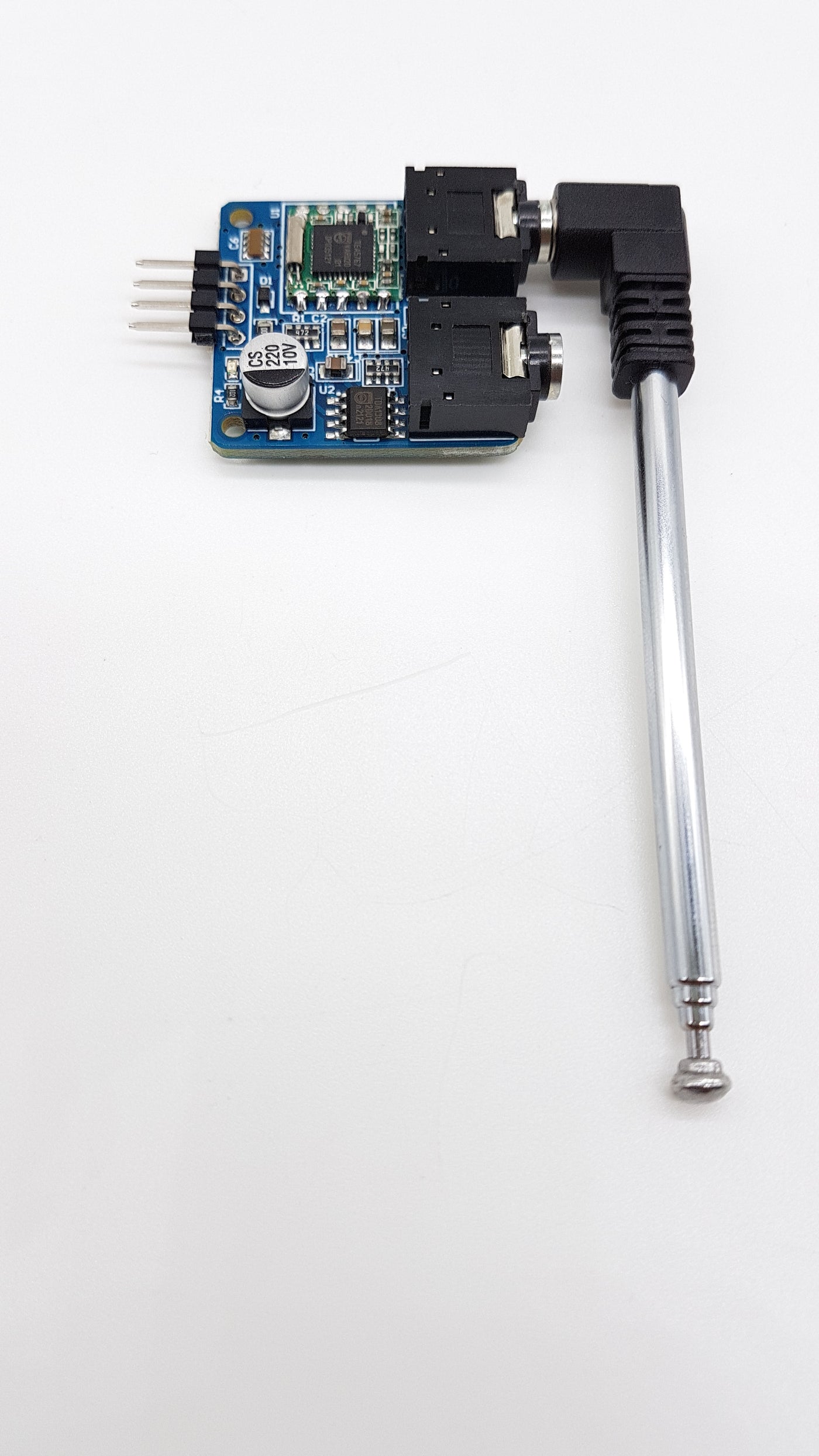

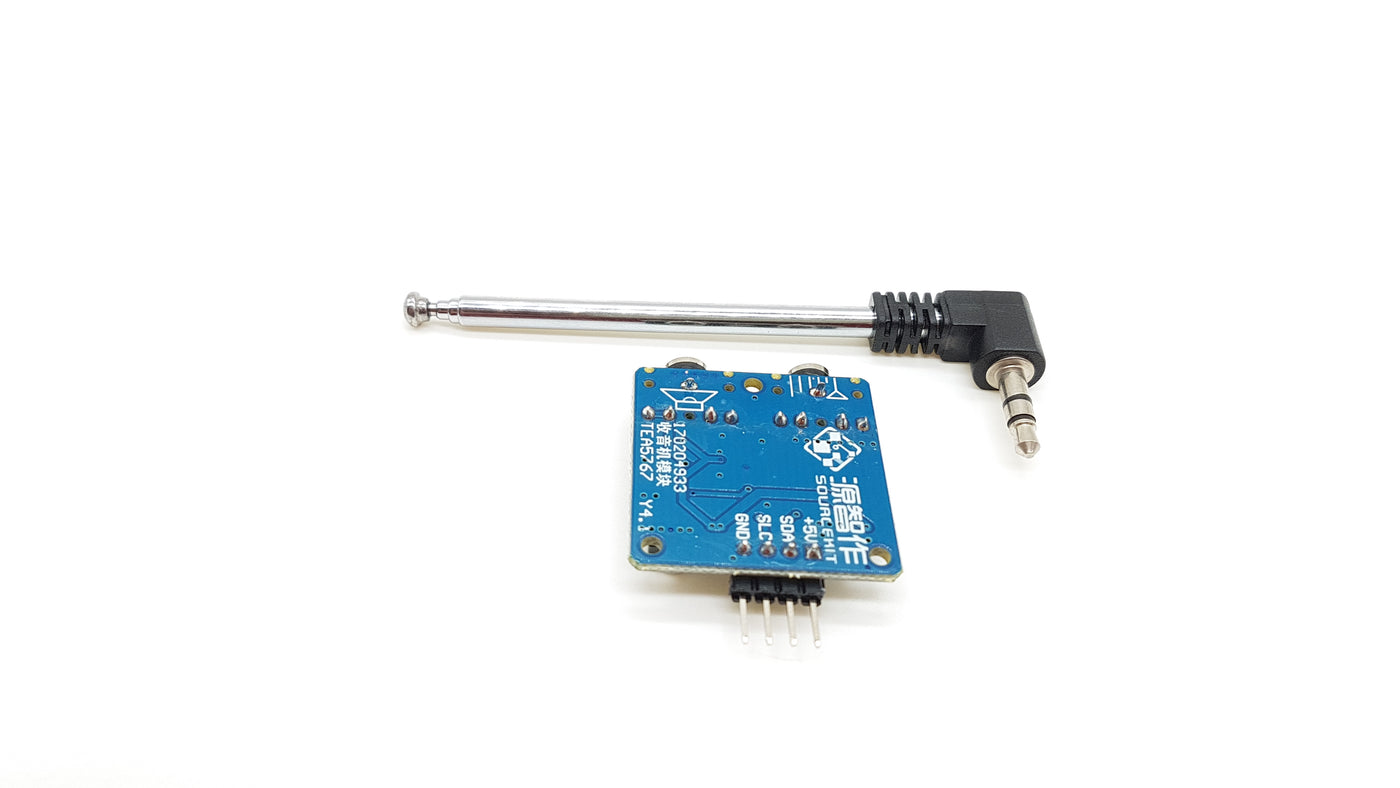

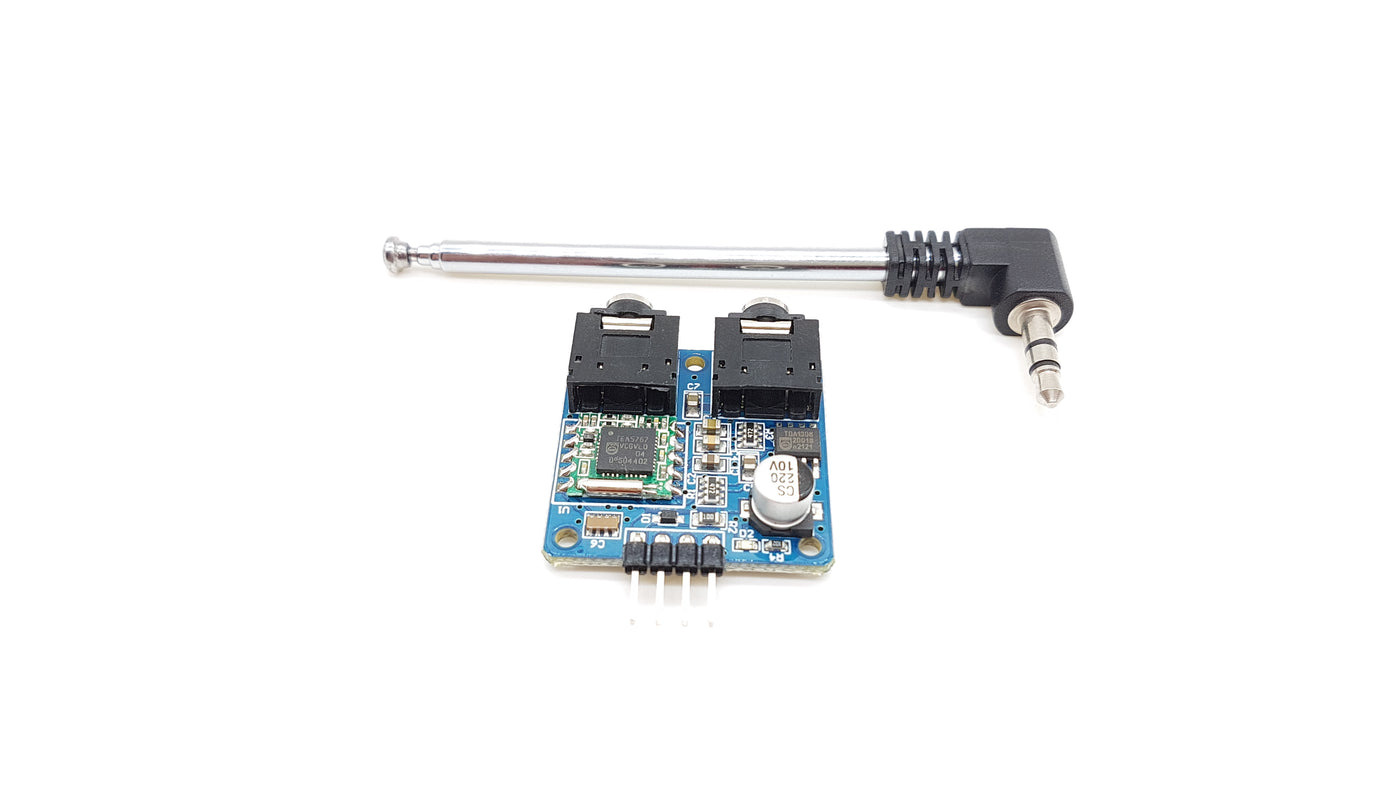

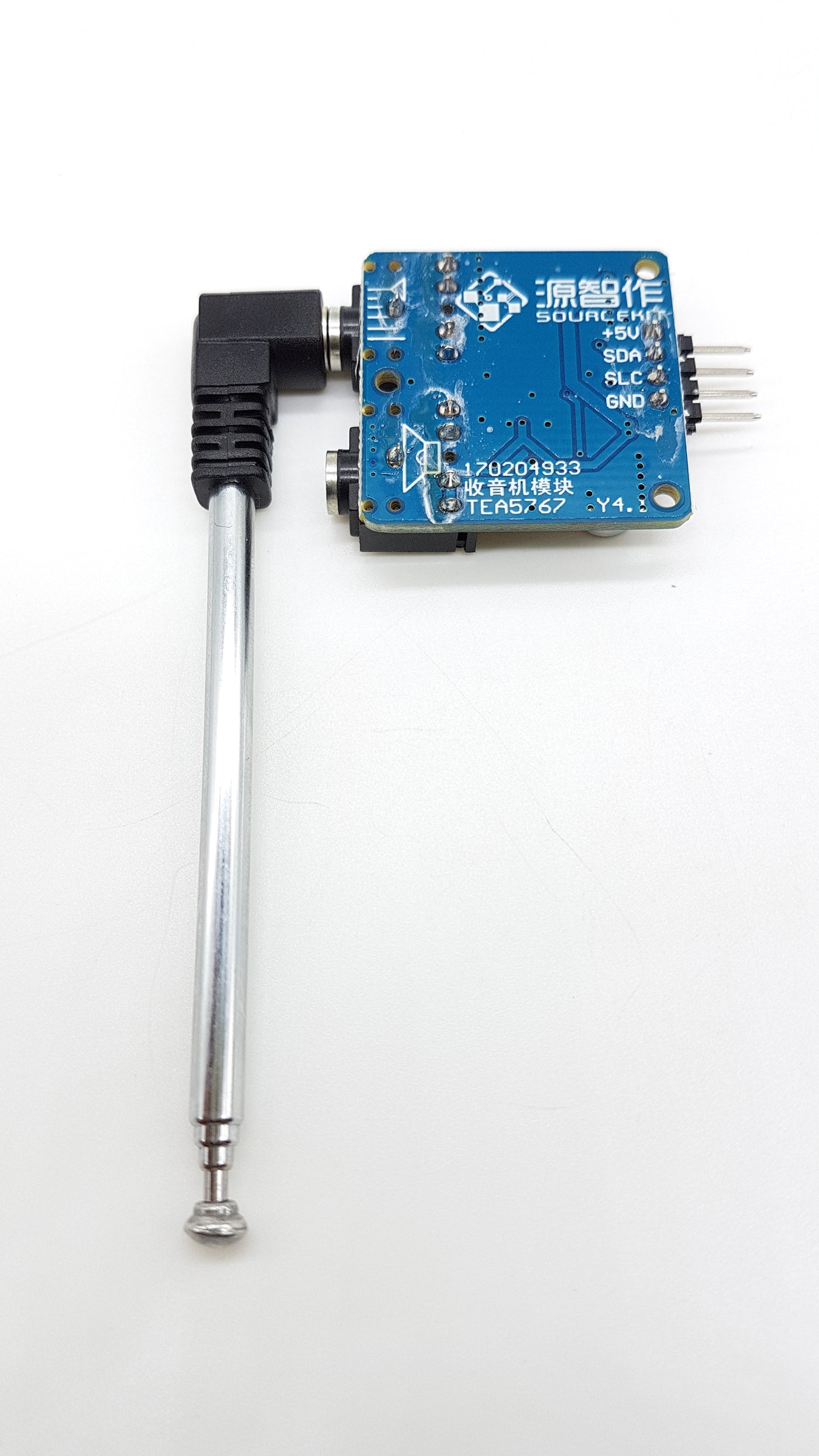

TEA5767 FM Stereo Radio Module

SKU: ELC3011

₹ 549.99 ₹ 610.00

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
TEA5767 FM Stereo Radio Module₹ 549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
Details:
  • power supply: 5V
  • Frequency range: 76-108MHZ
  • PCB size: 31*30mm
  • With reverse polarity protection diode
  • With power output filtering sensor

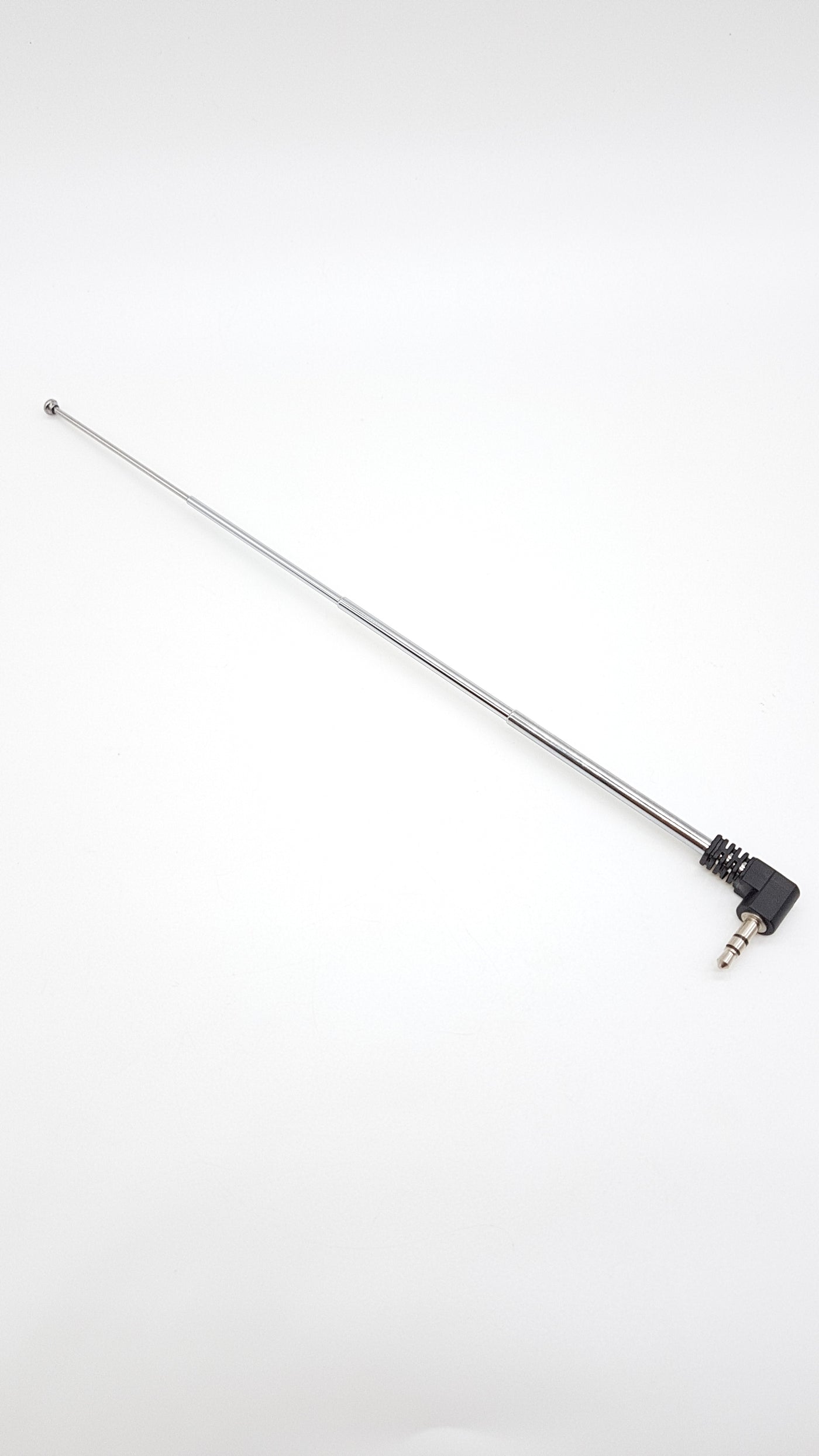

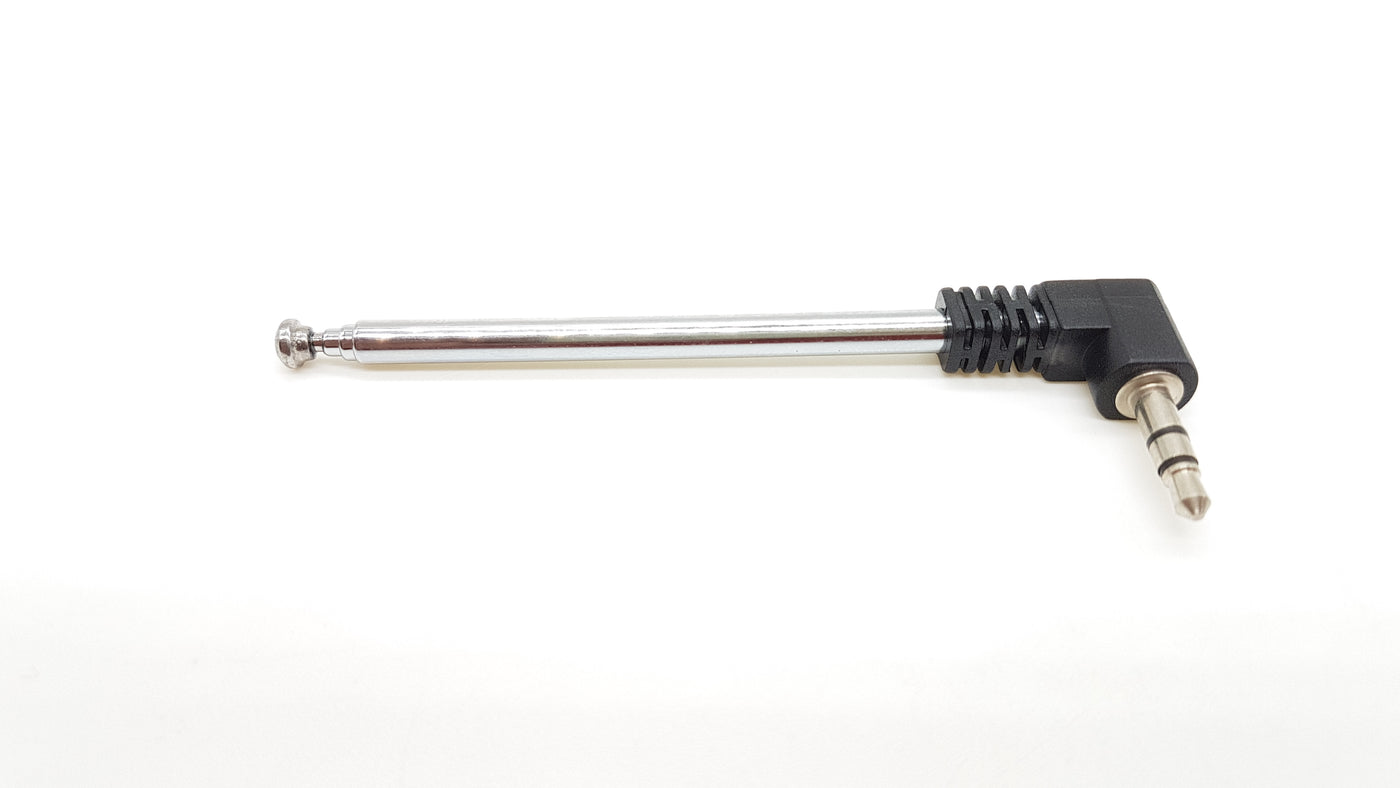

  • Directly plug antenna interface
  • I2C bus communication
  • Multi capacitor combined filter
  • Blue LED power indicator

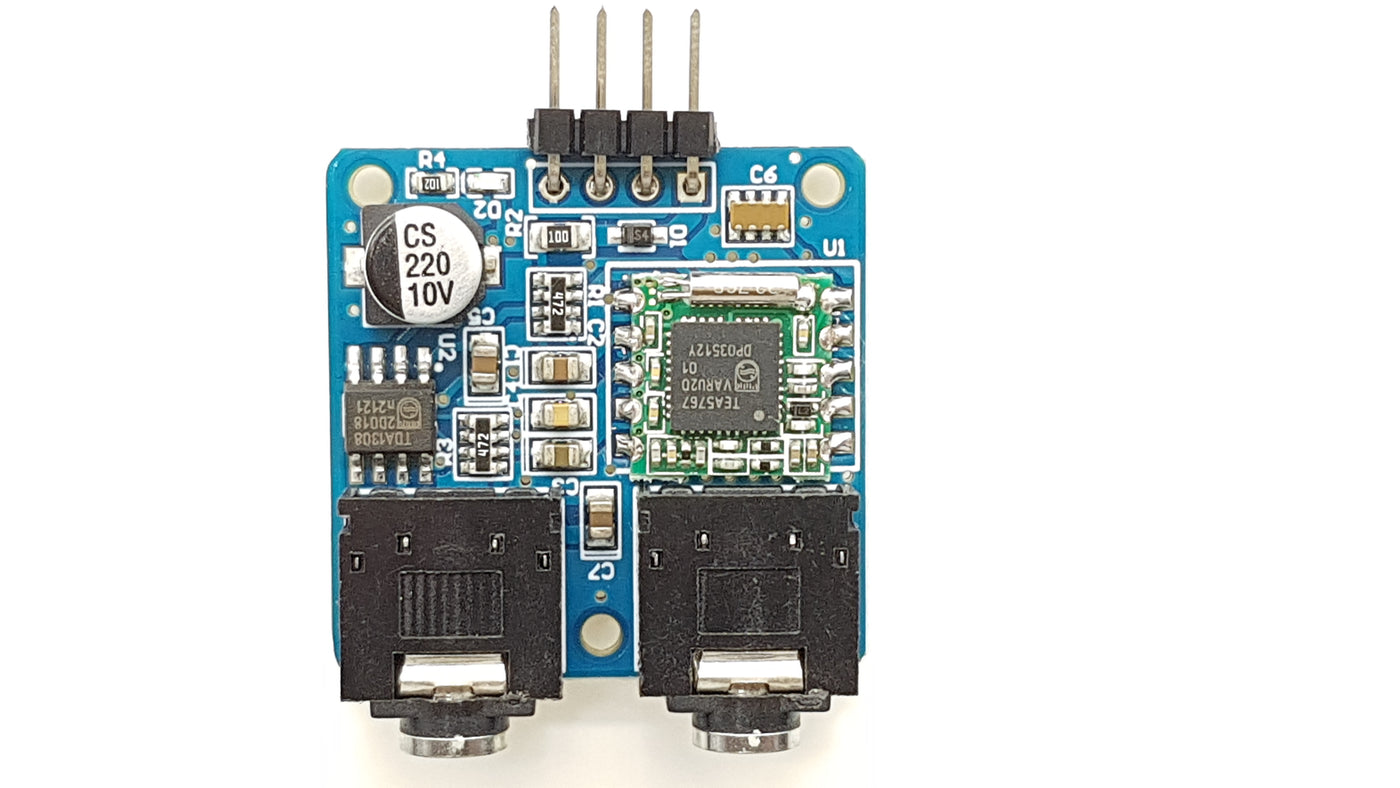

  • FM chip module TEA5767

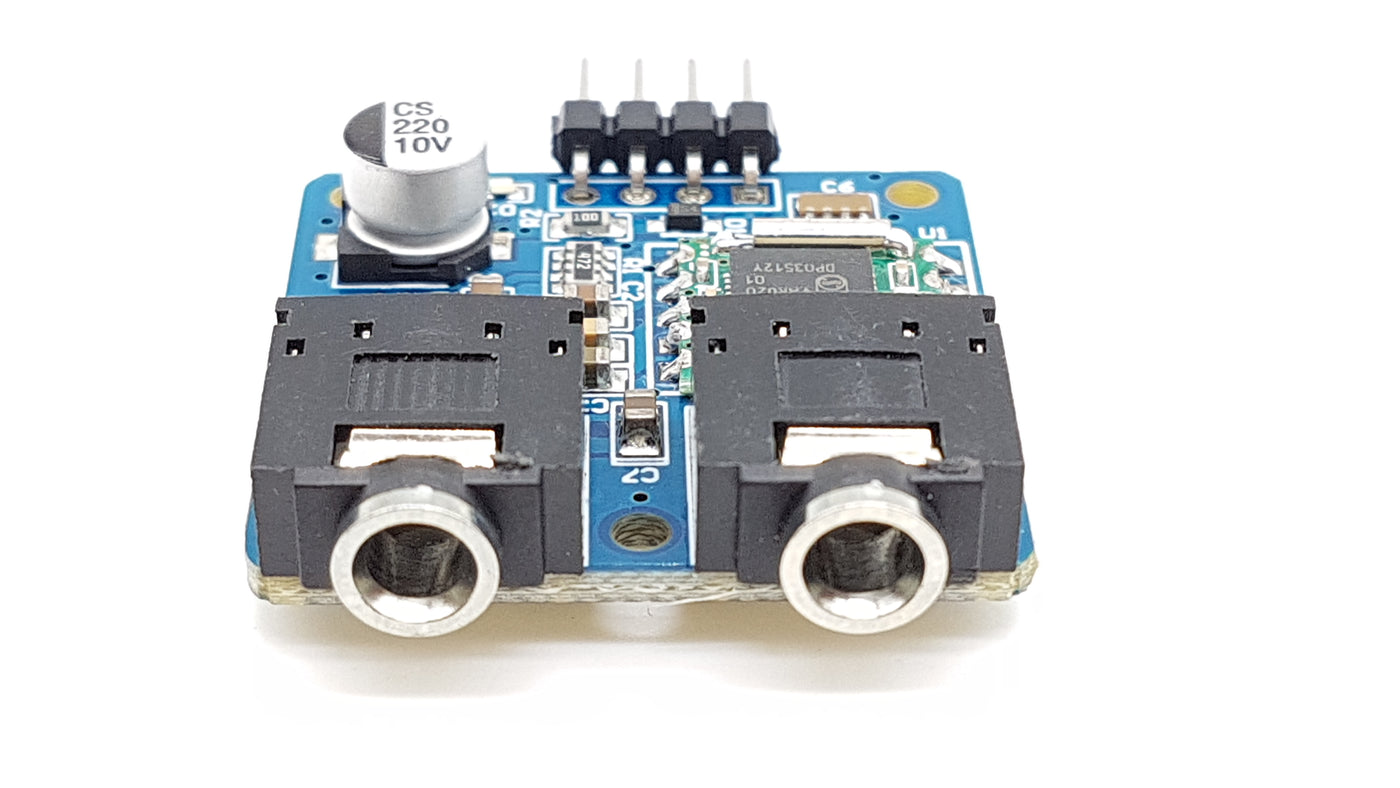

  • Onboard 3.5mm audio interface

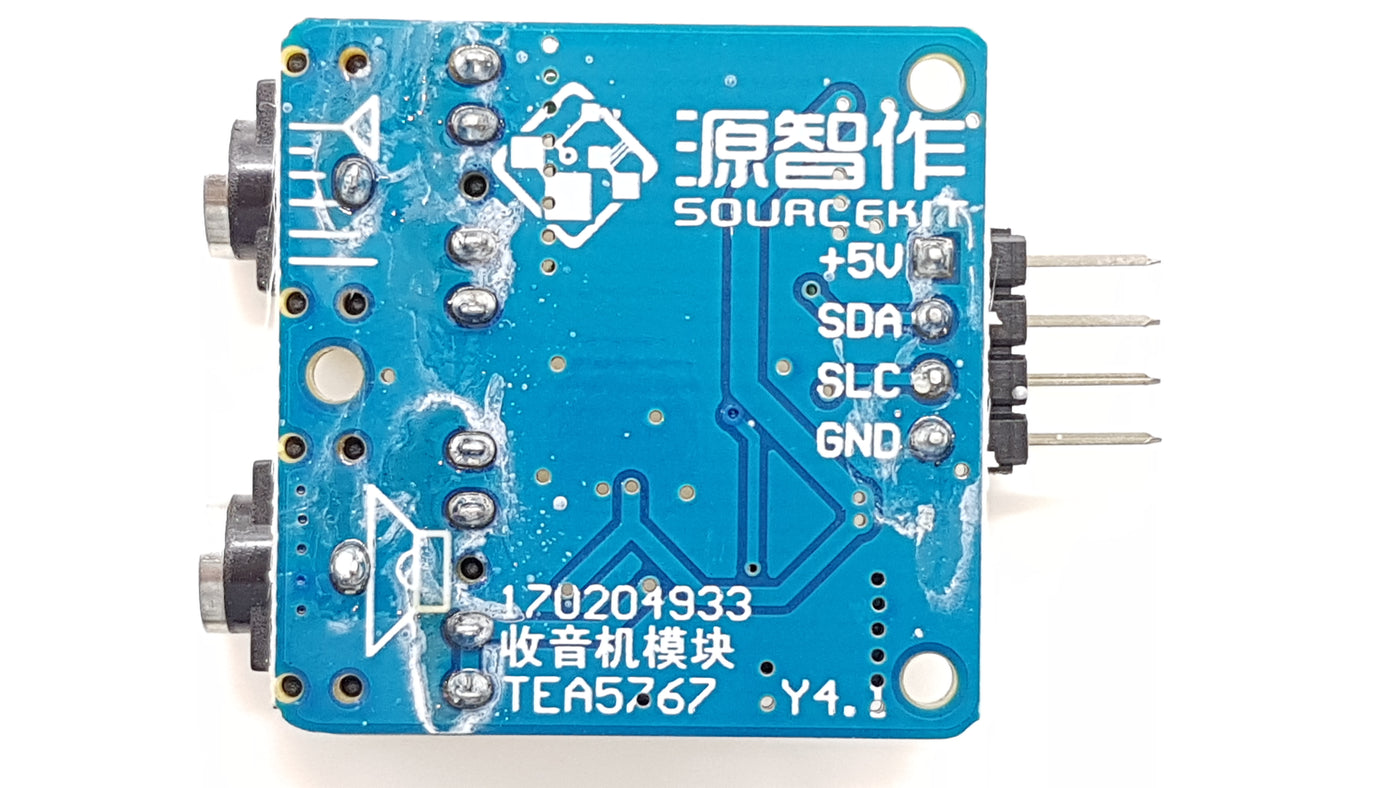

  • If connects with singlechip, only connect the Power Ground and two I2C communication cable

Features:

  • LC harmonic oscillator use low cost fixed chip
  • No need to adjust Intermediate frequency
  • High sensitivity(low noise RF input amplifier)
  • High power auto gain control AGC circuit
  • Soft mute
Specifications

Resources

Datasheet

Library

Sample Code

Tutorial
How do I power and connect this module to a microcontroller?
It operates at 5V and uses I2C for control. When connected to a microcontroller, only connect the Power, Ground and the two I2C communication cables.
What is the frequency range and what audio output is available?
The module covers 76-108 MHz and provides an onboard 3.5 mm audio interface for output. A blue LED power indicator shows the module is powered.
Do I need to tune or adjust anything?
No tuning is required. The LC harmonic oscillator uses a fixed chip and there is no need to adjust the intermediate frequency.
What protection features does it include?
It includes a reverse polarity protection diode and a power output filtering sensor for reliability.
What are the main physical and interface specifications?
The PCB size is 31 by 30 mm, it has an antenna interface and I2C bus communication, and a blue LED power indicator.
