SX130x LoRaWAN Gateway Module/HAT

Standard Mini-PCIe Socket

This product is a LoRa Gateway module that incorporates a new-generation SX1302/3 normal band chip. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. In addition, SX1303 supports concurrent communication. Due to the outstanding performance of SX1302/3 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size.

Wiki: www.waveshare.com/wiki/SX1302_LoRaWAN_Gateway_HAT

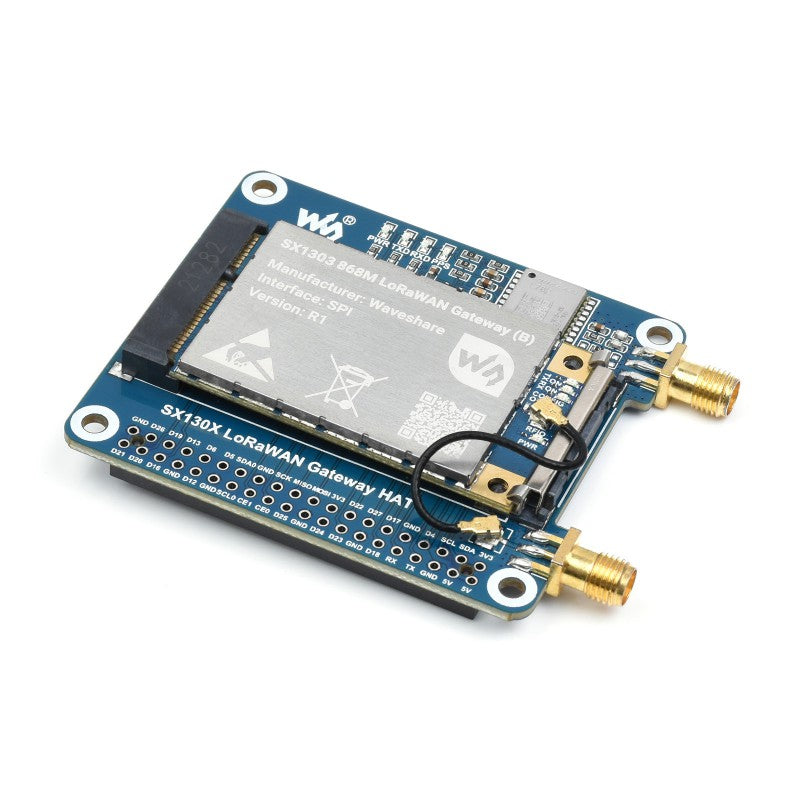

SX130x LoRaWAN Gateway HAT

LoRaWAN Gateway Module features:

Integrates Semtech SX1302/3 normal band and SX1250 radio RF frond-end chip
Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
The SX1303 supports Fine Timestamp and network positioning based on time difference of arrival (TDOA)
52-pin Mini-PCIe socket for easy integration into various embedded systems
Onboard 4 LED indicators for module operating status
Comes with development resources and manual (example in C)

HAT features:

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module
Comes with development resources and manual (example in C)

Specifications

BAND CHIP	SX1302		SX1303
BAND CHIP	868M	915M	868M	915M
FREQUENCY RANGE	868M: EU868, IN865, RU864 915M: US915, AU915, KR920
POWER SUPPLY	5V
MODULATION	LoRa/(G)FSK
EMIT POWER	+26dBm@5V
RECEIVING SENSITIVITY	-141dBm@125KHz/SF12 -121dBm@125KHz/SF5
OVERALL POWER CONSUMPTION	emitting: 454mA@5V receiving: 42mA@5V sleep: 11mA@5V		emitting: 427mA@5V receiving: 40mA@5V sleep: 8mA@5V
COMMUNICATION BUS	SPI, I2C
EXTERNAL CONNECTOR	Mini-PCIe
OPERATING TEMPERATURE	-40~85℃
DIMENSIONS	50.95 x 30mm

Performance-Upgraded SX1302/3 Chip

Onboard Semtech SX1302/3 Band Chip
Lower Power Consumption, Fast Data Rate, Longer Distance

Multiple Channels Smooth Communication

A Better Solution For Concurrent High Throughput Situation

FEC Forward Error Correction Algorithm

The New Generation LoRa Spread Spectrum Technology, Higher Anti-Interference Performance, Longer Communication Distance

SX1303 Supports Fine Timestamp

Network Positioning Based On Time Difference Of Arrival (TDOA)

**SX1302 does not support this function.

Application Example

What's On Board

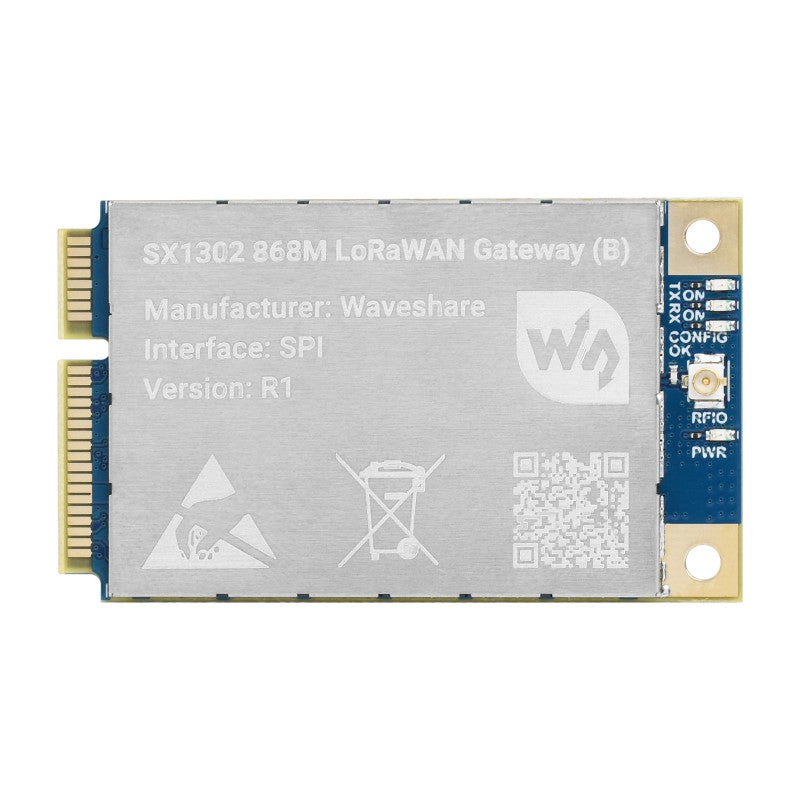

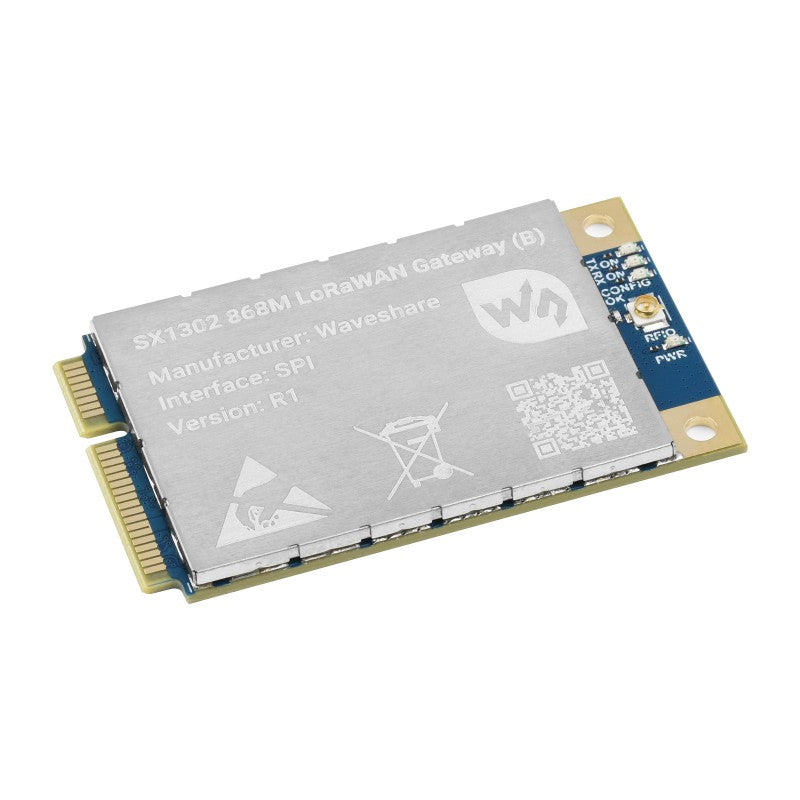

SX1302/3 LoRaWAN Gateway module
Mini-PCIe socket and buckle
L76K module
RT9193-33 power chip
Status indicator

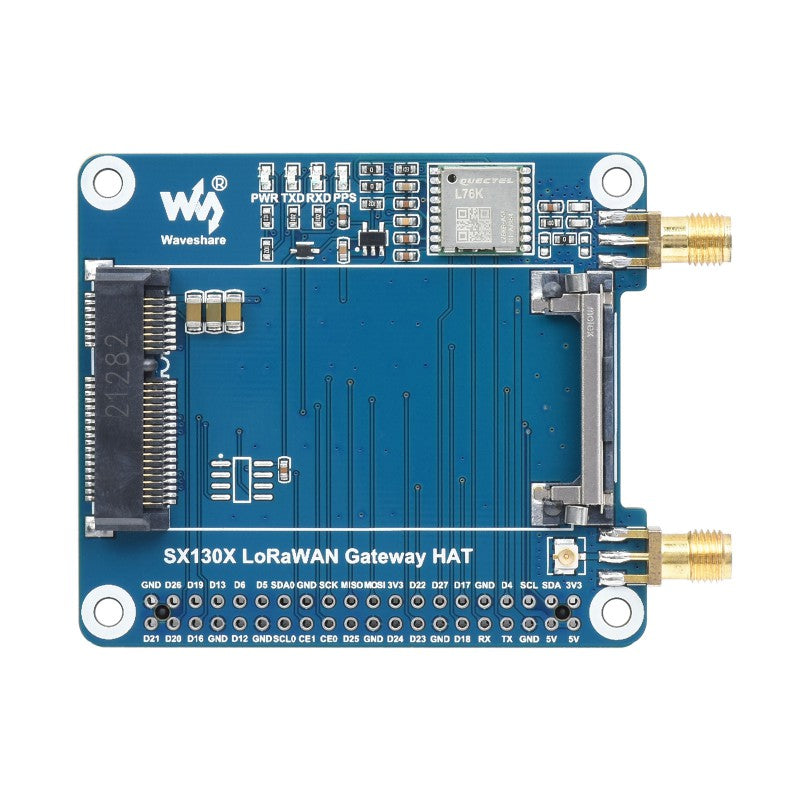

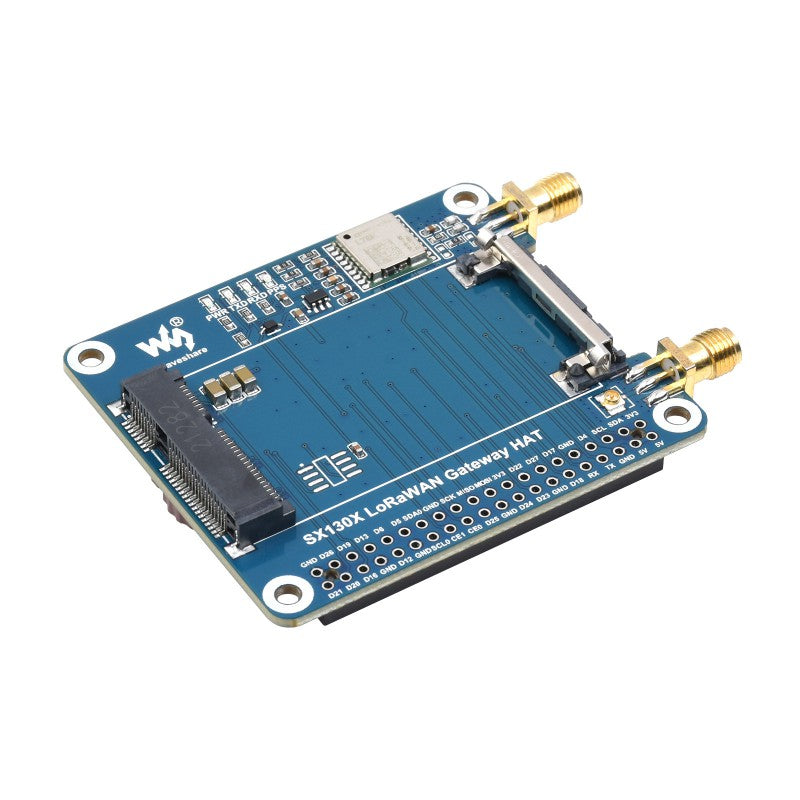

PWR: power indicator
RXD/TXD: UART RX/TX indicator
PPS: GPS status indicator
Raspberry Pi GPIO header
for connecting with Raspberry Pi series boards
L76K antenna connector
LoRa Gateway antenna connector
Battery holder
supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

Module Pinout Definition

HAT Pinout Definition

Outline & Dimensions

Package Content

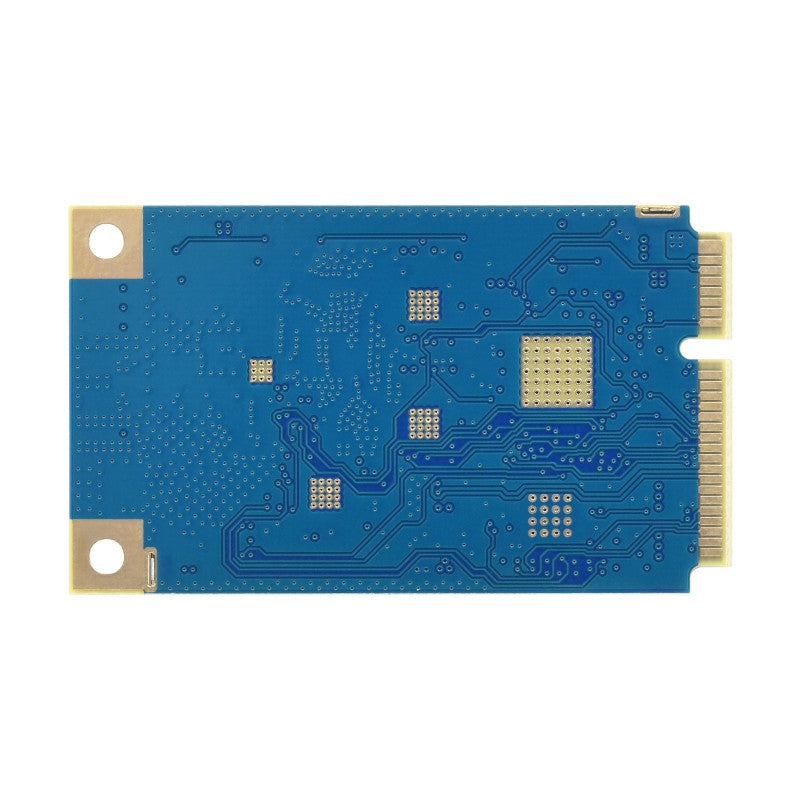

SX130x LoRaWAN Gateway Module (B)

OPTIONS SX130x LoRaWAN Gateway Module (B) x1
IPEX1 to SMA wire x1
Antenna 868M 5dBi x1

SX130x LoRaWAN Gateway HAT

SX130x LoRaWAN Gateway HAT x1
OPTIONS SX130x LoRaWAN Gateway Module (B) x1
Antenna 868M 5dBi x1
GPS antenna x1
2×20PIN female pinheader x1
Dual IPEX1 wire x1
Screws pack x1

What interfaces and form factors are supported for this gateway module?

It uses a 52 pin Mini-PCIe socket for integration and a standard Raspberry Pi 40 pin GPIO header for HAT compatibility.

Does the module support GPS or network based positioning?

The SX1303 variant supports Fine Timestamp and network positioning based on time difference of arrival, while the SX1302 variant does not.

What frequency bands and regions are supported?

For 868 MHz operation the regions are EU868, IN865 and RU864; for 915 MHz operation the regions are US915, AU915 and KR920.

What are the power requirements and typical current consumption?

The module operates from 5V and provides +26 dBm transmit power. Emission current is about 454 mA (SX1302) or 427 mA (SX1303); receiving current is about 42 mA or 40 mA; sleep current is about 11 mA or 8 mA.

What physical features and indicators are included on the module?

The module measures 50.95 x 30 mm and includes 4 LED indicators for status. It has a Mini-PCIe connector and an on board L76K GPS/BD module for clock and location information.
