SAFETY CAUTIONS
- Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
- Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
- Do not mix use old batteries with new ones, avoid using batteries of different brands.
- When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
- Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
- Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
| OUTPUT VOLTAGE | 5V | CHARGER | 8.4V 2A |
|---|---|---|---|
| CONTROL BUS | I2C | DIMENSIONS | 113 × 79mm |
| BATTERY SUPPORT | 18650 Li battery (NOT included) | MOUNTING HOLE SIZE | 2.5mm |

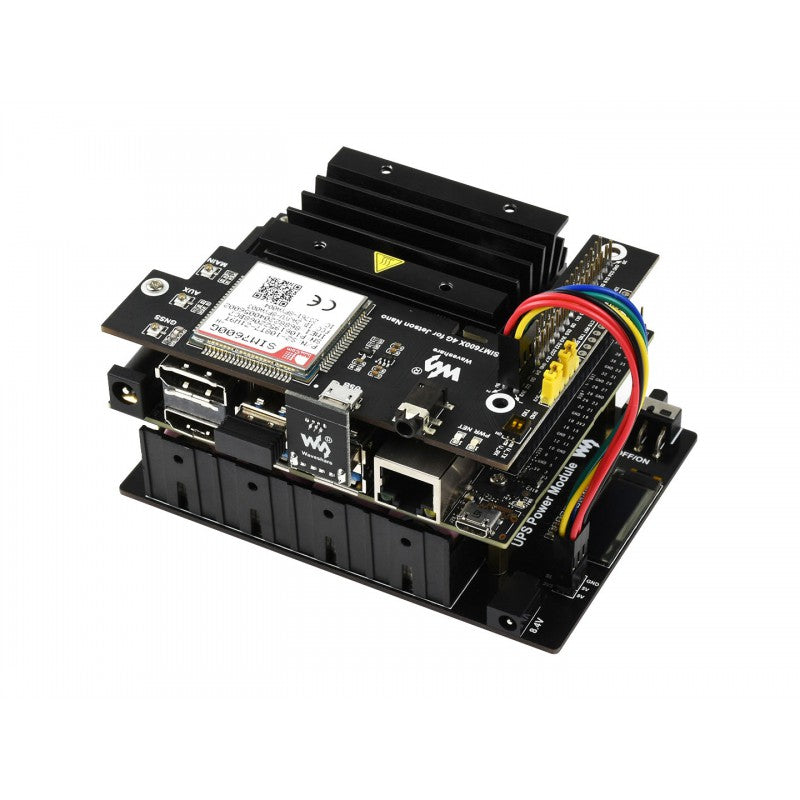

Mounting Holes Are Compatible With Jetson Nano Developer Kit
Communicating Via I2C Bus Through 6PIN Cable, No Other IO Pin Required
0.91" OLED For Monitoring Batteries Voltage, Current, Power, Remaining Capacity...
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss
Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
Along With The Equalizing Charge Feature, More Safe And Stable

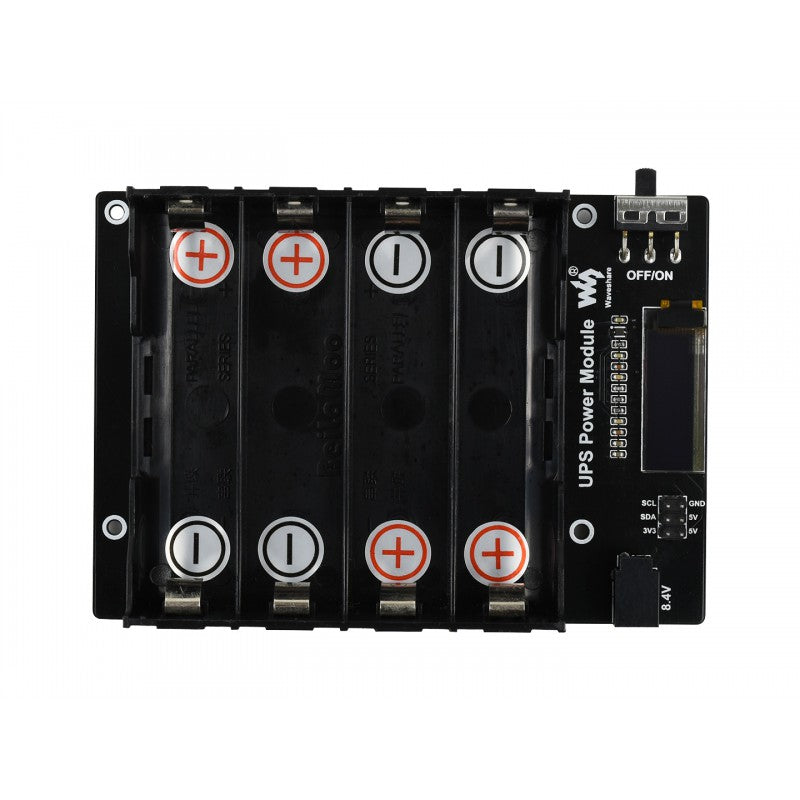

Supports 4x 18650 Batteries
- The 18650 batteries are NOT included
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported.
