JETSON ORIN IO BASE
Waveshare Jetson Orin Nano/NX Development Board

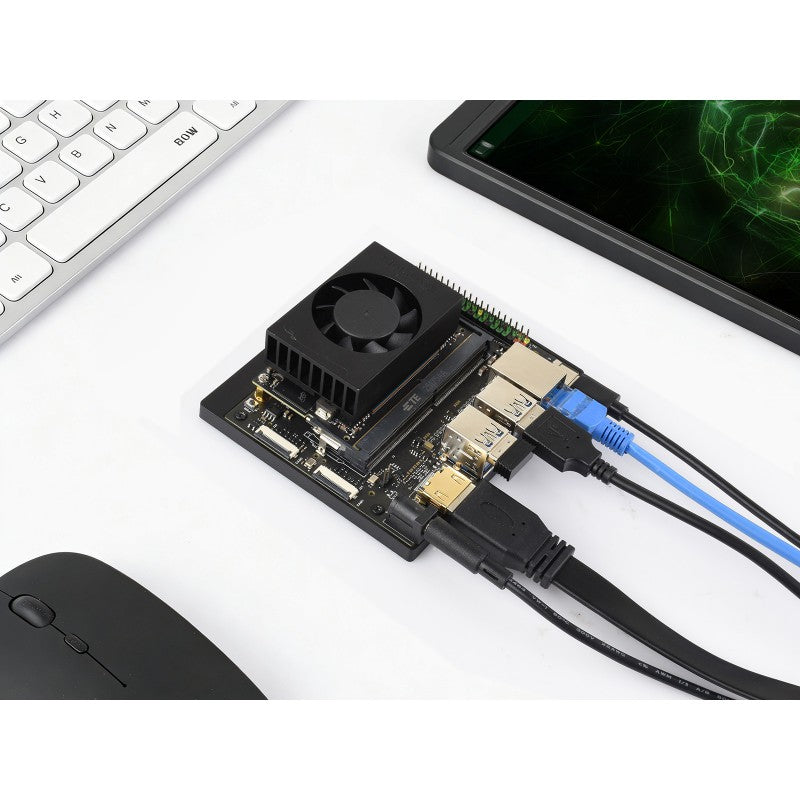

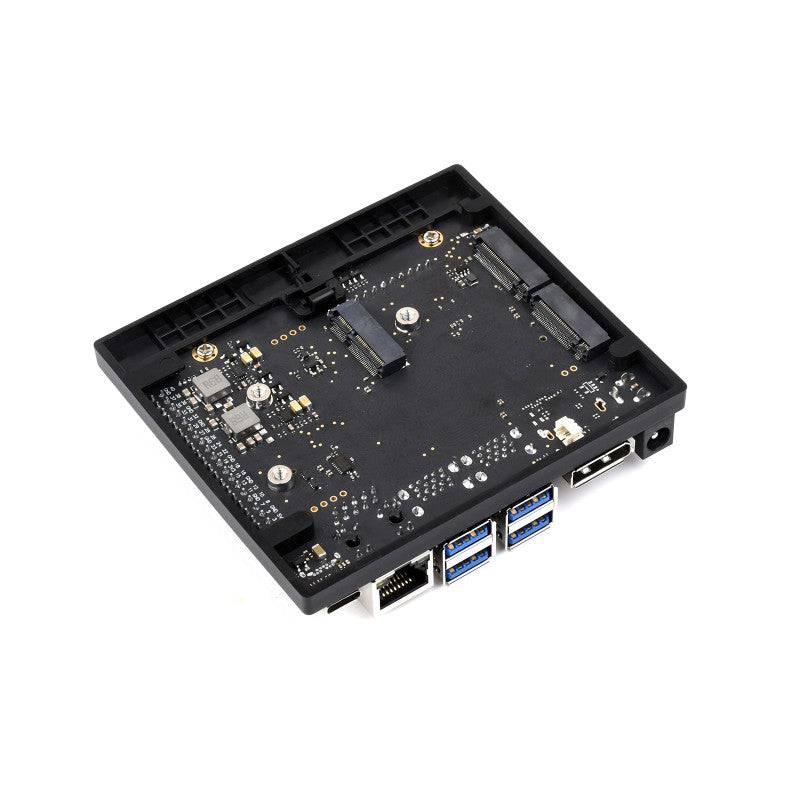

Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.
Compatible With Orin Module

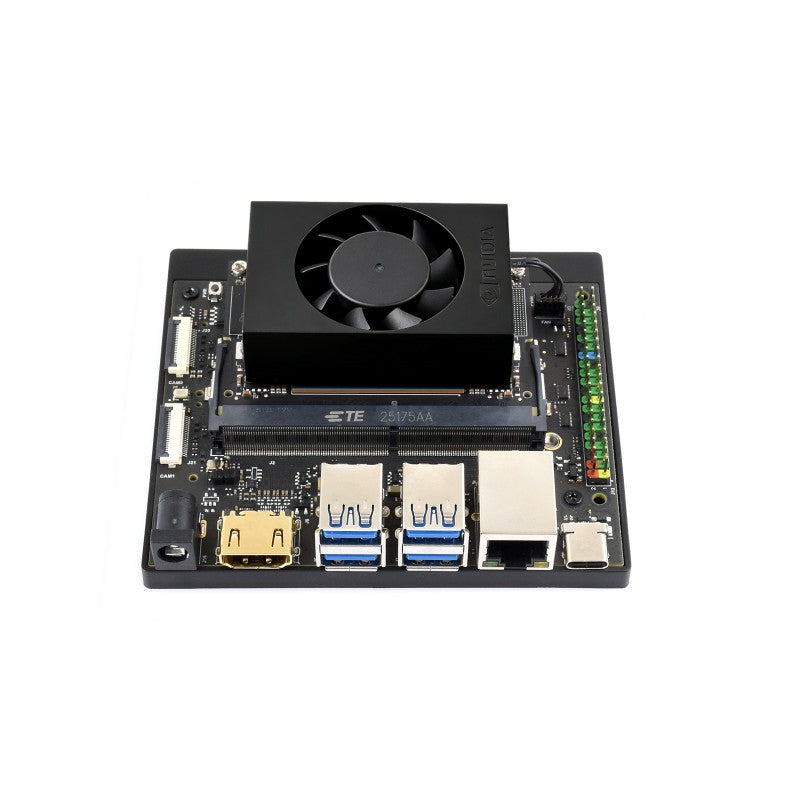

Supports Connecting To N-VIDIA Jetson Orin Nano Module And Jetson Orin NX Module
Connect To CSI Camera
2× 4-Lane CSI Camera Ports For AI Applications Such As Face Recognition, Road Sign Recognition And License Plate Recognition
* Note: the adapter cable is required for connecting the camera.
5× USB Ports
4× Tyep-A + 1× Tyep-C
Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission Up To 10Gbps, And The Type-C Port Can Be Used For System Burning
Color-Coded 40PIN GPIO Header
Color-Coded Header Pins To Differentiate IO Resources Such As I2C, SPI, I2S, UART, GPIO, Etc.
Flexible Storage And Wireless Expansion

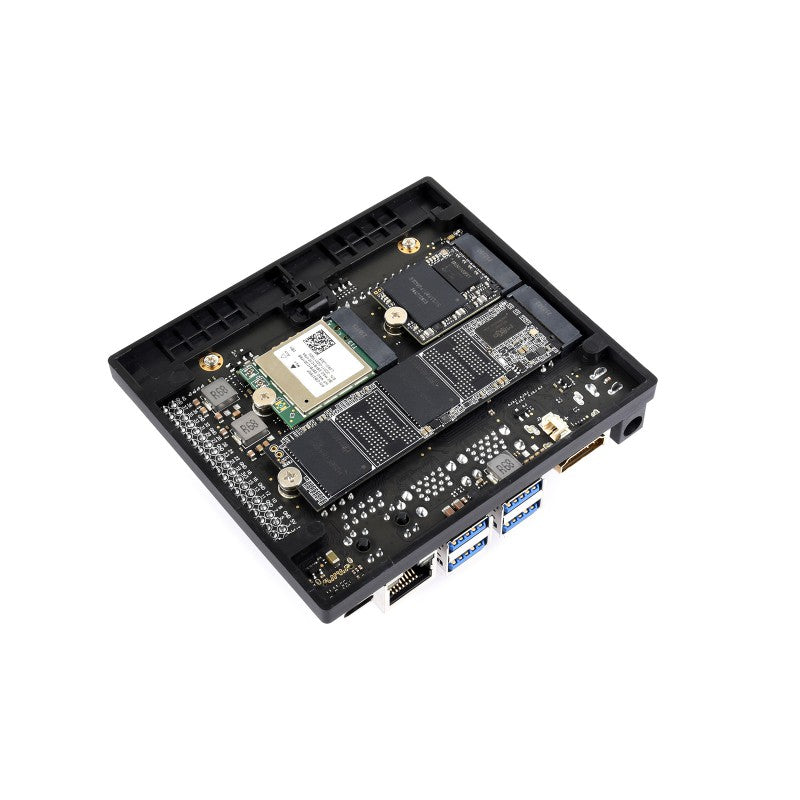

Onboard 2× M.2 Key M Ports For Easy Connecting Solid State Drives And 1× M.2 Key E Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection
* for reference only, the Solid State Drive and wireless network card are NOT included.
Onboard Resources

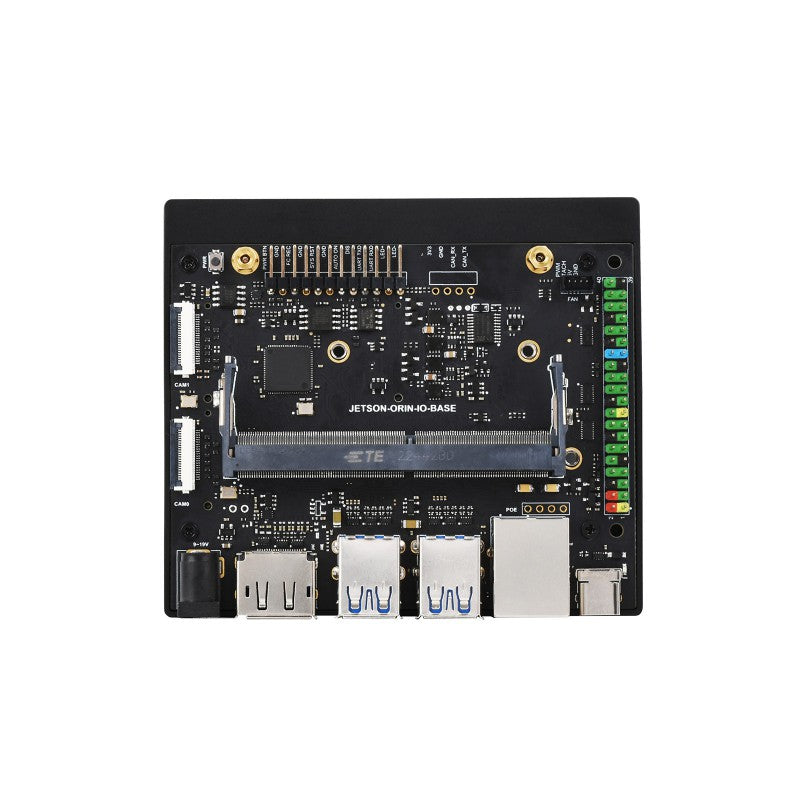

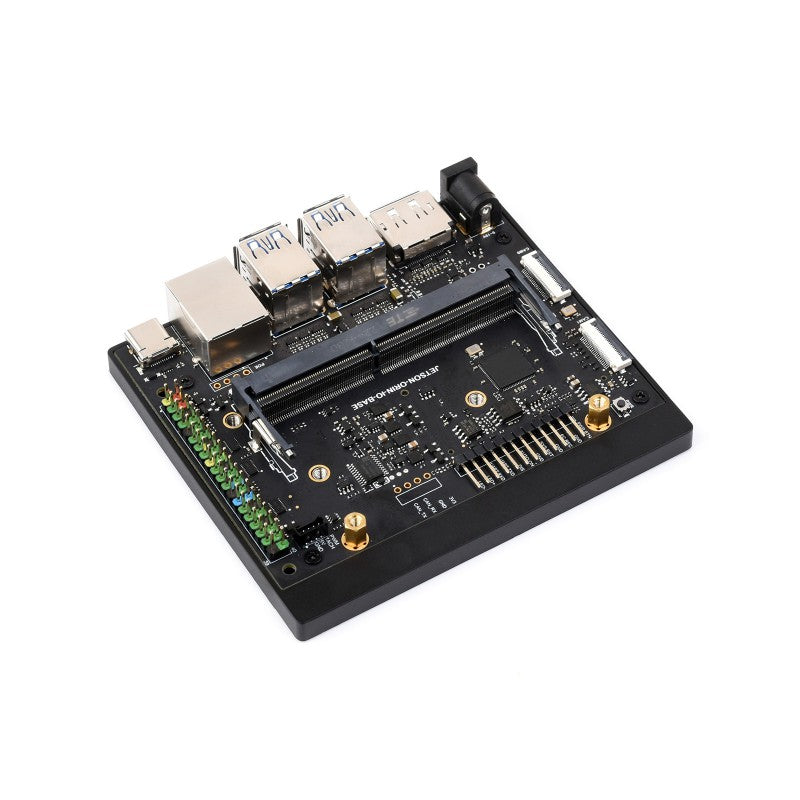

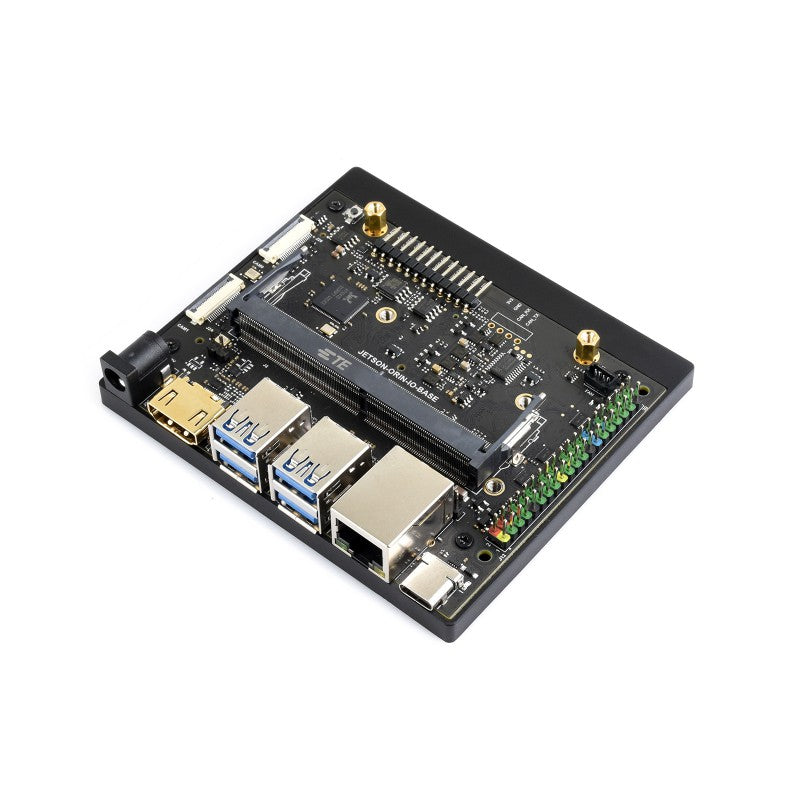

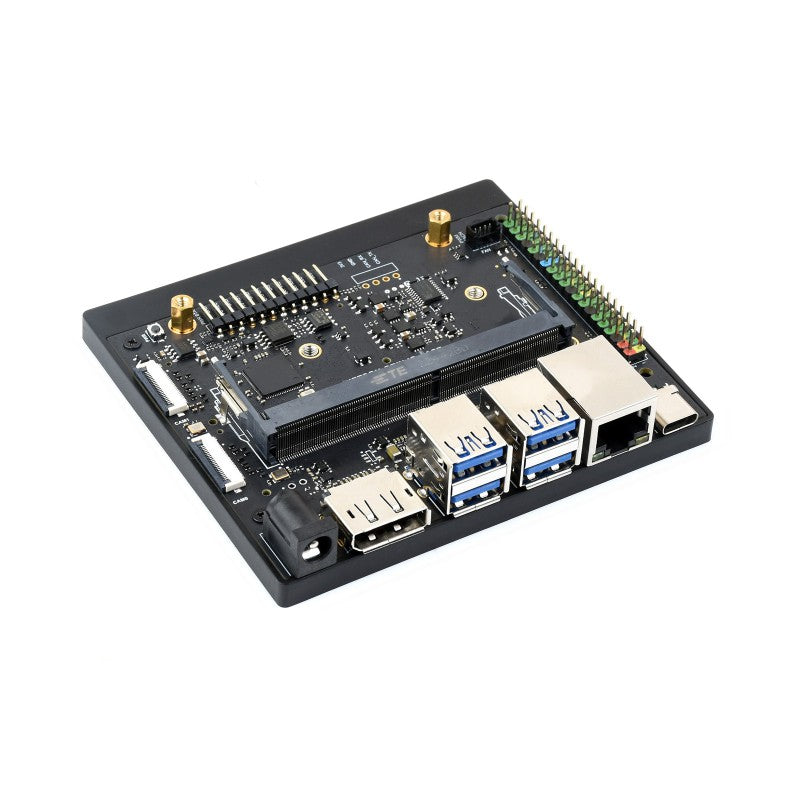

JETSON-ORIN-IO-BASE
|
1. 260PIN DO-DIMM socket For connecting Jetson Orin Nano/NX module |
9. USB Type-C port For system burning and data communication |
|
2. 12PIN header Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable, and power indicator functions |
10. 40PIN header |
| 3. Power button | 11. 4PIN PWM fan header |
|
4. 2 × 22PIN CSI camera interfaces 2 × MIPI CSI 4-lane camera interfaces |
12. M.2 Key E For connecting wireless NIC |
|
5. DC Power jack Supports wide range 9V–19V power supply, compatible with 5.5 × 2.5 mm male plug |

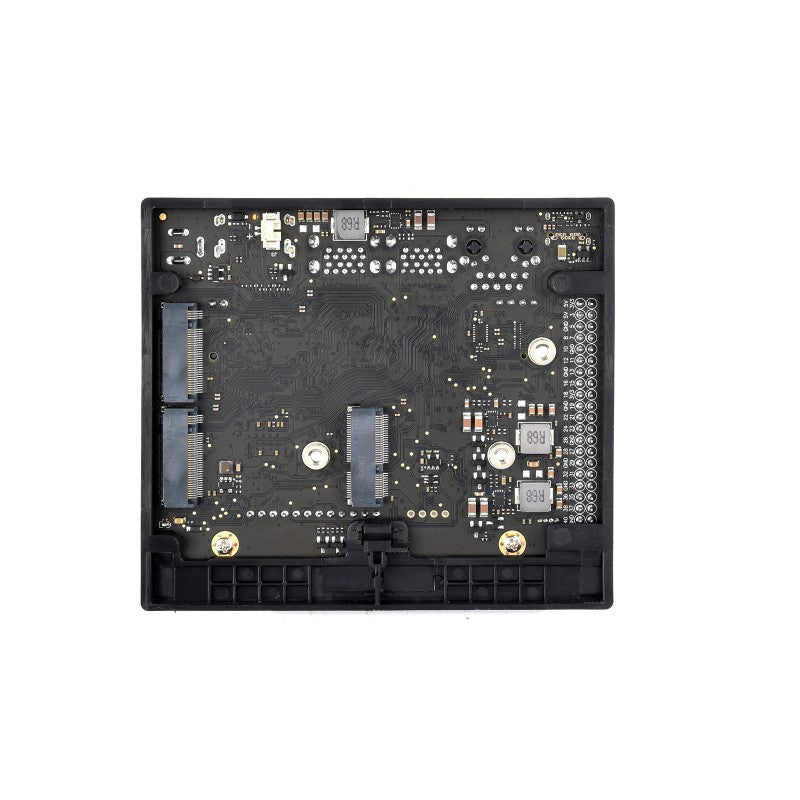

13. 2 × M.2 Key M For connecting NVMe solid state drives |
|
6. HDMI display interface HDMI output |
14. RTC backup battery header PH1.25 2PIN |
|
7. 4 × USB 3.2 Gen2 Type-A ports Supports up to 10 Gbps data transmission |
|
| 8. RJ45 Gigabit Ethernet port |
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/JETSON-ORIN-NX-16G-DEV-KIT
Package Content
Weight: 0.093 kg
OPTIONS JETSON-ORIN-IO-BASE / JETSON-ORIN-IO-BASE-H x1
Screws pack x1
