Supports charging and power output at the same time, with battery voltage monitoring via I2C bus communication
Ā
Features
Adopts pogo-pin connector design, compatible with Jetson Orin series boards
Onboard Li-battery charging chip with dynamic path management for a more stable power supply
I2C bus communication enables real-time monitoring of battery voltage, current, power, and remaining capacity
Multi-battery protection circuits including over-charge/discharge protection, over-current protection, short-circuit protection, equalizing charge feature, and battery reverse indicators for enhanced safety and stability
Supports 3 Ć 21700 batteries (NOT included) for extended battery life
Comes with online development resources and user manual
Ā
Specifications
Output voltage
Same as the input voltage when power input is present; equals the battery voltage (9V ~ 12.6V) when there is no power input
Input voltage
15V ~ 19V
Control bus
I2C
Dimensions
100 Ć 79 mm
Battery support
21700 Li battery Ć 3 (series connection, NOT included)
Mounting hole size
2.5 mm
Ā

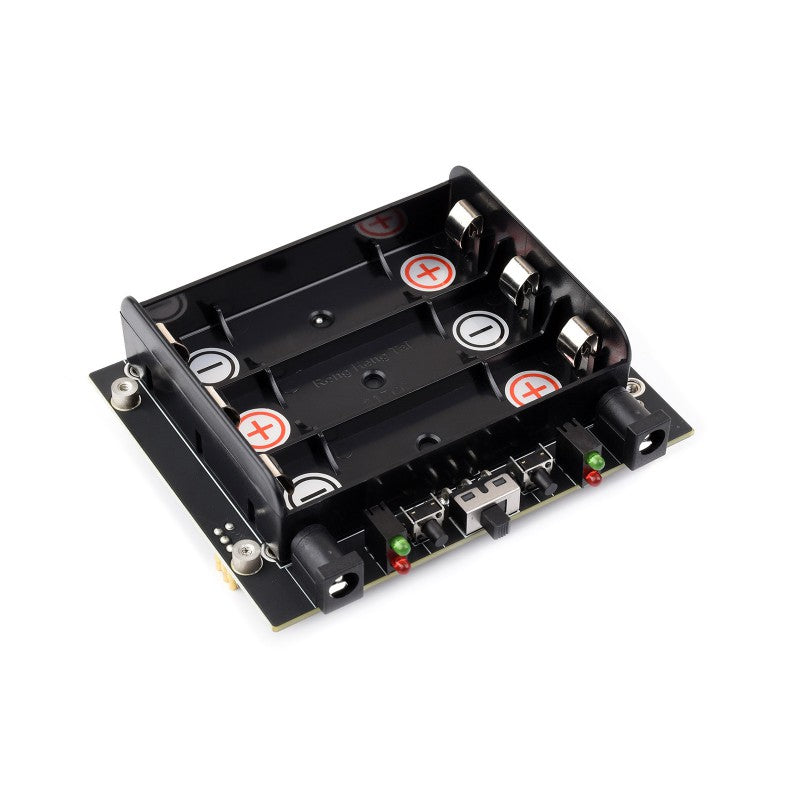

Uninterruptible Power
It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
* for reference only, please refer to the Package Content for the detailed part list
Ā
Dynamic Path Management, More Stable Power Supply
When connected to the external power supply, the battery output will be disconnected, and the system will be powered and the battery will be charged at the same time, with a maximum charging current of approximately 1.33A.
The battery charging will be stopped after being fully charged and will start charging again when its voltage drops below 12V, which can avoid battery life damage caused by frequent charging and discharging
Automatically switch over to battery output if the external power supply is unavailable, keeps the system running without any trouble
Ā
Product Compatibility
Mounting holes are compatible with Jetson Orin Nano and Jetson Orin NX
Ā
Powering Jetson Orin Nano
Ā
Powering Jetson Orin NX
Ā
Real Time Monitoring
Monitoring the batteries voltage, current, power, and remaining capacity via I2C
When the voltage dips too low, it is possible to save files properly and then shut down the system by software, to avoid any data loss
Ā
Safe and Stable Circuit Design
Protection circuits for over charge/discharge, over current, short circuit, and reverse, along with the equalizing charge feature and battery reverse indicators, more safe and stable
Ā

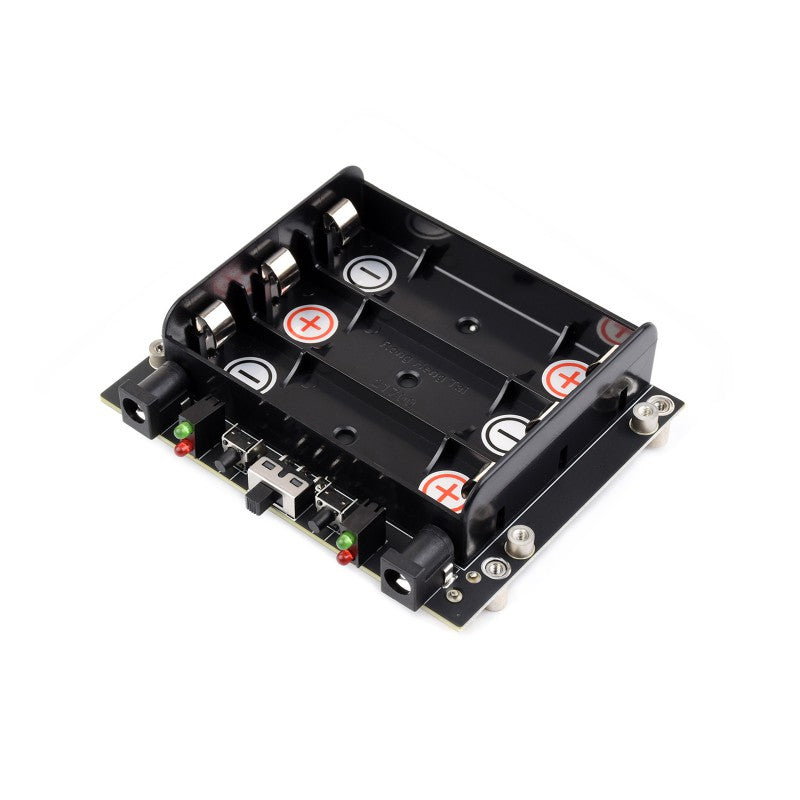

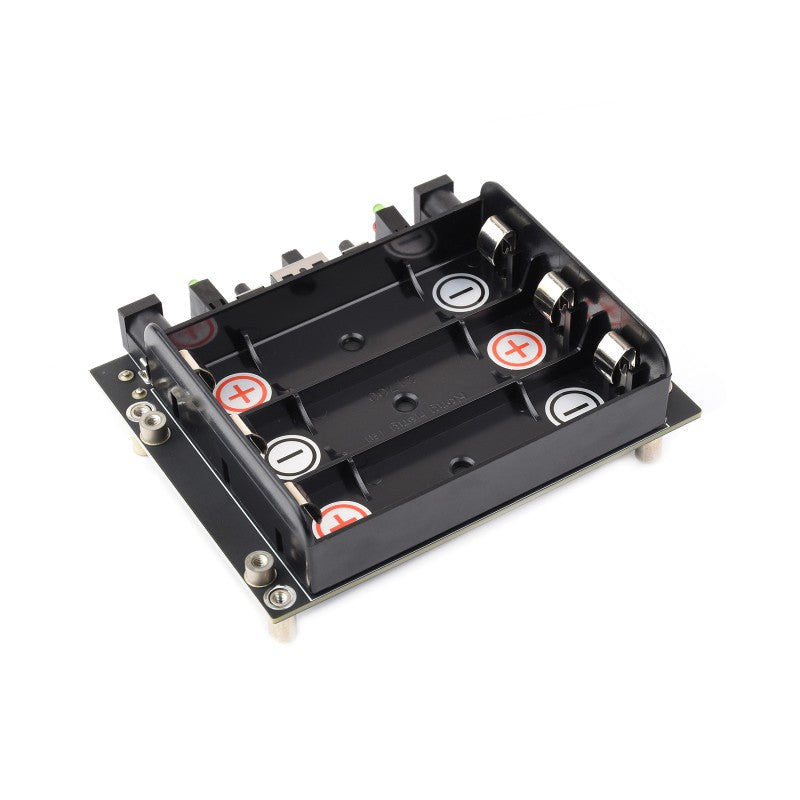

Longer Battery Life

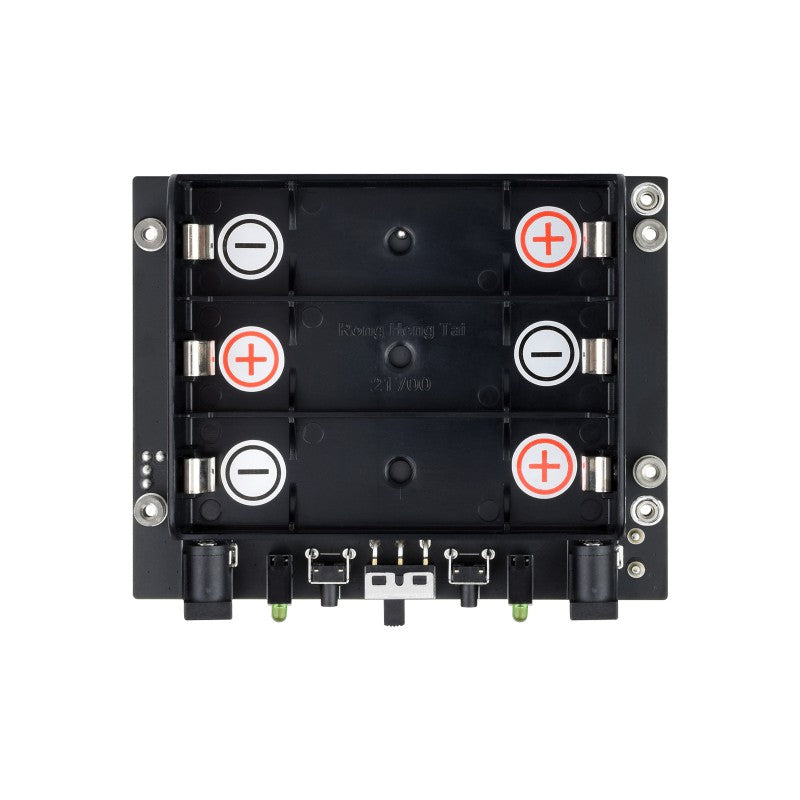

Supports 3x 21700 batteries (NOT included)
Ā
Pogo Pins Connector
Communicating via I2C bus through pogo pins, no other IO pin required. Compatible with Jetson Orin series boards
Ā

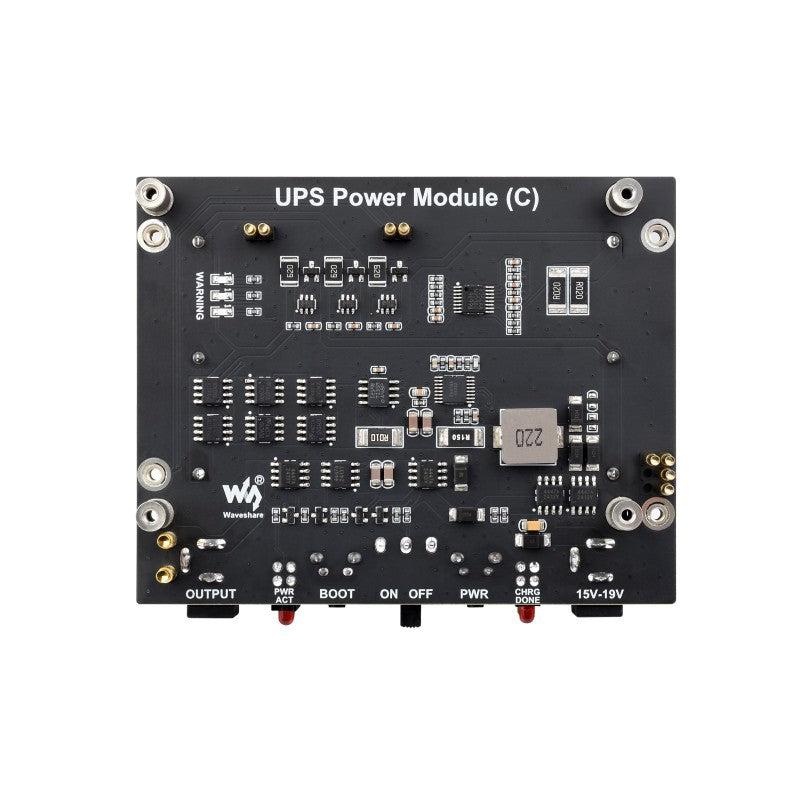

Pin Definition
Ā
SAFETY CAUTIONS
Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
UPS Power Module (C) x1 Acrylic protection panel x1 DC dual-plug cable x1 Screws pack x1
What is the UPS Module C for Jetson Orin used for?
It provides uninterruptible power by charging and supplying output at the same time for Jetson Orin boards. It also features I2C battery monitoring and dynamic path management for stable power.
How does charging and power delivery work when external power is present?
When external power is connected the module charges the batteries and powers the system at the same time, while the battery output is temporarily disconnected for stability. It uses a onboard Li charging chip with dynamic path management and a maximum charge current of about 1.33 A.
What safety and protection features are included?
The module includes multi battery protection circuitry for over charge and discharge, over current, short circuit, and an equalizing charge feature with battery reverse indicators for safety.
How can I monitor the battery status?
Real time monitoring is available via I2C bus communication, showing voltage, current, power and remaining capacity.
What are the physical specs and compatibility notes?
The unit supports 3 x 21700 Li batteries (not included) in a series connection and has dimensions 100 by 79 mm with 2.5 mm mounting holes. It is compatible with Jetson Orin series boards and uses a pogo pin connector design for easy attachment.
