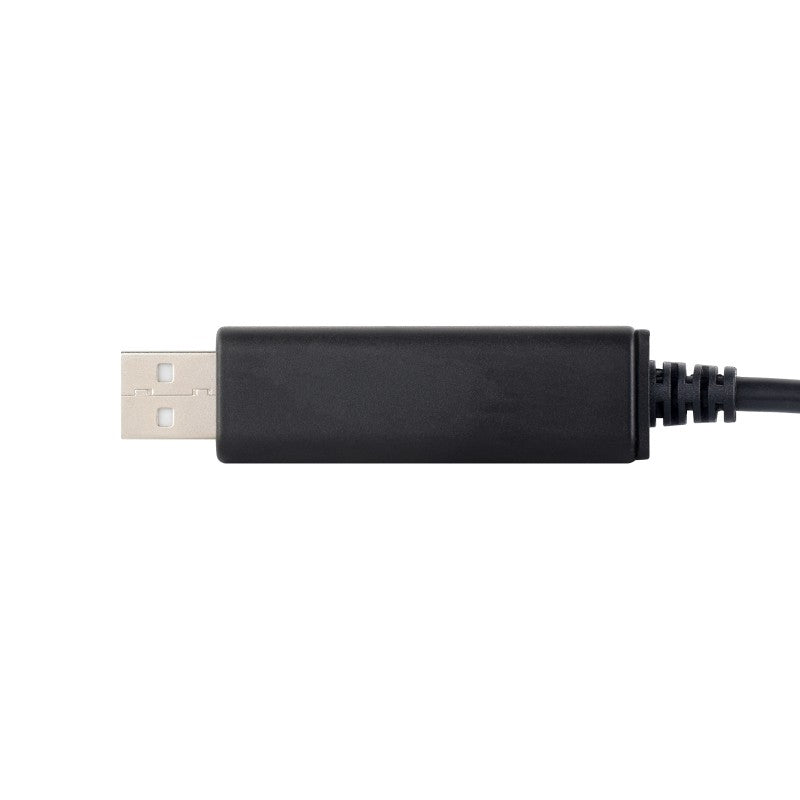

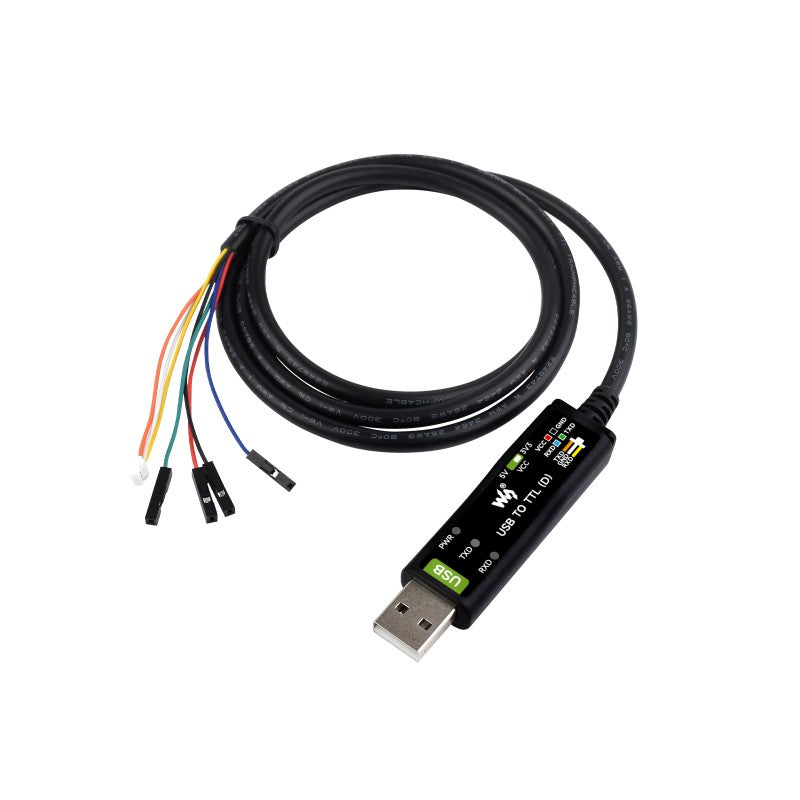

Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.
Ā
| Product category | Industrial USB TO TTL serial cable |
|---|---|
| Chip scheme | FTDI original FT232RNL |
| Host port | USB |
| Data rate | 300bps ~ 3Mbps |
| Device Port | UART |
| USB port | Connector: USB-A |
| Protection: self-recovery fuse, ESD protection | |

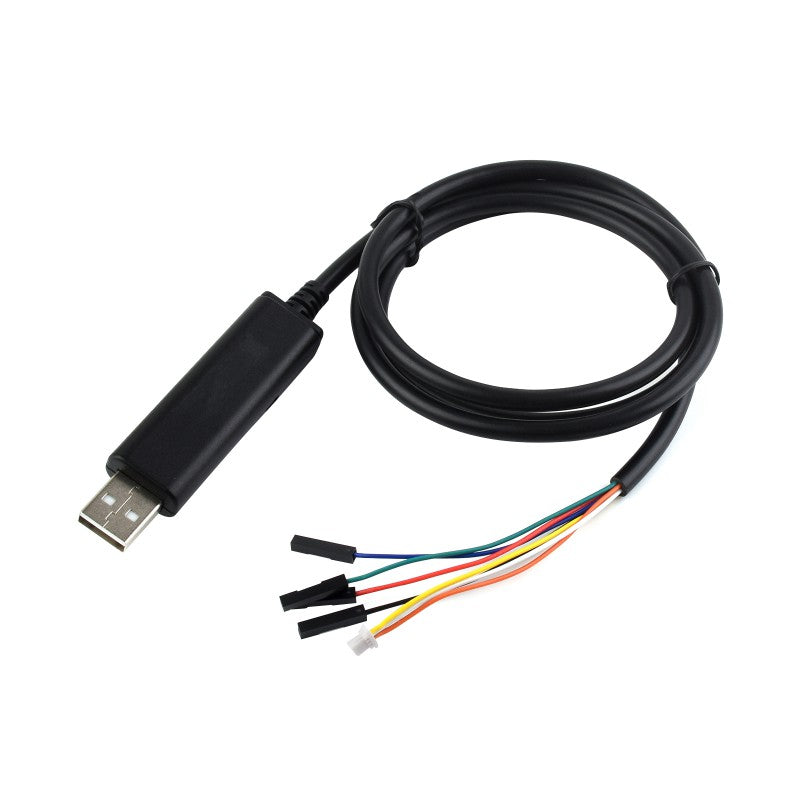

| UART port | Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector |
| Protection: IO protection diode | |
| Indicator | PWR: power indicator, turns on when there is USB connection and voltage is detected |
| TXD: TX indicator, turns on while the USB port is sending data | |
| RXD: RX indicator, turns on while the device port is sending data back | |
| Cable | Black, PVC sheath, total length 1m |
Ā
Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility
Ā
Suitable for Raspberry Pi, supports multiple Connection Methods

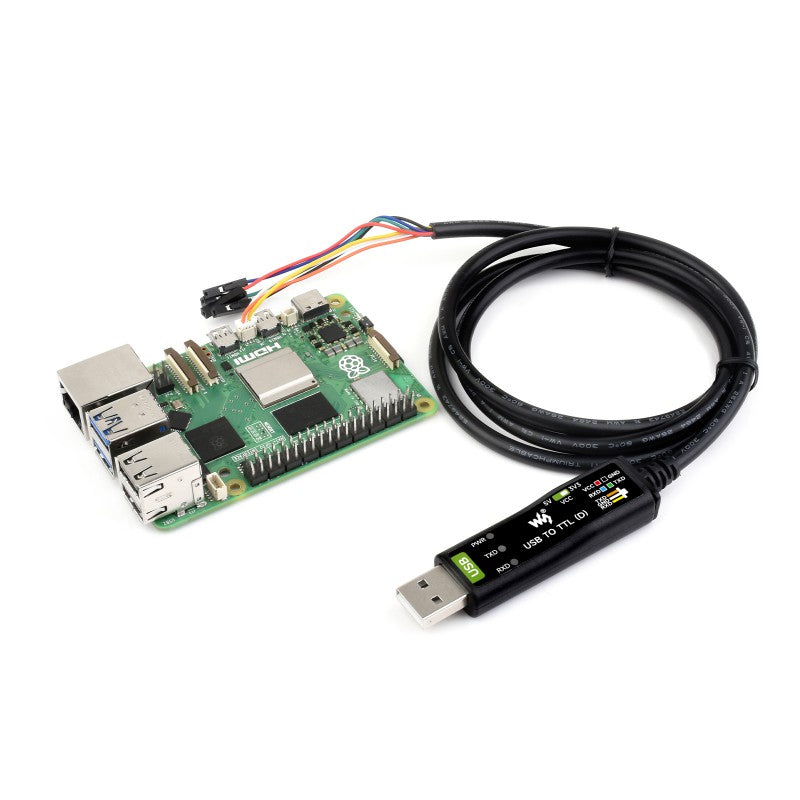

Connect to PI5 UART Debug Connector Via SH1.0 3PIN cable
Connect To Raspberry Pi 40PIN GPIO UART Interface Via Separated 4PIN Header
for reference only, the Raspberry Pi 5 is not included.
Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...
Ā

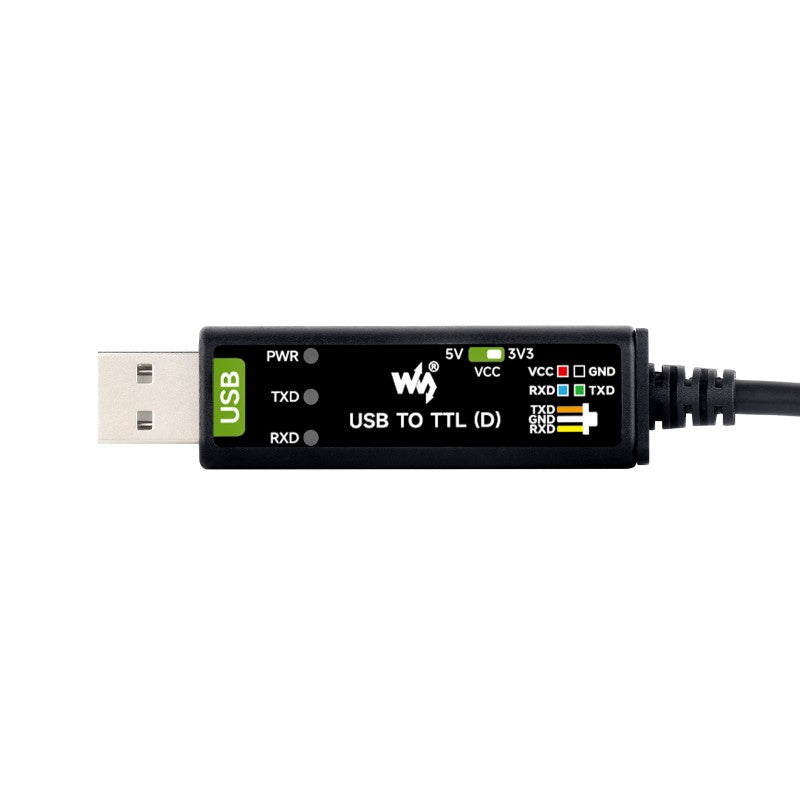

Easily checking the operating status, convenient for programming / debugging
Ā
| VCC | 3.3V or 5V output, configured by switch |
|---|---|
| GND | Ground |
| TXD | Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX) |
| RXD | Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX) |
Ā
* The above dimensions are measured manually and may have some errors
Wiki:Ā www.waveshare.com/wiki/USB_TO_TTL_(D)
Weight:Ā 0.047 kg
USB TO TTL (D) x1
