IMX219-160IR Camera, Applicable For Jetson Nano, 8 Megapixels, Infrared Night Vision, 160° FOV
This is an 8-megapixel camera with a FOV (field-of-view) of 160 degrees, which is suitable to use with the NVIDIA Jetson Nano and NVIDIA Jetson Xavier NX Development Kits. It also has two IR LEDs to enable night vision capabilities.
Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- Supports night vision when works with infrared LEDs
- 8 Megapixels
- Sensor: IMX219
- Resolution: 3280 × 2464
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.35
- Focal Length: 3.15mm
- Angle of View (diagonal): 160 degree
- Distortion: <14.3%
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension: 25mm × 24mm
Description
This is an 8-megapixel camera with a FOV (field-of-view) of 160 degrees, which is suitable to use with the NVIDIA Jetson Nano and NVIDIA Jetson Xavier NX Development Kits. It also has two IR LEDs to enable night vision capabilities.

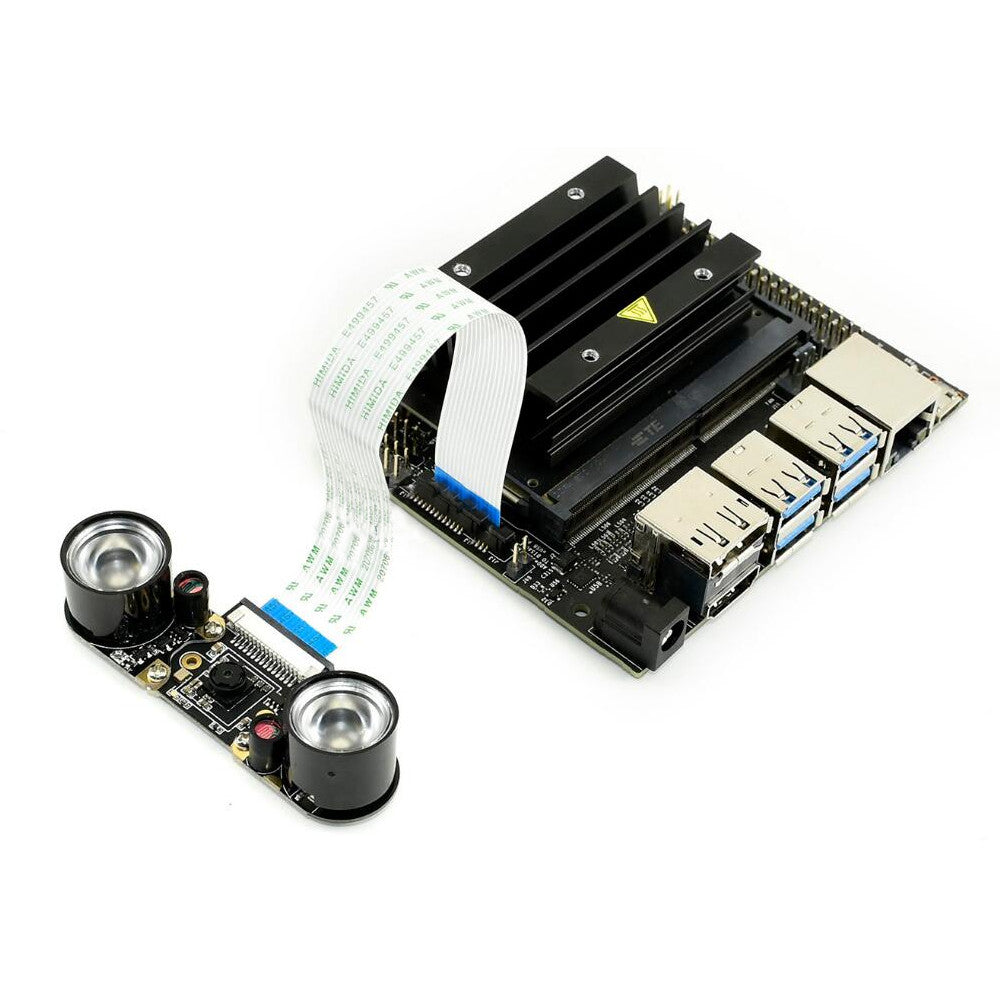

By using this camera, combined with a Jetson Nano/ Xavier NX Development Kits, you can simply realize machine vision projects. Also, you can experience better quality video capture from this camera and build more demanding projects!
How is it possible to see in the dark?

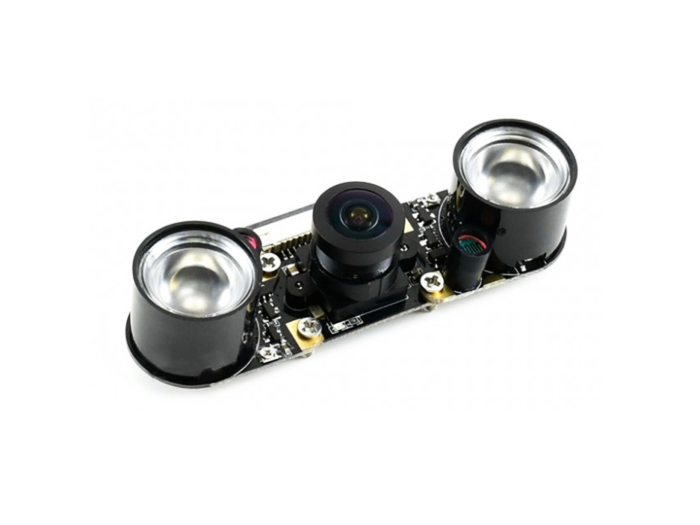

This camera is able to view in the dark with black and white-colored video footage. The two IR LEDs on either side of the camera emit infrared light which is invisible to the naked eye and the camera is sensitive to this light. Then the camera is able to pick up this light and thereby we can see black and white color video footage from the camera.
More cameras compatible with NVIDIA Jetson Nano/ Xavier NX Development Kits
We would like to give you more freedom in choosing the camera that will be most suitable for your project. So, explore the table below to know about more cameras and make a better decision.
Development Resources
Wiki: www.waveshare.com/wiki/IMX219-160IR_Camera
Specifications
Camera Module with driver board
| Specification | Description |
|---|---|
| Megapixels | 8 Megapixels |
| Photosensitive chip | Sony IMX219 |
| Assembly Technique | SMT (ROSH) |
| Resolution | 3280 × 2464 |
| Pixel Size | 1.12µm x1.12µm |
| CMOS size | 1/4 inch |
| Aperture (F) | 2.35 |
| Focus | fixed |
| Focal Length | 3.15mm |
| Lens Construction | 6G+IR |
| Diagonal field of view (FOV) | 160 degrees |
| Distortion | <14.3% |
| EFL | 3.15mm |
| BFL (Optical) | 3.15mm |
| Maximum Image Transfer Rate | 30 fps for QSXGA |
| Output formats | 8/10bit RGB RAW output |
| S/N Ratio | 39db |
| Dynamic Range | 69db |
| Sensitivity | 600mV/Lux-sec |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Object Distance | 30CM-∞ |
| Interface | 15p-1.0 mipi |
| Power supply | 3.3V (pin15) |
| Operating Temperature | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Lens size | 6.5mm × 6.5mm |
| Module Size | 25mm × 24mm ×17.7±0.5mm |
| Certifications | FCC and CE |
IR LED Modules
| Specification | Description |
|---|---|
| LED Wavelength | 845nm-855nm |
| LED Module FOV | 100° |
| Working current | 200ma (max 450ma) |
| Power | 3.3V |
| Power consumption | 660mw (max 1.48W) |
| Module Size | 27.94mm ×19.82mm ×15.05mm |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | 0°C to 60°C |
| Assembly technique | SMT (ROSH) |
Parts List
- 1 x IMX219-160IR 8MP IR Night Vision Camera with 160° FOV - Compatible with NVIDIA Jetson Nano/ Xavier NX
- 2 x IR LED Modules
- 4 x Screws
- 4 x Nuts
Is this camera compatible with Jetson Nano and Jetson Xavier NX?
Yes, it is designed to work with NVIDIA Jetson Nano and Jetson Xavier NX Development Kits and also supports CM3/3+/4.
Does it support infrared night vision and what is included for night vision?
Yes, it has two infrared LEDs for night vision and can capture black and white video in low light when the LEDs are used.
What are the main image specifications of this camera?
It features an 8 megapixel IMX219 sensor with resolution 3280 by 2464 and a diagonal field of view of 160 degrees. Distortion is up to 14.3 percent. The interface is MIPI and it operates at 3.3V.
What is included in the package and how is it mounted?
The package includes 1 x IMX219-160IR 8MP camera, 2 x IR LED modules, 4 screws and 4 nuts. The camera has 4 screw holes for attachment.
What are the power and performance details I should know?
Power supply is 3.3V via pin 15. The maximum image transfer rate is 30 fps for QSXGA resolution.
