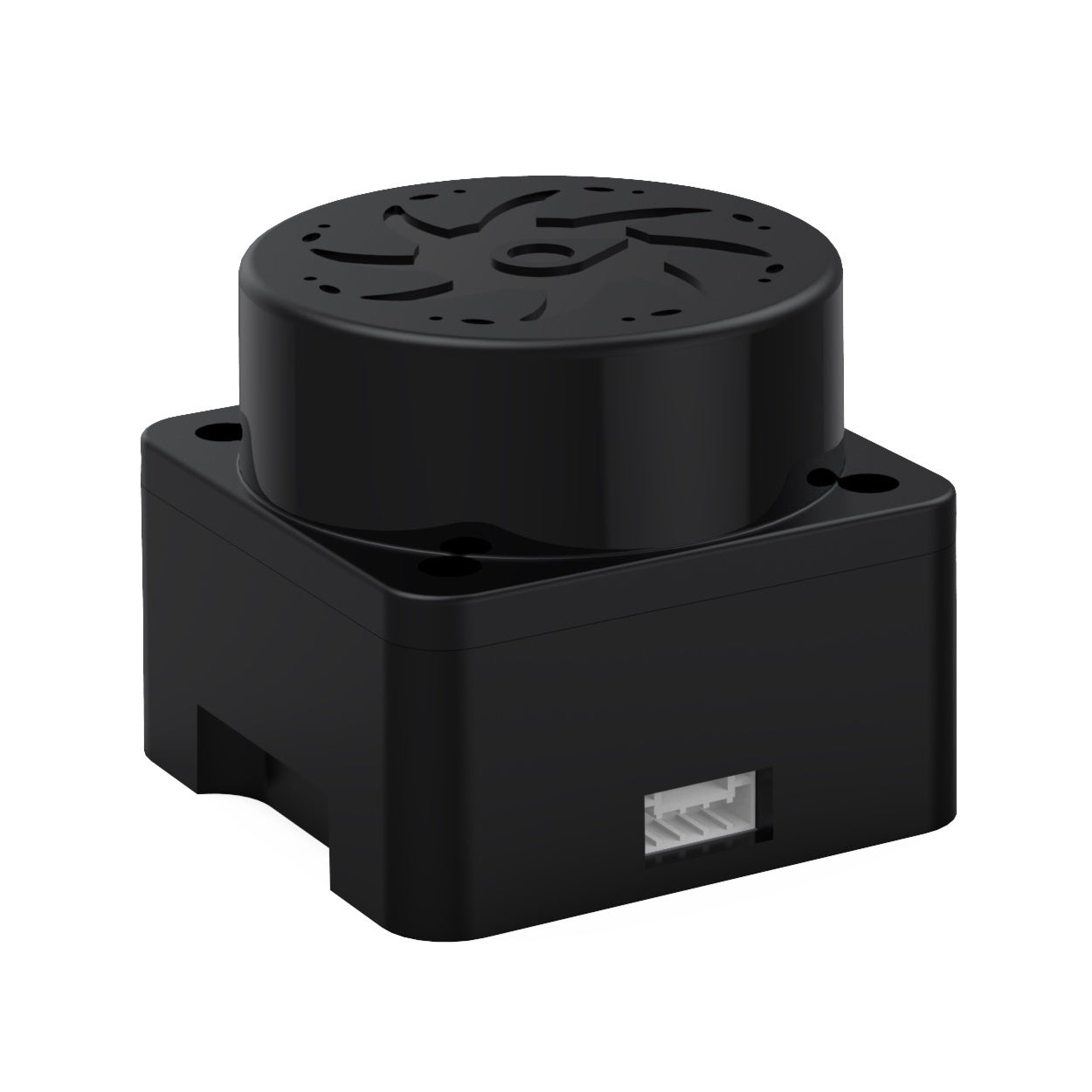

YDLIDAR T-mini Pro is a 360-degrees 2D LiDAR based on the principle of ToF. It is equipped with related optics, electricity, and algorithm design to achieve high-precision laser distance measurement, while measuring the distance, the mechanical structure rotates 360 degrees to continuously obtain angle information, thereby realizing 360 degrees scanning distance measurement and outputting point cloud data of the scanning environment.
Features
It adopts the mature ToF detection principle, it can be easy to integrate into the whole device with a small size, bringing the robot a 360° two-dimensional environment with strong stability and high precision.
6-12 Hz self-adaptive scanning frequency, the speed can be adjusted independently according to functional needs. The mechanical structure rotates 360°, continuously obtains angle information, scans and measures in all directions, and outputs point cloud.
Smaller appearance and lower power consumption, which can greatly optimize the spatial structure of application products and are suitable for more scenarios.
The brushless motor operates efficiently and has a longer lifespan of 10,000 hours.
Specifications
Range distance: 0.02-12 m
Range frequency: 4000 Hz
Angle resolution: 0.54 degrees
Scan frequency: 6-12 Hz
Scan angle: 360 degrees
Interface: UART
Applications
Robot navigation and obstacle avoidance
Robot ROS teaching and research
Regional security
Environmental scanning and 3D reconstruction
Navigation and obstacle avoidance of home service robots/ robot vacuum cleaners
