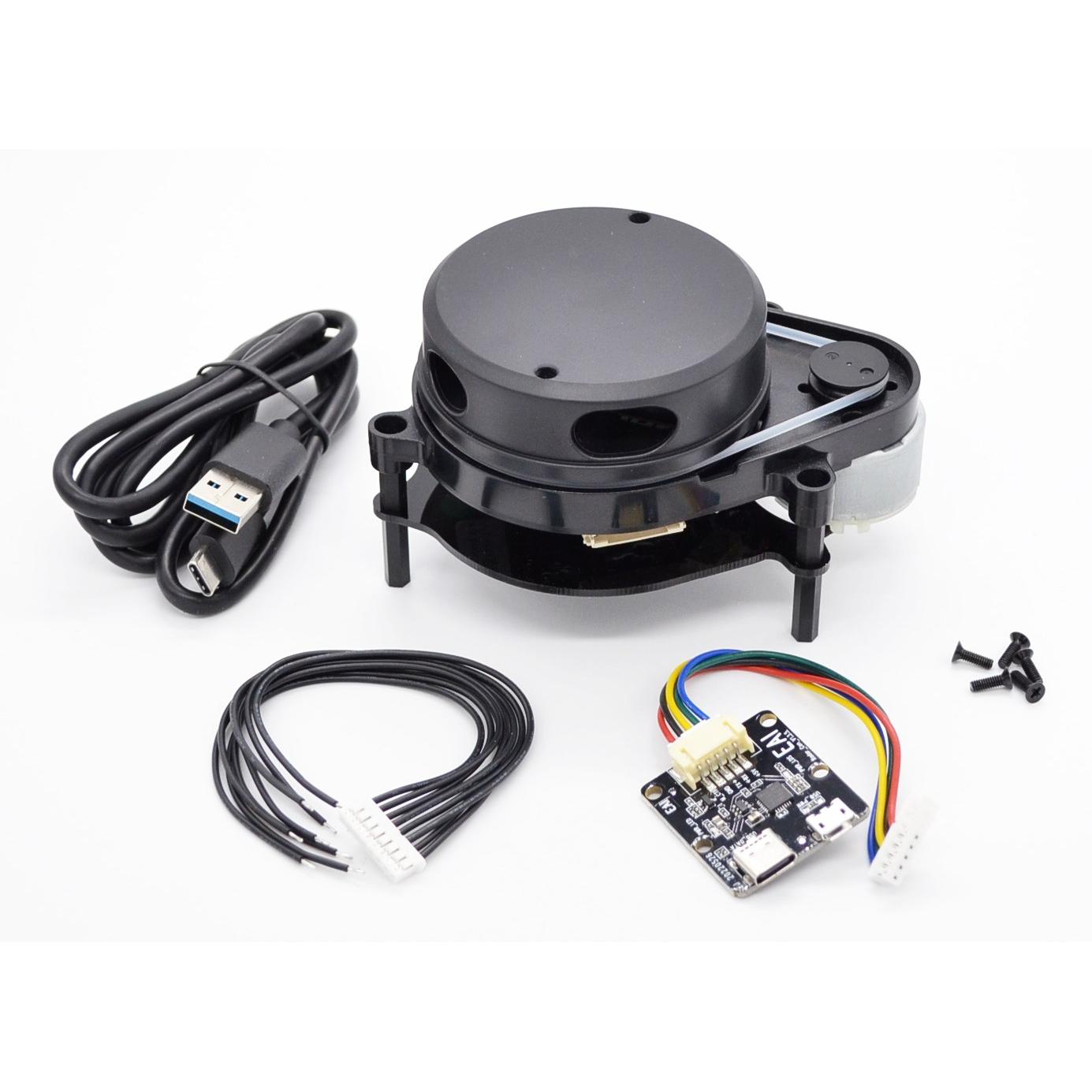

YDLIDAR X4 Pro Lidar ā€“ 360-degree Laser Range Scanner (10 m), Supports ROS

SKU: ELC1137

ā‚¹ 8,799.99 ā‚¹ 9,999.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
YDLIDAR X4 Pro Lidar ā€“ 360-degree Laser Range Scanner (10 m), Supports ROSā‚¹ 8,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

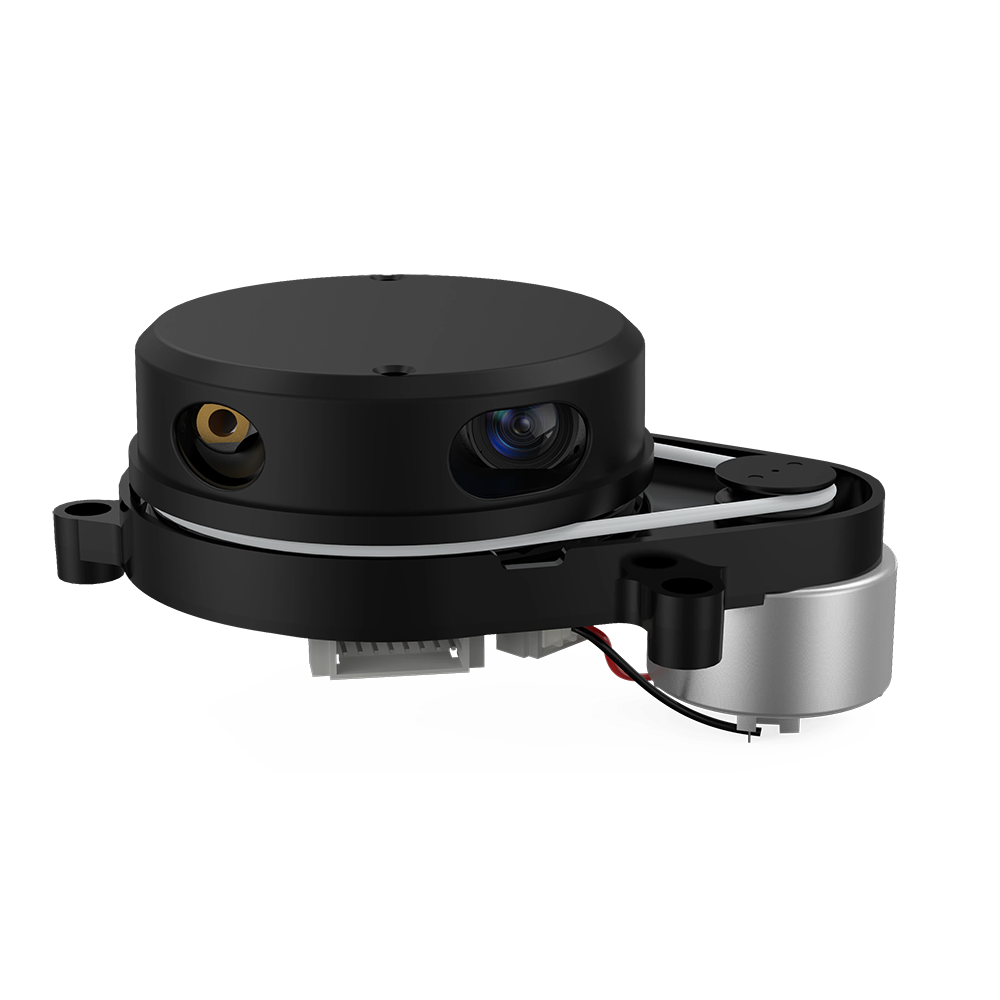

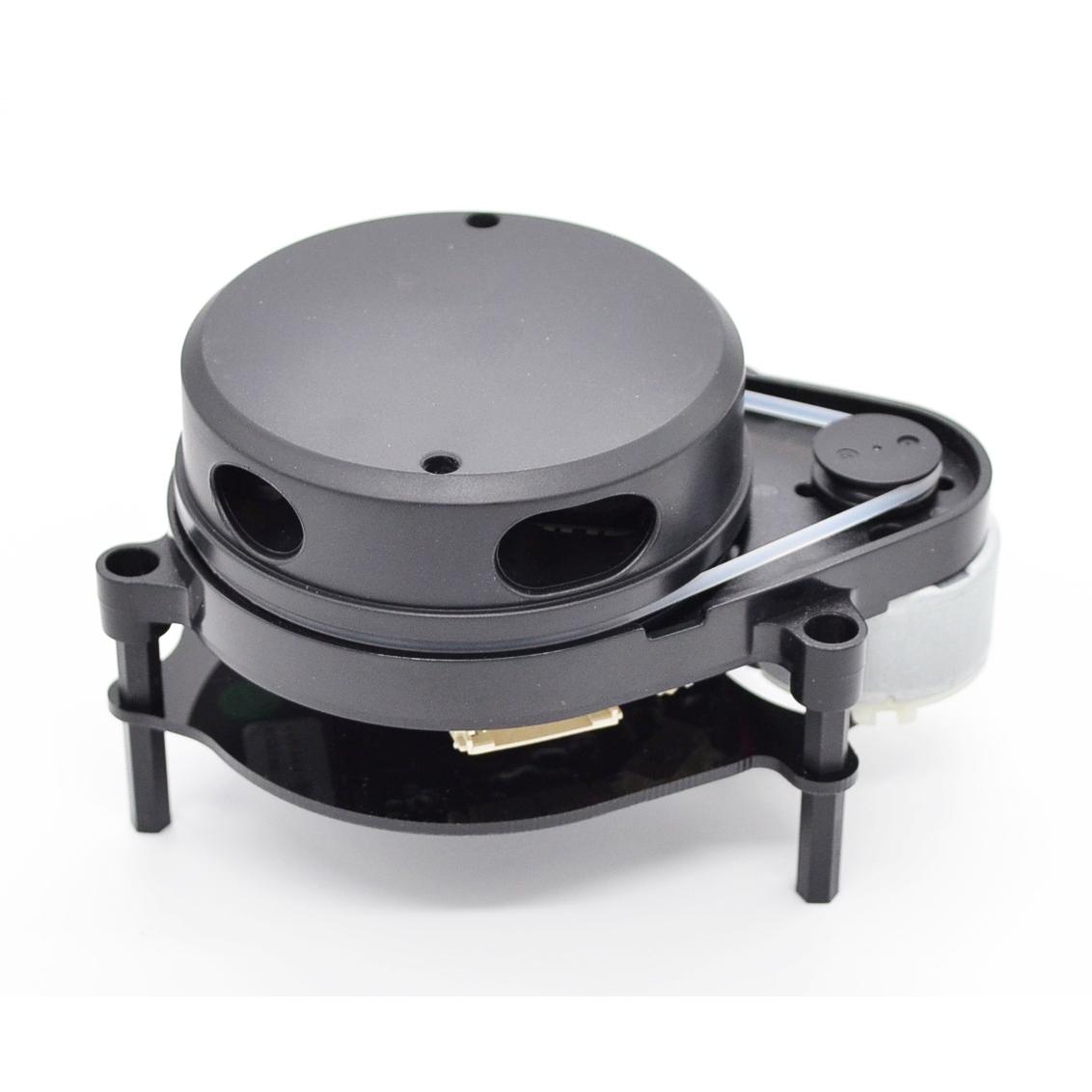

YDLIDAR X4 PRO is a 360 degrees two-dimensional rangefinder (hereinafter referred to as X4PRO) developed by EAI team. Based on the principle of triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high- accuracy distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.


Features:

  • 360 degrees omnidirectional scanning ranging distance measurement
  • Small distance error, stable performance and high accuracy
  • Wide ranging distance
  • Strong resistance to ambient light interference
  • Low power consumption, small size and long service life
  • Laser power meets Class I laser safety standards
  • Adjustable motor speed, scanning frequency is 6~12Hz
  • High-speed ranging, ranging frequency up to 5kHz

Ā

Application:

  • Robot navigation and obstacle avoidance
  • Robot ROS teaching and research
  • Regional security
  • Environmental scanning and 3D reconstruction
  • Navigation and obstacle avoidance of robot vacuum cleaner/ROS Learning robot

Ā

Download

Ā

Specifications:

Frequency Range

5000
Operating Distance Range (Meter)

.12-10
Scanning frequency (Hz)

6-12
Field of view

0-360
Absolute error (cm)

2
Relative error

3.5%
Angle resolution

0.43(frequency@6Hz ā€“ 0.86(frequency@12Hz)
Shipment Weight

0.178 kg
Shipment Dimensions

11 Ɨ 7 Ɨ 5 cm



Is ROS compatibility supported and are drivers provided?
Yes, it supports ROS and provides a ROS driver and software for integration with ROS based systems.
What are the operating distance and scanning frequency?
Operating distance range is 0.12 to 10 meters. The scanning frequency is 6 to 12 Hz with a 0 to 360 degree field of view.
What are the physical size and weight?
It weighs about 0.178 kg and its shipment dimensions are 11 by 7 by 5 cm.
What are the typical applications and safety features?
It is designed for robot navigation and obstacle avoidance, ROS teaching and research, environmental scanning and 3D reconstruction. The laser power meets Class I laser safety standards.
Where can I access the documentation and SDK tools?
Documentation and SDK tools are available via the product resources, including datasheet, user manual, development manual, and ROS driver software.
