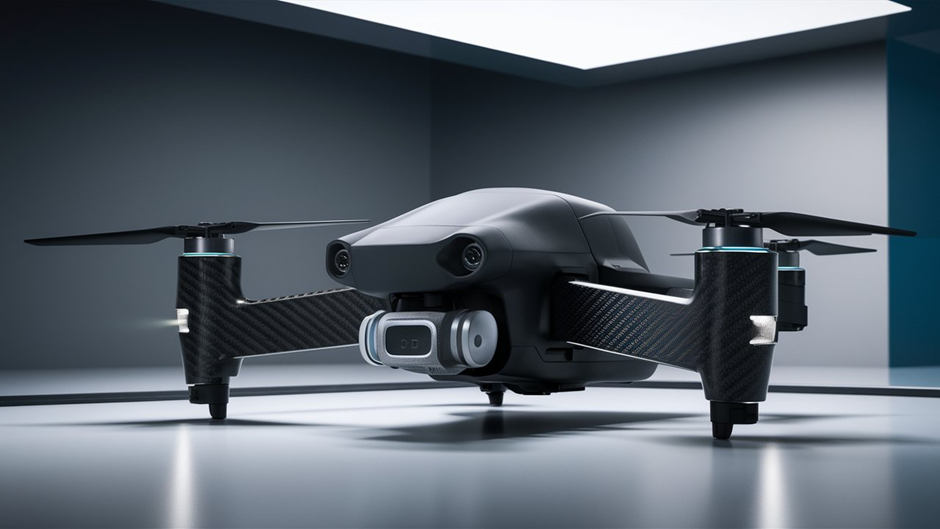

5 Step-by-Step Methods to Use Carbon Fiber in Drones (Cut Weight 25%)

Carbon fiber has revolutionized the drone industry, offering unparalleled strength-to-weight ratios that can dramatically reduce aircraft mass. This lightweight yet robust material enables longer flight times, increased payload capacity, and improved maneuverability. For drone enthusiasts and manufacturers alike, mastering carbon fiber integration is key to pushing the boundaries of UAV performance.

The Carbon Fiber Advantage

Carbon fiber's unique properties stem from its molecular structure. Long chains of carbon atoms, aligned and bonded tightly, create a material that is five times stronger than steel yet weighs about two-thirds less. This exceptional strength-to-weight ratio is a game-changer for drone design, allowing for:

• Extended flight durations
• Increased payload capacity
• Enhanced structural integrity
• Improved aerodynamics

When properly implemented, carbon fiber can reduce a drone's overall weight by up to 25% compared to traditional materials like aluminum or fiberglass.

Essential Tools and Materials

Before diving into carbon fiber fabrication, ensure you have the following:

• Carbon fiber sheets (3K twill weave recommended for versatility)
• Carbon fiber rods and tubes
• Epoxy resin system (aerospace-grade preferred)
• Release agent
• Vacuum bagging materials (for advanced techniques)
• Precision cutting tools (a rotary tool with diamond-tipped bits)
• Personal protective equipment (respirator, gloves, eye protection)

You can explore carbon fiber's transformative potential in drone construction with these essentials.

Method 1: Frame Optimization

The drone's frame is the backbone of its structure, and optimizing it with carbon fiber can yield significant weight savings. Start by analyzing your current frame design and identifying areas where carbon fiber can replace heavier materials.

1. Design: Create a CAD model of your optimized frame, focusing on high-stress areas.
2. Material Selection: Choose appropriate carbon fiber components based on load requirements. Unidirectional fibers excel in areas of linear stress, while woven fabrics offer better multi-directional strength.
3. Cutting: Use CNC machining or precision hand tools to cut carbon fiber sheets and tubes. Remember, inhaling carbon dust is conductive and harmful, so proper ventilation and PPE are crucial.
4. Layup: For complex shapes, consider using prepreg carbon fiber sheets. These pre-impregnated fabrics offer consistent resin content and easier handling. Layer the sheets according to your design, paying attention to fiber orientation for optimal strength.
5. Curing: Follow the epoxy manufacturer's recommendations for temperature and duration. Many high-performance resins require autoclave curing for optimal properties.

By strategically replacing aluminum or plastic components with carbon fiber, you can achieve a lighter, stiffer, and more vibration-resistant frame.

Method 2: Propeller Enhancement

Carbon fiber propellers offer a significant performance boost over plastic alternatives. They're stiffer, allowing for more efficient power transfer, and their lower mass reduces the motor's workload.

1. Mold Creation: Design and 3D print a propeller mold, ensuring a smooth surface finish.
2. Layup Process: Cut carbon fiber strips to size and carefully lay them into the mold, alternating the fiber direction for balanced strength.
3. Resin Infusion: Use a vacuum-assisted resin transfer molding (VARTM) for consistent resin distribution and minimal voids.
4. Curing: Allow the propellers to cure under controlled temperature and pressure conditions.
5. Balancing: Precision-balance the finished propellers to minimize vibration and maximize efficiency.

Carbon fiber propellers can increase thrust by up to 20% while reducing weight, contributing significantly to overall drone performance.

Method 3: Lightweight Body Panels

Aerodynamic body panels not only improve flight characteristics but also protect internal components. Carbon fiber's moldability makes it ideal for creating sleek, lightweight enclosures.

Start with a 3D-printed or foam core and overlay it with carbon fiber fabric. Use vacuum bagging to ensure a tight, void-free laminate. This method can produce panels that are 50% lighter than equivalent plastic parts while offering superior rigidity.

To create sandwich structures, consider incorporating Nomex or Rohacell foam cores for larger panels. These composite panels offer exceptional stiffness-to-weight ratios, crucial for maintaining aerodynamic shapes under flight loads.

Method 4: Reinforcement Techniques

Strategic reinforcement can significantly enhance a drone's structural integrity without adding excessive weight. Focus on high-stress areas such as motor mounts, landing gear attachment points, and payload interfaces.

1. Identify stress concentration points through FEA (Finite Element Analysis) or practical testing.
2. Apply carbon fiber tape or unidirectional fibers to these areas, aligning the fibers with the primary load paths.
3. For impact-prone areas, consider hybridizing carbon fiber with Kevlar or Dyneema for improved toughness.

This targeted approach can increase local strength by up to 300% with minimal weight gain.

Method 5: Custom Component Fabrication

Custom carbon fiber components are unbeatable for truly optimized designs. This method allows for creating complex, integrated parts that would be impossible or impractical with traditional materials.

1. Create a 3D-printed mold of your component, ensuring a high-quality surface finish.
2. Apply a release agent to the mold to prevent adhesion.
3. Lay up carbon fiber prepreg or dry fabric, carefully following the contours of the mold.
4. use a silicone bladder or lost wax core to maintain internal geometry for hollow parts.
5. Cure the part under vacuum and heat, following the resin system's specifications.

This method is particularly effective for creating integrated components like camera gimbals or specialized payload mounts, where weight savings and precise geometry are critical.

Advanced Considerations

As you delve deeper into carbon fiber drone construction, consider these advanced techniques:

• Nano-enhanced Resins: Incorporating carbon nanotubes or graphene into epoxy systems can further enhance mechanical properties and electrical conductivity.
• Automated Fiber Placement (AFP): AFP technology allows for precise, repeatable layups with minimal material waste for complex or large-scale parts.
• Hybrid Composites: Combining carbon fiber with other materials like titanium or aluminum in key areas can optimize the strength-to-weight ratio for specific load cases.

The Future of Carbon Fiber Drones

Mastering these carbon fiber integration techniques opens up drone design and performance possibilities. By strategically applying these methods, you can achieve weight reductions of up to 25% while improving strength, stiffness, and durability.

Remember, working with carbon fiber requires attention to detail, proper safety precautions, and often trial and error. Start with smaller projects to hone your skills, and don't hesitate to experiment with different layup techniques and resin systems to find the optimal solution for your specific drone design.

As carbon fiber technology advances, we can expect even lighter, stronger, and more cost-effective materials to emerge. Stay informed about developments in recycled carbon fiber, out-of-autoclave curing processes, and thermoplastic composites, as these innovations may further revolutionize drone manufacturing.

By embracing carbon fiber technology, you're not just building a lighter drone but pushing the boundaries of what's possible in unmanned aerial systems. The sky's the limit for carbon fiber drones, and with these techniques at your disposal, you're well-equipped to lead the charge in this exciting field.
