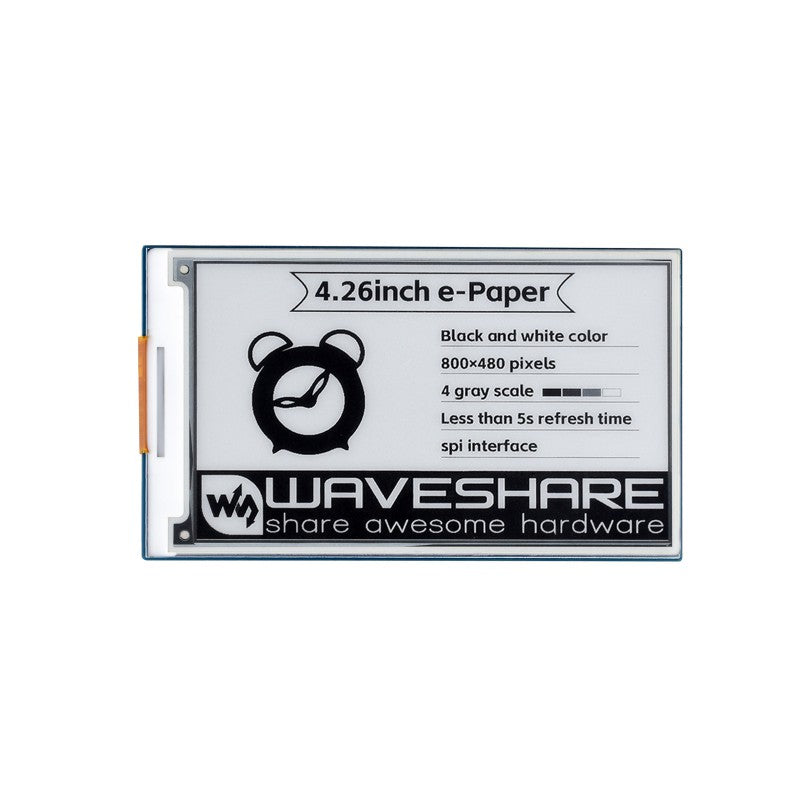

Size 4.26ā³
|
Resolution 800Ć480
|
Viewing Angle >170Ā°
|
Display Color Black/White
|
Grey Scale 4
|
Communication SPI
|
Display Panel E-paper
|
Experience Paper-like
|
Environment Ambient Light Required
|
Display Type Passively Reflective
|
Refreshing Partial Refresh Support
|
| OPERATING VOLTAGE | 3.3V/5V | DISPLAY COLOR | Black/White |
|---|---|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 4 |
| OUTLINE DIMENSIONS | 107 Ć 64mm | FULL REFRESH TIME | 4s |
| DISPLAY SIZE | 92.80 Ć 55.68mm | PARTIAL REFRESH TIME | 0.7s |
| DOT PITCH | 0.116 Ć 0.116mm | REFRESH POWER | <35mW |
| VIEWING ANGLE | >170Ā° | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 800 Ć 480 pixels | ||
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180Ā° viewing angle. It is usually used as e-reader due to its paper-like effect.

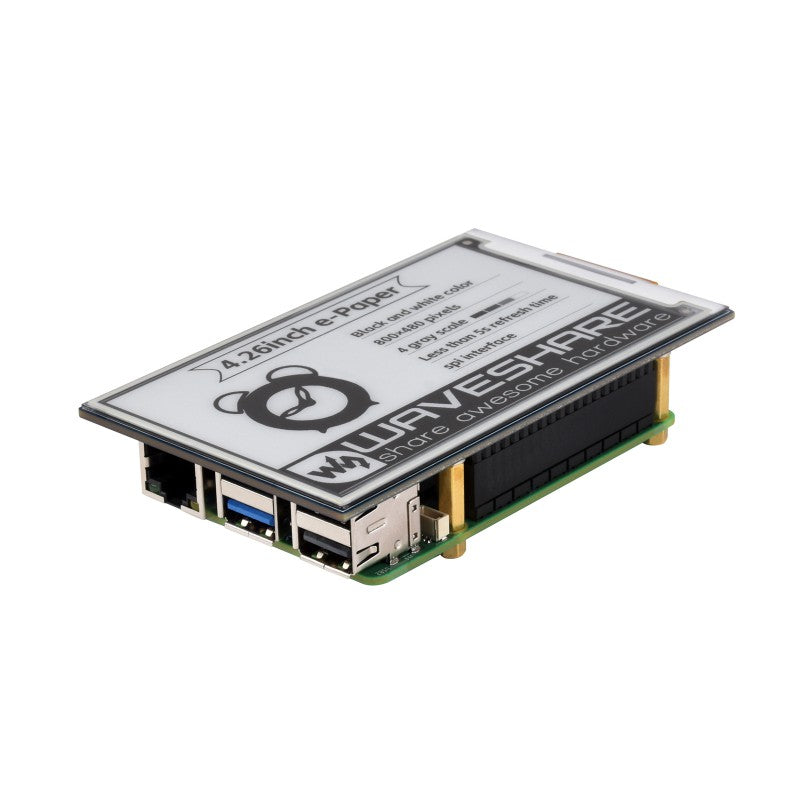

* for reference only, the Raspberry Pi in the picture is NOT included
For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

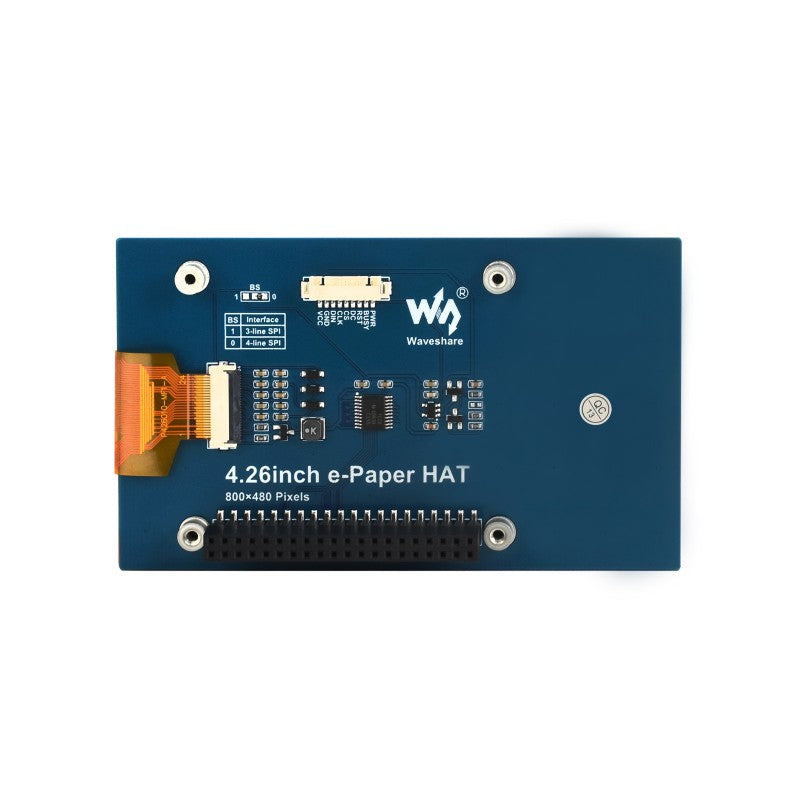

| PWR | Power on/off control |
|---|---|
| BUSY | Busy status output pin |
| RST | External reset, low active |
| DC | Data/Command selection (high for data, low for command) |
| CS | SPI chip selection, low active |
| CLK | SPI SCK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Compatible With 3.3V / 5V MCUs
WIKI:Ā www.waveshare.com/wiki/4.26inch_e-Paper_HAT
Weight:Ā 0.064 kg
2
3
