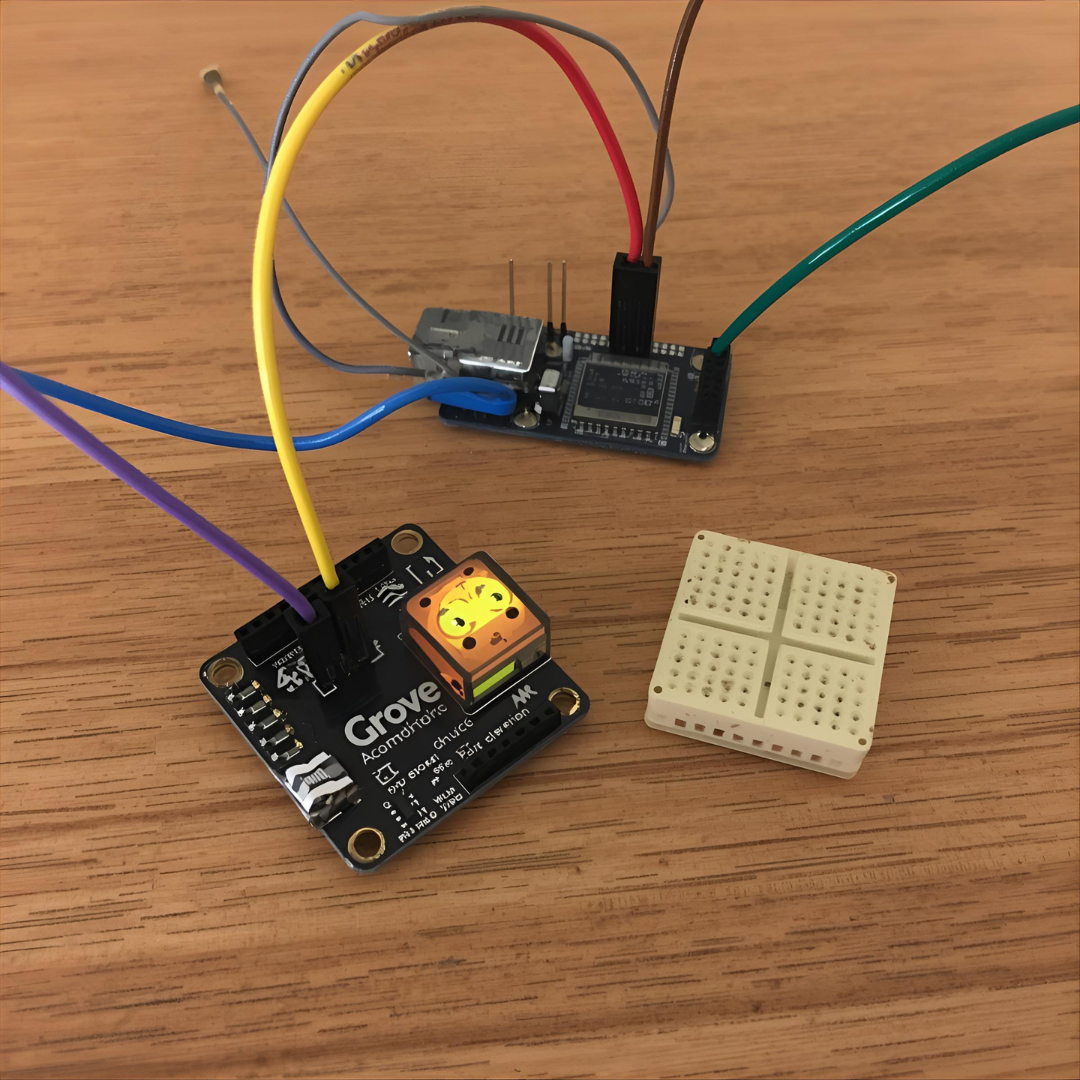

How to Use Grove Sensors with Arduino: Complete Beginner's Guide 2025
Grove sensors have revolutionized the way beginners and professionals approach Arduino projects. These plug-and-play modules eliminate the complexity of breadboard wiring, making sensor integration straightforward and reliable. Whether you're building your first Arduino project or developing a sophisticated IoT system, Grove sensors provide an excellent foundation for rapid prototyping and development.
What Are Grove Sensors
Grove sensors are standardized modules developed by Seeed Studio that connect to Arduino and other microcontrollers through a universal 4-pin connector system. Each Grove module contains the necessary components, including pull-up resistors and voltage regulators, packaged on a small PCB with a standard connector.
The Grove system uses a simple 4-wire interface that carries power, ground, and one or two signal lines. This standardization means you can connect any Grove sensor to any Grove-compatible port without worrying about wiring mistakes or component damage.
Grove sensors come in various categories including environmental sensors (temperature, humidity, light), motion sensors (accelerometer, gyroscope), proximity sensors (ultrasonic, infrared), and many specialized modules for specific applications.
Getting Started with Grove Base Shield
The Grove Base Shield serves as the interface between your Arduino board and Grove sensors. This shield plugs directly onto your Arduino Uno, providing multiple Grove connectors organized by signal type.
The shield includes analog connectors (A0-A3), digital connectors (D2-D8), I2C connectors, and UART connectors. Each connector type is clearly labeled and color-coded for easy identification.
To install the Grove Base Shield, simply align it with your Arduino's pin headers and press down gently until it sits flush. The shield maintains access to all Arduino pins while providing convenient Grove connectivity.
Power selection is important when using the Grove Base Shield. You can power Grove sensors from either 3.3V or 5V using the onboard switch. Most Grove sensors work with either voltage, but check your sensor specifications to ensure compatibility.
Essential Grove Sensors for Beginners
Grove Temperature and Humidity Sensor provides accurate environmental readings through a single digital interface. This sensor uses the DHT22 or similar chip to measure both temperature and humidity with good accuracy for most applications.
Grove Light Sensor detects ambient light levels using a photoresistor. The analog output varies with light intensity, making it perfect for automatic lighting controls or day/night detection systems.
Grove Ultrasonic Ranger measures distance using sound waves. This sensor can detect objects from 2cm to 350cm with reasonable accuracy, making it ideal for obstacle avoidance or proximity detection.
Grove Button provides a simple digital input for user interaction. The module includes proper debouncing circuitry and a built-in LED indicator.
Grove LED offers a simple output device for status indication. Available in multiple colors, these modules include current-limiting resistors for safe operation.
Basic Arduino Setup and Library Installation
Before using Grove sensors, install the necessary libraries through the Arduino IDE Library Manager. Search for "Grove" and install the official Seeed Studio libraries for your specific sensors.
The basic Arduino setup requires including the appropriate libraries, defining pin connections, and initializing sensors in the setup() function. Most Grove sensors use simple commands for reading values and controlling outputs.
For digital Grove sensors, use standard digitalRead() and digitalWrite() functions. Analog sensors require analogRead() for input values. More complex sensors like I2C modules need specific library functions for communication.
Always check the Grove sensor documentation for specific initialization requirements and example code. Seeed Studio provides comprehensive examples for each sensor type.
Programming Grove Sensors
Programming Grove sensors follows standard Arduino practices with simplified wiring. Here's the general approach for different sensor types:
Digital Input Sensors like buttons or switches use digitalRead() to check the state. Remember that Grove digital sensors typically output HIGH when not activated and LOW when triggered.
Analog Input Sensors such as light or sound sensors use analogRead() to get values from 0-1023. You'll often need to map these values to meaningful ranges for your application.
Digital Output Control for LEDs or relays uses digitalWrite() with HIGH or LOW values. Some Grove output modules include additional features like PWM control for brightness adjustment.
I2C Sensors require the Wire library and specific sensor libraries. These sensors offer more sophisticated features but need proper initialization and communication protocols.
Always include appropriate delays in your code to prevent overwhelming the sensors or serial output. Most sensors don't need to be read more than once per second for typical applications.
Common Grove Sensor Projects
Environmental Monitoring Station combines temperature, humidity, and light sensors to create a comprehensive weather monitoring system. Add an LCD display to show real-time readings and track changes over time.
Smart Plant Watering System uses soil moisture sensors to automatically water plants when needed. Combine with a water pump relay and scheduling logic for complete automation.
Motion-Activated Security System employs PIR motion sensors and ultrasonic rangers to detect intruders. Add buzzer alarms and LED indicators for complete security monitoring.
Home Automation Controller integrates multiple sensors and outputs to control lights, fans, and appliances based on environmental conditions and user input.
These projects demonstrate how Grove sensors simplify complex builds by eliminating wiring concerns and providing reliable sensor interfaces.
Troubleshooting Grove Sensor Issues
Connection Problems often stem from loose Grove connectors or incorrect shield installation. Ensure all connections are secure and the base shield sits properly on the Arduino.
Power Issues can cause erratic sensor behavior. Check that your power supply provides adequate current and verify the voltage selection switch on the Grove shield matches your sensor requirements.
Library Conflicts may occur when using multiple sensor libraries. Install only the libraries you need and check for compatibility issues between different Grove modules.
Serial Communication Problems often result from incorrect baud rates or missing serial initialization. Always match the baud rate in your code with the serial monitor setting.
Sensor Calibration may be necessary for accurate readings. Many environmental sensors benefit from calibration against known reference values.
Advanced Grove Integration Techniques
Sensor Fusion combines multiple Grove sensors to create more sophisticated measurements. For example, combining accelerometer and gyroscope data provides better motion detection than either sensor alone.
Data Logging using SD card modules allows long-term data collection from Grove sensors. This enables analysis of trends and patterns in your sensor data.
Wireless Communication through Grove WiFi or Bluetooth modules enables remote monitoring and control of your sensor systems.
Real-Time Processing using interrupt-driven programming ensures critical sensor events receive immediate attention without blocking other system functions.
Best Practices and Tips
Always prototype your Grove sensor projects on a breadboard or development board before building permanent installations. This allows easy modification and troubleshooting during development.
Document your pin assignments and sensor connections clearly. Grove systems can become complex quickly, and proper documentation saves troubleshooting time.
Use appropriate power supplies for your projects. Multiple Grove sensors and outputs can draw significant current, especially when using motors or high-power LEDs.
Implement proper error handling in your code to manage sensor failures gracefully. This includes checking for valid sensor readings and providing fallback behavior when sensors malfunction.
Consider environmental factors when deploying Grove sensors. Temperature, humidity, and physical vibration can affect sensor performance and longevity.
Grove sensors offer an excellent entry point into Arduino-based sensing and control systems. Their standardized interface and comprehensive library support make complex projects achievable for beginners while providing the reliability professionals demand.
Frequently Asked Questions
1. Do Grove sensors work with Arduino clones and other microcontrollers?
Yes, Grove sensors work with most Arduino-compatible boards including Arduino Nano, ESP32, and Raspberry Pi with appropriate base shields or breakout boards. The Grove system is designed to be platform-agnostic as long as proper voltage levels and communication protocols are maintained.
2. Can I use multiple Grove sensors of the same type simultaneously?
Most Grove sensors can be used simultaneously if connected to different ports. However, I2C sensors with the same address may conflict. Check sensor documentation for address configuration options or use I2C multiplexers for multiple identical sensors.
3. What's the maximum cable length for Grove sensor connections?
Standard Grove cables work reliably up to about 50cm. For longer distances, use Grove extension cables or consider signal integrity issues with analog sensors. Digital and I2C sensors generally handle longer cables better than analog sensors.
4. Are Grove sensors compatible with 3.3V microcontrollers like ESP32?
Most Grove sensors support both 3.3V and 5V operation. The Grove Base Shield includes voltage selection switches, and many individual Grove modules have onboard voltage regulation. Always check specific sensor voltage requirements before connection.
5. How do Grove sensor prices compare to individual components?
Grove sensors typically cost more than equivalent discrete components but provide significant value through reduced development time, eliminated wiring errors, and included supporting circuitry. The cost difference often justifies itself through faster prototyping and improved reliability.
