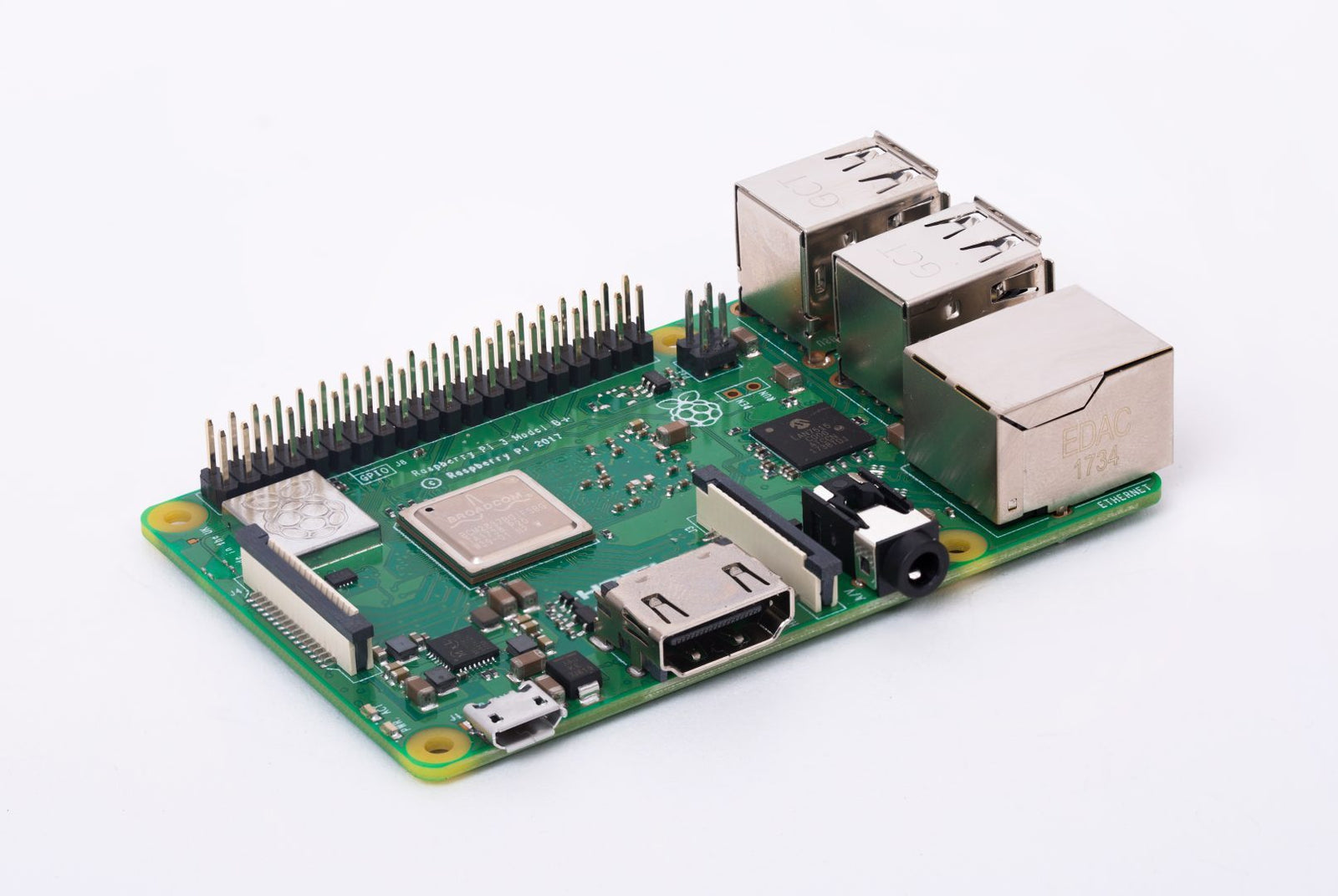

LED Blink with Raspberry Pi

LED Blink with Raspberry Pi

Components Required:

  1. Raspberry Pi 3 B+
  2. SD Card
  3. Micro USB Cable with Adapter
  4. Monitor with HDMI cable
  5. Mouse and Keyboard
  6. Breadboard
  7. 2 Jumpers
  8. 330ohm resistor
  9. LED

Software Required:

  1. Raspbian Operating System.
  2. Etcher SD Card Flashing Tool

Step 1: Flashing Operating System in SD Card

Step 2: Insert the SD Card in Raspberry Pi Board along with Mouse, Keyboard, Monitor and power adapter.

Negative(shorter) leg of LED on pin 6 (ground)
Positive(longer) leg of LED on pin 8(GPIO14) through a 330ohm resistor

Step 3: Connect LED on Breadboard

Step 3: Program in python


Code for the project can be found here
Author: Nakul Garg
