What is Arduino Uno? A Beginner's Guide to the Popular Microcontroller

If you're starting your journey into electronics or programming, you've probably come across the term Arduino Uno. But what is Arduino Uno exactly, and why is it so popular in DIY electronics, robotics, and IoT projects?

In this comprehensive guide, we will explore what Arduino Uno is, how it works, and why it's a go-to choice for beginners and professionals alike.

What is Arduino Uno?

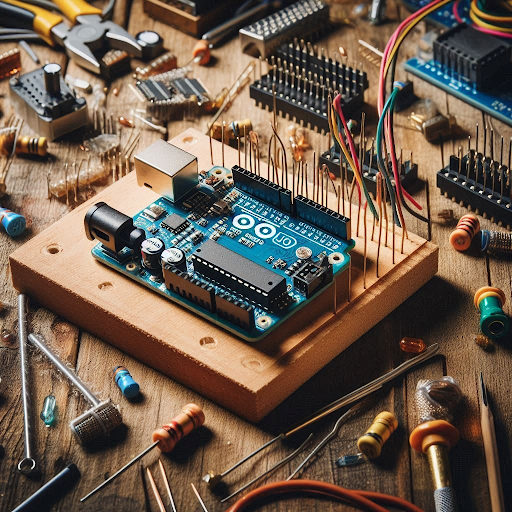

Arduino Uno is an open-source microcontroller board based on the ATmega328P microcontroller. It's part of the broader Arduino family, known for its simplicity, versatility, and strong community support. The word "Uno" means "one" in Italian, symbolizing it as the first in a series of Arduino boards.

The board is designed to read inputs (like light on a sensor or a finger on a button) and turn them into outputs (like turning on an LED or spinning a motor). You can program the board using the Arduino IDE (Integrated Development Environment), which supports a simplified version of C++.

Shop Now

Key Features of Arduino Uno

• Microcontroller: ATmega328P



• Operating Voltage: 5V



• Input Voltage (recommended): 7-12V



• Digital I/O Pins: 14 (of which 6 provide PWM output)



• Analog Input Pins: 6



• Flash Memory: 32 KB



• SRAM: 2 KB



• EEPROM: 1 KB



• Clock Speed: 16 MHz



• USB Connection: For programming and power



• Reset Button: For restarting the program



These specifications make the Arduino Uno suitable for a wide variety of electronic applications.

How Does Arduino Uno Work?

The Arduino Uno acts as the brain of your electronic projects. You write code in the Arduino IDE and upload it to the board using a USB cable. The microcontroller then executes the code by interacting with connected components such as LEDs, motors, sensors, or displays.

The board runs your code line by line, looping through it continuously unless instructed otherwise. Whether you’re blinking an LED or reading data from a temperature sensor, the Arduino Uno handles the logic effortlessly.

Components on the Arduino Uno Board

1. USB Port: Used for programming and powering the board.



2. Power Jack: Connect an external power supply (7-12V).



3. Digital I/O Pins: Used to interface with digital components like buttons or LEDs.



4. Analog Pins: Accept varying voltages and are used with sensors.



5. ATmega328P Microcontroller: The core processing unit.



6. Reset Button: Restarts the code running on the board.



7. Crystal Oscillator: Maintains the clock timing.



8. Voltage Regulator: Ensures stable 5V supply to the board.



Common Applications of Arduino Uno

• LED blink and sequence projects



• Temperature and humidity monitoring



• Home automation systems



• IoT devices



• Smart gardening solutions



• Robotics and automation projects



• Interactive art installations



Whether you’re a hobbyist creating a motion-sensing light or an engineer prototyping a wearable device, Arduino Uno is a great starting point.

Why is Arduino Uno So Popular?

There are several reasons why Arduino Uno continues to dominate the DIY electronics space:

• Beginner-Friendly: Minimal learning curve



• Affordable: Easily available at a low cost



• Versatile: Compatible with various shields and sensors



• Open Source: Hardware and software are both open



• Vibrant Community: Massive support via forums, YouTube, GitHub



The board’s plug-and-play approach to hardware makes prototyping incredibly easy, even for non-engineers.

Arduino Uno vs Other Arduino Boards

While other boards offer more pins or features, the Uno remains a favorite due to its balanced features and ease of use.

Programming the Arduino Uno

To get started with programming Arduino Uno, follow these steps:

1. Download and install the Arduino IDE



2. Connect the Arduino Uno via USB



3. Select the correct board and port



4. Write a simple sketch (e.g., blinking LED)



5. Click Upload



Here's an example of a simple sketch to blink an LED:

void setup() {

  pinMode(13, OUTPUT); // Set pin 13 as output

}

void loop() {

  digitalWrite(13, HIGH); // Turn LED on

  delay(1000);            // Wait for 1 second

  digitalWrite(13, LOW);  // Turn LED off

  delay(1000);            // Wait for 1 second

}

Once uploaded, the onboard LED on pin 13 will start blinking every second.

Arduino Uno in Education and Industry

Arduino Uno is widely used in:

• Schools and Colleges: To teach embedded systems, IoT, and robotics



• Maker Spaces: For building creative and interactive projects



• Startups and Enterprises: For prototyping and MVPs



• Research and Development: Used in academic and industrial research



Its open nature and low cost make it accessible to a wide range of learners and professionals.

Common Troubleshooting Tips

• Board Not Recognized: Check USB cable or drivers



• Code Not Uploading: Ensure correct COM port and board type



• LED Not Blinking: Double-check wiring and code



• Power Issues: Verify voltage limits (5V recommended)



Always start simple and build complexity gradually.

Conclusion

Arduino Uno is more than just a microcontroller board—it's an entire ecosystem that enables innovation, learning, and creativity. With its user-friendly design, broad compatibility, and massive community, Arduino Uno is the perfect platform for anyone interested in electronics and embedded systems.

Whether you're a student, hobbyist, teacher, or entrepreneur, knowing what Arduino Uno is and how to use it opens up countless possibilities.

FAQs

1. Can Arduino Uno run without a computer?

Yes, once the code is uploaded, Arduino Uno can run independently using a power source like a battery or adapter.

2. Is Arduino Uno good for robotics projects?

Absolutely! Arduino Uno is widely used in basic and intermediate robotics for controlling motors, sensors, and communication modules.

3. Can I connect Wi-Fi to Arduino Uno?

Yes, using modules like ESP8266 or shields like Arduino WiFi Shield, you can add Wi-Fi capability.

4. What programming languages does Arduino support?

Arduino primarily supports a simplified version of C/C++, but you can also use Python with additional libraries.

5. How long does Arduino Uno last?

With proper use, the Arduino Uno can last for many years. Durability depends on power conditions, usage, and environmental factors.
