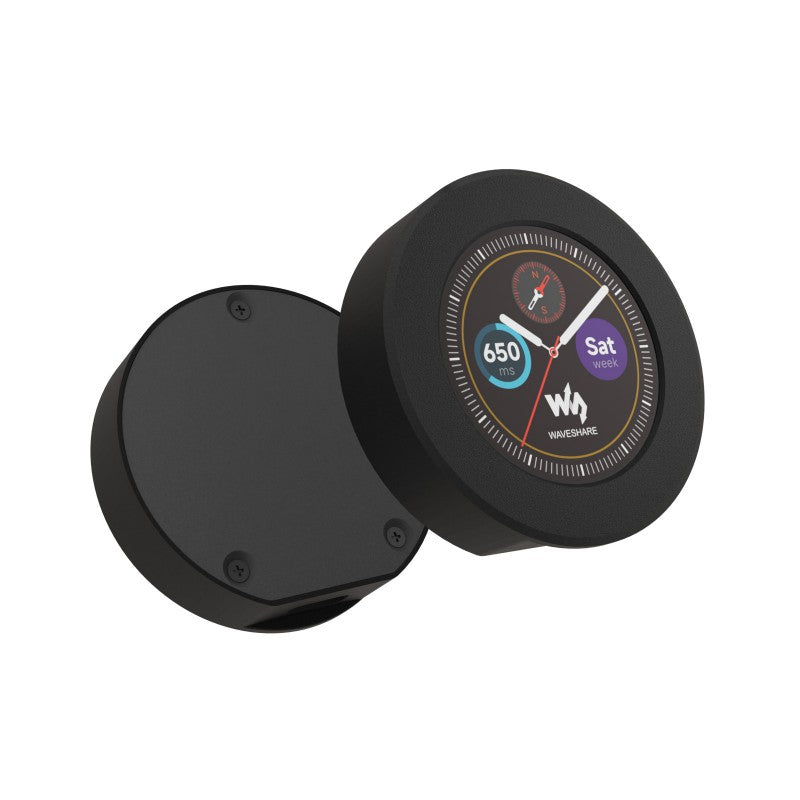

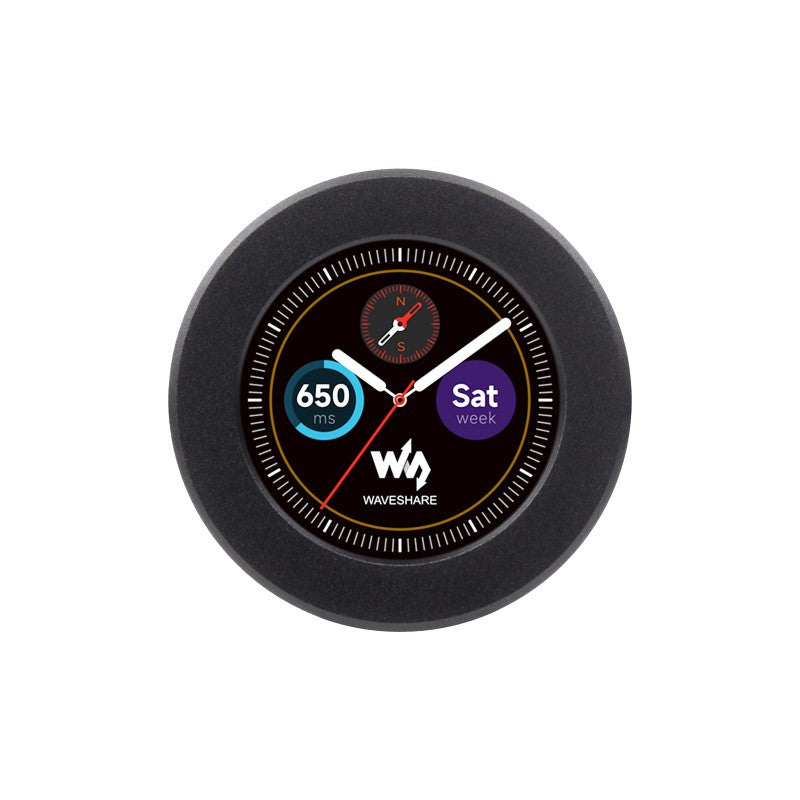

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
RP2040 MCU Board With LCD
Based on Raspberry Pi RP2040, adopts CNC metal case
RP2040-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Key features:
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
Lithium battery recharge/discharge header, suitable for mobile devices
Adopts CNC metal case with Acrylic dull-polish bottom plate
All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
C/C++, MicroPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
CNC Metal Case

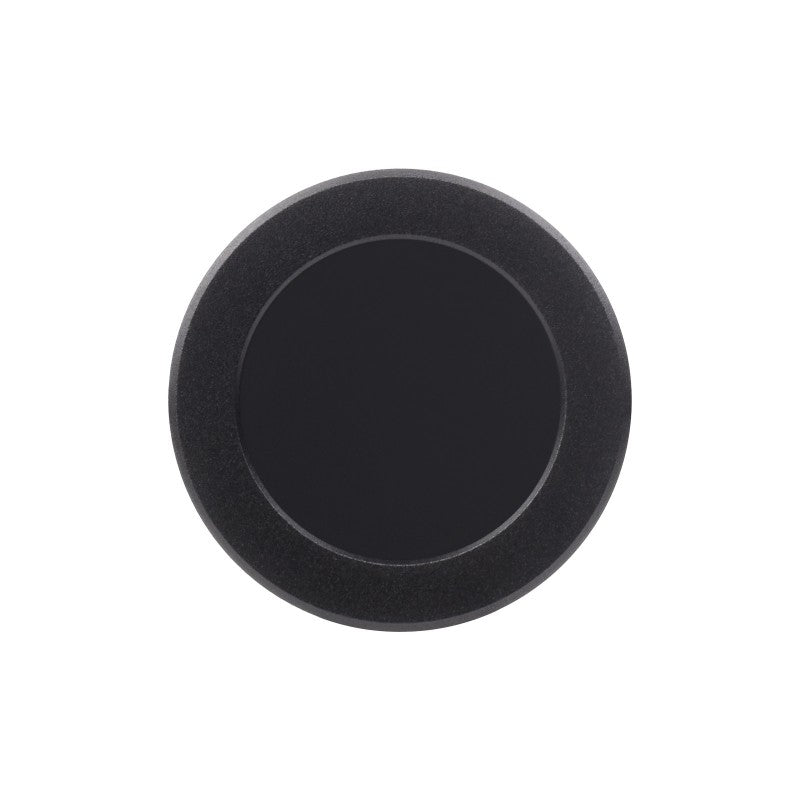

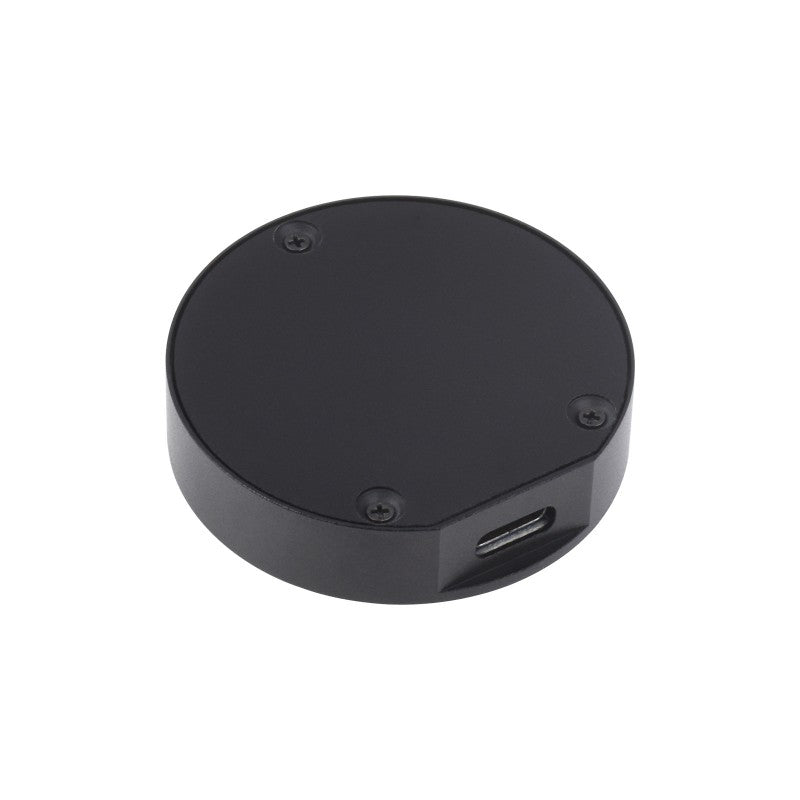

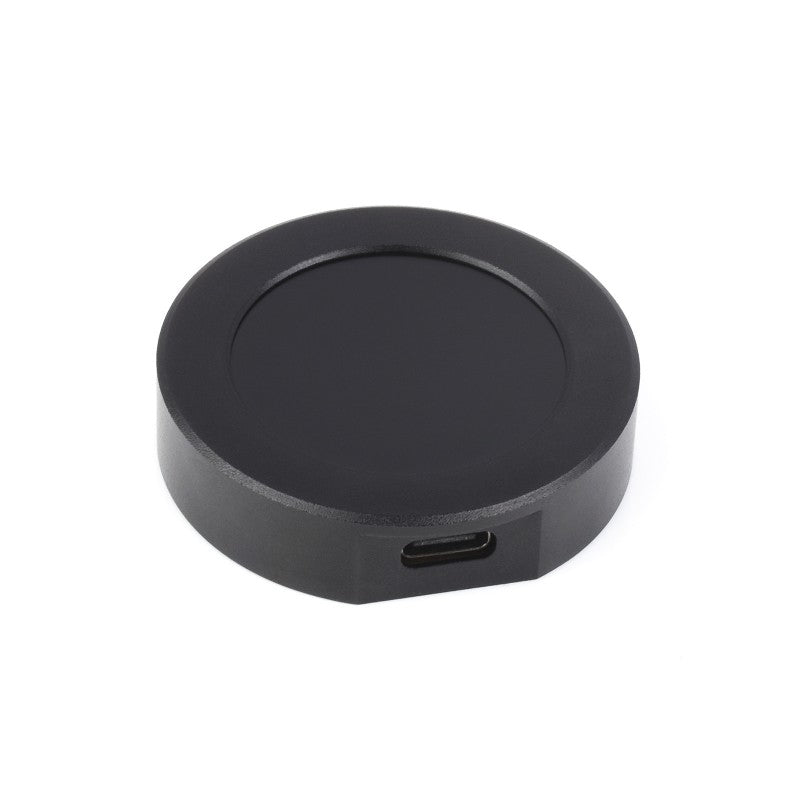

Adopts CNC Metal Case With Acrylic Dull-Polish Bottom Plate
Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
30 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration
What's On Board
USB Type-C connector
ETA6096
Battery Header
QMI8658C
1.27mm pitch headers
W25Q16JVUXIQ
RP2040
RESET Button
BOOT Button
Outline Dimensions
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
