12mm N20 6V/12V Encoder Geared DC Motors

12mm N20 6V/12V Encoder Geared DC Motors

Name: 12mm N20 6V/12V Encoder Geared DC Motors
Brand: ThinkRobotics.in
SKU: MOT3030
Price: 459.99 INR
Availability: OutOfStock

SKU: MOT3030

₹ 459.99

₹ 459.99 ~~₹ 689.99~~

Sale Sold out

Tax included. Shipping calculated at checkout.

39 RPM

50 RPM

71 RPM

90 RPM

100 RPM

150 RPM

300 RPM

Looking for Bulk?

Quantity must be 1 or more

Notify me when back in stock

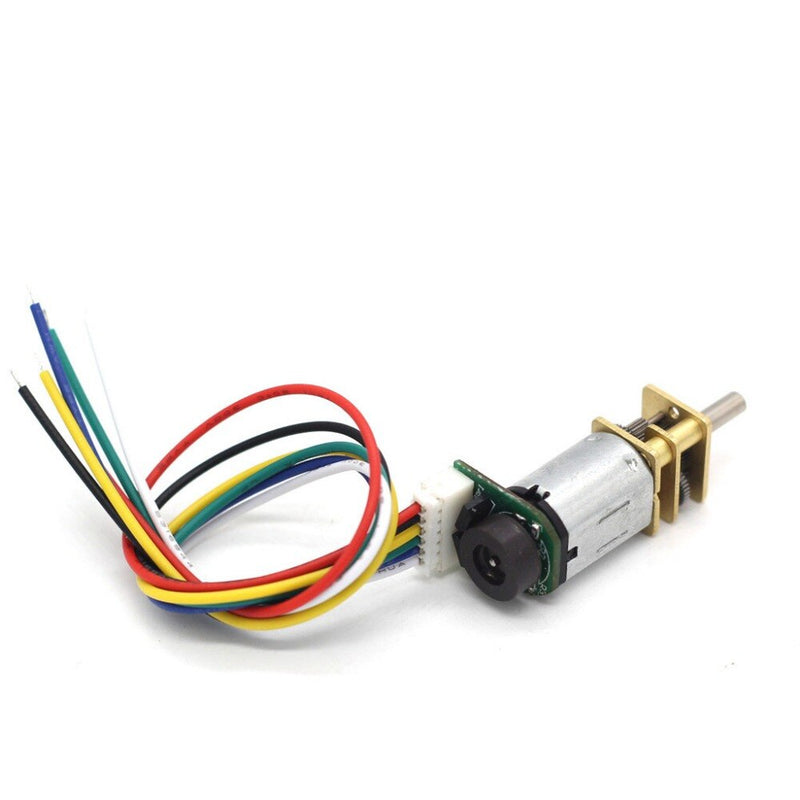

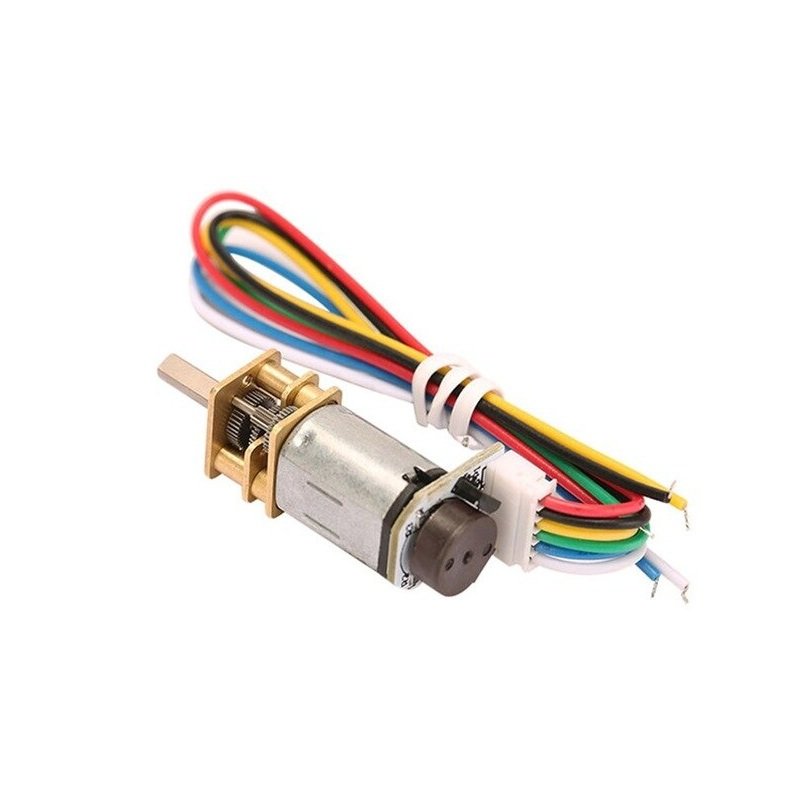

Measuring 12 mm (0.47″) in diameter, these 6V motors offer great capabilities in a small package. They are available in a range of gear ratios.

With quadrature encoders added to the micro metal gearmotors (with extended back shaft), these motors use a magnetic disc and hall effect sensors to provide 8 counts per revolution of the motor shaft. The sensors operate from 3.3 V to 5 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit.

Stall Current: 0.55A (6V)
No-Load Current: <0.06A (6V)
At Load Current: 0.17A (6V)
Shaft Diameter: 3 mm

Specifications

Variant	Reduction Ratio	Load Speed (RPM)	Max. Efficiency (Torque, Kg-cm)	Stall Torque (Kg-cm)	Gear Box Length
39 RPM	380	32	1.5	7.5	9
50 RPM	298	40	1.1	5.5	9
71 RPM	210	56	0.8	4	9
100 RPM	150	80	0.55	2.75	9
150 RPM	100	120	0.35	1.75	9
300 RPM	50	225	0.14	0.7	9
