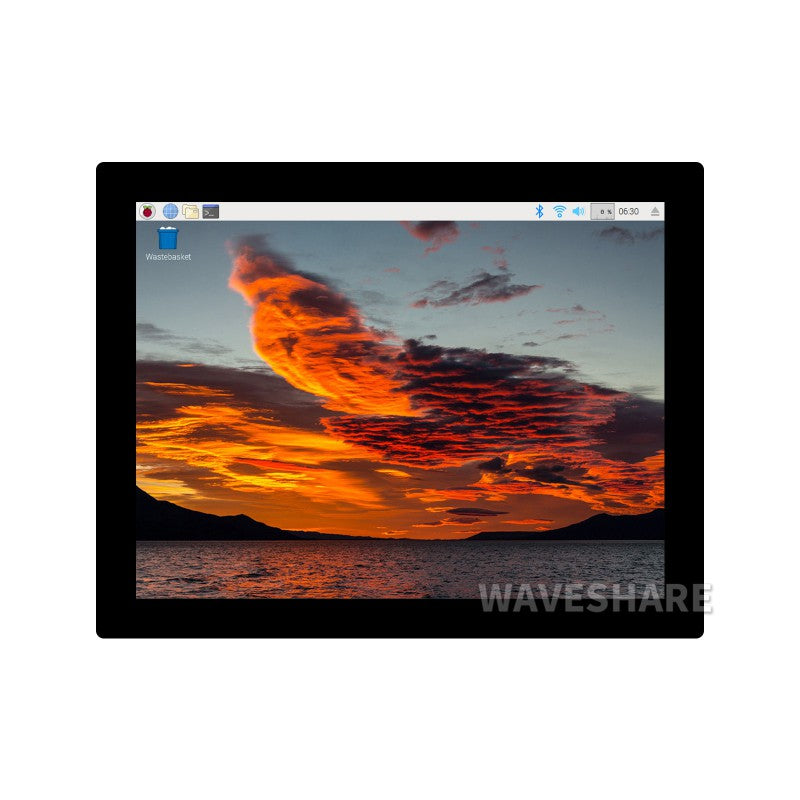

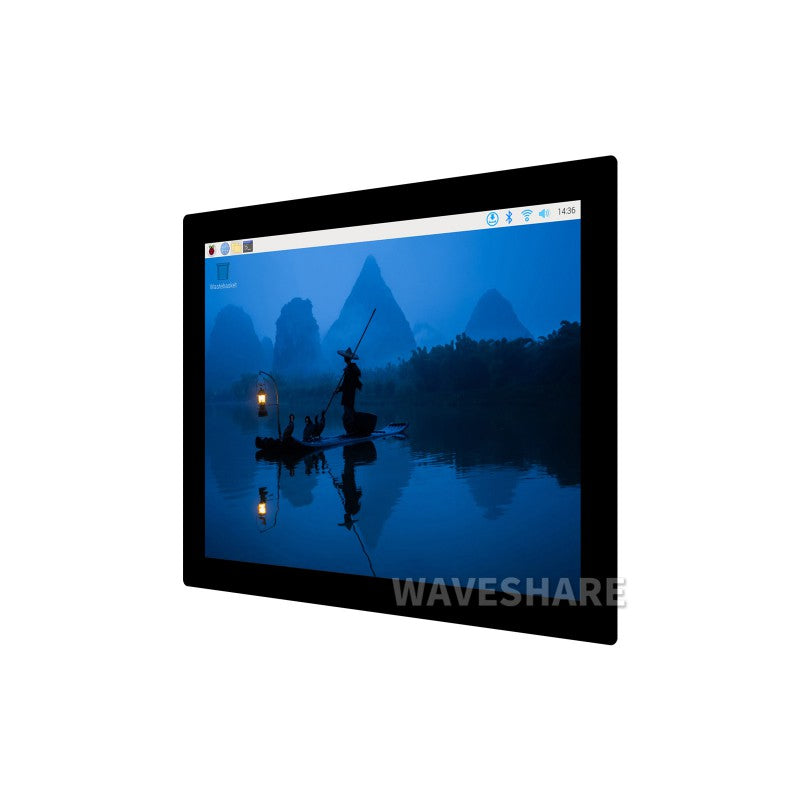

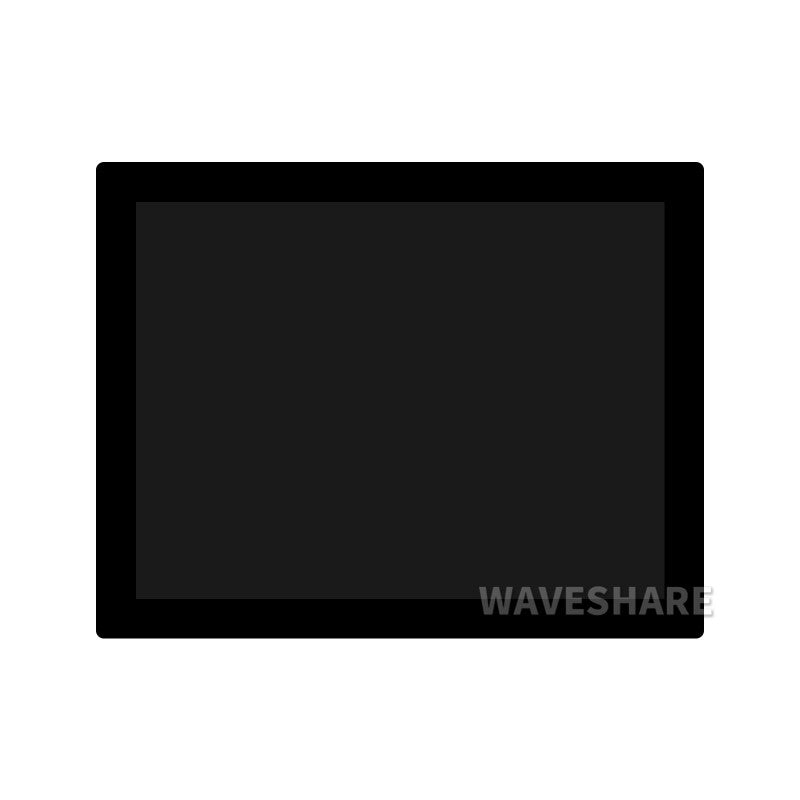

8″ Capacitive Touch Display
High Resolution | Multi-Point Touch | Full Color
Size 8"
|
Resolution 768×1024
|
Display Port HDMI |
Display Panel IPS
|
Viewing Angle 178°
|
Touch Type Capacitive
|
Touch Points 10-Points
|
Touch Port USB C |
Touch Panel Toughened Glass
|
OSD Menu |
The display orientation is portrait by default, 768×1024 resolution (H×V). Change the software config for landscape display.
Device System Support
 |
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free Supports all versions of Raspberry Pi Jetson Series Board
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
|
Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Series Board
Working With PC
for reference only, the above controller boards or host are NOT included
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
-
up to 10-point touch, depending on the operating system
-
up to 6H hardness toughened glass panel
Supports Backlight Adjustment Via Software

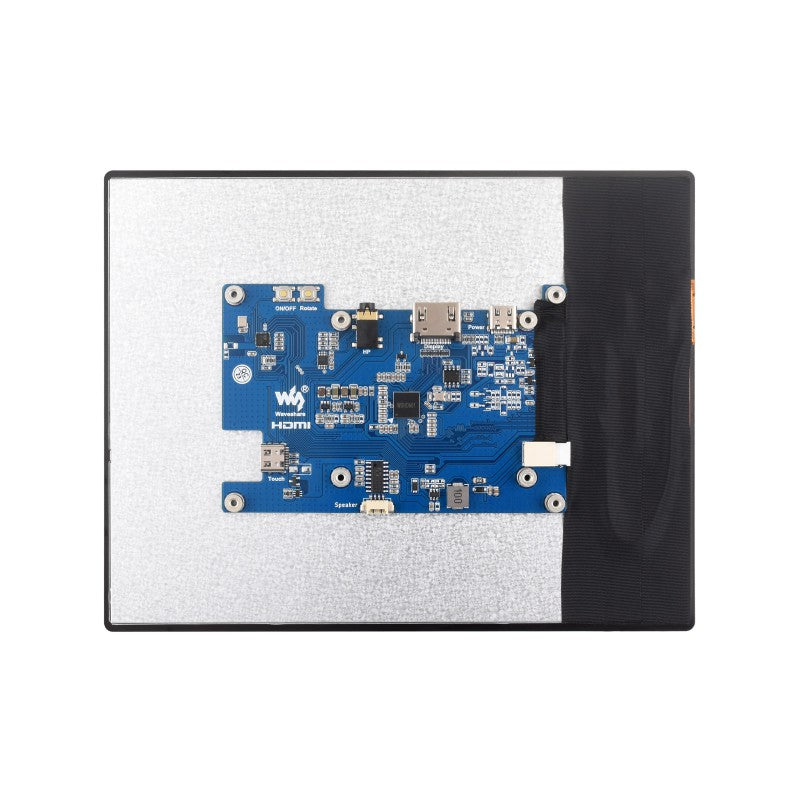

Interface Introduction
Dimensions
Resources
Wiki: www.waveshare.com/wiki/8inch_768x1024_LCD
Package Contains:
Weight: 0.426 kg
- 8inch 768x1024 LCD ×1
- HDMI flat cable ~1m ×1
- USB-A to Type-C cable ~1m ×1
- USB to Type-C adapter (C) ×1
- USB to Type-C adapter (B) ×1
- HDMI adapter ×1
- HDMI to Micro HDMI adapter ×1
- Screws pack ×1
