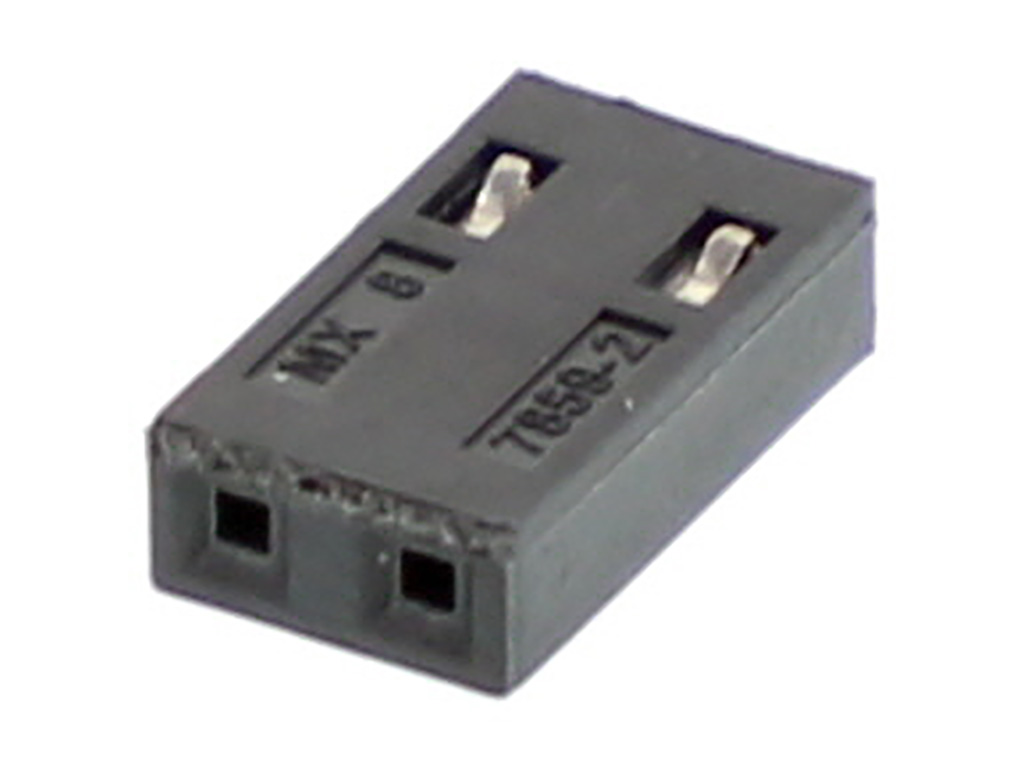

Introducing the MOLEX 2.54mm Shunt Terminal Housing with Pin Stop, a high-quality connector designed for reliable power and signal applications. Manufactured by MOLEX in Malaysia, this connector ensures robust performance in various electronic systems.
Product Features
2.54mm pitch for precise connections
Two-circuit (2CKT) configuration for versatile wiring options
The MOLEX 15-29-1025 is a 2.54mm pitch shunt terminal housing with a pin stop, designed for secure and reliable electrical connections in power and signal applications. Its robust construction and compliance with RoHS standards make it suitable for a wide range of electronic systems requiring precise header and wire housing solutions. The connector's compact design ensures easy integration into various electronic assemblies, providing dependable performance and ease of use.
For more detailed specifications and technical information, please refer to the datasheet.
Note: The datasheet was not processed; please search the internet for the part number 15-29-1025 for more details.
