USB TO RS232/485 Serial Cable

USB To RS232 Or USB To RS485

FT232RNL | 2m Cable | Stable Transmission
Multi-Device Applicable | Multi-OS Compatible

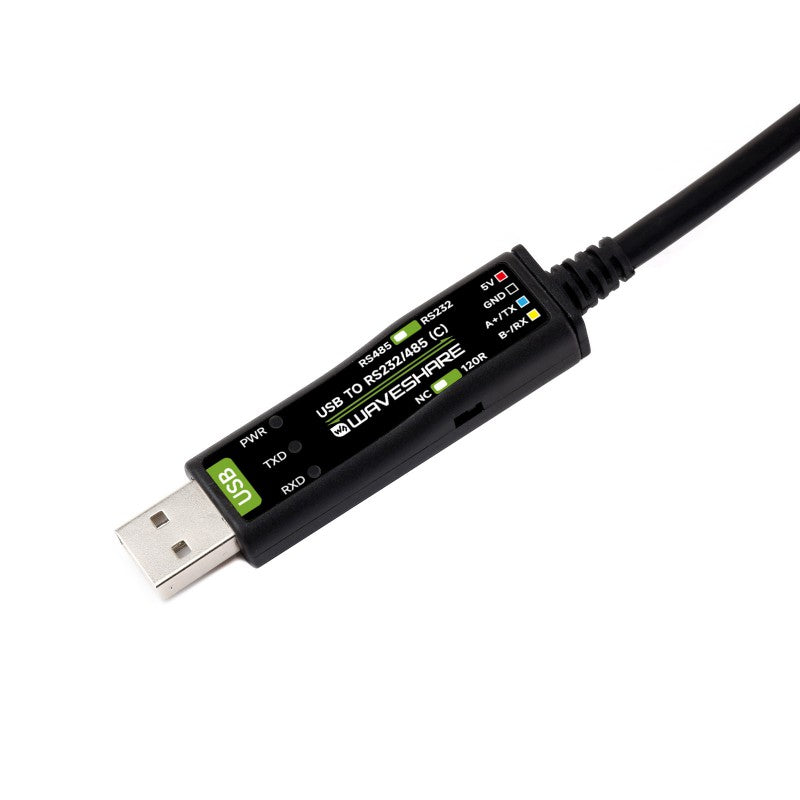

USB TO RS232/485 serial cable, front view

This product is a USB to RS232 / RS485 serial cable, adopts original FT232RNL chip. Onboard power supply and signal indicators, supports 3.3V / 5V level and RS232 / RS485 communication switching. Built-in self-recovery fuse, ESD and IO protection diode circuits, etc.

Specifications

PRODUCT TYPE	USB to RS232/485 serial cable
CHIP	Original FT232RNL chip
HOST PORT	USB
DEVICE PORT	RS232 / RS485 (switchable)
USB	Connector	USB-A
USB	Protection	Self-recovery fuse, ESD protection
RS232	Connector	4PIN cable with female crimp connector
	Protection	TVS tube, surge-suppress and ESD protection
	Transmission mode	Point-to-point
	Baud rate	300bps ~ 921600bps
RS485	Connector	4PIN cable with female crimp connector
	Protection	200W lightningproof, surge-suppress and ESD protection
	Transmission mode	Point-to-multipoints
	Baud rate	300bps ~ 921600bps
LED INDICATORS	PWR	Power indicator, lights up when there is USB connection and voltage is detected
	TXD	TX indicator, lights up when the USB port sends data
	RXD	RX indicator, lights up when the device port sends data back

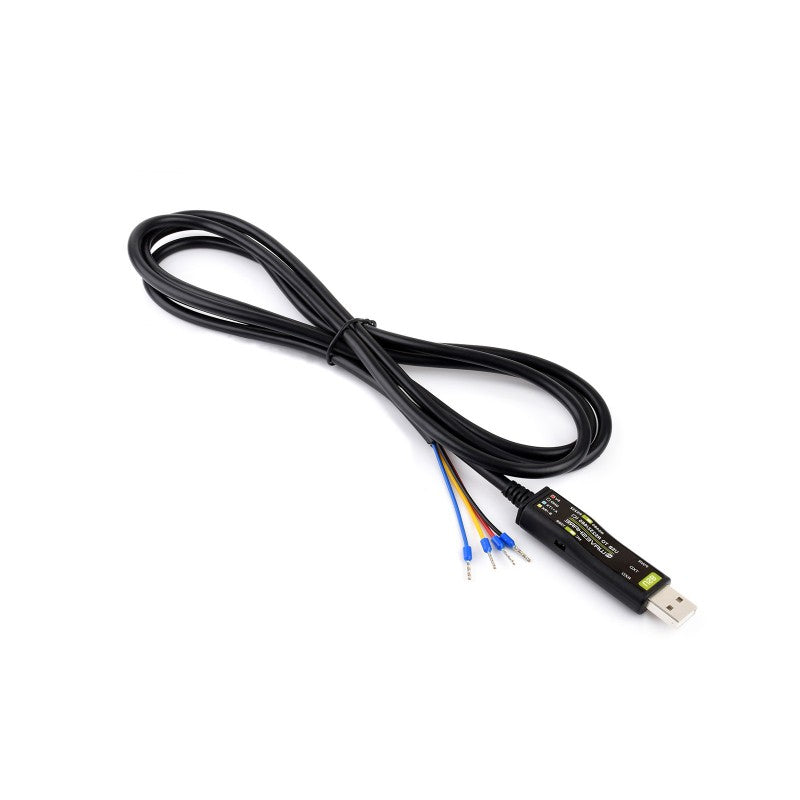

CABLE	Black, PVC sheath, 2m cable length

Onboard Original Chip

Onboard Original FT232RNL Chip, Providing Better Stability And Compatibility

USB TO RS232/485 serial cable, onboard original FT232RNL chip

Multi System Support

Supports Mac, Linux, Android, Win11/10/8.1/8/7, Etc.

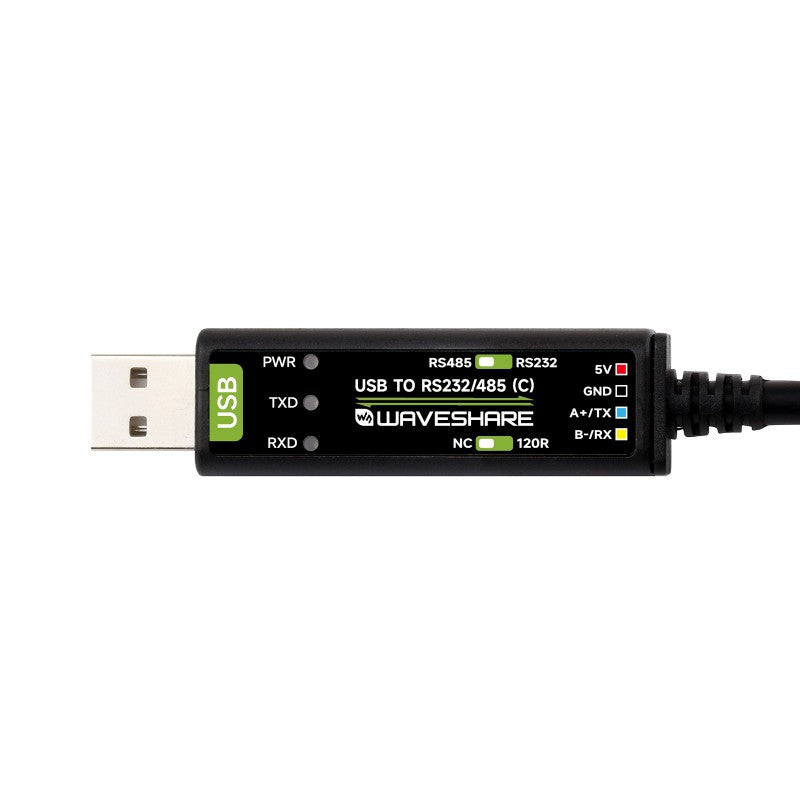

Interface Introduction

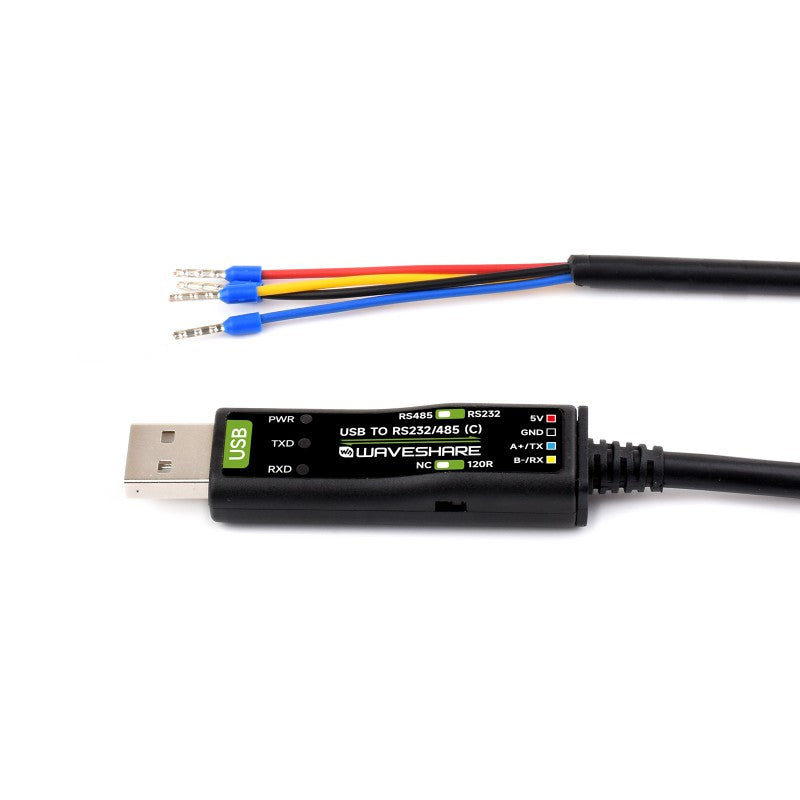

Pinout Definition

5V	5V output for external devices
GND	Ground
A+/TX	RS485 differential signal positive A+ / RS232 TXD
B-/RX	RS485 differential signal negative B- / RS232 RXD

Outline Dimensions

* measured manually, for reference only

Resources

WIKI: www.waveshare.com/wiki/USB_TO_RS232/485_(C)

Package Contents:

Weight: 0.063 kg

USB TO RS232/485 (C) x1

What does this USB to RS232/RS485 adapter do and what interfaces are supported?

It is a USB to RS232 and RS485 serial cable using the original FT232RNL chip with a switchable RS232 and RS485 interface. It supports 3.3V and 5V logic levels and includes onboard power, status indicators, and protection features.

Which operating systems are compatible with this device?

The adapter supports Mac, Linux, Android and Windows platforms including Windows 7 through Windows 11.

How do I switch between RS232 and RS485 modes?

The RS232 and RS485 modes are switchable on the device to suit your connection requirements.

What protection features are built into the cable?

It includes a self recovery fuse, ESD protection diodes, IO protection, and TVS based surge and ESD protection for the RS485 portion.

What is the cable length and what is included in the package?

The cable is 2 meters long and the package includes one USB to RS232/RS485 adapter.
