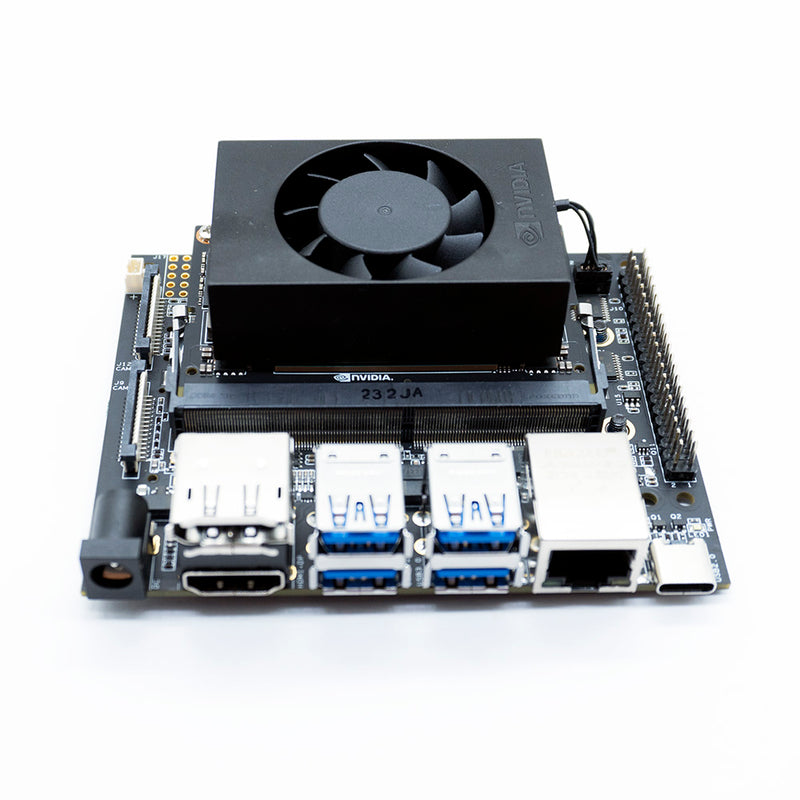

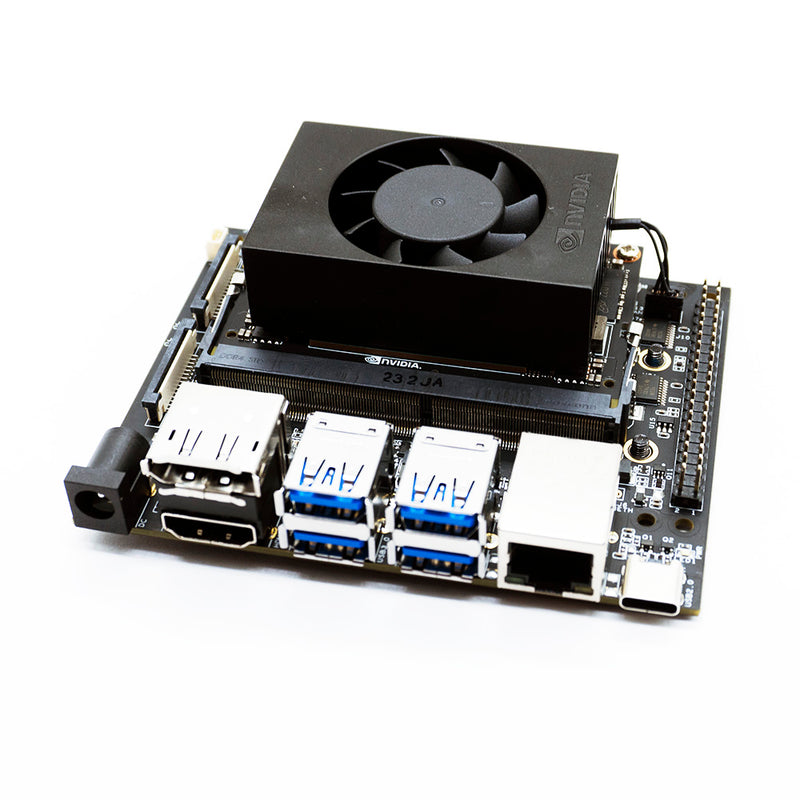

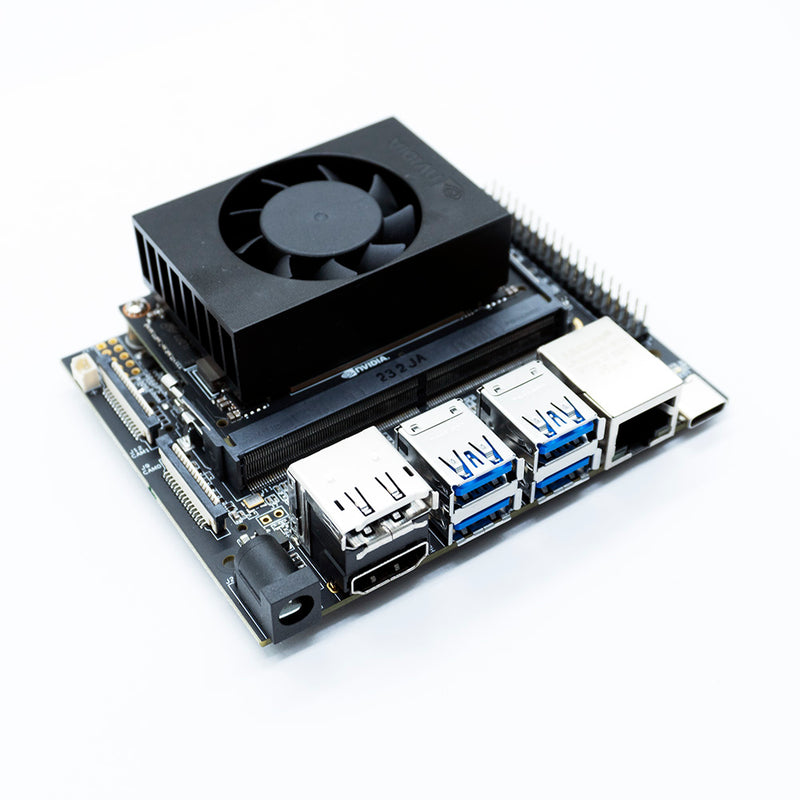

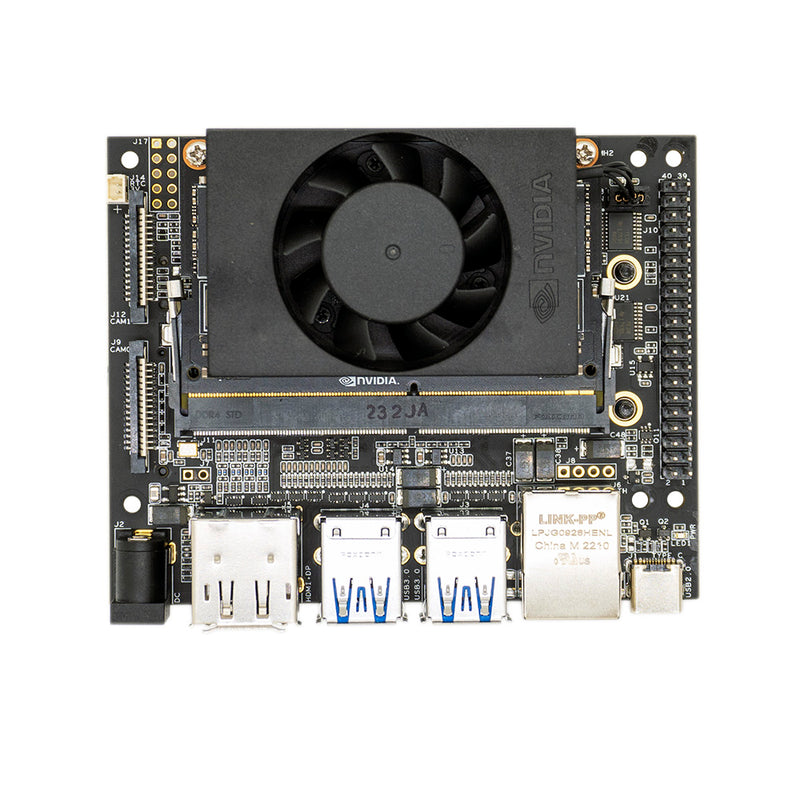

The ThinkRobotics NVIDIA Jetson Xavier NX Developer Kit comes with an interface rich carrier board from SEEED studio, and Jetpack preinstalled.

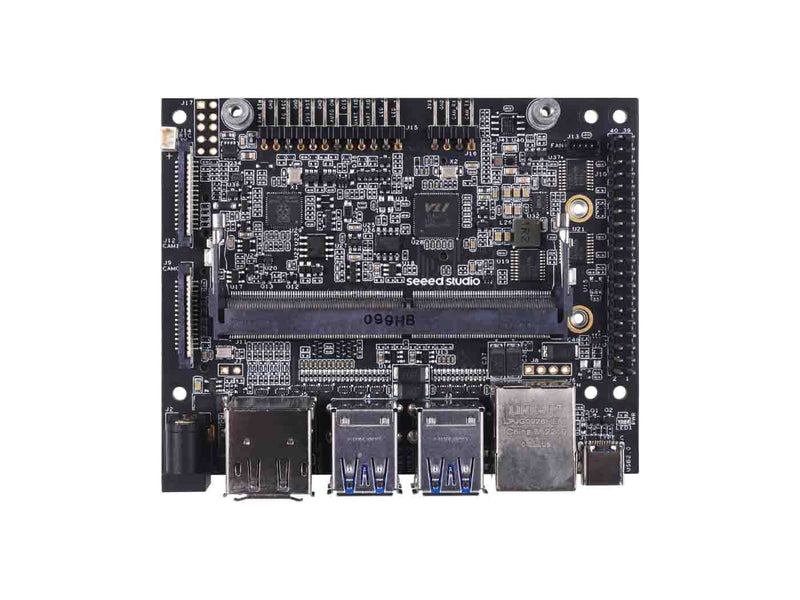

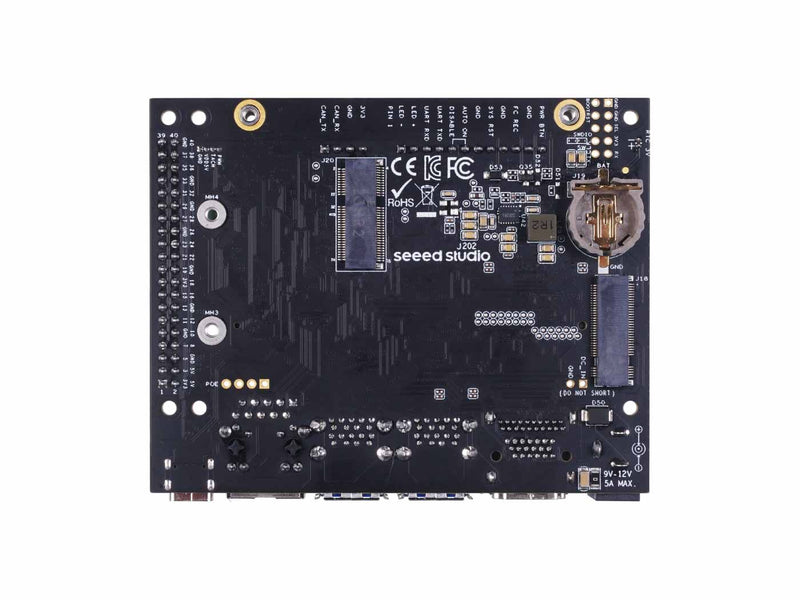

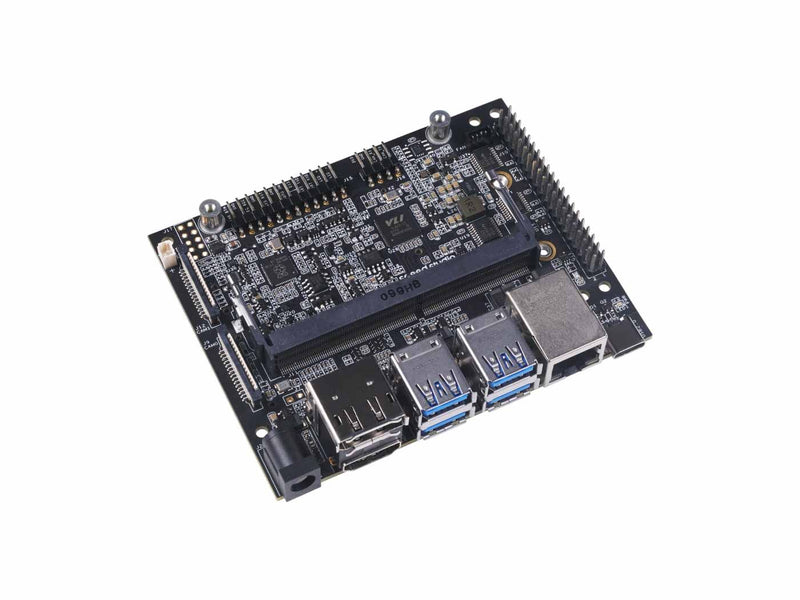

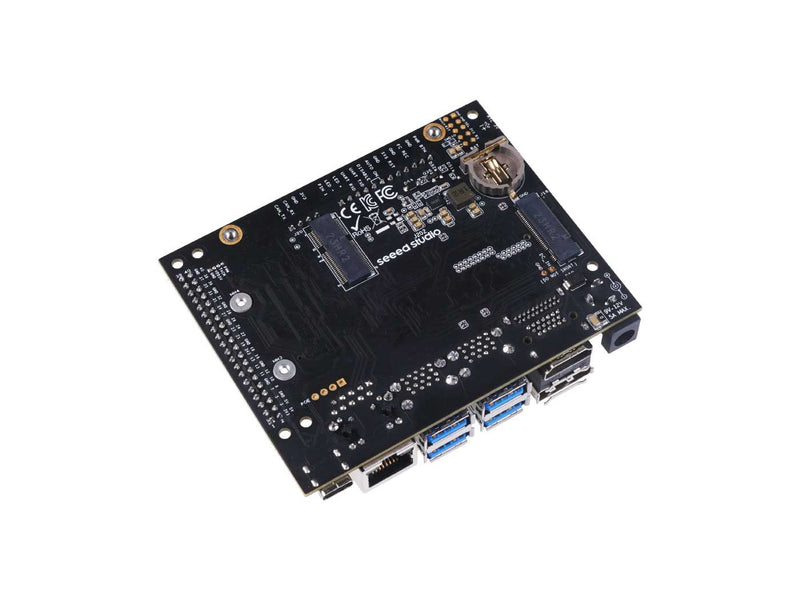

The reComputer J202 carrier board has nearly the same design and function as NVIDIA® Jetson Xavier NX™ carrier board, perfectly works with Jetson Nano/Xavier NX module, and consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
The carrier board can work as NVIDIA Jetson Xavier NX Dev Kit carrier board alternative, accelerating your next AI application development and deployment.
NOTE: DELIVERY TIME CAN VARY BETWEEN 7 to 10 BUSINESS DAYS. For assembly, programming and case design, please contact us.
The carrier board and modules come with a 1 year manufacturer's limited warranty supported by ThinkRobotics.
Datasheet for J202 Carrier Board can be found here!
Package Includes:
- Xavier NX Developer Kit
- 12V / 6A Power Supply

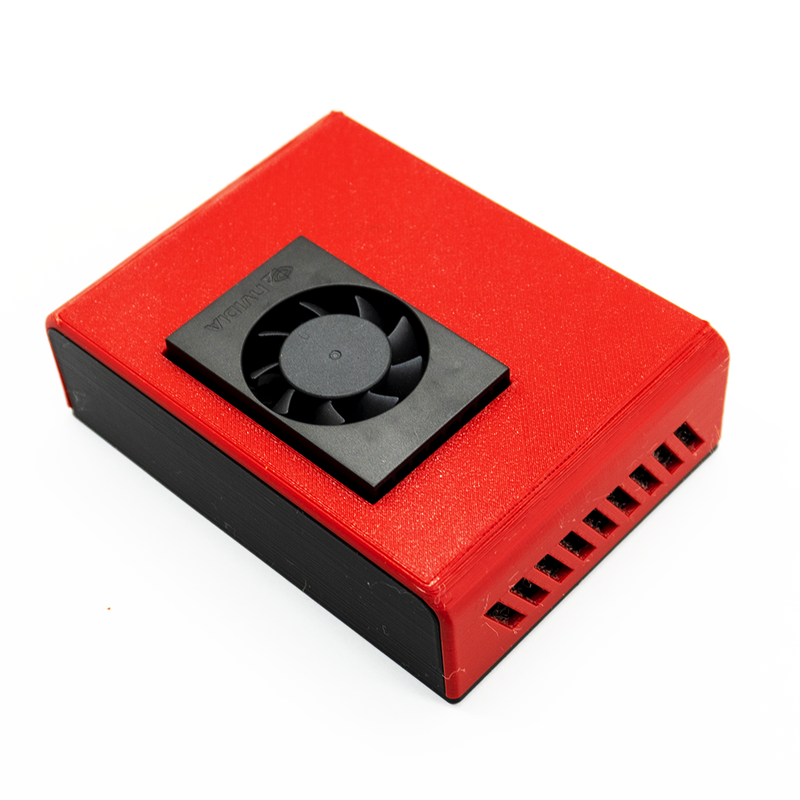

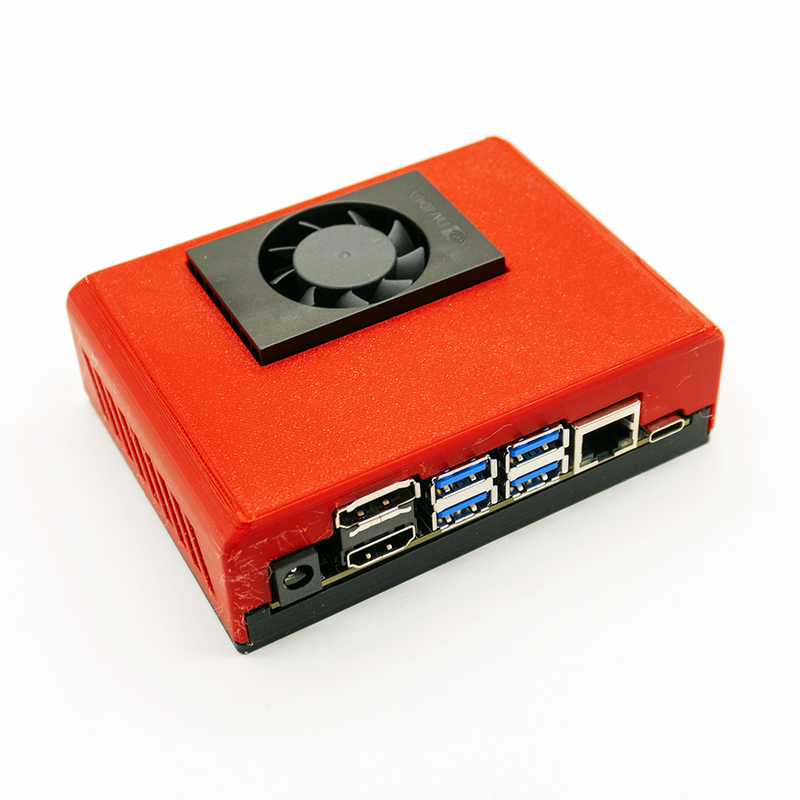

- 3D Printed Case (PLA or CF PETG)
Features
- Perfectly suited: Design for Jetson Nano/Xavier NX (260-pin SODIMM).
- Developer Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit.
- Rich peripherals: Higher performance stability consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
- High versatility: Suitable for complicated AI graphical applications.
- Comprehensive certificates: FCC, CE, RoHS, KC
Description
reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1 Gen 2, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.
Functionality
With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.
With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.
Specifications:
- Module Compatibility: Jetson™ Nano/ Xavier NX

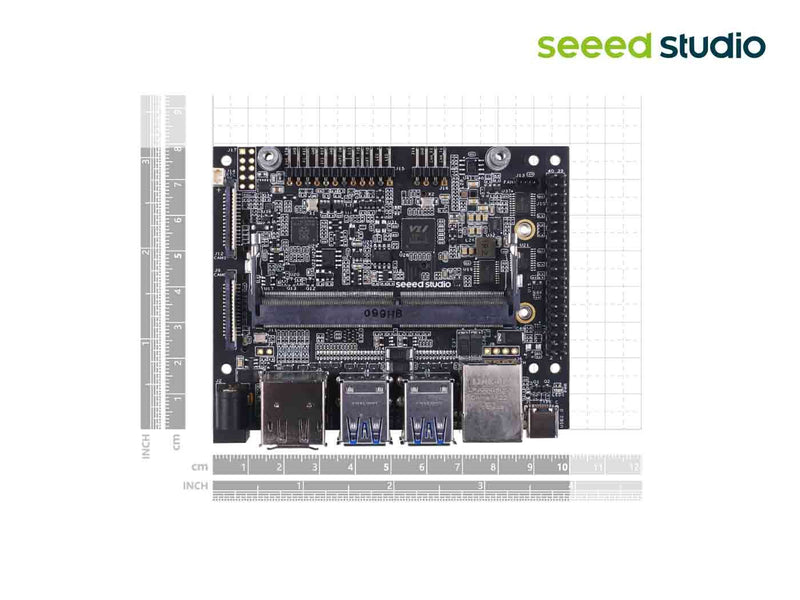

- PCB Size / Overall Size: 100mm X 80mm
- Display: 1x HDMI and 1x DP
- CSI Camera: 2
- Ethernet: 1x Gigabit Ethernet (10/100/1000M)
- USB: 4x USB 3.1 Type-A (10Gbps for NX, 5Gbps for Nano); 1x USB Type-C (Device mode)
- 1x M.2 Key E, 1x M.2 Key M
- FAN: 1x fan connector
- 1x CAN
- Multifunctional Port: 1x 40-Pin, 1x 12-Pin
- RTC: RTC 2-pin, RTC socket(reserved)
- Power supply: 12V/5A(Barrel Jack 5.5/2.1mm)
Edge AI Applications
Work with up to 21 TOPS AI performances provided by the Jetson Xavier NX, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.
-
Hard hat detection and build custom PPE detection
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!
Comparison with NVIDIA Xavier NX Dev Kit carrier boards
Hardware Overview
