LiteOn 24V/5A 120W Power Adapter

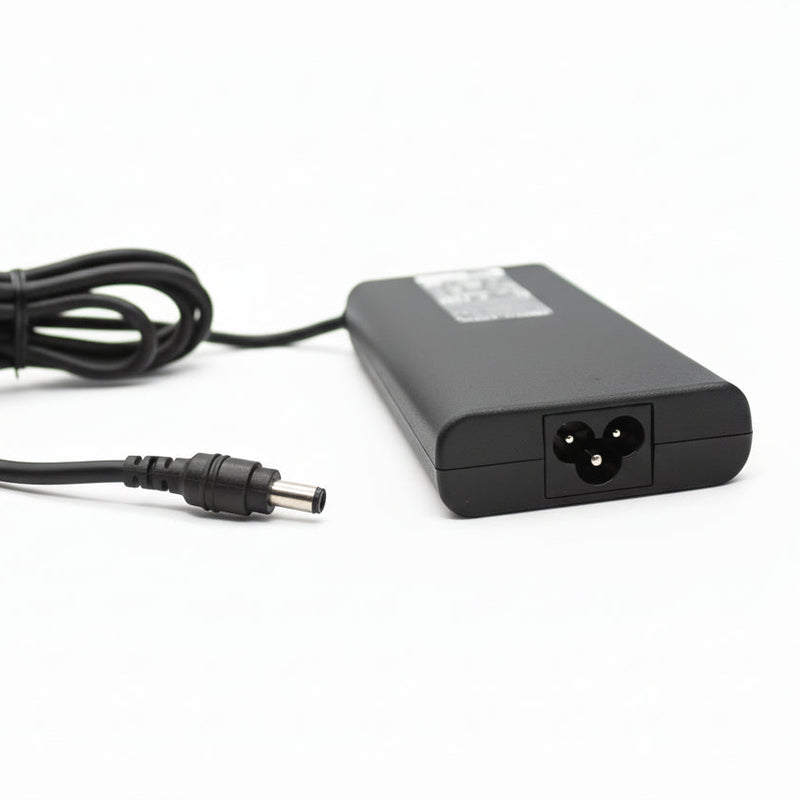

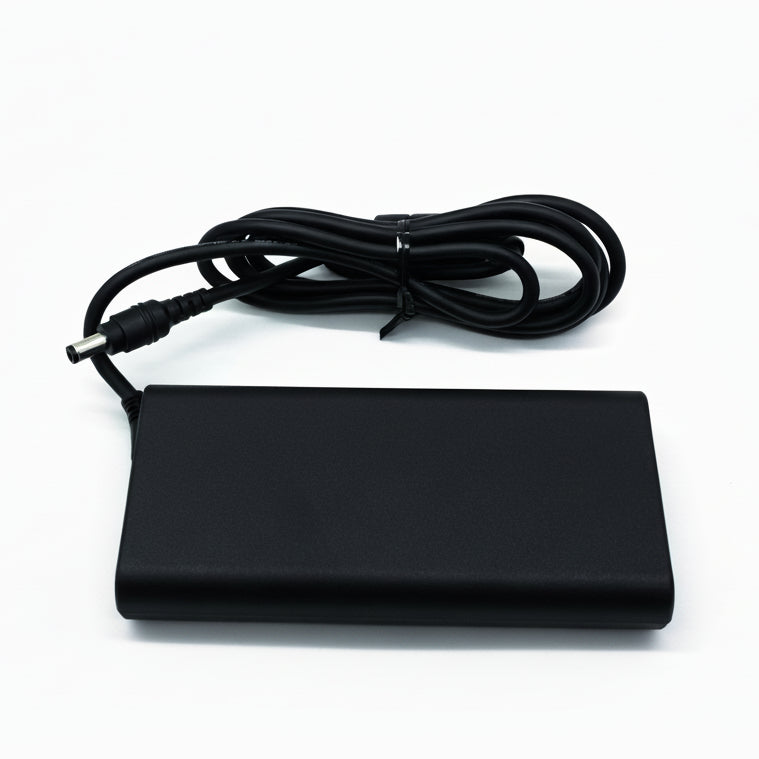

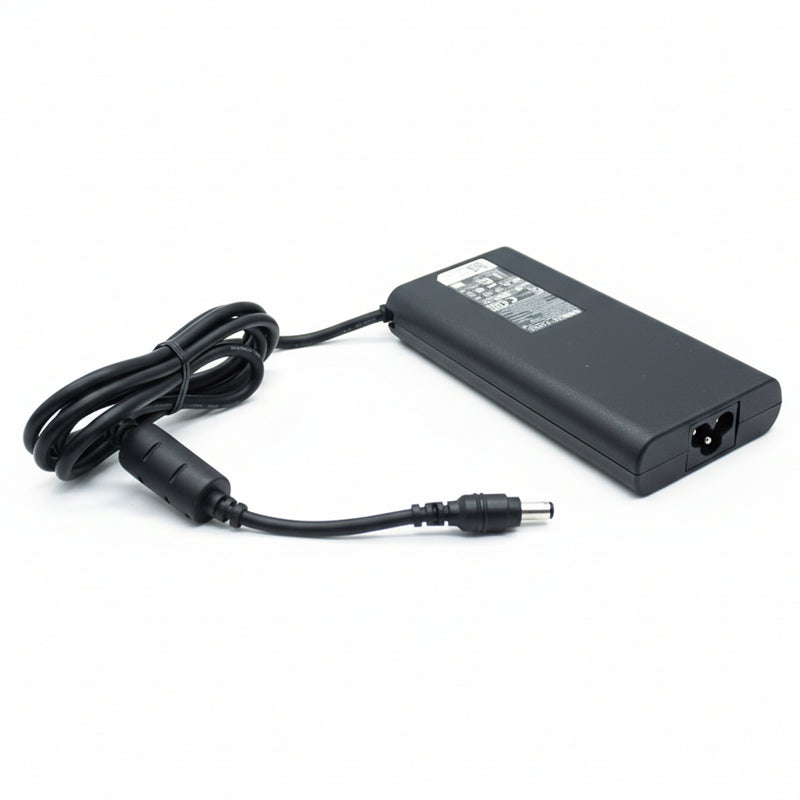

LITEON 24V/5A 120W Power Adapter - PA-1121-24
This series is a class 1, single-output AC to DC 120W green adapter with C6 inlet type. It can be operated from AC 90V~264V with good efficiency performance for various ITE, industrial and networking application. It also complies world-wide Safety and EMC regulations.
Features
Feature Description
AC Input
Full AC input voltage design with C6 socket
Surge Protection
Withstands 300Vac surge voltage for 5 seconds
Protections
Short-circuit / Over-voltage / Over-current / Over-temperature
Energy Efficiency
DOE Level VI compliant
Design
Slim and compact size
DC Plug Options
Various types available
Compliance
IEC/EN 62368-1 design compliance
Operating Altitude
Up to 5000 meters
Specification
Category Parameter Specification
Model
Model Name
PA-1121-08V / PA-1121-24E
Rated Power
120W
Output
Voltage
12V / 24V
Current
10A (12V) / 5A (24V)
Ripple & Noise (max.)
240mV (12V) / 400mV (24V)
Line & Load Regulation
±5%
Timing Hold-up Time (typ.)
10ms
AC ON Delay / Rise Time (max.)
3 sec / 30ms
Input Rated Voltage Range
100–240 VAC
Operating Voltage Range
90–264 VAC (300 VAC for 5 sec)
Current (max.)
2.5A @ 100 VAC
Inrush Current
No component damage (< I²t)
Frequency Range
50–60 Hz
Leakage Current Max. 0.1mA @ 240 VAC
Efficiency Average Efficiency (min.) 89%
Protections Over-voltage
Max. 150% of rated voltage, latch-off protection
Over-current
Max. 160% of rated current, latch-off protection
Short-circuit
No damage, latch-off protection
Over-temperature
No damage, latch-off protection
MTBF Min.
500K hours @ rated load
Environment Temperature
Operating: -20~40℃ / Storage: -40~85℃
Humidity
Operating: 10–90% RH / Storage: 5–95% RH (non-cond.)
Altitude
Max. 5000 meters
Mechanical Dimensions (L×W×H)
138 × 66 × 22 mm
Weight
350 g (typ.)
Vibration
10–500 Hz, 5G, 20 min/cycle, all axes (X, Y, Z)
Safety Standards
IEC/EN 60950-1, K60950-1, IEC/EN 62368-1, CNS14336-1
Withstand Voltage
Input–Output: 4242 VDC / Input–FG: 2150 VDC
Isolation Resistance (min.)
Input–Output: 30MΩ @ 500 VDC, 25℃, 70% RH
EMC EN55032 (CISPR32)
Conducted EMI: Class B / Radiated EMI: Class B
FCC
Conducted EMI: Class B / Radiated EMI: Class B
EN61000-3-2
Harmonic distortion: Class D
EN61000-4-2
ESD: ±8kV contact / ±15kV air discharge
EN61000-4-3
Radiated RF immunity: 3V/m
EN61000-4-4
EFT: ±1kV (AC port)
EN61000-4-5
Surge: ±1kV DM / ±2kV CM
EN61000-4-6
Conducted RF immunity: 3V/m
EN61000-4-8
Magnetic field immunity: 3A/m
EN61000-4-11
Voltage dip immunity
Notes
#1: All specification defined at 230Vac/50Hz, rated power and 25℃ ambient temperatures if not mentioned specifically.
#2: Ripple noise is measured with 0.47uF MLCC & 47uF low ESR capacitor.
#3: Calculated by Telcordia SR332 at 25℃ ambient temperatures.
#4: When operating altitude is higher than 2000m, the environment temperature derating factor is 0.36℃/100m.
Resources
Datasheet
Package Includes
1x Power Adapter
Note: Power cord is not included in the box.
