JCG046L LTE Antenna

SKU: ELC8908

₹ 299.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
JCG046L LTE Antenna₹ 299.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

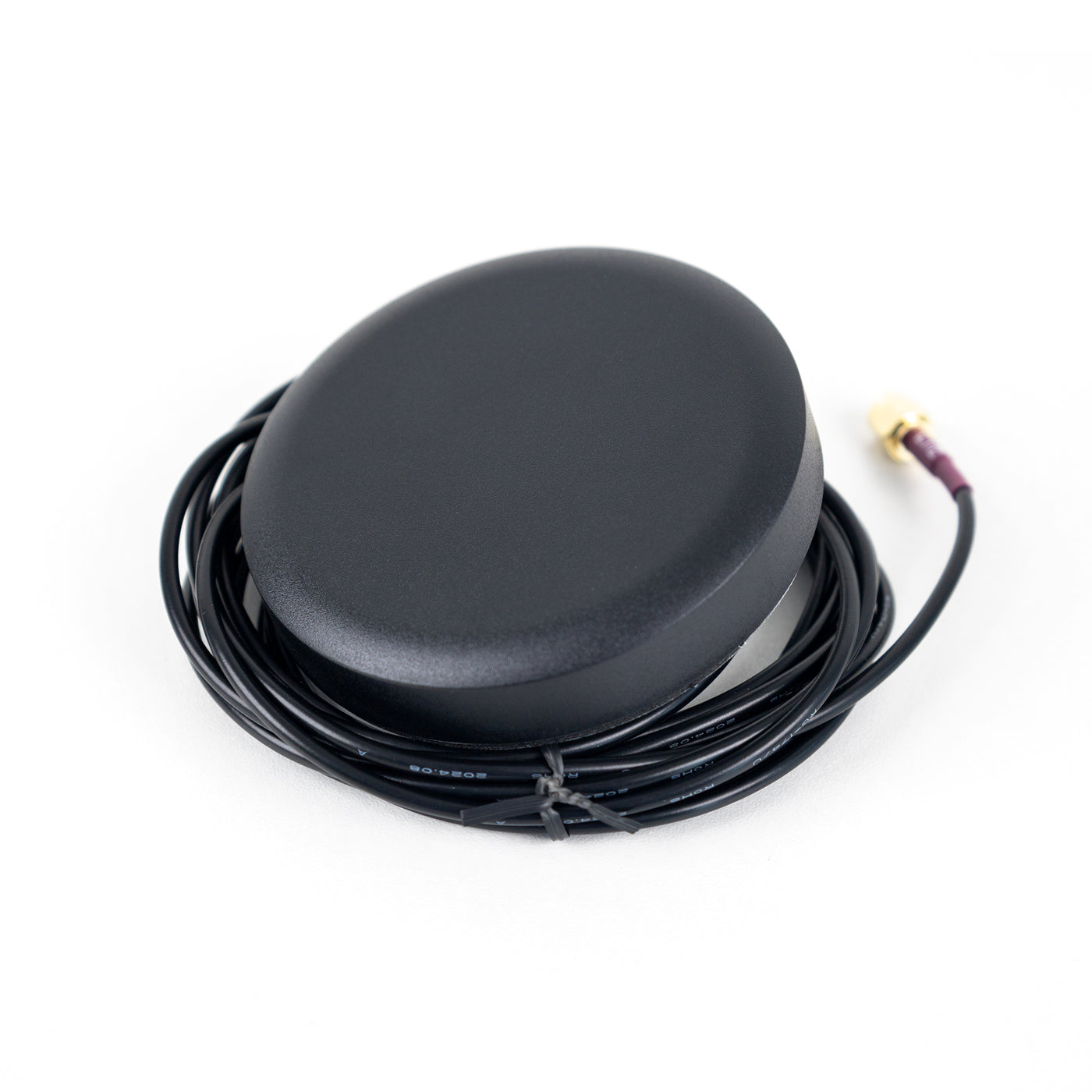

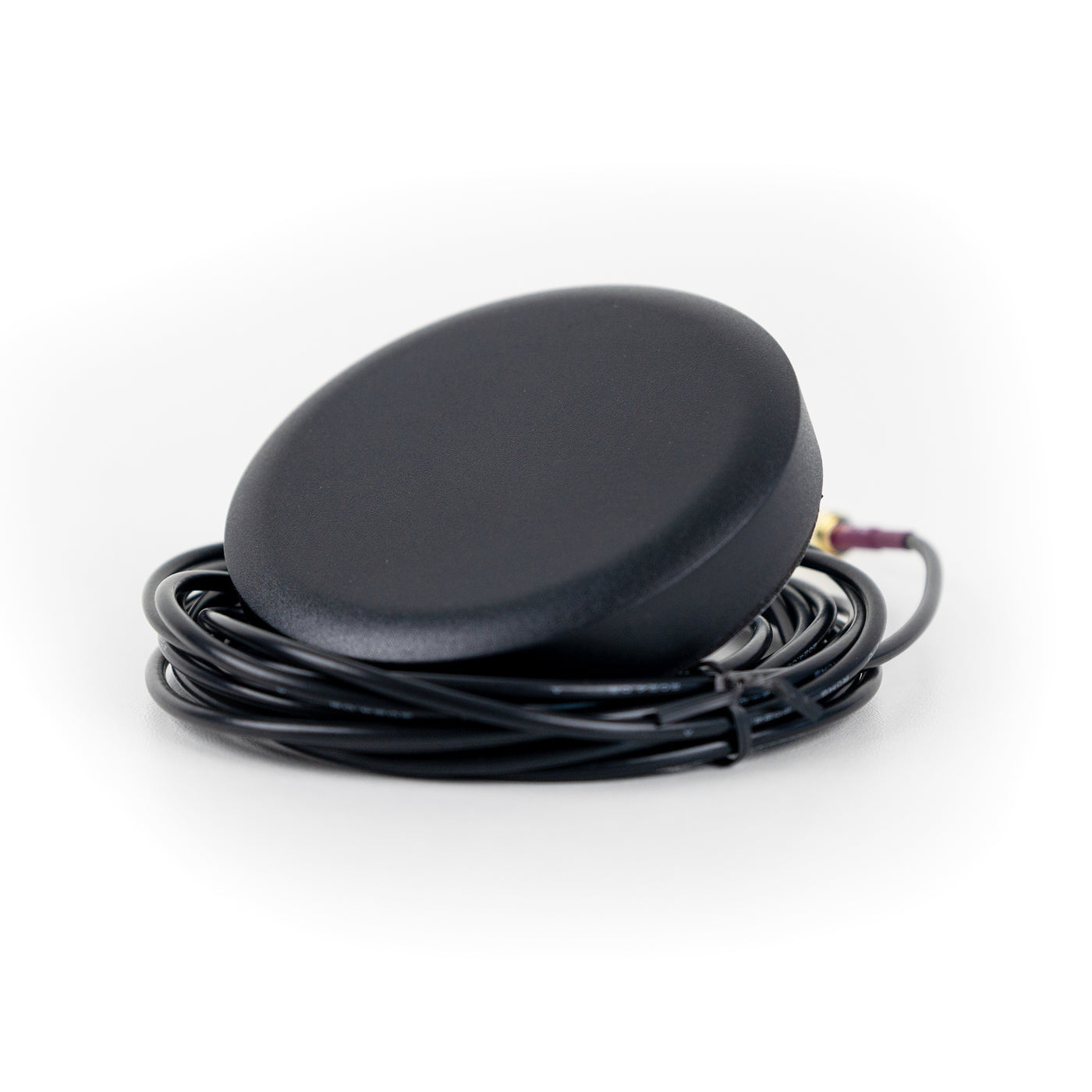

JCG046L is a multi-band antenna, which covers 700~2700MHz. It is specially designed for 2G, 3G and 4G applications. The high sensitivity of JCG046L will be the best candidate for 4G LTE Router, Vehicle Truck RV Motorhome, Marine Boat,  Cell Phone Booster System etc.

Features

  • Low profile structure
  • Both permanent and magnetic mountings are available
  • Covers all the mobile communication network
  • Fully waterproof

Applications

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application



Specifications

Item

Specifications

LTE Antenna MAIN

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R

＜3.0

Polarization

Linear

Gain

2.5dBi（Zenith）

Impendance

50Ω

LTE Antenna AUX

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R

＜3.0

Polarization

Linear

Gain

2.0dBi（Zenith）

Impendance

50Ω

Mechanical

Cable

RG174

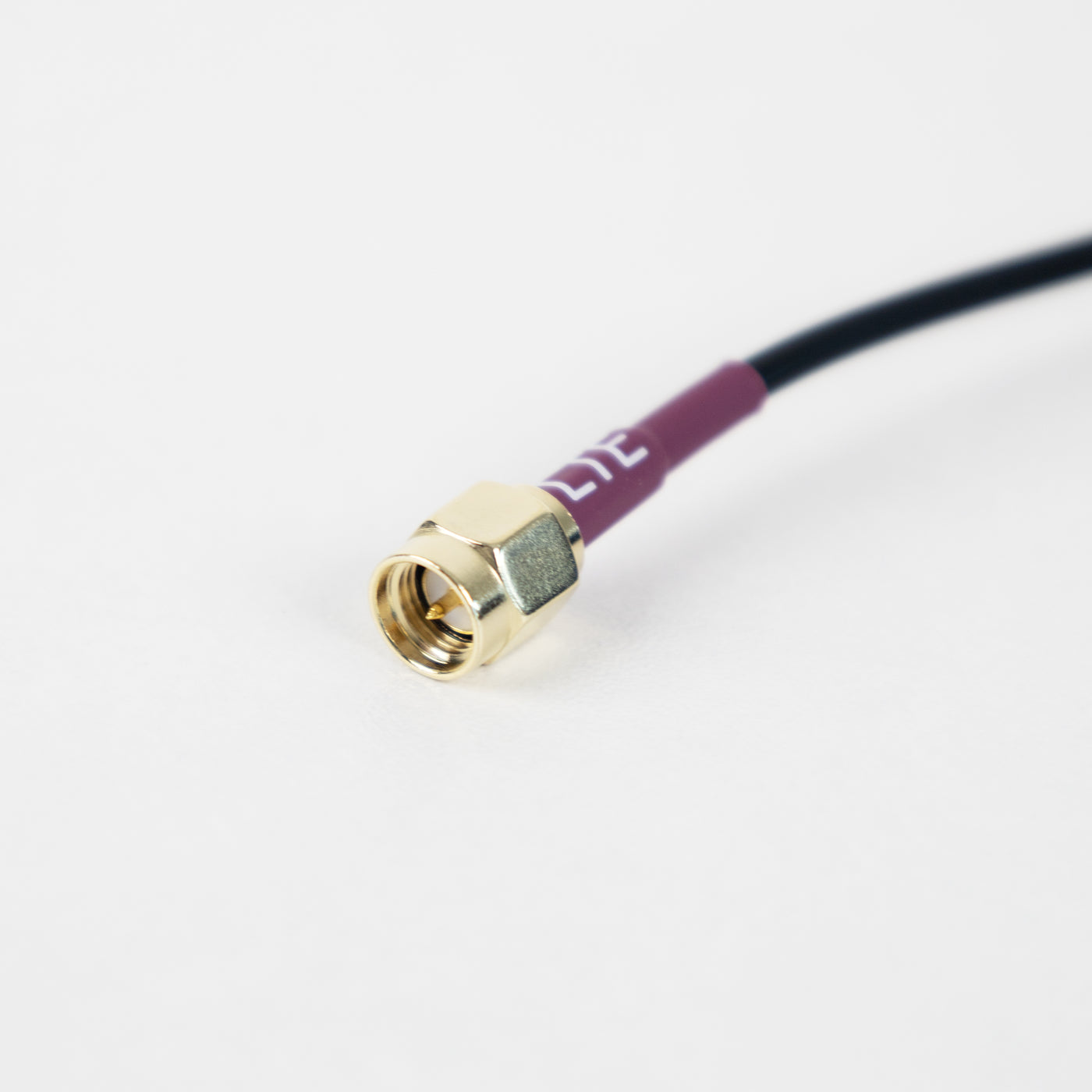

Connector

SMA or others

Material

ABS

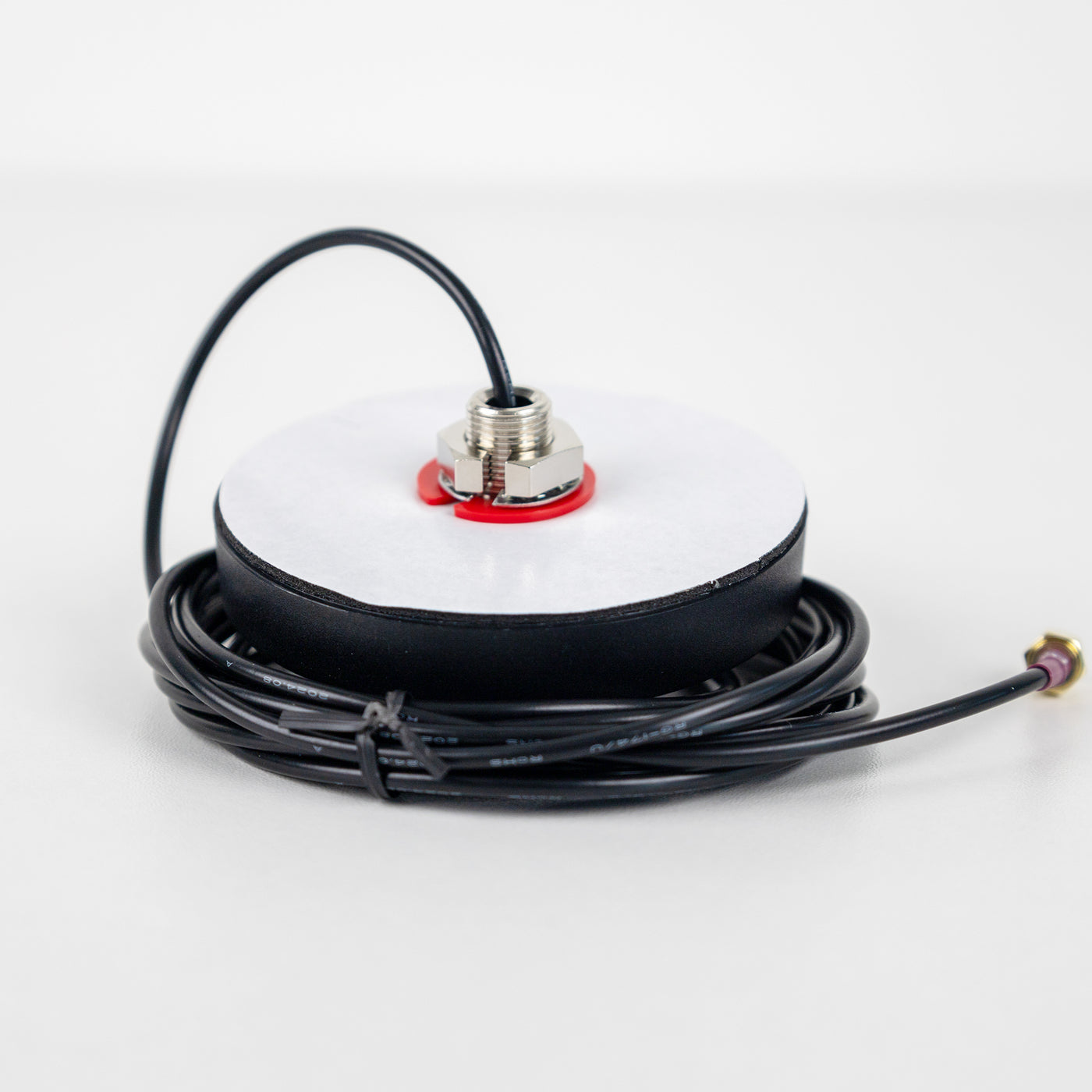

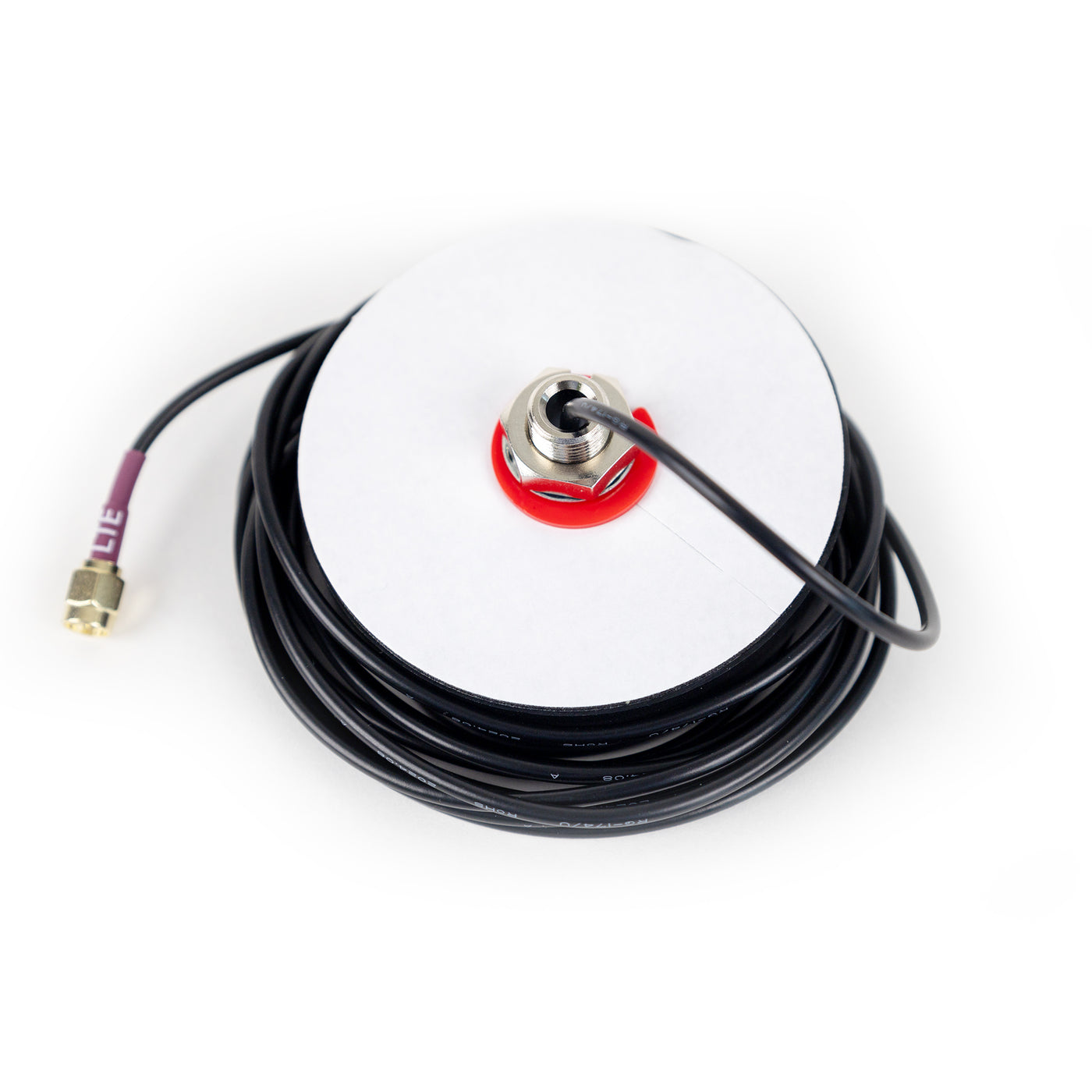

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67(exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant



What frequency bands does the JCG046L support and what applications is it suited for?
It covers 698-960 MHz and 1710-2690 MHz for LTE with a 50 ohm impedance and is suitable for 2G, 3G and 4G applications such as LTE routers and cellular booster systems.
How can this antenna be mounted?
It has a low profile design and offers both permanent and magnetic mounting options, with a screw mounting method available.
What are the environmental and durability specifications?
It is fully waterproof with IP67 rating excluding the cable outlet, operates from -40 C to plus 85 C, and supports humidity up to 95 percent and vibration testing from 10 to 55 Hz.
What are the connector and cable details?
The antenna uses RG174 cable and can have SMA or other connectors with a 50 ohm impedance.
Is there warranty information or a return policy for this product?
Warranty details are not provided in the product description; please check with the seller for warranty and return options.
