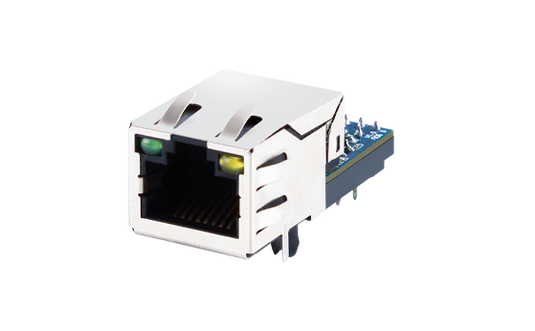

USR-K5 is a cost-effective TTL UART to Ethernet module with tiny size that can realize the bi-directional transmission between UART and Ethernet. USR-K5 is used for data transmission between TCP/UDP packets and the UART interface.
Function structure of UART to Ethernet Modules USR-K5
Industrial-grade Design
USR-K5 is a low-cost TTL UART to Ethernet module with tiny size, which can realize the bi-directional transmission between UART and Ethernet.
Product Details
Multi Work Modes to choose
Serial to Ethernet converter modules USR-K5 support four work modes: TCP Client, TCP Server, UDP Client and UDP Server.
TCP Client
It realizes the transparent transmission rabidly.
TCP Server
USR-K5 supports four client connection.
UDP Client
USR-K5 communicates with destination port of destination IP.
UDP Server
The data received by serial port is sent to the destination network which has been connected last time automatically.
Data Submitted Directly to Web Server
Serial to Ethernet converter modules USR-K5 support UART to Web. User can configure it by webpage configuring parameters simply, implement the serial port to https server data request quickly.
Registration packet sends to the server to identify the device. Heartbeat packet sends to server to determine the active state of the device. Heartbeat packet sends to serial port terminal to collect data automatically The content of registration package and heartbeat package and the heartbeat interval can change via commend.
User parameters configuration
USR-K5 supports the network protocol, serial protocol, web configuration, and AT commands to configure the parameter and provides a PC configuration tool, easy to use.
Features
Virtual COM
Solves the problem that PC software as serial port can not communicate with networked devices
Support USRIOT Cloud
USR-K5 can realize the cross-network data interaction between the server and terminal device to facilitate the user acquires the data in real-time. not fear the change of IP.
Hardware watchdog (WDT)
Ensure the device working in 24 hours, avoiding any downtimes.
Time to restart
Clear cache when reconnecting
Application
Networked Monitoring of Medical Machinery
UART to Ethernet modules USR-K5 can realize the data transmission between serial port and network quickly. At the same time, USR-K5 can make applications much more manageable to combine multiple medical devices into the local network.
Industrial Automation Network Monitoring
Many traditional serial port devices do not have networking capability. USR-K5 integrated TCP/IP protocol stack can provide the solution of network communication between the serial device to server via the network based on socket to improve the level of industrial automation.
Networked Monitoring of Medical Devices
The power data of the distribution box needs to be collected and reported in real time. Industrial-grade design tiny size module USR-K5 can provide reliable and stable networking functions, which is suitable for the large-scale integration requirements of power monitoring projects.
